27 Inch IP65 Touchscreen Monitor, Industrial Open Frame LCD Monitor For Kiosks

27 Inch IP65 Touchscreen Monitor, Industrial Open Frame LCD Monitor For Kiosks
27 Inch IP65 Touchscreen Monitor, Industrial Open Frame LCD Monitor For Kiosks 27 Inch IP65 Touchscreen Monitor, Industrial Open Frame LCD Monitor For Kiosks 27 Inch IP65 Touchscreen Monitor, Industrial Open Frame LCD Monitor For Kiosks 27 Inch IP65 Touchscreen Monitor, Industrial Open Frame LCD Monitor For Kiosks 27 Inch IP65 Touchscreen Monitor, Industrial Open Frame LCD Monitor For Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-270P-006(KOT-0270U-CA2P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Response Time (Typ.)12msDisplay Type16:9 Ratio 27" TFT-LCD,LED Backlight
Support Colors16.7MVideo InputVGA/DVI/HDMI
Frequency (H/V)30～80KHz / 50～75HzLED Back Light Life (Typ.)≥30,000 Hours
Support SystemXP,WIN7,WIN8,WIN10,Linux,AndroidLight Transmittance≥85%
Product NamePCAP Touch MonitorBrightness (Typ.)Pure LCD Panel 300cd/m2 With Touch Monitor 250cd/m2
Viewing Angle(Typ.at CR＞10))Horizontal(left/right) 89°/89°  Vertical(up/down) 89°/89°Touch InputUSB
Agency ApprovalsCCC, UL, FCC, CE, CB, RoHS

High Light

IP65 Touchscreen Monitor 27 Inch

,

Industrial Touchscreen Monitor 27 Inch

,

Kiosk Industrial Open Frame LCD Monitor

Leave a Message
Product Description

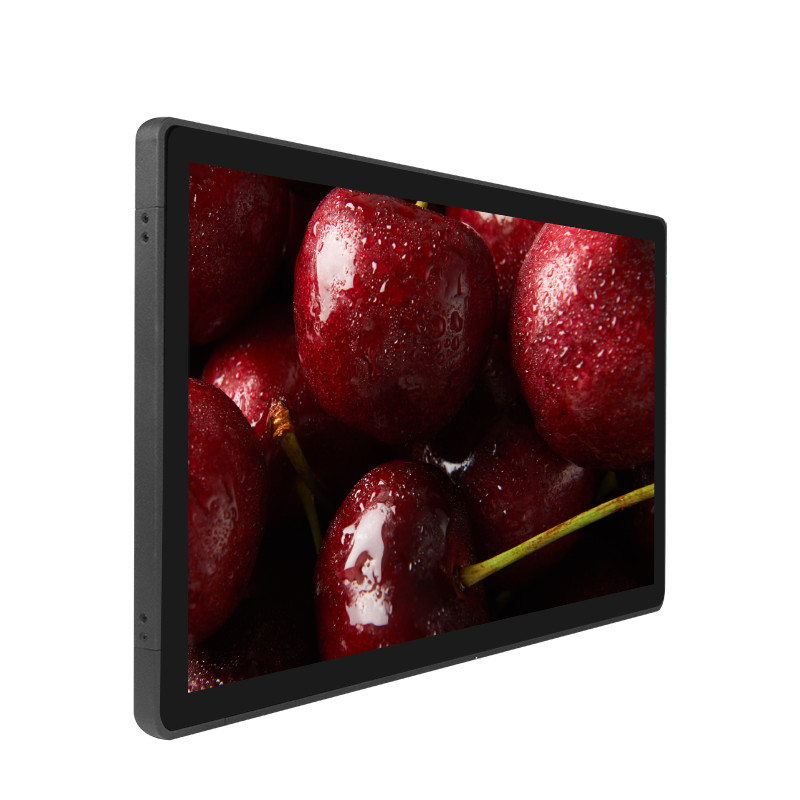

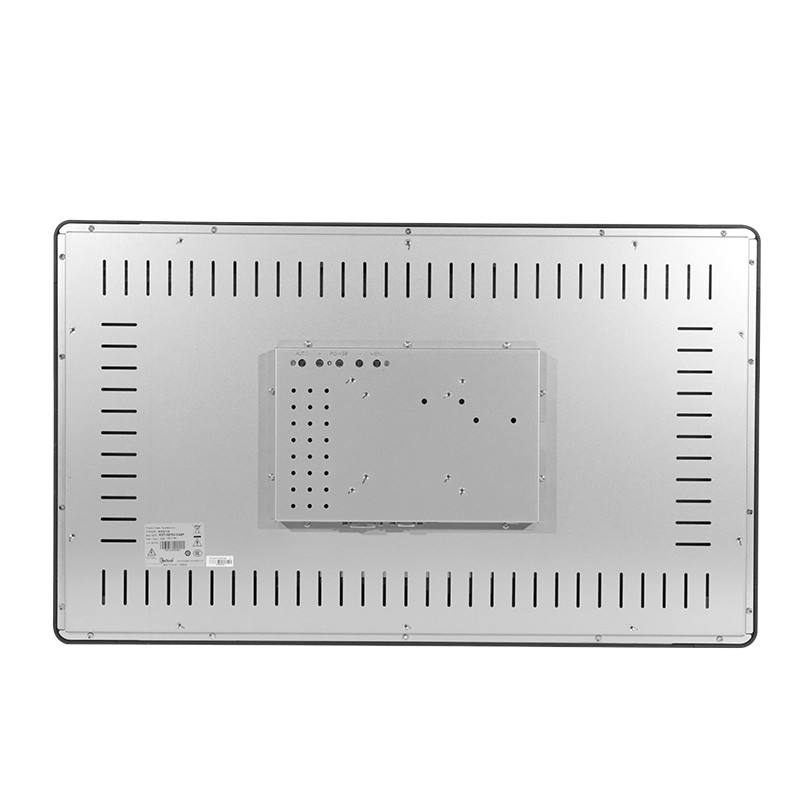

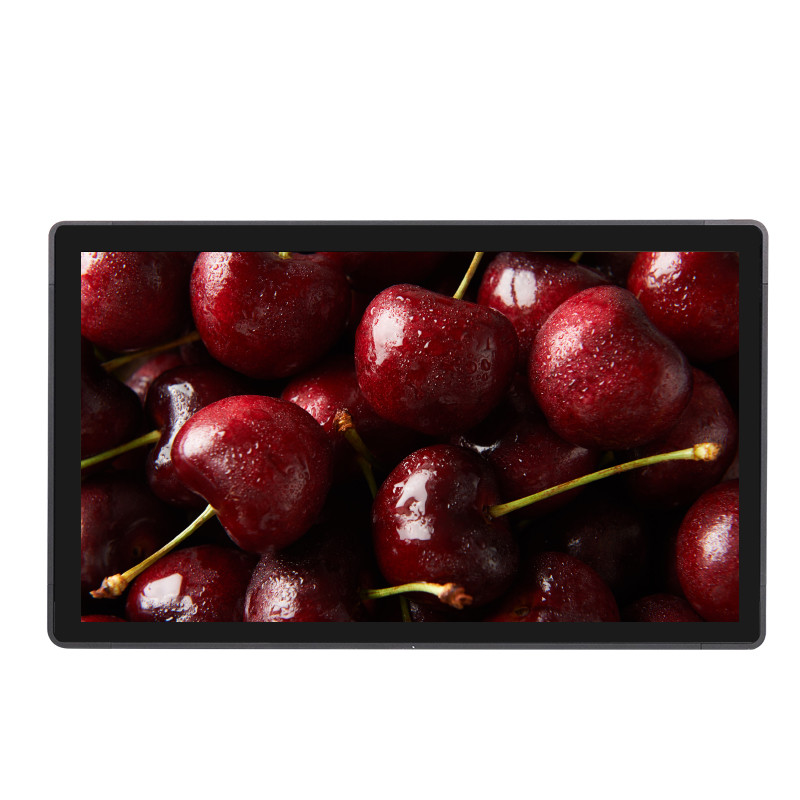

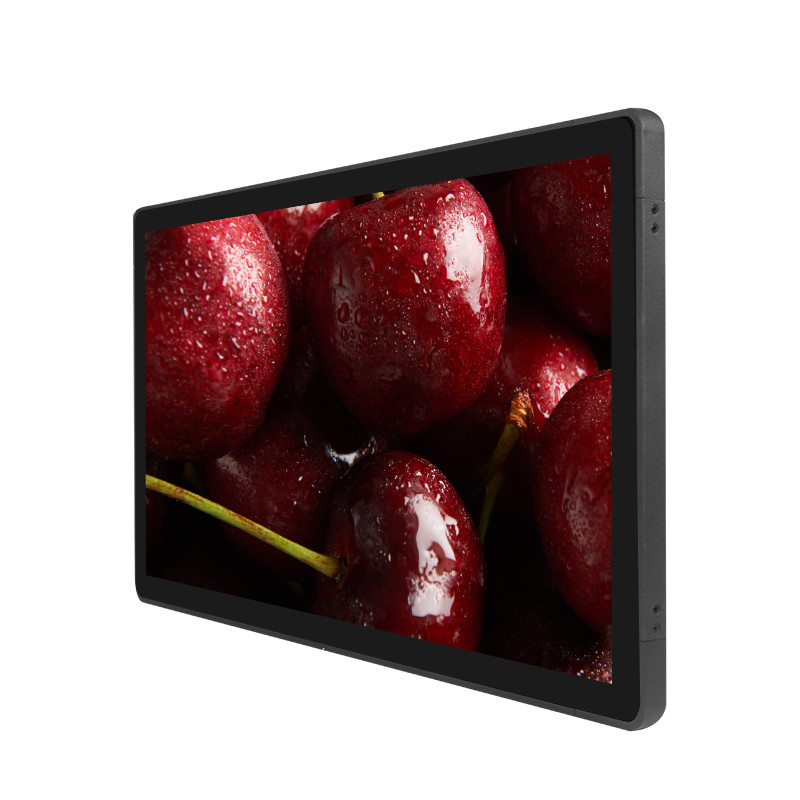

27 Inch IP65 Touchscreen Monitor, Industrial Open Frame LCD Monitor For Kiosks



PCAP Touch Monitor Main Features


  • 1. Support embedded,wall-mounted,rack-mounted,desktop,VESA support.

  • 2. IP65 grade water-proof,dust-proof for front panel.

  • 3. Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.

  • 4. Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.

  • 5. Compatible with various industrial systems/application.

  • 6. Support Resistive touch, SAW touch , IR touch, Capacitive touch.

  • 7. CCC, UL, FCC, CE, CB, RoHS certificate.

  • 8. Complete machine triple protection:explosion-proof, flameproof, moisture-proof.





PCAP Touch Monitor Specifications


 Complete Machine

Model No.

KOT-0270U-CA2P (P/N:KOT-270P-006)

Series

OT

Display Type

16:9 ratio 27" TFT-LCD, LED backing

Active Area

599.3*337.8(mm)

Monitor Dimensions (W*H*D)

655.9*394.4*48.5(mm)

Suggested Resolution

1920x1080 @ 60Hz

Support Colors

16.7M

Brightness (Typ.)

Pure LCD Panel

300cd/m²

With Touch Monitor

250cd/m²

Response Time (Typ.)

12ms

Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right):89°/89°

Vertical(up/down): 89°/89°

Contrast Ratio (Typ.)

3000:1

Video Input

VGA/DVI/HDMI

Frequency (H/V)

30～80KHz / 50～76Hz

Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～80%

MTBF

≥30,000 Hours

LED Back Light Life (Typ.)

≥30,000 Hours

Power Consumption

Standby Power: ≤2W / Operating Power: ≤35W

Mount Interface

1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount

OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Touch Type

27" Capacitive touch screens

Touch Input

USB

Support System

WIN7, ten touch points

Agency approvals

CCC, UL, FCC, CE, CB, RoHS

Regular Warranty

1 year





Applications

1. Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment,Industrial control equipment,Advertising kiosks,All-in-one conference machine,etc.

2. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;

3. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ?

Our minimum order quantity is 1pc only.


3. What is your warranty period?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the product according to the customer's requirements?

Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.


5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
