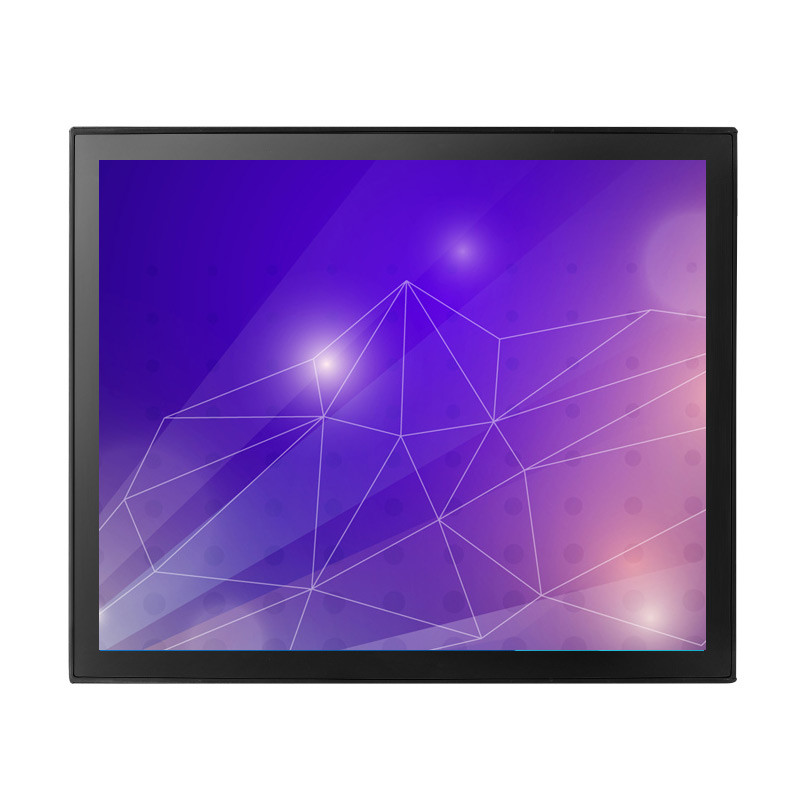

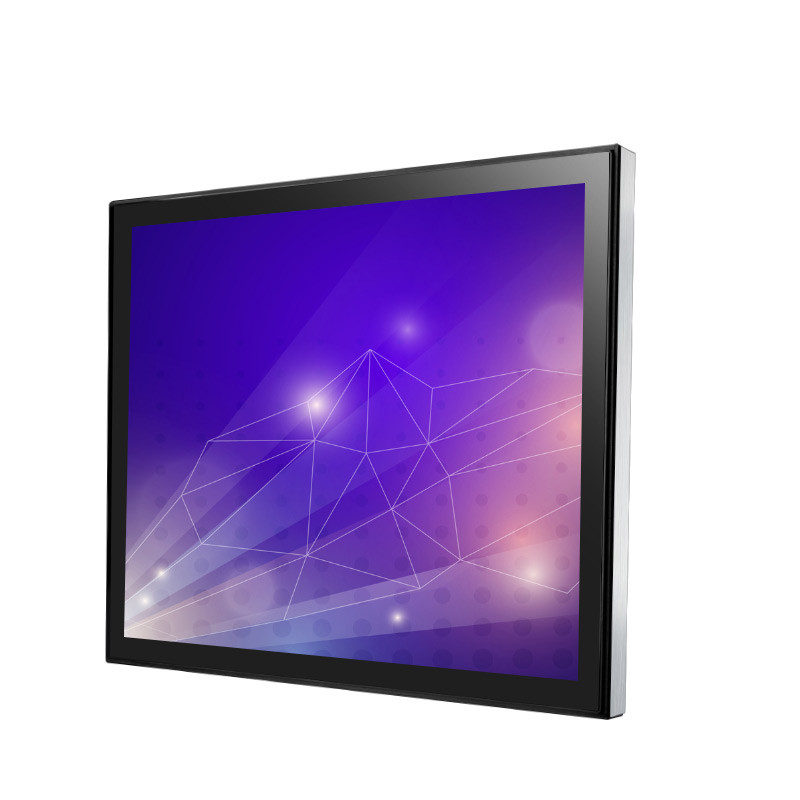

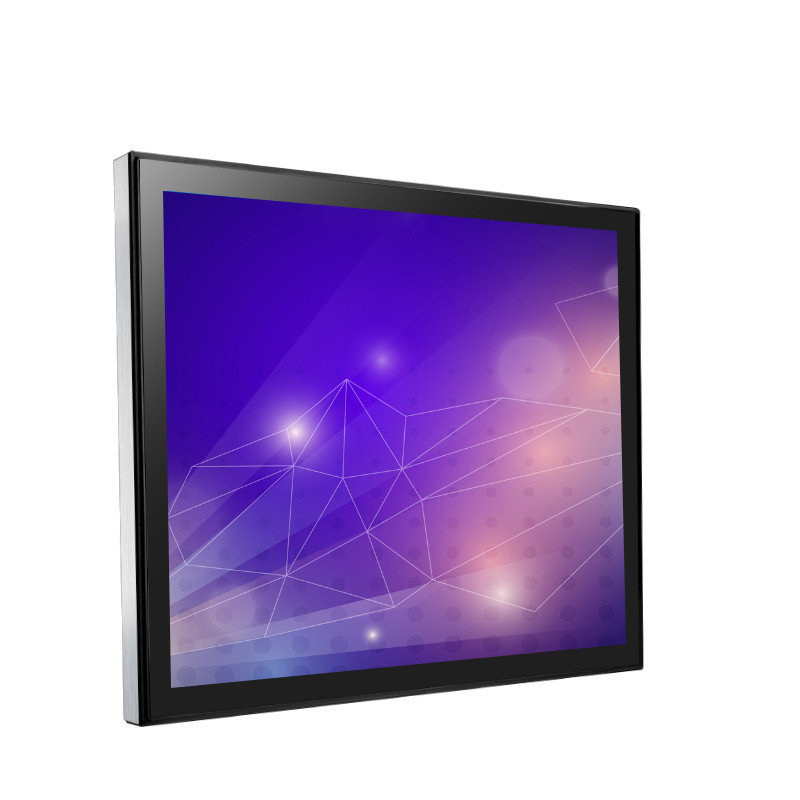

Dust Proof PCAP Touch Monitor Touchscreen 17 Inch With 3.9mm Tempered Glass Material
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contrast Ratio (Typ.) | 1000:1 | Suggested Resolution | 1280*1024 @ 60Hz |
|---|---|---|---|
| Video Input | VGA/DVI | Support Colors | 16.7M |
| Response Time | 5s | Thickness | 3.9±0.3(mm) |
| Touch Test | ≥50,000,000 Times | Product Name | PCAP Touch Monitor |
| High Light | Dust Proof PCAP Touch Monitor,PCAP Touch Monitor Touchscreen,Tempered Glass Monitor Touchscreen 17 Inch | ||
Product Description
17 Inch PCAP Touch Monitor 3.9mm Tempered Glass Gaming Bank Kiosk
PCAP Touch Monitor Main Features
Multi-points PCAP touch panel, high sensitive and fast-response
1280*1024 high resolution and wide viewing angle

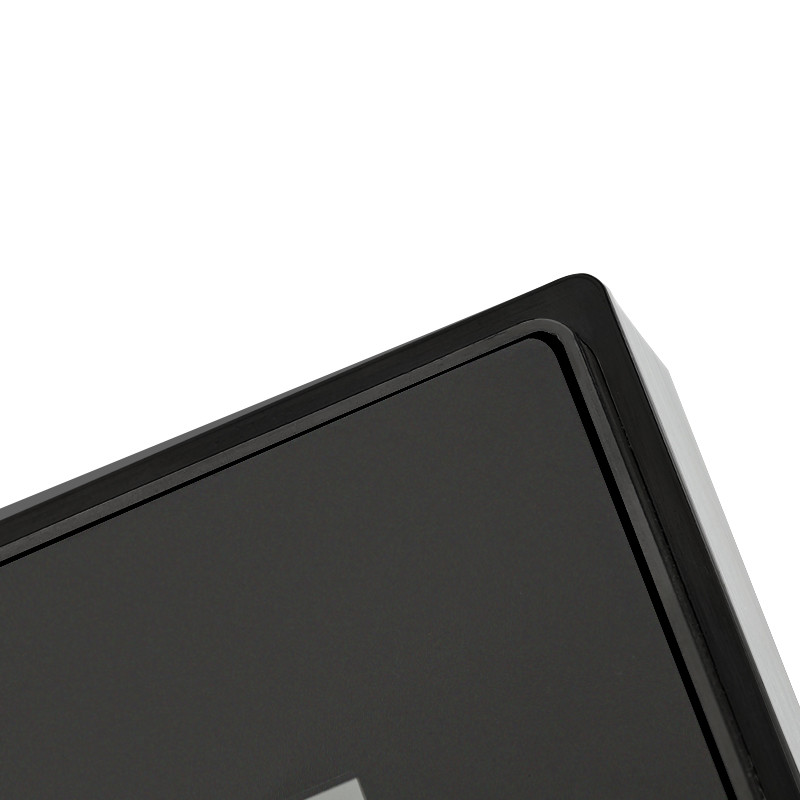

With 3.9mm tempered glass, vandal-proof and dust-proof
The PCAP Touch Monitor has VGA+DVI interfaces,USB for touch
Pure flat design, sleek and fashionable with IP65 surface waterproof function
VESA mounting,75mm and 100mm, mount bracket supports horizontal or vertical mount
The PCAP Touch Monitor Support system: XP,WIN7,WIN8,WIN10, Linux, Android
Factory competitive price and fast delivery
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0170U-CA4P | |
Series | OT | |
Display Type | 5:4 Ratio 17" TFT-LCD | |
Active Area | 337.9*270.3(mm) | |
Monitor Dimensions (W*H*D) | 378.9*313.3*47.3(mm) | |
Suggested Resolution | 1280*1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 212cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（ N.W/G.W ） | 4.1Kg(1pcs)/9.85Kg(2pcs in one package) | |
Package dimensions | 466*185*403(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO, +,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 17" Riot capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 340.92*273.34(mm) |
Thickness | 3.9±0.3(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the PCAP Touch Monitoraccording to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, Boleto and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
