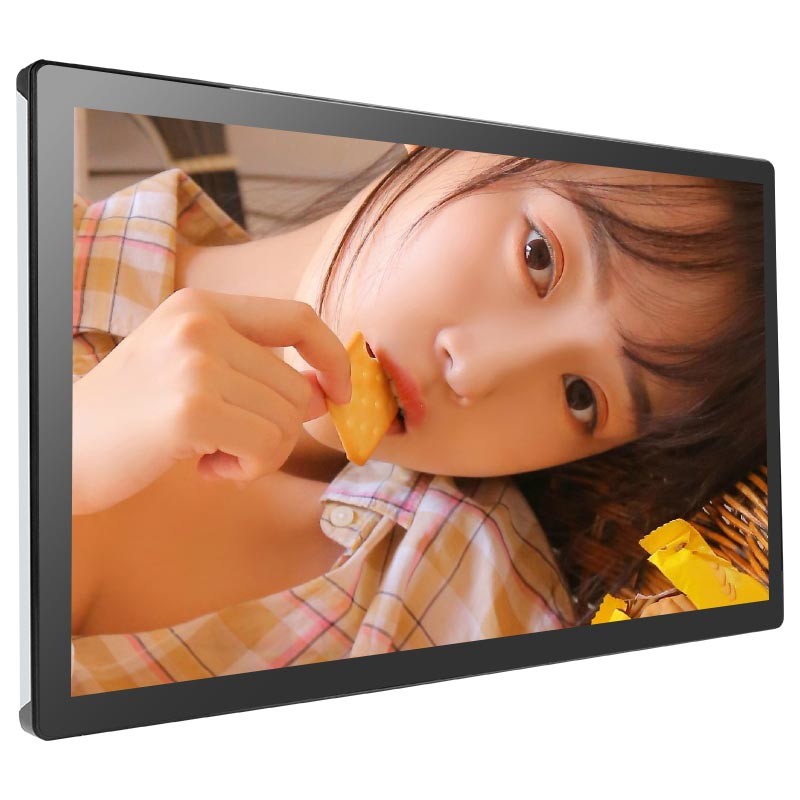

Indoor TFT LCD Ultra Thin Touch Screen Monitor 23.8 Inch With 10 Touch Points

Indoor TFT LCD Ultra Thin Touch Screen Monitor 23.8 Inch With 10 Touch Points
Indoor TFT LCD Ultra Thin Touch Screen Monitor 23.8 Inch With 10 Touch Points Indoor TFT LCD Ultra Thin Touch Screen Monitor 23.8 Inch With 10 Touch Points Indoor TFT LCD Ultra Thin Touch Screen Monitor 23.8 Inch With 10 Touch Points Indoor TFT LCD Ultra Thin Touch Screen Monitor 23.8 Inch With 10 Touch Points Indoor TFT LCD Ultra Thin Touch Screen Monitor 23.8 Inch With 10 Touch Points
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, BIS
Model NumberKOT-0238U-CA4P(KOT-238P-002）
Minimum Order Quantity1 piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Response Time (Typ.)14msDisplay Type16:9 Ratio 23.8" TFT-LCD
Support Colors16.7MVideo InputVGA/HDMI
Contrast Ratio (Typ.)1000:1Operating RH20%～80%
Storage RH10%～90%Light Transmittance≥85%
Product NamePCAP Touch MonitorWarrantyOne Year
High Light

Ultra Thin Touch Screen Monitor 23.8Inch

,

10Touch Ultra Thin Touch Screen Monitor

,

TFT ultra thin lcd monitors

Leave a Message
Product Description


Indoor Use 23.8 Inch PCAP Touch Screen Monitors Customized Ultra-Thin LCD Monitors


PCAP Touch Monitor Description


The device is equipped with capacitive technology with 10 touch points, 3mm thickness glass, drift-free operation, more than 50,000,000 times touch test. Comparing with other touch technologies, the touch operation experience is better. Keetouch PCAP touch monitors all are certified with UL, CE, CB, FCC, BIS, etc to ensure quality.





PCAP Touch Monitor Specifications



Complete Machine

Model No.

KOT-0238U-CA4P (P/N:KOT-238P-002)

Series

OT

Display Type

16:9 Ratio   23.8" TFT-LCD

Active   Area

528*297.5(mm)

Monitor   Dimensions (W*H*D)

573.3*345.1*43(mm)

Suggested Resolution

1920*1080 @ 60Hz

Support   Colors

16.7M

Brightness   (Typ.)

Pure LCD   Panel

250cd/㎡

With Touch Monitor

215cd/㎡

Response Time   (Typ.)

14ms

Viewing   Angle(Typ.at CR＞10)）

Horizontal(left/right)

89°/89°

Vertical(up/down)

89°/89°

Contrast Ratio (Typ.)

1000:1

Video Input

VGA/HDMI

Frequency   (H/V)

30～82KHz / 50～75Hz



Power   Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating   Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

MTBF

30,000 Hours

LED   Back Light Life (Typ.)

30,000 Hours

Power Consumption

Standby   Power: 2W / Operating Power: ≤27W

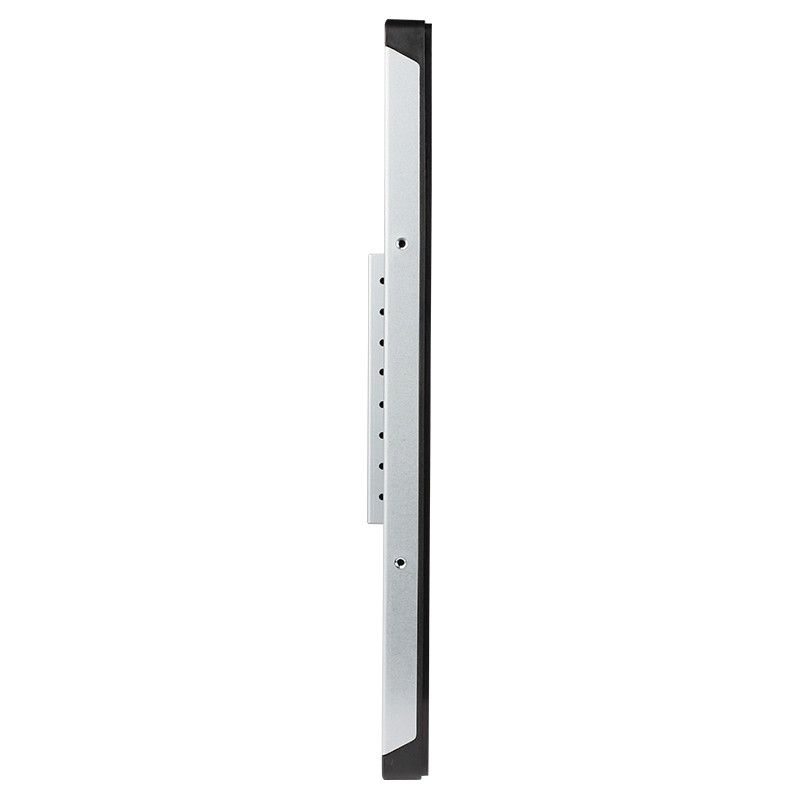

Mount   Interface

1.      VESA   75mm and 100mm

2.      Mount   bracket, horizontal or vertical mount

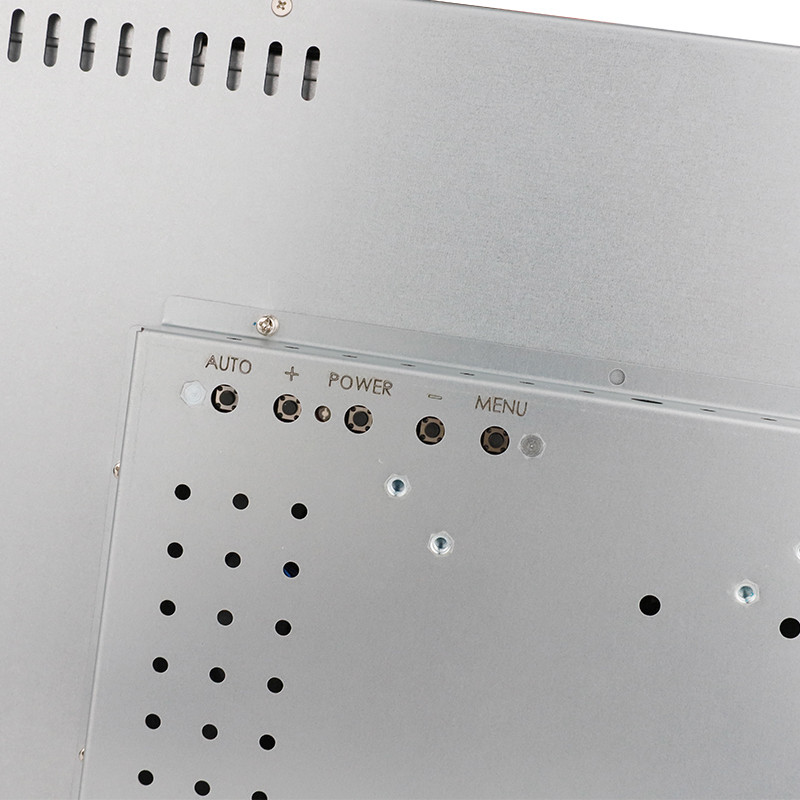

OSD   Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V   Location, Languages, Function, Reset

Agency approvals

CCC,   UL, FCC, CE, CB, RoHS



Touch Screen

Touch   Type

23.8"   Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

7H

Light Transmittance

≥87%

Support   System

XP,WIN7,WIN8,WIN10,Linux,Android

Glass   Thickness

3(mm)

Touch Test

≥50,000,000 times


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.






PCAP Touch Monitor Mechanical Dimensions



dimensions_1






Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.









FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.



2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


5. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.
