21.5 Inch PCAP Touch Monitor 1000：1 Contrast Ratio IP65 Waterproof For Retail Stores
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | KeeTouch |
| Certification | CCC, UL, FCC, CE, CB, RoHS |
| Model Number | KOT-0215U-CA4P (KOT-215P-011) |
| Minimum Order Quantity | 1 piece |
| Price | Negotiable |
| Packaging Details | 1pcs in one package |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T, Western Union,L/C |
| Supply Ability | 10000 Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Regular Warranty | 1 Year | Contrast Ratio | 1000:1 |
|---|---|---|---|
| Touch Interface | USB | Screen Size | 21.5 Inch |
| Suggested Resolution | 1920x1080 @ 60Hz | Response Time | 5ms |
| Touch Type | 21.5" Capacitive Touch Screens | Support System | XP, WIN7, WIN8, WIN10, Linux, Android |
Product Description

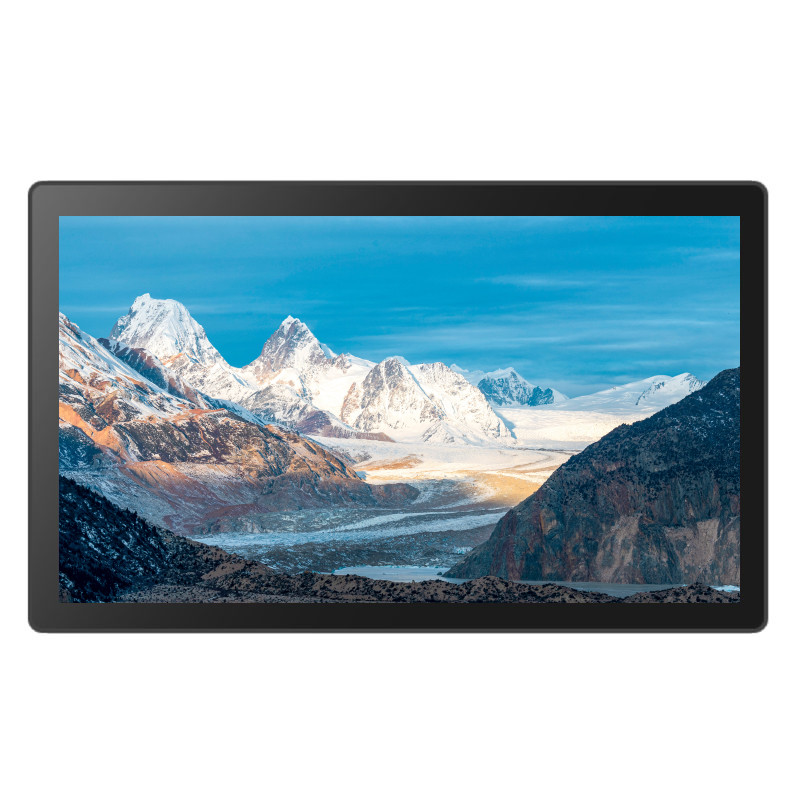

21.5 Inch PCAP Touch Monitor 1000:1 Contrast Ratio IP65 Waterproof For Retail Stores
PCAP Touch Monitor is a capacitive touch screen display that provides multi-touch digital monitor with enhanced viewing experience. It features a contrast ratio of 1000:1, a display ratio of 16:9, and a suggested resolution of 1920x1080. It is compatible with XP, WIN7, WIN8, WIN10, Linux, and Android systems, and comes with a regular 1-year warranty. This multi-touch digital monitor is designed to deliver a smooth and intuitive experience, allowing users to interact directly with the content on the screen.
Specification:
Complete Machine | ||
Model No. | KOT-0215U-CA4P (P/N:KOT-215P-011) | |
Series | ||
Display Type | 16:9 Ratio 21.5" TFT-LCD | |
Active Area | 478*270(mm) | |
Monitor Dimensions (W*H*D) | 516*311*40(mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/㎡ |
With Touch Monitor | 212cd/㎡ | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGADVIHDMI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 5.6Kg(1pcs)/7.7Kg(1pcs in one package) | |
Package dimensions | 610*410*145(mm)(1pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch Screen | |
Touch Type | 21.5" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 477.6*269(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Product Dimensions
Applications:
KeeTouch PCAP touch monitors are widely used in industries such as retail, gaming, kiosk, hotels, self-service, travel service, education, finance, transit, conference, healthcare, public service, e-commerce, restaurants, payment systems, museums, exhibitions, smart home, subways, control and operation systems, railway stations, airports, entertainments, etc.
Customization:
Welcome to KeeTouch! We are proud to offer our KOT-0215U-CA4P (KOT-215P-011) Capacitive Touch Screen Display. This Multi-Touch Interactive Display is designed to meet the highest standards of quality and performance. It is certified with CCC, UL, FCC, CE, CB, RoHS and has a minimum order quantity of one piece. The contrast ratio is 1000:1 and the response time is 5ms. The display ratio is 16:9 and it supports XP, WIN7, WIN8, WIN10, Linux, and Android. It comes with USB touch interface and is packaged in one piece per package. The price is negotiable and delivery time is 7-15 work days. Payment terms are T/T, Western Union, and L/C. We have a supply ability of 10000 pieces per week.
Support and Services:
PCAP Touch Monitor Technical Support and Services
PCAP Touch Monitor provides a range of technical support and services to ensure your product works optimally. Our technical support and services include:
- Online troubleshooting and technical support
- Software updates
- Hardware repair and replacement
- On-site installation and setup
- Training and education
FAQ:
Q: What is the origin of the KeeTouch Touch Monitor?
A: This KeeTouch Touch Monitor originates from Shenzhen, China.
Q: Does the KeeTouch Touch Monitor have any certifications?
A: Yes, This KeeTouch Touch Monitor is certified by the CCC, UL, FCC, CE, CB, and RoHS.
Q: What is the minimum order quantity for the KeeTouch Touch Monitor?
A: The minimum order quantity for this KeeTouch Touch Monitor is one piece.
Q: How much does the KeeTouch Touch Monitor cost?
A: The price of this KeeTouch Touch Monitor is negotiable.
Q: What is the delivery time for the KeeTouch Touch Monitor?
A: The delivery time for this KeeTouch Touch Monitor is 7-15 work days.
