Front Side 19 Inch Pcap Touch Monitor 1440×900 High Resolution For Kiosks

Front Side 19 Inch Pcap Touch Monitor 1440×900 High Resolution For Kiosks
Front Side 19 Inch Pcap Touch Monitor 1440×900 High Resolution For Kiosks Front Side 19 Inch Pcap Touch Monitor 1440×900 High Resolution For Kiosks Front Side 19 Inch Pcap Touch Monitor 1440×900 High Resolution For Kiosks Front Side 19 Inch Pcap Touch Monitor 1440×900 High Resolution For Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0190U-CA2P169(PN KOT-190P-038)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging Details2pcs in one package
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type16:10 RatioContrast Ratio1000:1
Video InputVGA/DVIFrequency(H/V)30~80KHz / 60~75Hz
Touch Response≦10msOperating Temp0~50°C
High Light

1440×900 pcap touch monitor

,

kiosks front side pcap touch monitor

,

1440×900 capacitive touch monitor

Leave a Message
Product Description

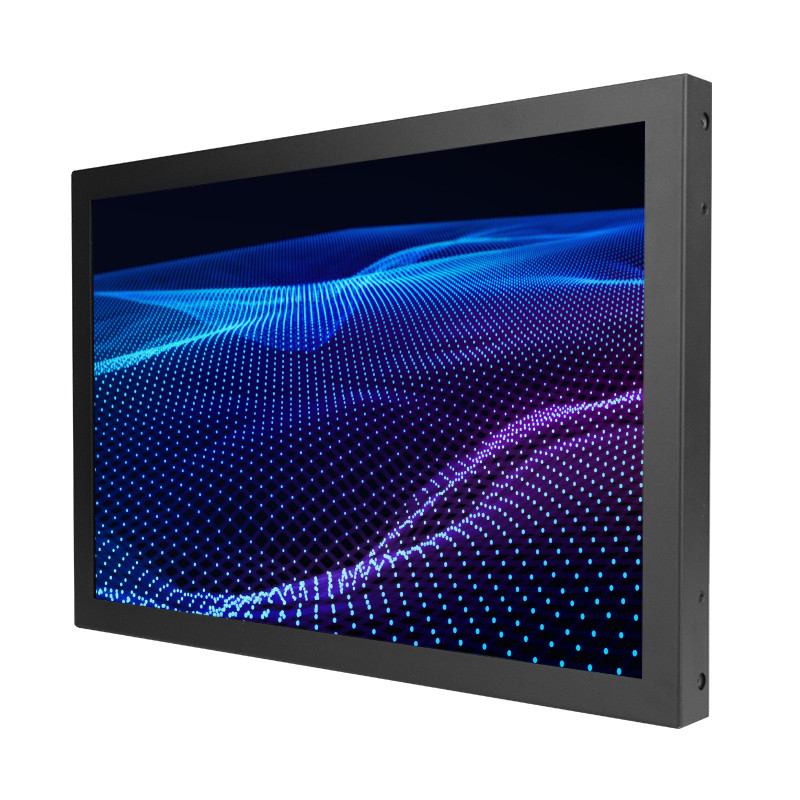

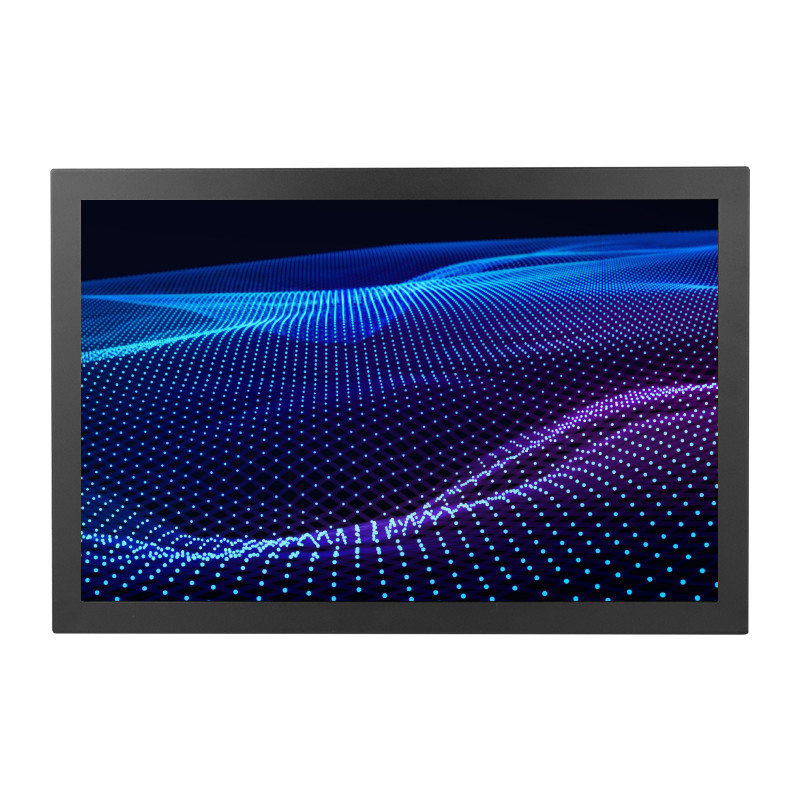

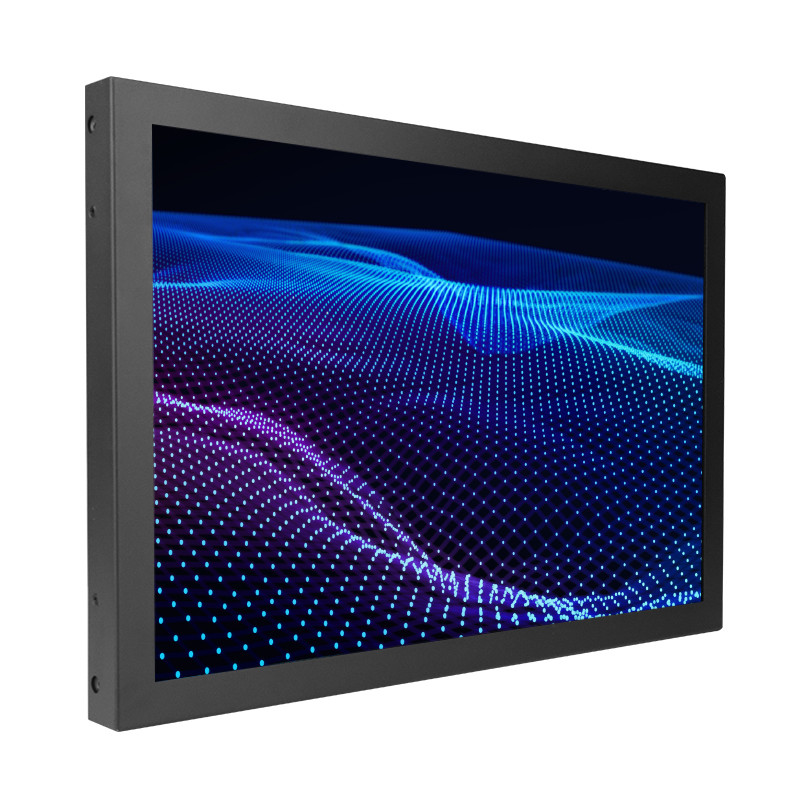

19 Inch PCAP Touch Monitor 1440×900 High Resolution for Kiosks



  • With PCAP touch screen, fast response and high sensitivity
  • High resolution, high contrast ratio, wide viewing angle with super image quality
  • Anti-vandal and front side waterproof PCAP touch monitor
  • VGA&DVI interfaces, USB port for touch
  • Multiple mounting options include VESA mount, horizontal and vertical brackets mount
  • Operation system: XP, WIN7, WIN8, WIN10, Linux, Android
  • With 40+ engineers, OEM and ODM are supported and other sizes (7’’- 43’’) can be offered.






Specification of PCAP Touch Monitor

 Model No.

  KOT-0190U-CA2P169 (PN: KOT-190P-038)

 Series

  OT, Wide-screen , LED backlight

 Display Type

16:10 Ratio 19" Active matrix TFT-LCD

 Display Active Area

408.5×255. 5(mm)

 Touch Monitor Dimensions

  Width: 452mm
  Height: 299mm
  Depth: 51mm

 Suggested Resolution

1440×900 @ 60Hz

 Support Colors

16.7M

 Brightness(Typ.)

Pure LCD Panel (Brightness from 300~1000nits can be customized )

250cd/m²

With Projected Capacitive Touchscreen

212cd/m²

 Response Time(Typ.)

5ms

 Viewing Angle

 (Typ.at CR>10)

Horizontal(left/right):      85°/85°

Vertical(up/down):        80°/80°

 Contrast Ratio(Typ.)

1000:1

 Video Input

VGA and DVI

 Frequency(H/V)

30~80KHz / 60~75Hz

 Power Supply

Type: External brick
  Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operation Temp.

0~50°C

Storage Temp.

-20~60°C

Operation RH

20%~80%

Storage RH

10%~90%

 MTBF

30,000 Hours

 LED Back Light Life(Typ.)

30,000 Hours

 Weight(N.W/G.W)

5.5Kg(1pcs) / 13.75Kg (2pcs in one package)

 Package Dimension

525×220×380(mm)(2pcs in one package)

 Power Consumption

20W

 Standby Power Consumption

0.95W

 Mount Interface

1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical

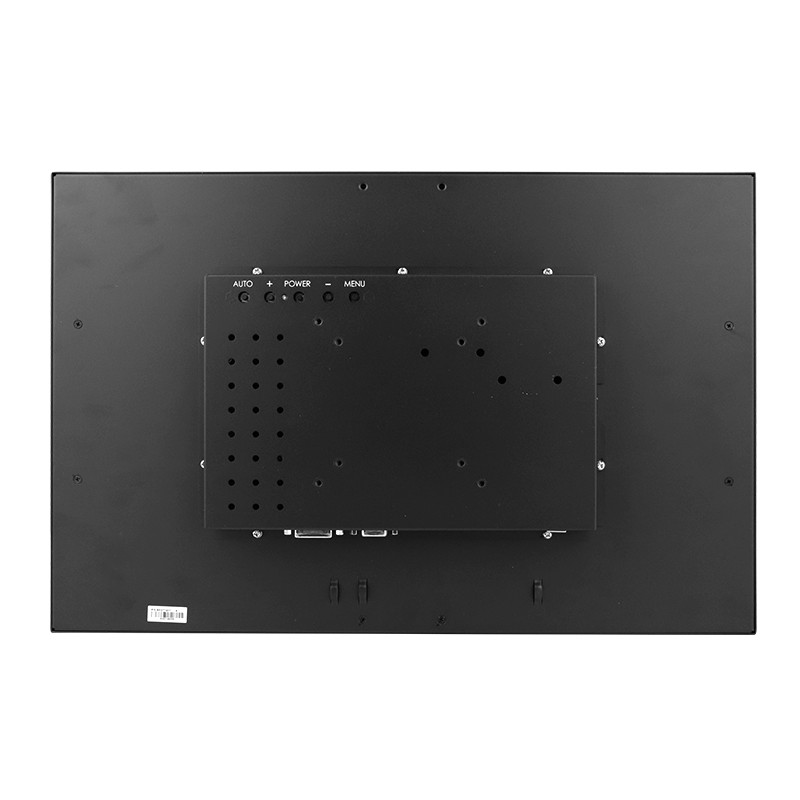

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,

Languages, Function, Reset

 Touch Screen Type

19" Projected Capacitive touch sceen, 10 pointes in win7

 Touch System Interface

USB / RS-232(optional)

 Touch Response time

10ms

 Agency Approval

   CCC, UL, FCC, CE, CB, RoHS







Application:

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.








Why choose us?

1.We are a leading provider of industrial grade touch products and touch solutions, founded in 2006.

2.Our core competence is differentiated product customization. With over 40 professional R&D engineer, we can offer OEM and ODM service to meet customer's individual requirements.

3.Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.

4.Professional after-sales team at any time to provide service to customers.






FAQ:

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
