RoHS 43 Inch Pcap Touch Monitor 1920x1080 Resolution For Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Active Area | 942.9*531.25 (mm) | Contrast Ratio (Typ.) | 3000:1 |
|---|---|---|---|
| Video Input | VGA/DVI/HDMI | Support Colors | 16.7M |
| Buttons | AUTO,+,POWER,-,MENU | Product Name | PCAP Touch Monitor |
| Warranty | 1 Year | Brightness | 380cd/m² |
| Resolution | 1920x1080 @ 60Hz | Response Time (Typ.) | 6.5 ms |
| High Light | 1920x1080 pcap touch monitor,kiosks pcap touch monitor,1920x1080 capacitive touch monitor | ||
Product Description

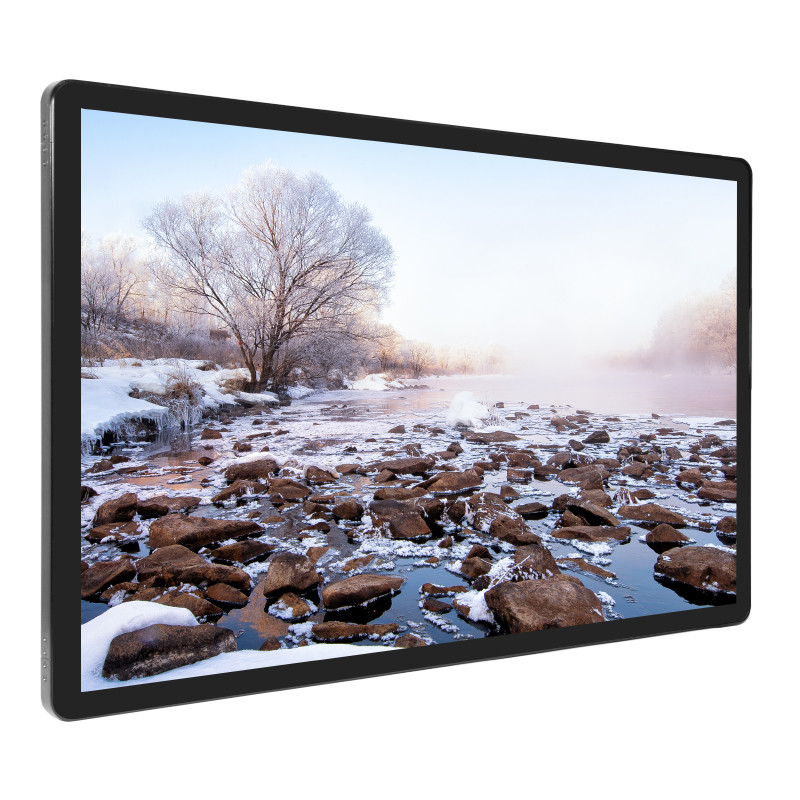

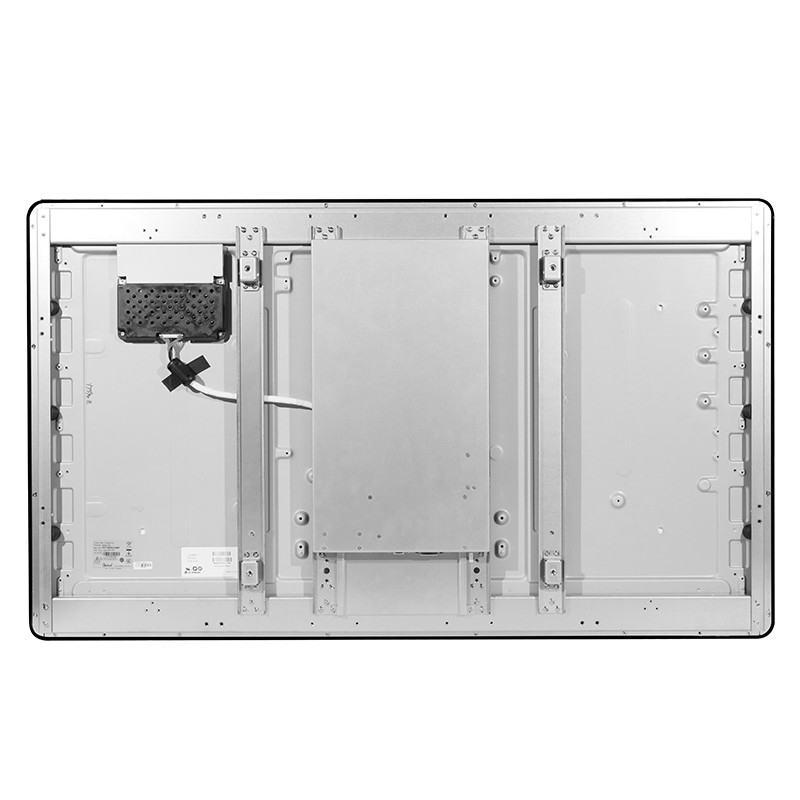

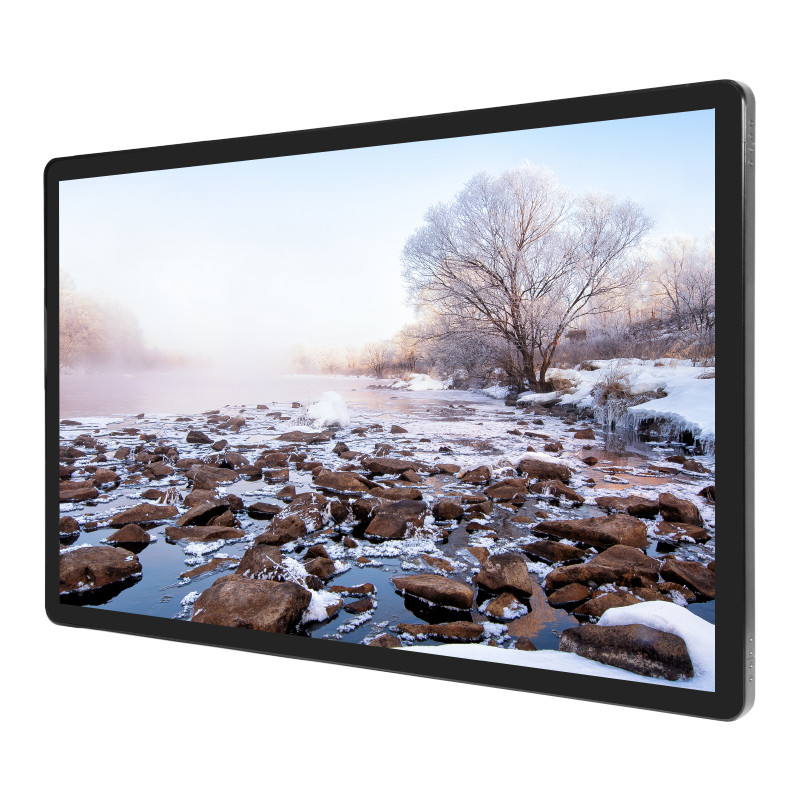

43 Inch PCAP Touch Monitor 1920x1080 Resolution for Kiosks
This PCAP touch monitor comes with below main features: 1920*1080 resolution, 3000:1 contrast ratio, vandal-proof, IP65 waterproof and dust-proof with full viewing angle. The PCAP touch monitor is industrial grade, which is with high quality. Also, VGA, DVI and HDMI interfaces are provided for use, USB port for touch. In addition, with our professional R&D engineers, customized services can be offered to meet your individual needs.
Specification of PCAP Touch Monitor
Complete Machine | ||
Model No. | KOT-0430U-CA4P(P/N:KOT-430P-004) | |
Series | OT | |
Display Type | 16:9 Ratio 43" TFT-LCD | |
Active Area | 942.9*531.25 (mm) | |
Monitor Dimensions (W*H*D) | 1004*592*64.6 (mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 380cd/m² |
With Touch Monitor | 320cd/m² | |
Response Time (Typ.) | 6.5 ms | |
Viewing Angle(Typ.at CR＞10)） | 89°/89° | |
89°/89° | ||
Contrast Ratio (Typ.) | 3000:1 | |
Video Input | VGADVIHDMI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 24V±5% | |
Environment | Operating Temp. | -10～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 50,000 Hours | |
LED Back Light Life (Typ.) | 50,000 Hours | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch Type | 43" Capacitive touch screens, antiglare and tempered type | |
Touch input | USB | |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android | |
Regular Warranty | 1 year | |
Application:
Retail
Gaming
Kiosk
Self-service
Finance
Transit
Conference
Education
Healthcare
Public service
E-commerce
Hotels
Restaurants
Advantages of PCAP Touch Monitor
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
