43 inch Ip65 Pcap Touchscreen Display Waterproof Open Frame
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Active Area | 942.9*531.25 (mm) | Contrast Ratio (Typ.) | 3000:1 |
|---|---|---|---|
| Video Input | VGA/DVI/HDMI | Buttons | AUTO,+,POWER,-,MENU |
| Product Name | PCAP Touch Monitor | Warranty | 1 Year |
| Brightness | 380cd/m² | Resolution | 1920x1080 @ 60Hz |
| Response Time (Typ.) | 6.5 Ms | Operating Temp | -10～50°C |
| Agency Approvals | CCC, UL, FCC, CE, CB, RoHS | ||
| High Light | 43inch pcap touchscreen display,ip65 pcap touchscreen display,waterproof open frame capacitive touch monitor | ||
Product Description

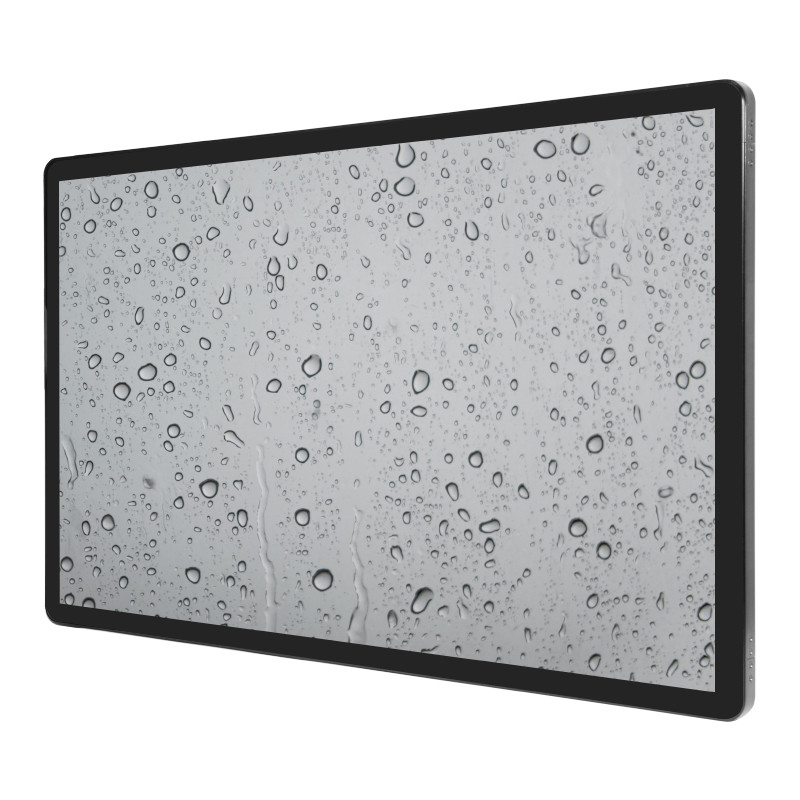

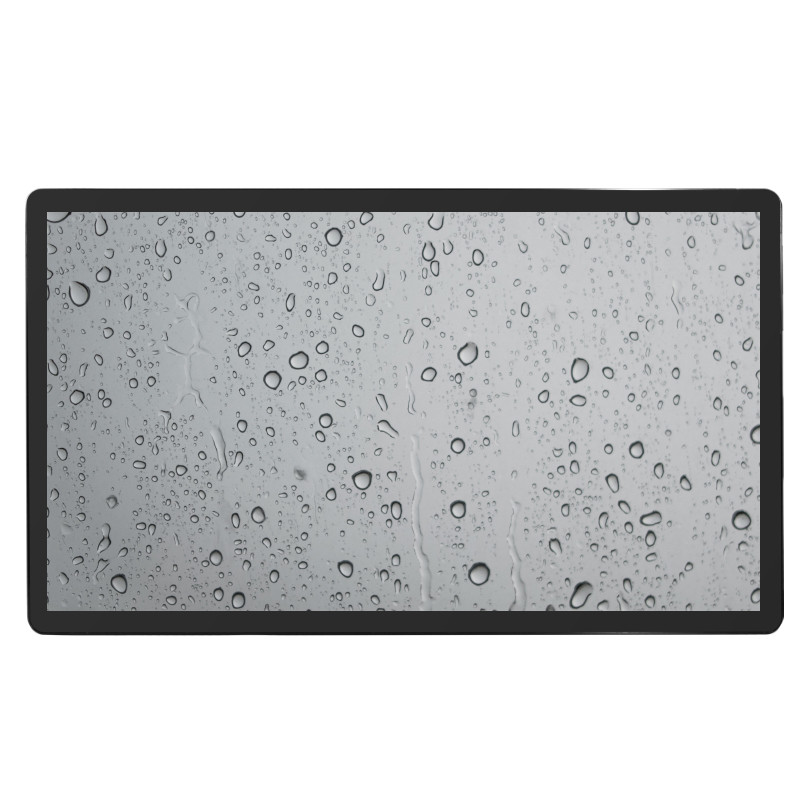

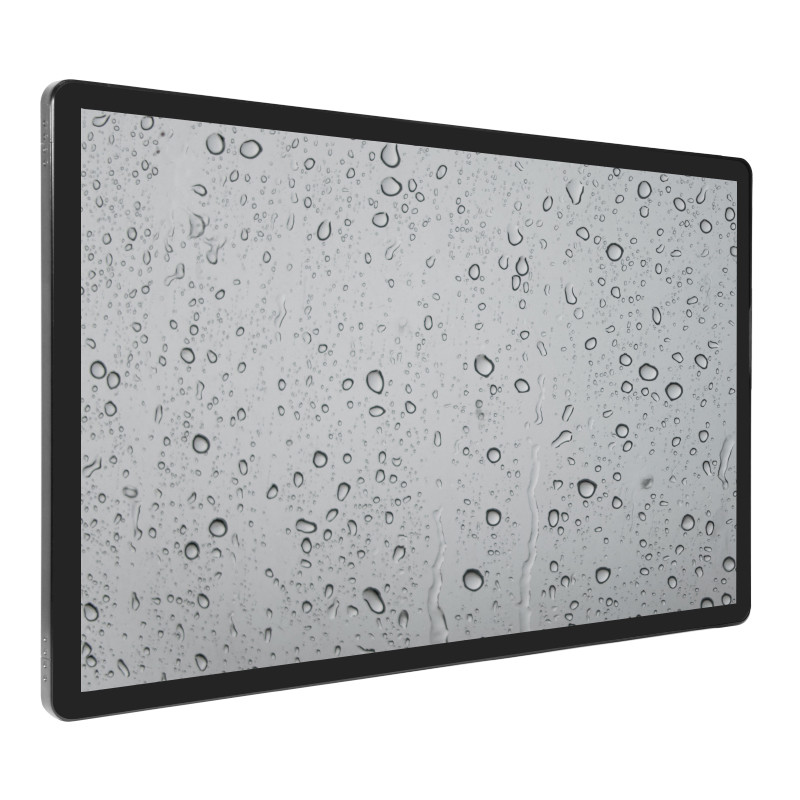

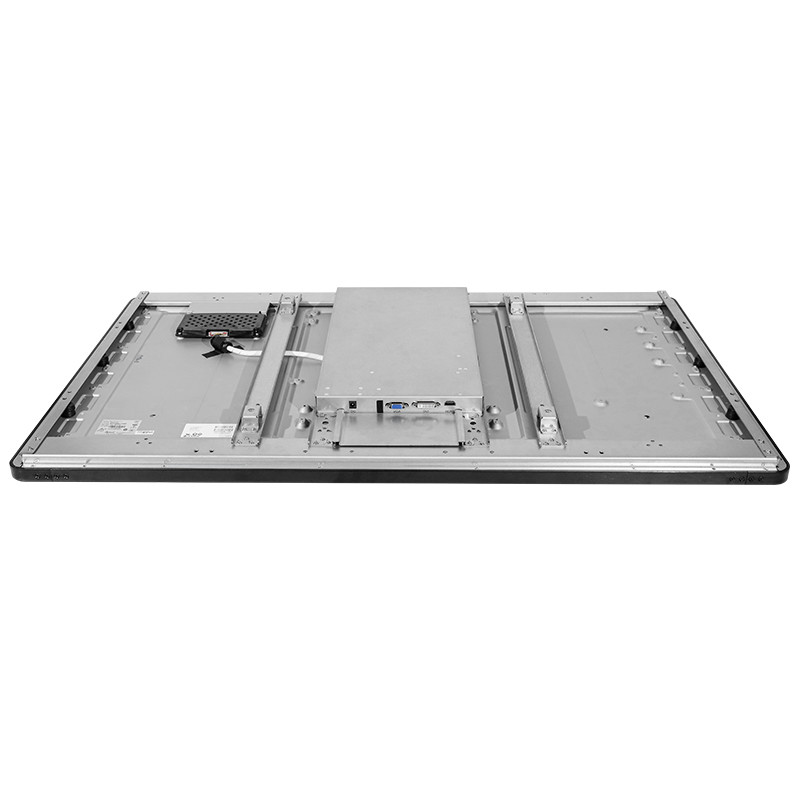

43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display
This 43 inch PCAP touch monitor adopts KeeTouch Projected Capacitive touch technology with high resolution and ideal touch experience. With PCAP multi touch, high sensitive and fast response. This PCAP touch monitor is industrial grade, with high quality image, durable and fashionable with dust-proof, vandal-proof and IP65 waterproof functions. Moreover, other sizes (7’’ - 43’’ ) can be offered for your option.
Specification of PCAP Touch Monitor
Complete Machine | ||
Model No. | KOT-0430U-CA4P(P/N:KOT-430P-004) | |
Series | OT | |
Display Type | 16:9 Ratio 43" TFT-LCD | |
Active Area | 942.9*531.25 (mm) | |
Monitor Dimensions (W*H*D) | 1004*592*64.6 (mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 380cd/m² |
With Touch Monitor | 320cd/m² | |
Response Time (Typ.) | 6.5 ms | |
Viewing Angle(Typ.at CR＞10)） | 89°/89° | |
89°/89° | ||
Contrast Ratio (Typ.) | 3000:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 24V±5% | |
Environment | Operating Temp. | -10～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 50,000 Hours | |
LED Back Light Life (Typ.) | 50,000 Hours | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch Type | 43" Capacitive touch screens, anti glare and tempered type | |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android | |
Regular Warranty | 1 year | |
Application:
PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why Choose Us?
1.Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ:
1. Can you produce the PCAP touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
3. What is your delivery time for the PCAP touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
