43 Inch Pcap Touch Monitor 16:9 Ratio Industrial Grade
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contrast Ratio (Typ.) | 3000:1 | Video Input | VGA/DVI/HDMI |
|---|---|---|---|
| Product Name | PCAP Touch Monitor | Warranty | 1 Year |
| Brightness | 380cd/m² | Resolution | 1920x1080 @ 60Hz |
| Response Time (Typ.) | 6.5 Ms | Operating Temp | -10～50°C |
| Agency Approvals | CCC, UL, FCC, CE, CB, RoHS | MTBF | 50,000 Hours |
| Touch Type | 43" Capacitive Touch Screens, Antiglare And Tempered Type | ||
| High Light | 43 inch pcap touch monitor,high brightness pcap touch monitor,43 inch capacitive touch monitor | ||
Product Description

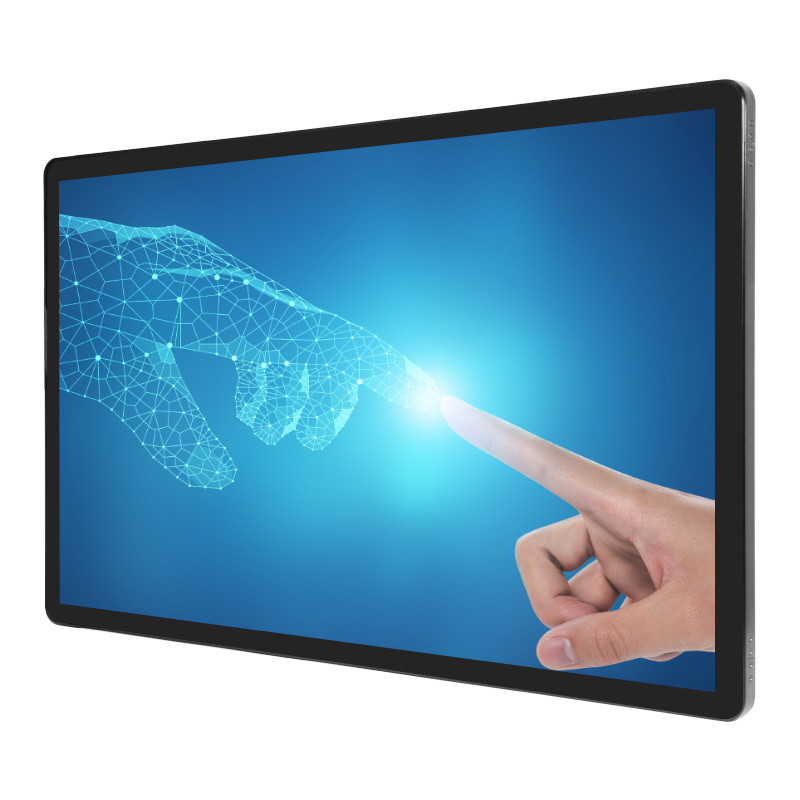

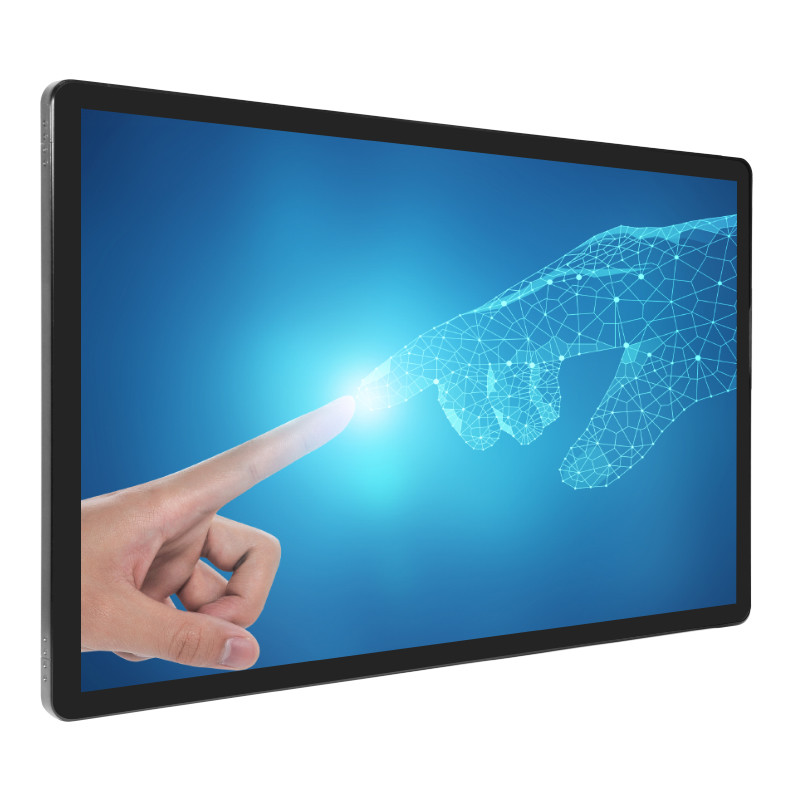

43 Inch PCAP Touch Monitor 16:9 Ratio Industrial Grade
This 43 inch PCAP touch monitor comes with high durability, accuracy and multi-touch support, IP65 waterproof, dust-proof and anti-vandal, so they can be used in harsh environments normally. This PCAP touch monitor delivers high resolution, high contrast with full viewing angle. VGA, DVI and HDMI interfaces are provided for use. Also, other sizes (7’’-43’’) can be offered. And it supports various operation systems: XP, WIN7, WIN8, WIN10, Linux, Android.
Specification of PCAP Touch Monitor
Complete Machine | ||
Model No. | KOT-0430U-CA4P(P/N:KOT-430P-004) | |
Series | OT | |
Active Area | 942.9*531.25 (mm) | |
Monitor Dimensions (W*H*D) | 1004*592*64.6 (mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 380cd/m² |
With Touch Monitor | 320cd/m² | |
Response Time (Typ.) | 6.5 ms | |
Viewing Angle(Typ.at CR＞10)） | 89°/89° | |
89°/89° | ||
Contrast Ratio (Typ.) | 3000:1 | |

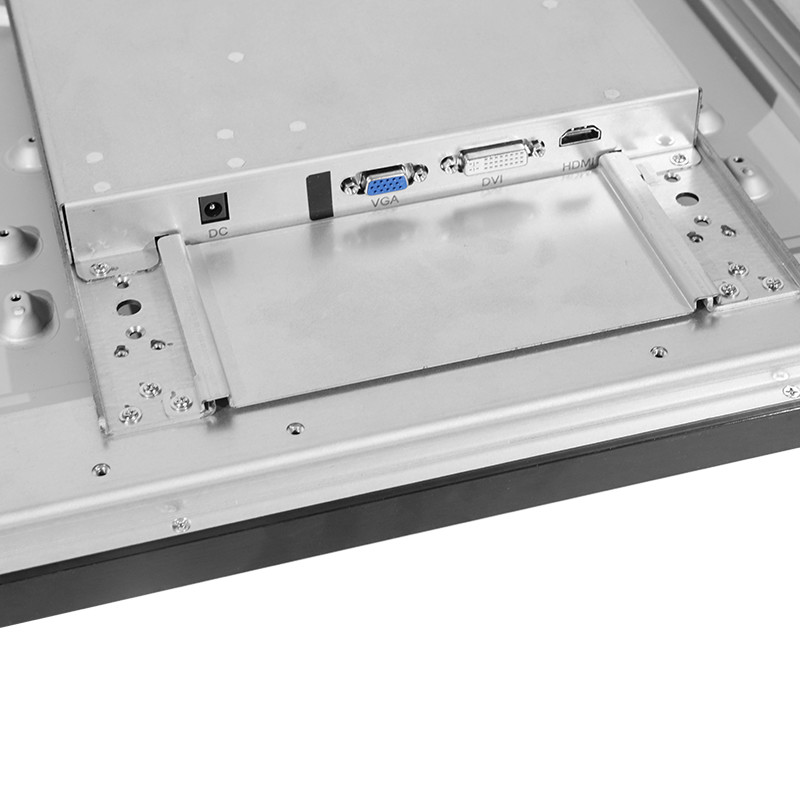

Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 24V±5% | |
Environment | Operating Temp. | -10～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 50,000 Hours | |
LED Back Light Life (Typ.) | 50,000 Hours | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch Type | 43" Capacitive touch screens, antiglare and tempered type | |
Touch input | USB | |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android | |
Regular Warranty | 1 year | |
Application:
PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1.We are a leading provider of industrial grade touch products and touch solutions, founded in 2006.
2.Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer's individual requirements.
3.Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4.Professional after-sales team at any time to provide services to customers.
FAQ:
1. What package do you provide for the PCAP touch monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the PCAP touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
