23.8 Inch PCAP Touch Monitor 3000:1 Contrast Ratio For Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mount Interface | Vest Mount, Horizontal Or Vertical Bracket Mount | Operating System | XP,WIN7,WIN8,WIN10,Linux,Android |
|---|---|---|---|
| Contrast Ratio | 3000:1 | Resolution | 1920x1080 |
| Operating Temp | 0～50°C | Video Input | VGA/DVI/HDMI |
| Touch Technology | Projected Capacitive Touch | Display Type | 16:9 Ratio 23.8" TFT-LCD |
| Brightness (Typ.) | 250cd/m² | Regular Warranty | 1 Year |
| High Light | waterproof pcap touch monitor,ip65 pcap touch monitor,dvi pcap monitor | ||
Product Description

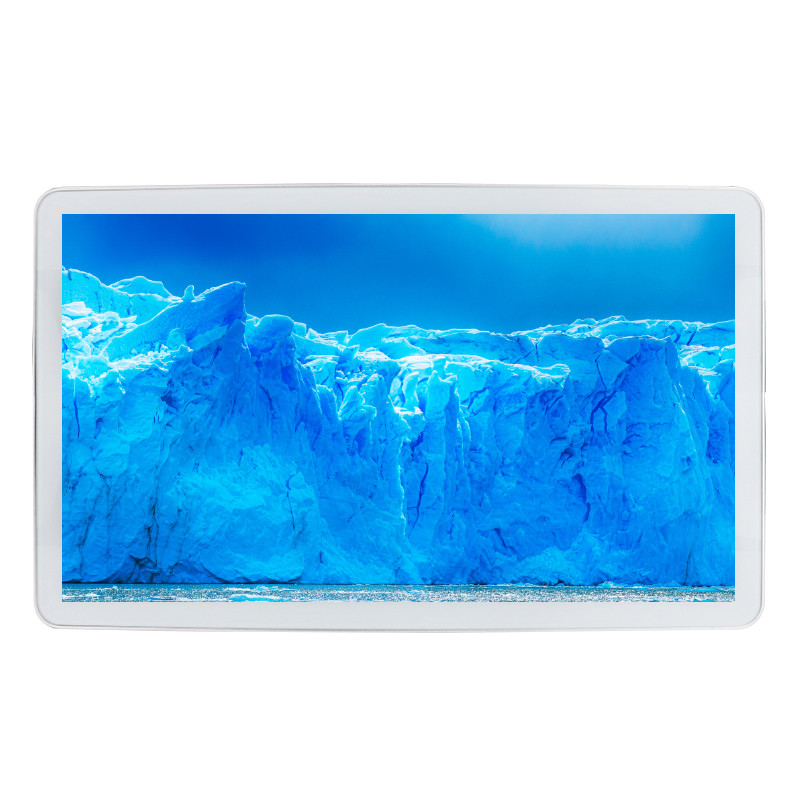

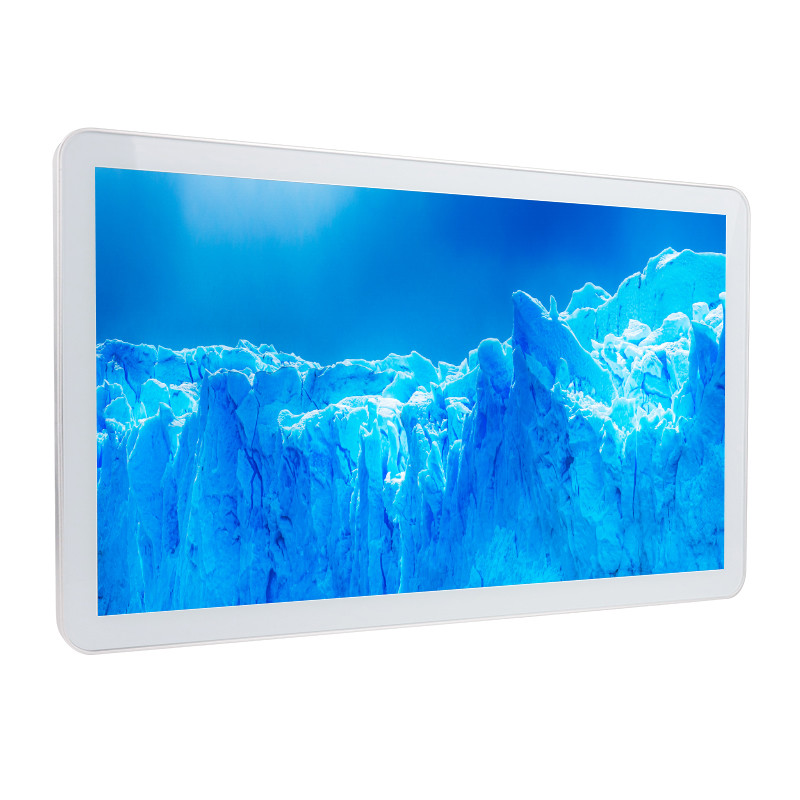

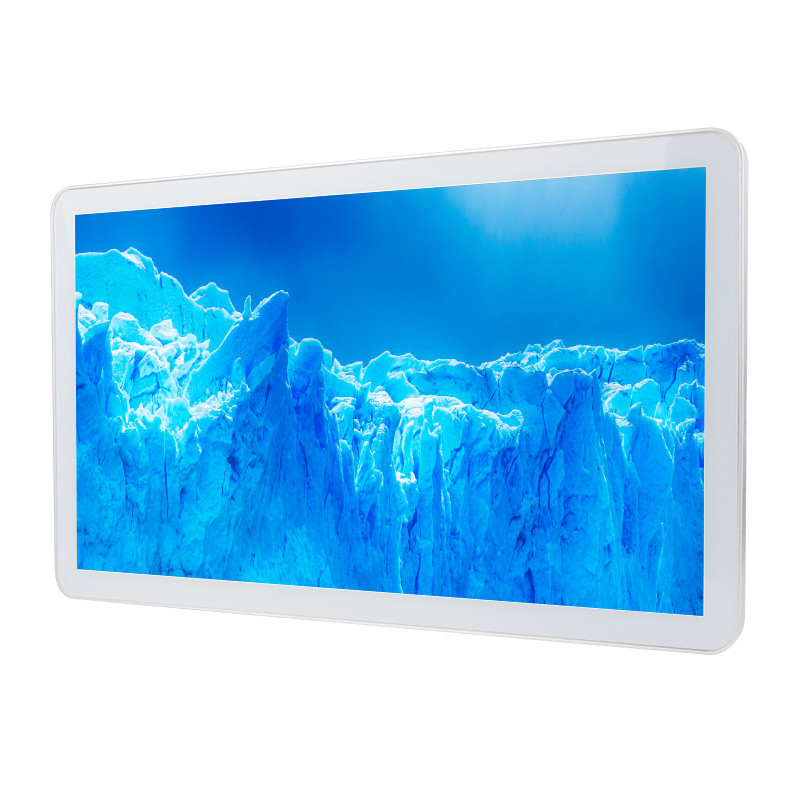

23.8 Inch PCAP Touch Monitor 3000:1 Contrast Ratio for Kiosks
This 23.8 inch PCAP touch monitor delivers high durability, accuracy and multi-touch support with IP65 waterproof, dust-proof and anti-vandal functions. This PCAP touch monitor comes with high resolution, high contrast with full viewing angle. With professional R&D department, OEM and ODM services can be offered to meet customer’s individual requirements.
Technical Parameters:
Complete Machine | ||
Model No. | KOT-0240U-CA2P (P/N:KOT-238P-005) | |
Series | OT | |
Display Type | 16:9 Ratio 23.8" TFT-LCD | |
Active Area | 527.04(H) x 296.46(V)(mm) | |
Monitor Dimensions (W*H*D) | 580.5*350*48.7(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 212cd/m² | |
Response Time (Typ.) | 12ms | |
Viewing Angle(Typ.at CR＞10)） | 89°/89°(Typ)/ 75°/75°(Min.) | |
89°/89°(Typ)/ 75°/75°(Min.) | ||
Contrast Ratio (Typ.) | 3000:1(Typ.)/1800:1(Min.) | |

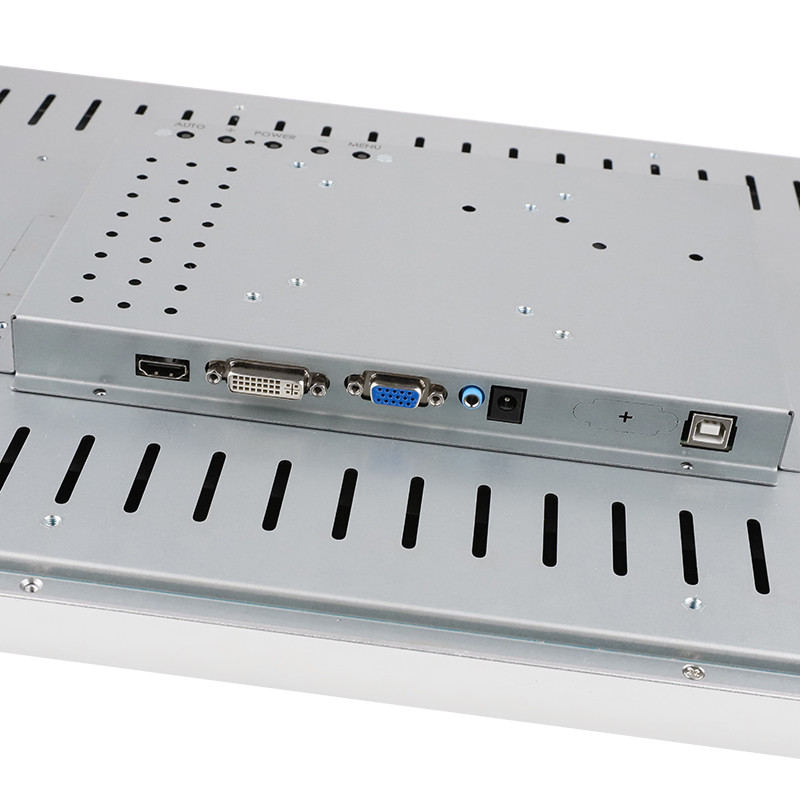

Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 6.5Kg(1pcs)/14.5Kg(2 pcs in one package) | |
Package dimensions | 650*195*435(mm)(2 pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W | |

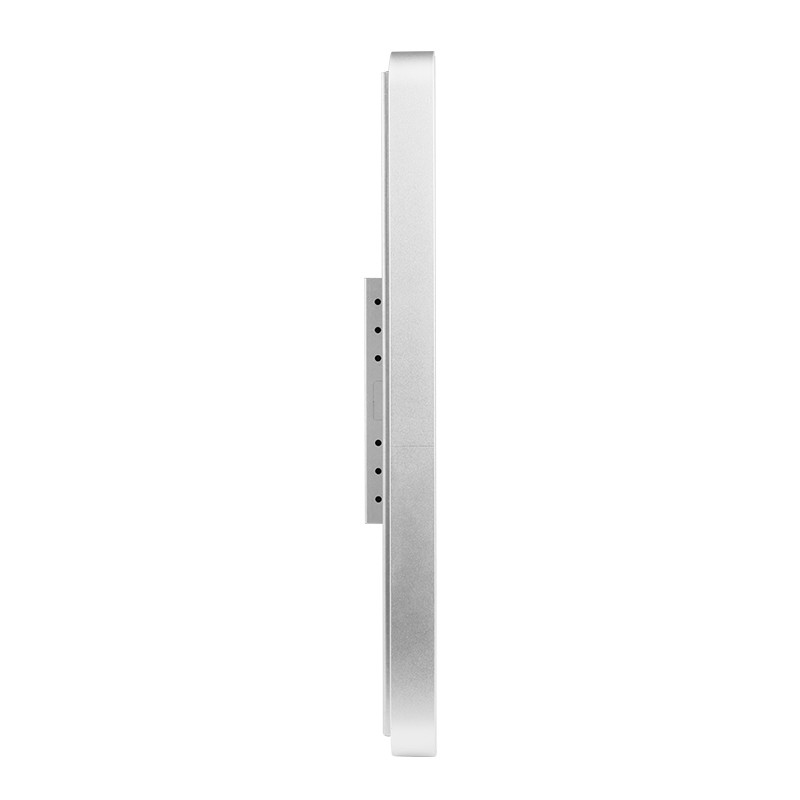

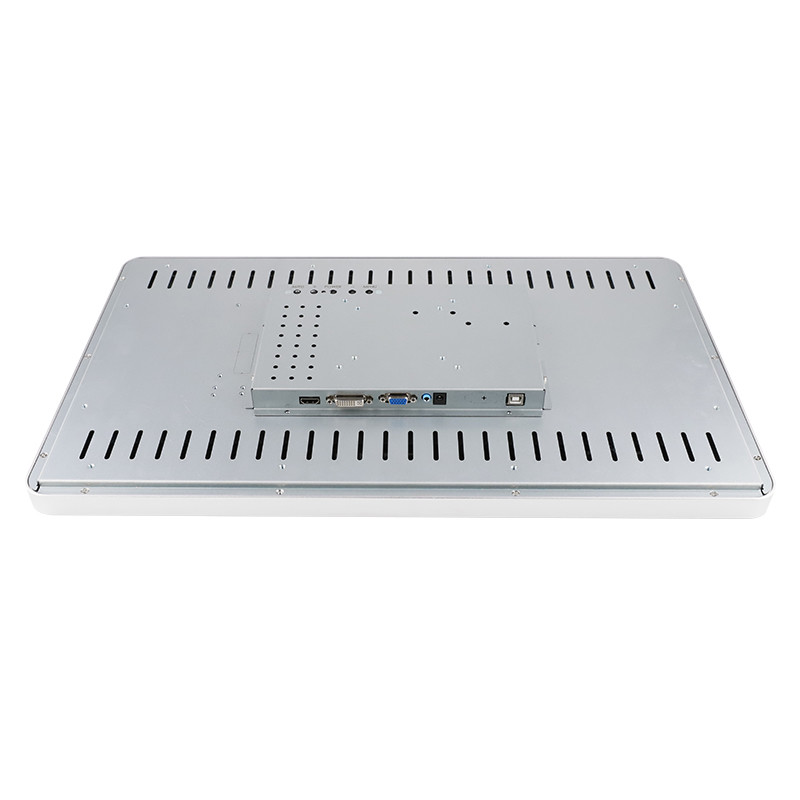

Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 23.8" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 528*297.5(mm) |
Touch Test | ≥50,000,000 次 |
Input Voltage | DC 5V±5% |
Applications:

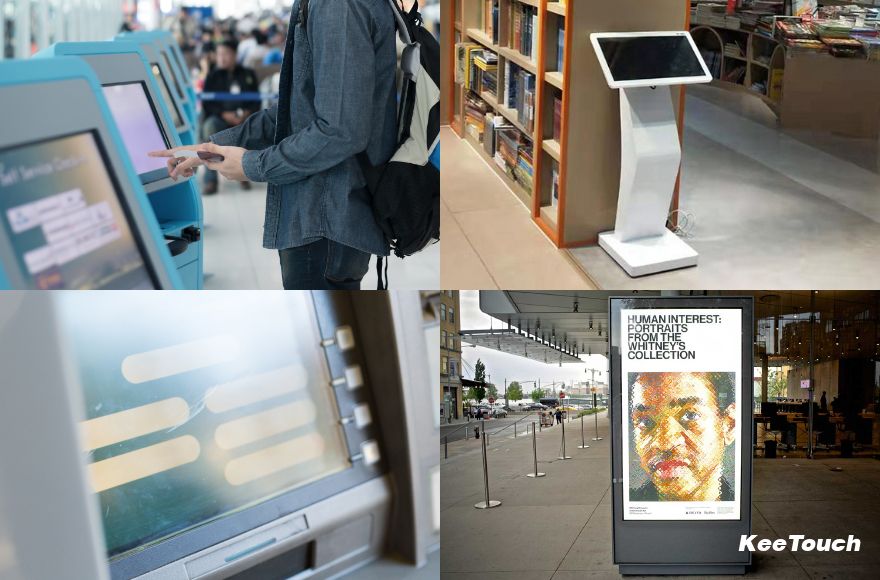

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why Choose us？
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ:
1. What package do you provide for the PCAP touch monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the PCAP touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
