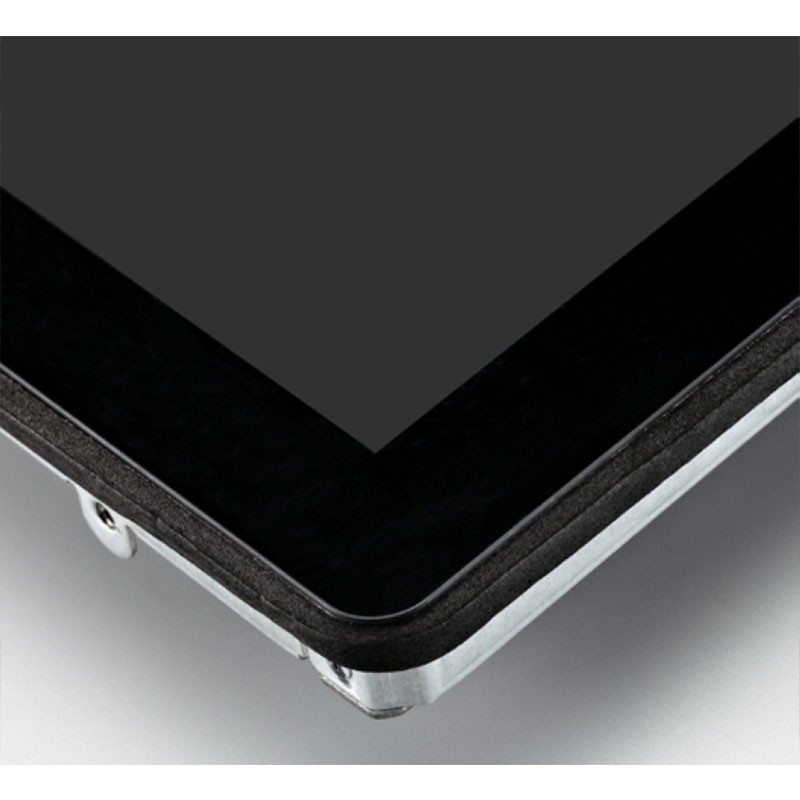

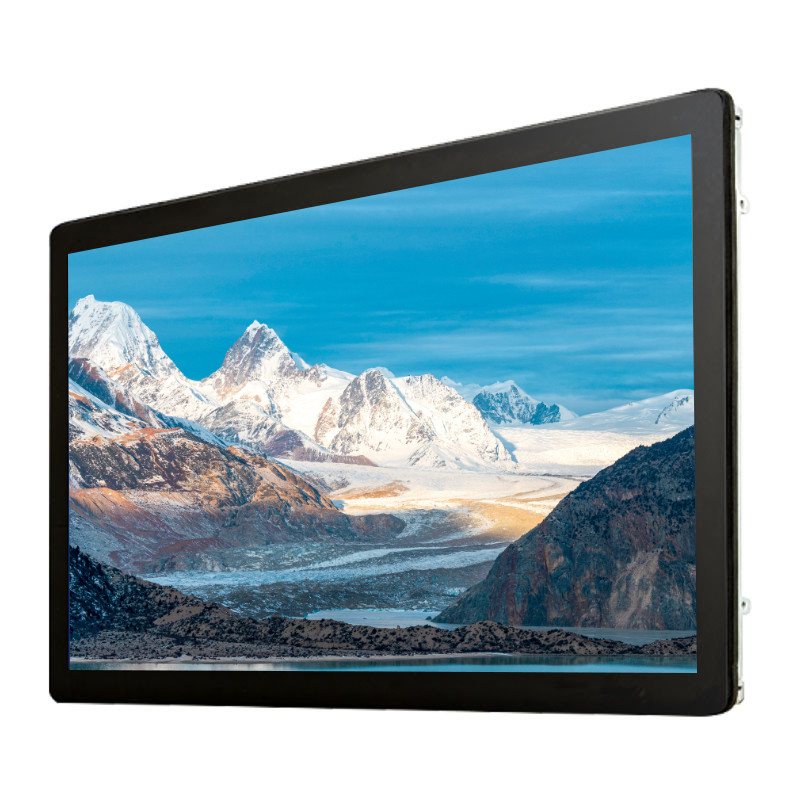

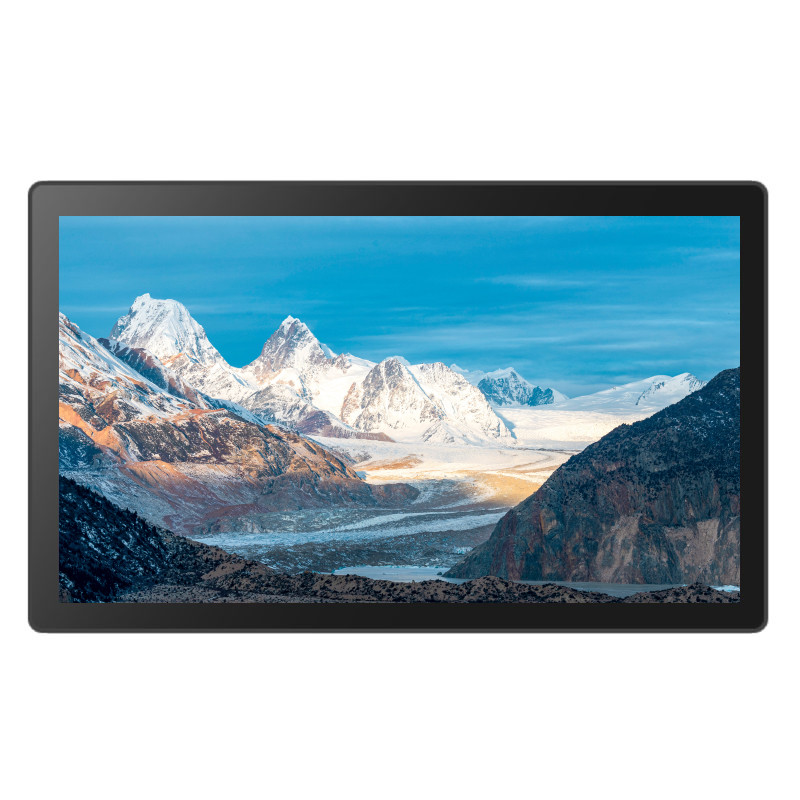

21.5 Inch PCAP Touch Monitor Waterproof For Self Service Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Touch Interface | USB | Video Input | VGA/DVI/HDMI |
|---|---|---|---|
| Resolution | 1920x1080 | Mount Interface | Vest Mount, Horizontal Or Vertical Mount |
| Display Ratio | 16:9 | Contrast Ratio | 1000:1 |
| Operating System | XP, WIN7, WIN8, WIN10, Linux, Android | Touch Technology | Projected Capacitive Touch |
| High Light | 21.5 inch pcap touch monitor,self service kiosks pcap touch monitor,pcap monitor for self service kiosks | ||
Product Description
This PCAP touch monitor delivers main features as following: 1920*1080 high resolution, 1000:1 contrast ratio, IP65 waterproof, vandal proof and dust-proof with wide viewing angle. The PCAP touch monitor comes with VGA, DVI and HDMI interfaces for use, USB port for touch. It is industrial grade touch monitor, high-quality and durable, which can be normally used in harsh environment.
Technical Parameters:
Complete Machine | ||
Model No. | KOT-0215U-CA4P (P/N:KOT-215P-011) | |
Series | OT | |
Display Type | 16:9 Ratio 21.5" TFT-LCD | |
Active Area | 478*270(mm) | |
Monitor Dimensions (W*H*D) | 516*311*40(mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 212cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | 85°/85° | |
80°/80° | ||
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 30～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
Weight（N.W/G.W） | 5.6Kg(1pcs)/7.7Kg(1pcs in one package) | |
Package dimensions | 610*410*145(mm)(1pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤30W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 21.5" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 477.6*269(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications:
PCAP Touch Monitor, with the brand name KeeTouch and model number KOT-0215U-CA4P, is a capacitive touch screen display that originates from ShenZhen, China. It is certified with CCC, UL, FCC, CE, CB, and RoHS. The minimum order quantity is one piece, with a negotiable price. It is delivered in one package within 7-15 work days, and payment can be made through T/T, Western Union, or L/C. It has a supply ability of 10000 Pieces/Pieces per Week. The operating system is compatible with XP, WIN7, WIN8, WIN10, Linux, and Android, and it comes with a 1-year regular warranty. The touch interface is USB, while the display ratio is 16:9. The video input includes VGA, DVI, and HDMI. It is a multi-touch interactive display that features PCAP touch screen panel.
Customization:
KeeTouch KOT-0215U-CA4P Projected Capacitive Touch PCAP Touch Screen Monitor
Brand Name: KeeTouch
Model Number: KOT-0215U-CA4P
Place of Origin: ShenZhen, China
Certification: CCC, UL, FCC, CE, CB, RoHS
Minimum Order Quantity: one piece
Price: Negotiable
Packaging Details: 1pcs in one package
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 Piece/Pieces per Week
Touch Interface: USB
Touch Technology: Projected Capacitive Touch
Video Input: VGADVIHDMI
Display Ratio: 16:9
Contrast Ratio: 1000:1
KeeTouch KOT-0215U-CA4P Projected Capacitive Touch PCAP Touch Screen Monitor is a multi-touch interactive display with capacitive touch screen technology, providing an outstanding user experience for customers around the world. It is an ideal choice for the applications such as retail, hospitality, corporate, education, gaming, and more. With its USB interface, high-performance projected capacitive technology, high resolution, and wide viewing angle, this PCAP touch screen monitor is perfect for any interactive display needs.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
