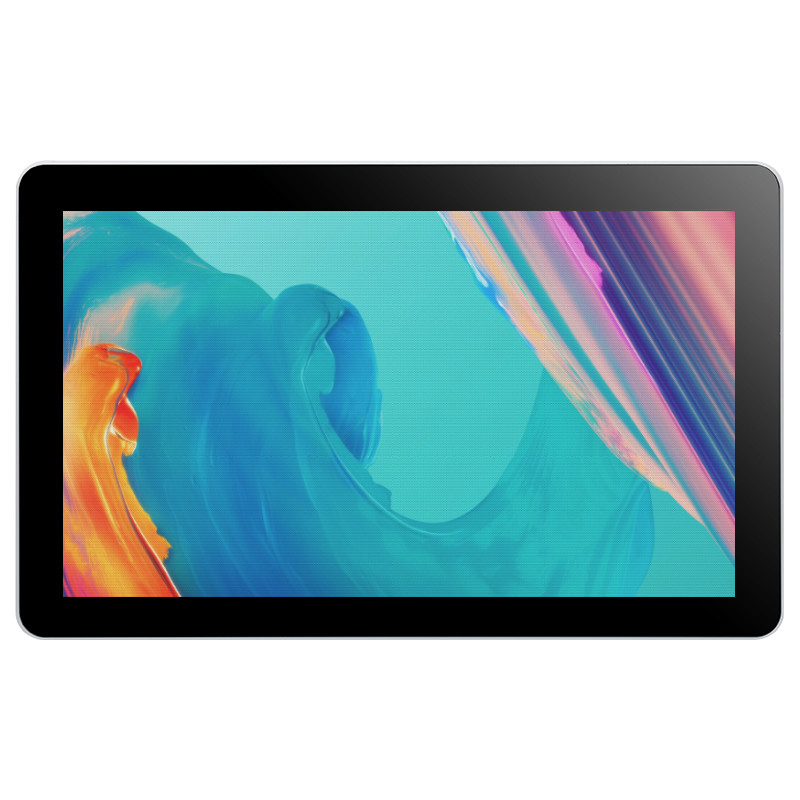

16.7M Vandal Proof Multi Touch Monitor 23 Inch

16.7M Vandal Proof Multi Touch Monitor 23 Inch
16.7M Vandal Proof Multi Touch Monitor 23 Inch 16.7M Vandal Proof Multi Touch Monitor 23 Inch 16.7M Vandal Proof Multi Touch Monitor 23 Inch 16.7M Vandal Proof Multi Touch Monitor 23 Inch 16.7M Vandal Proof Multi Touch Monitor 23 Inch
Place of OriginShenzhen，China
Brand NameKeeTouch
CertificationCCC, FCC, UL, CE, CB, RoHs
Model NumberKOT-0230U-CA5P (KOT-230P-003)
Minimum Order Quantity1 piece
PriceNegotiable

Packaging

Details

2pcs in one package
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOT , With LED Flexible StripesDisplay Type16:9 Ratio
Resolution1920×1080 @ 60HzContrast Ratio1000:1
Regular Warranty1 YearVideo InputVGA And DVI And HDMI
High Light

23 inch multi touch monitor

,

vandal proof multi touch monitor

,2

3 inch pcap monitor

Leave a Message
Product Description

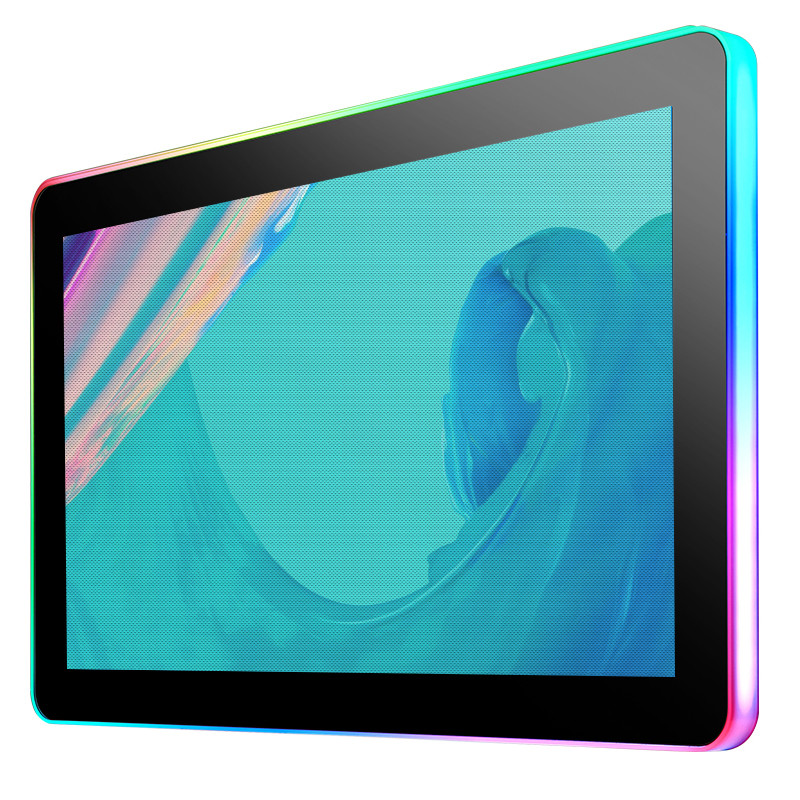

23 Inch Touch Screen PCAP With LED Flexible Strips For Gaming



This PCAP touch monitor comes with main features as below: 16:9 ratio, 1920*1080 high resolution, 1000:1 high contrast ratio, IP65 waterproof, vandal proof and dust-proof with full viewing angle and LED light bar. The PCAP touch monitor provides VGA, DVI and HDMI interfaces for use, USB port for touch. Also, other sizes are optional (7’’- 43’’).






Specification of PCAP Touch Monitor

 Complete Machine

 Model No.

KOT-0230U-CA5P

 Series

OT , With LED Flexible Stripes

 Display Type

16:9 Ratio 23” Active matrix TFT-LCD

 Monitor Dimensions (W*H*D)

588.2*365.4*45(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

(Brightness from 300~1000cd/m² can be customized)

250 cd/m²

With Projected Capacitive Touchscreen

212 cd/m²

 Response Time (Typ.)

14ms

 Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right):89°/89°

Vertical(up/down): 89°/89°

 Contrast Ratio (Typ.)

1000:1

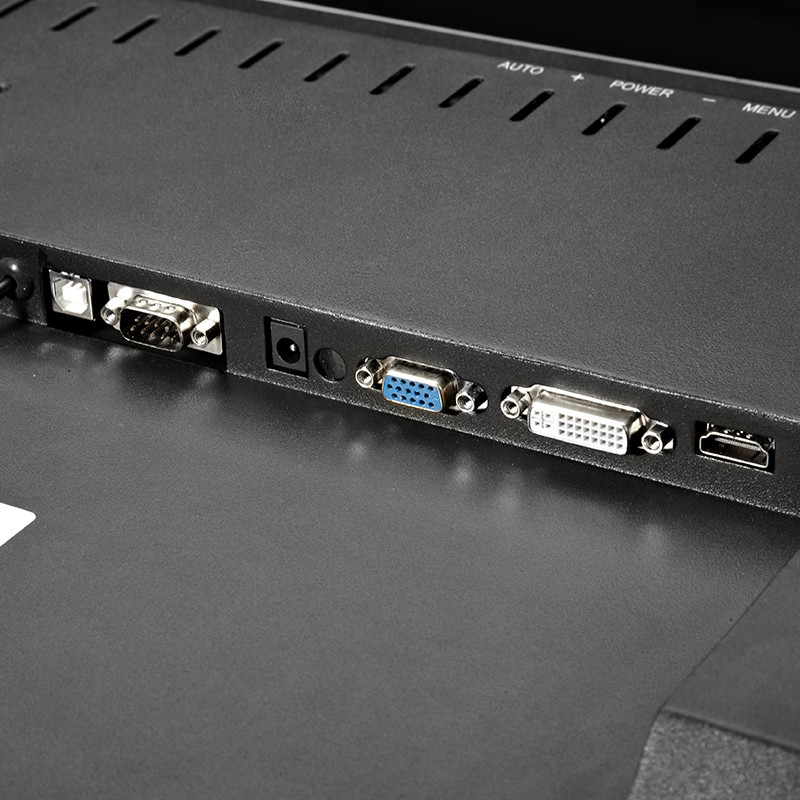

 Video Input

VGA/HDMI/DVI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

7.5kg/17.3kg(2 pcs)

 Package dimensions

703×181×485(mm) (2pcs in one package)

 Power Consumption

37W(approximately, Includes touch display and LED lamp)

 Mount Interface

VESA 100*300mm and 100*400mm

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Autoadjust, Phase, Clock, H/V Location,

Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

23” Projected Capacitive Touchscreen 10 Points Touch

Touch Input

USB

Response Time

≤10ms

Hardness

7H

Light Transmittance

≥85%

Active Area

511.8mm×289mm

Thickness

4.3±0.2(mm)

Touch Test

More than 50,000,000 touches in one location without failure

Input Voltage

DC 5V±5%





Application:

  • Retail
  • Gaming
  • Kiosk
  • self-service
  • Finance
  • Transit
  • Conference
  • Education
  • Healthcare
  • public service
  • e-commerce
  • Hotels

  • restaurants





Advantages of PCAP Touch Monitor

1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.

2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and prociding a more intuitive user experience.

3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.

4. Optional clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.







FAQ:

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.



2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
