Vest Mount 1920x1080 Capacitive Monitor Xp Operating System

Vest Mount 1920x1080 Capacitive Monitor Xp Operating System
Vest Mount 1920x1080 Capacitive Monitor Xp Operating System Vest Mount 1920x1080 Capacitive Monitor Xp Operating System Vest Mount 1920x1080 Capacitive Monitor Xp Operating System Vest Mount 1920x1080 Capacitive Monitor Xp Operating System
Place of OriginShenZhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-0270U-CA4P (KOT-270P-003)
Minimum Order Quantity1 pices
PriceNegotiable
Packaging Detailstwo pieces per carton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Piece/Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:9 Ratio 27" TFT-LCD
Resolution1920×1080 @ 60HzContrast Ratio3000:1
Support Colors16.7MVideo InputVGA/DVI/HDMI
Response Time (Typ.)12 msOperating Temp0~50°C
High Light

vest mount capacitive monitor

,

1920x1080 capacitive monitor

,

xp operating system pcap monitor

Leave a Message
Product Description


27 Inch Monitor With Capacitive Touch Screen Lcd 16:9 Ratio IP65 Waterproof For Slots



Description of PCAP Touch Monitor


 This 27 inch PCAP touch monitor comes with Projected Capacitive touch technology, with PCAP multi touch, high sensitive, fast response and great interactive experience. With LED light bar, fashionable and attractive. It is ideal choice for gaming industry. It is industrial grade, durable and fashionable with anti-vandal, dust-proof and IP65 front frame waterproof functions. Besides, it supports different mounting options, including VESA mount, horizontal and vertical brackets mount.






Specification of PCAP Touch Monitor


 Complete Machine

 Model No.

 KOT-0270U-CA4P (P/N:KOT-270P-003)

 Series

 OT

 Display Type

16:9 Ratio 27" TFT-LCD

Active Area

597.6*336.15(mm)

 Monitor Dimensions (W*H*D)

655.9*393.9*46.5(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

300cd/m²

With Touch Monitor

255cd/m²

 Response Time (Typ.)

12ms

 Viewing Angle(Typ.at CR10)

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

3000:1

 Video Input

VGA/DVI/HDMI

 Frequency (H/V)

4090KHz / 5075Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

050°C

Operating RH

20%80%

Storage Temp.

-2060°C

Storage RH

10%90%

 MTBF

30,000 Hours

 LED Back Light Life (Typ.)

30,000 Hours

 WeightN.W/G.W

9.8Kg(1pcs)/21.3Kg(2pcs in one package)

 Package dimensions

770*513*198(mm)(2pcs in one package)

 Power Consumption

Standby Power: 2W / Operating Power: ≤45W

Mount Interface

1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Touch screen Type

 27”Projected Capacitive Touchscreen,

 Touch System Interface

 USB(or Serial port,one point)

 Support System

 10 points in win7

 Regular Warranty

1 year

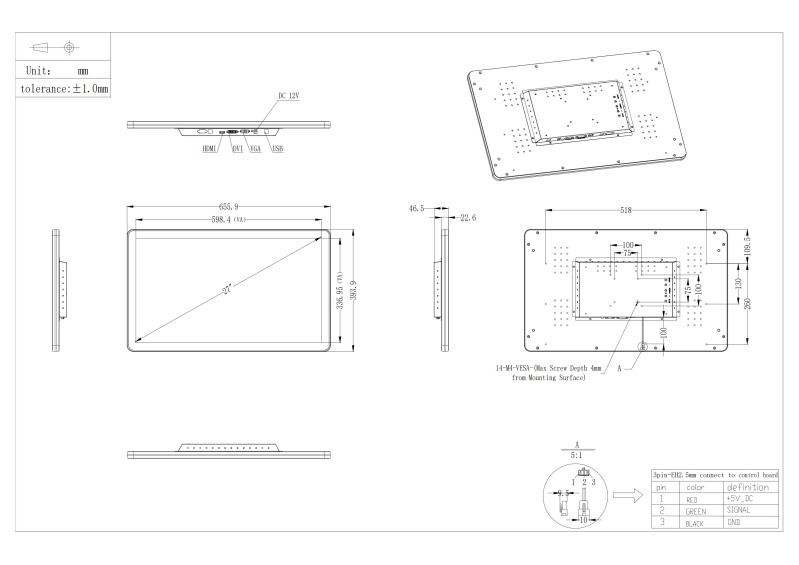

Mechanical Dimensions

dimensions_1





Application:

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.






Why Choose Us ?

1. We are a leading provider of industrial grade touch products and touch solutions for 18+ years.

2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.

3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.

4. Professional after-sales team at any time to provide services to customers.







FAQ:

1. Can you produce the PCAP touch monitor according to the customers' requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



2. What is your payment method?

We can accept T/T, Western Union, Paypal,

Credit card, and Alipay.(L/C can be negotiable.)



3. What is your delivery time for the PCAP touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
