Industrial Grade 27 Inch PCAP Touch Monitor For Slots
| Place of Origin | ShenZhen, China |
|---|---|
| Brand Name | KeeTouch |
| Certification | CCC, UL, FCC, CE, CB, RoHS |
| Model Number | KOT-0270U-CA4P (KOT-270P-003) |
| Minimum Order Quantity | 1 pices |
| Price | Negotiable |
| Packaging Details | two pieces per carton |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 10000 Piece/Pieces per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 16:9 Ratio 27" TFT-LCD | Resolution | 1920×1080 @ 60Hz |
|---|---|---|---|
| Contrast Ratio | 3000:1 | Support Colors | 16.7M |
| Video Input | VGA/DVI/HDMI | Response Time (Typ.) | 12ms |
| Operating Temp | 0～50°C | Brightness | 300cd/㎡ |
| Storage Temp | -20～60°C | ||
| High Light | 27 inch pcap touch monitor,pcap touch monitor for slots,vandal proof capacitive touch screen monitor | ||
Product Description

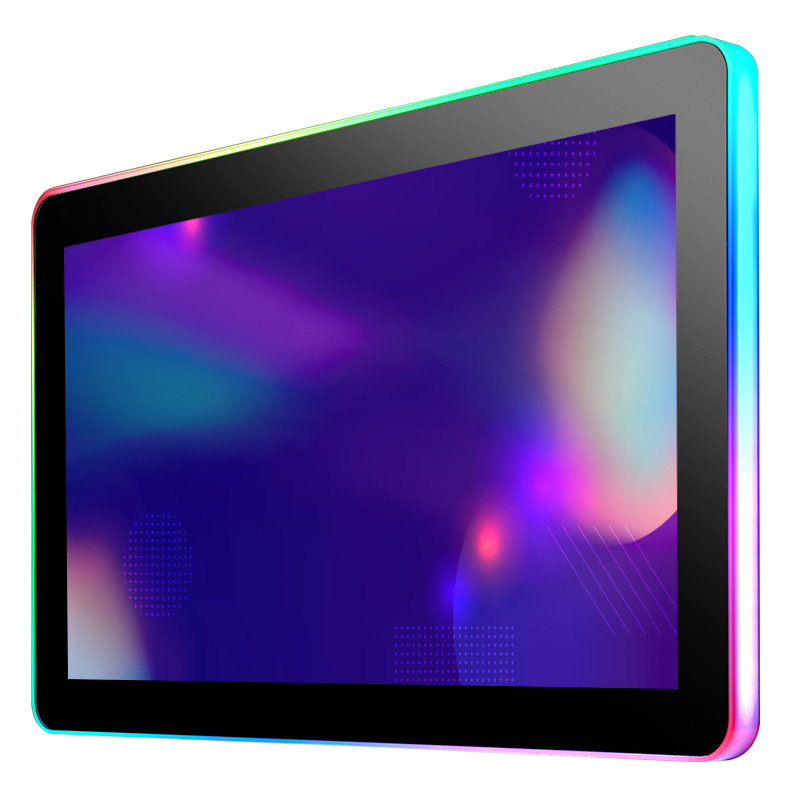

27 Inch Monitor Touch Screen Display 16:9 Ratio IP65 Waterproof For Slots
Description of PCAP Touch Monitor
This 27 inch PCAP touch monitor is industrial grade with vandal-proof, dust-proof and IP65 waterproof. It comes with LED Flexible Strip, attractive and fashionable. VGA, DVI and HDMI interfaces are provided for use, also USB port for touch. Besides, other sizes (7’’-43’’) can be for offered. And OEM and ODM services are offered to meet customer’s individual requirements.
Specification of PCAP Touch Monitor
Complete Machine | ||
Model No. | KOT-0270U-CA4P (P/N:KOT-270P-003) | |
Series | OT | |
Display Type | 16:9 Ratio 27" TFT-LCD | |
Active Area | 597.6*336.15(mm) | |
Monitor Dimensions (W*H*D) | 655.9*393.9*46.5(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 300cd/m² |
With Touch Monitor | 255cd/m² | |
Response Time (Typ.) | 12ms | |
Viewing Angle(Typ.at CR＞10)） | 89°/89° | |
89°/89° | ||
Contrast Ratio (Typ.) | 3000:1 | |
Video Input | VGA/DVI/HDMI | |
Frequency (H/V) | 40～90KHz / 50～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | 30,000 Hours | |
LED Back Light Life (Typ.) | 30,000 Hours | |
Weight（N.W/G.W） | 9.8Kg(1pcs)/21.3Kg(2pcs in one package) | |
Package dimensions | 770*513*198(mm)(2pcs in one package) | |
Power Consumption | Standby Power: 2W / Operating Power: ≤45W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Touch screen Type | 27”Projected Capacitive Touchscreen, | |
Touch System Interface | USB(or Serial port,one point) | |
Support System | 10 points in win7 | |
Regular Warranty | 1 year | |

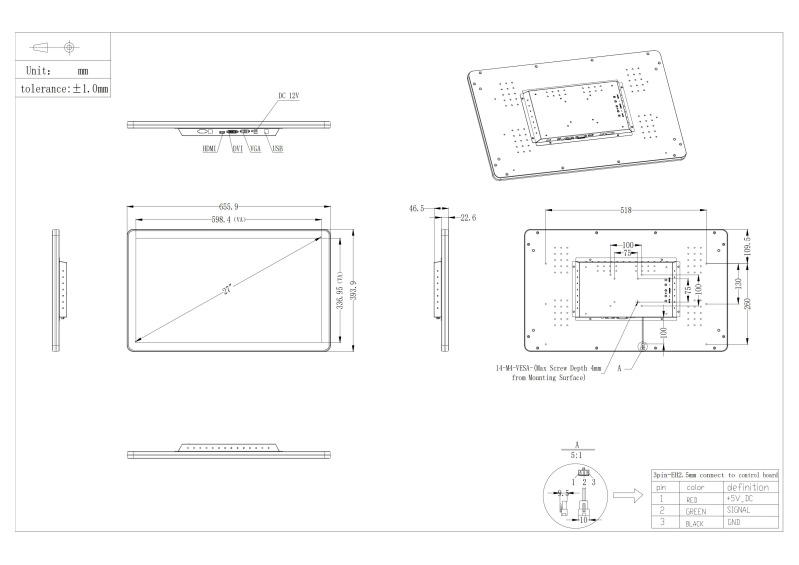

Mechanical Dimensions

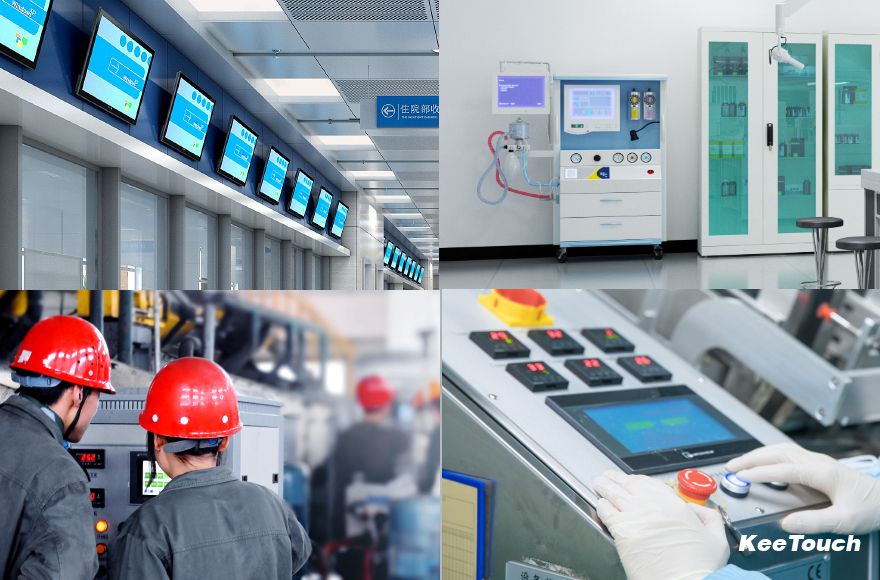

Application:
PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ:
1. What package do you provide for the PCAP touch monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the PCAP touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
