OEM And ODM Capacitive Touch Screen Monitor For Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating System | XP,WIN7,WIN8 | Touch Technology | Projected Capacitive Touch |
|---|---|---|---|
| Touch Interface | USB | Screen Size | 14 |
| Display Ratio | 16:9 | Resolution | 1920x1080 |
| Mount Interface | Vest Mount, Horizontal Or Vertical Bracket Mount | Operating Temp | 0～50°C |
| High Light | OEM capacitive touch screen monitor,ODM capacitive touch screen monitor, OEMpcap monitor | ||
Product Description

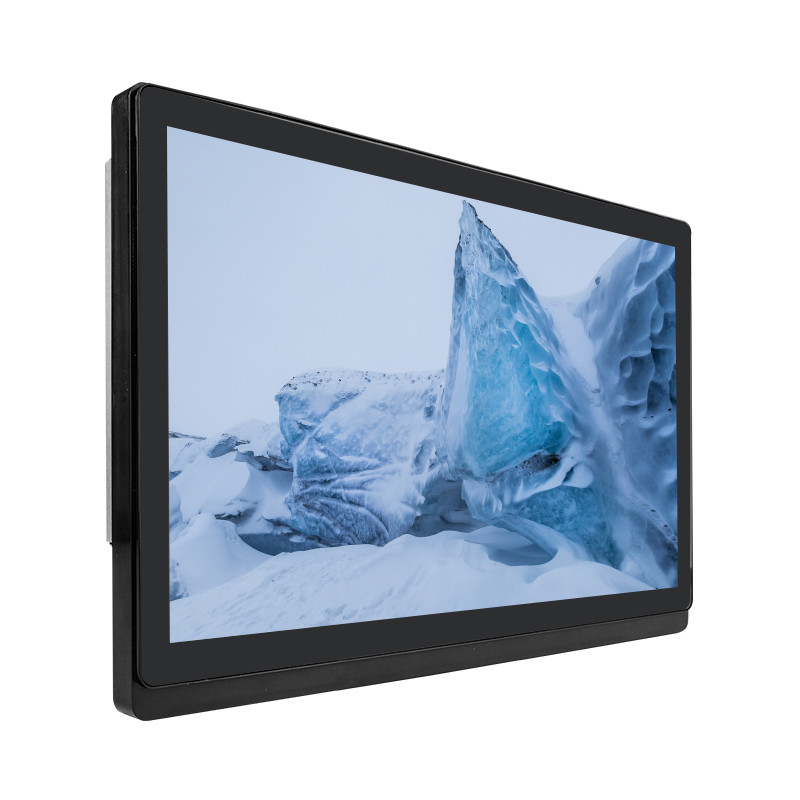

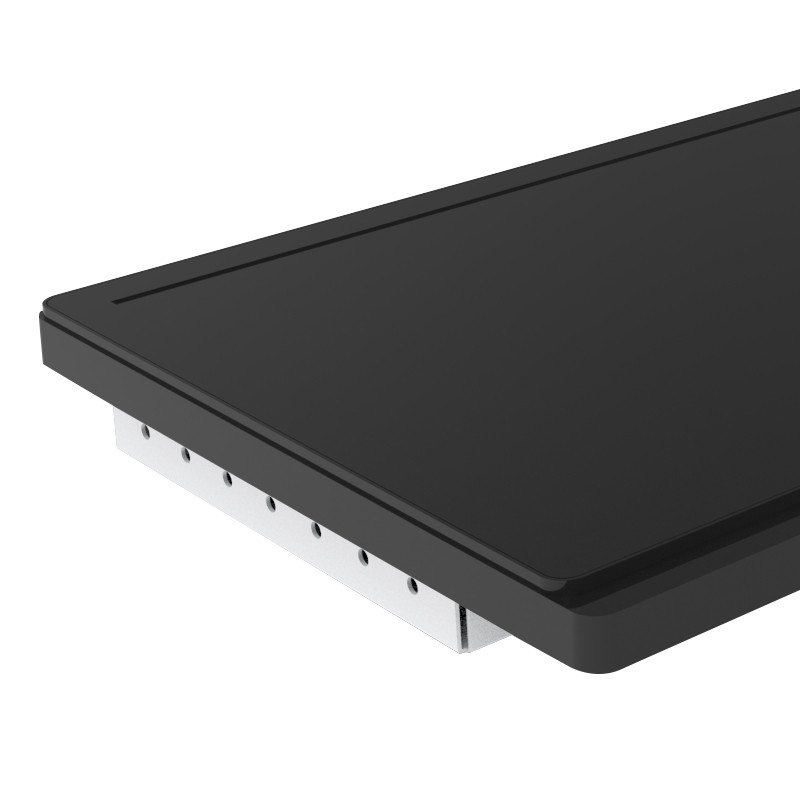

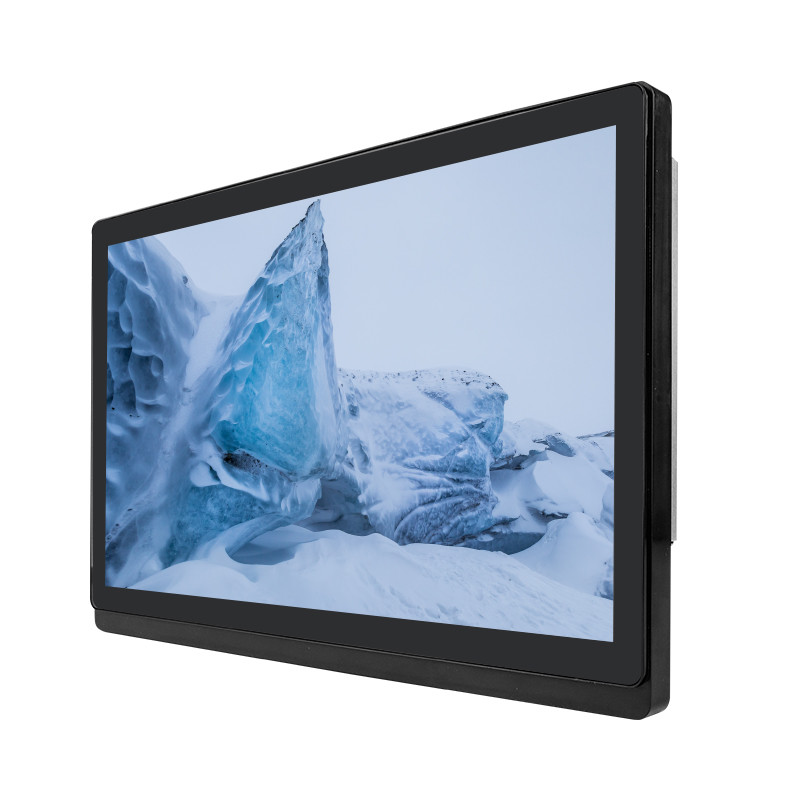

14 Inch Open Frame Touch Monitor Multi Touch Capacitive Screen Display For Kiosks
The PCAP touch monitor has extraordinary features that make it a great choice for a variety of applications. It is equipped with 1920* 1080 high resolution, 800:1 contrast ratio, and a wide viewing angle. Also, it is protected by the vandal proof and dust-proof to ensure that it can be used in a variety of settings without any issue. This PCAP touch monitor has multiple interfaces, including VGA and DVI interfaces, as well as a USB port for touch. It supports multiple mounting options, such as the VESA mount, horizontal and vertical brackets mount. Moreover, customers can get customized services as well.
Specification of PCAP Touch Monitor
Complete Machine | ||
Model No. | KOT-0140U-CA4P (P/N:KOT-140P-002) | |
Series | OT | |
Display Type | 16:9 Ratio 14" TFT-LCD | |
Active Area | 311*176(mm) | |
Monitor Dimensions (W*H*D) | 340*214.84*36.9(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 200cd/m² |
With Touch Monitor | 170cd/m² | |
Response Time (Typ.) | 8ms | |
Viewing Angle(Typ.at CR＞10)） | 80°/80° | |
80°/80° | ||
Contrast Ratio (Typ.) | 800:1 | |

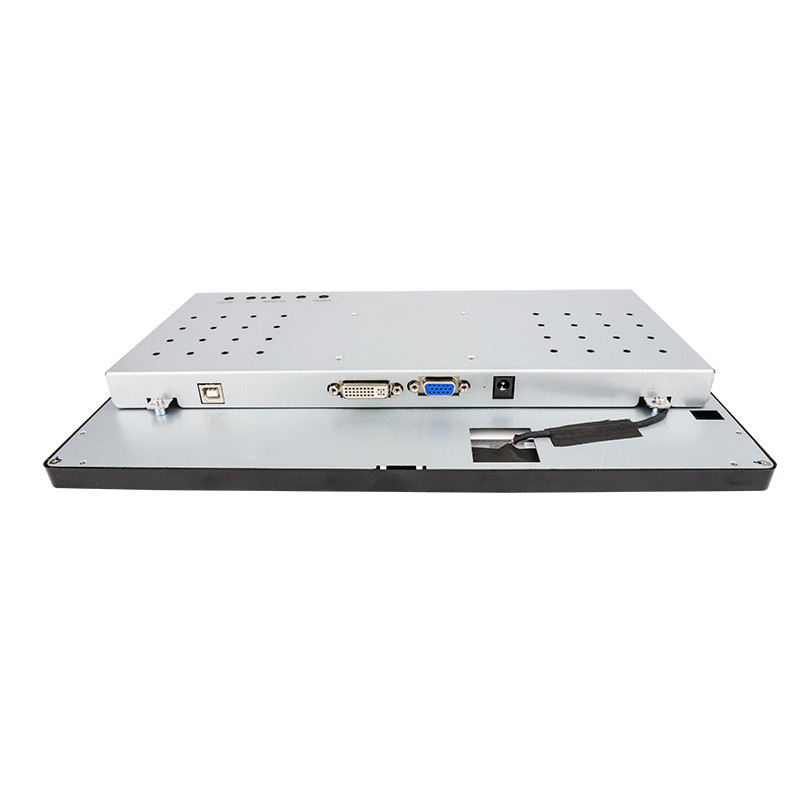

Video Input | VGA/DVI | |
Frequency (H/V) | 37.8～68.4KHz / 50～76Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W | |
Mount Interface | Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 14" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8 |
Active Area | 309.31*173.99(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications:
Retail
Gaming
Kiosk
Self-service
Finance
Transit
Conference
Education
Healthcare
Public service
E-commerce
Hotels
Restaurants
Advantages of PCAP Touch Monitor
1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.
2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.
3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.
4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.
5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.
Support and Services:
PCAP Touch Monitor provides technical support and services to ensure our customers have the best experience with our products.
We offer a wide range of support and services, including:
- Technical assistance and troubleshooting
- Software updates and upgrades
- Repair and replacement services
- Product customization and integration
- On-site installation and training
- Warranty support and extended service contracts
Our experienced and knowledgeable support staff are available to answer any questions and provide assistance with your PCAP Touch Monitor related products.
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
