14 Inch Open Frame Capacitive Touch Monitor For Smart Lockers

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xTouch Interface | USB | Screen Size | 14 inch |
---|---|---|---|
Display Ratio | 16:9 | Resolution | 1920x1080 |
Mount Interface | Vest Mount, Horizontal Or Vertical Bracket Mount | Operating Temp | 0~50°C |
Response Time | 8ms | Regular Warranty | 1 Year |
Agency Approvals | CCC, UL, FCC, CE, CB, RoHS | ||
High Light | 14 inch capacitive touch monitor,capacitive touch monitor for smart lockers,hdmi pcap monitor |

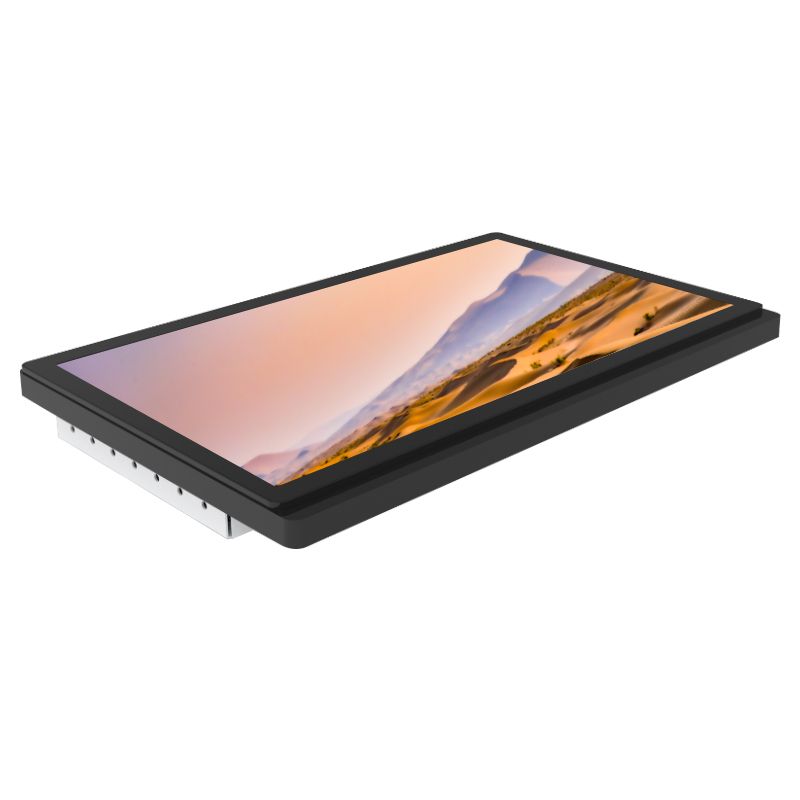

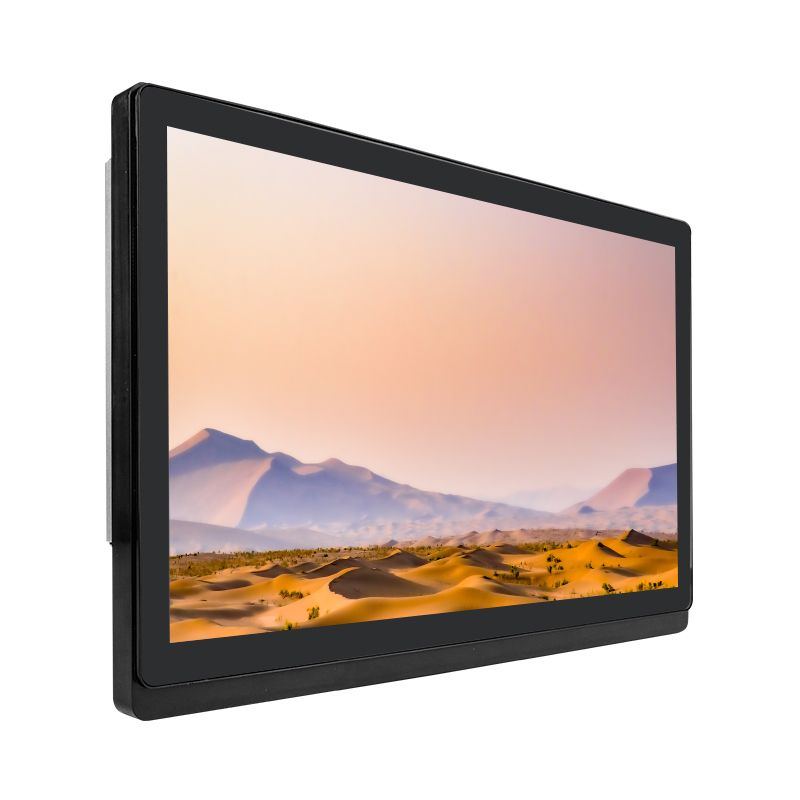

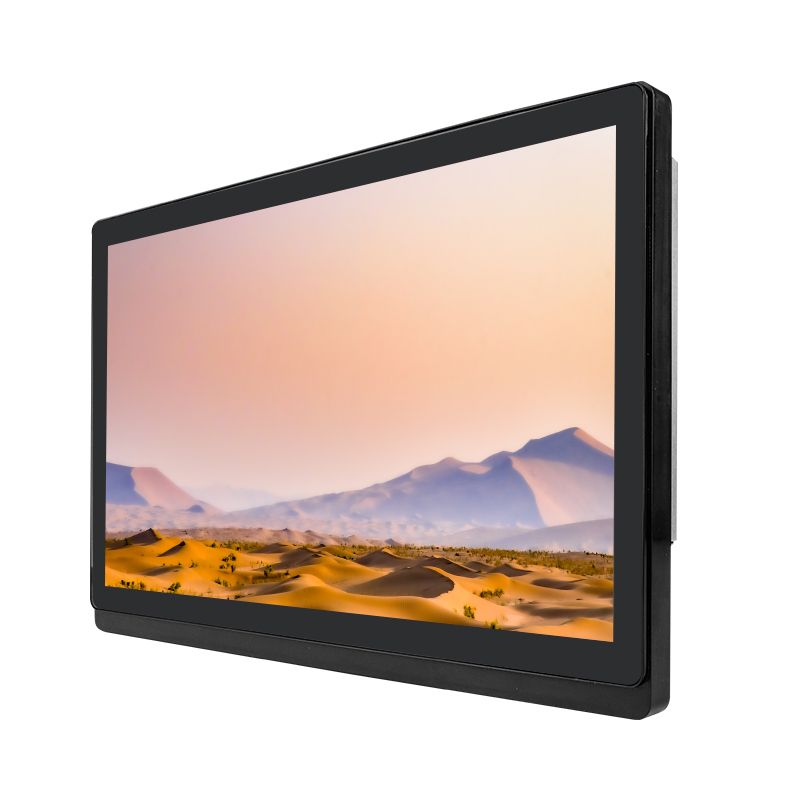

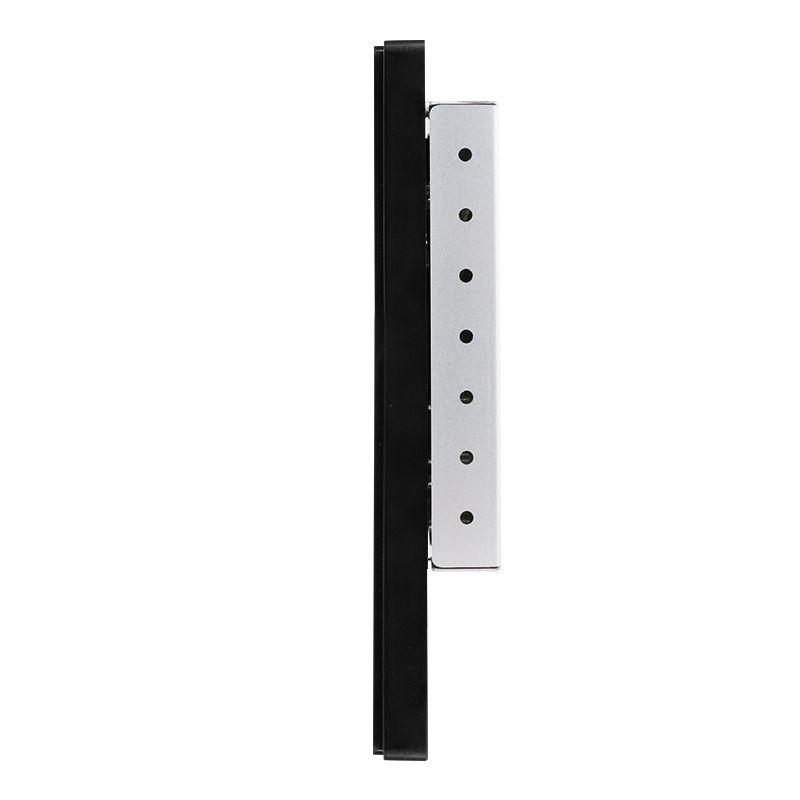

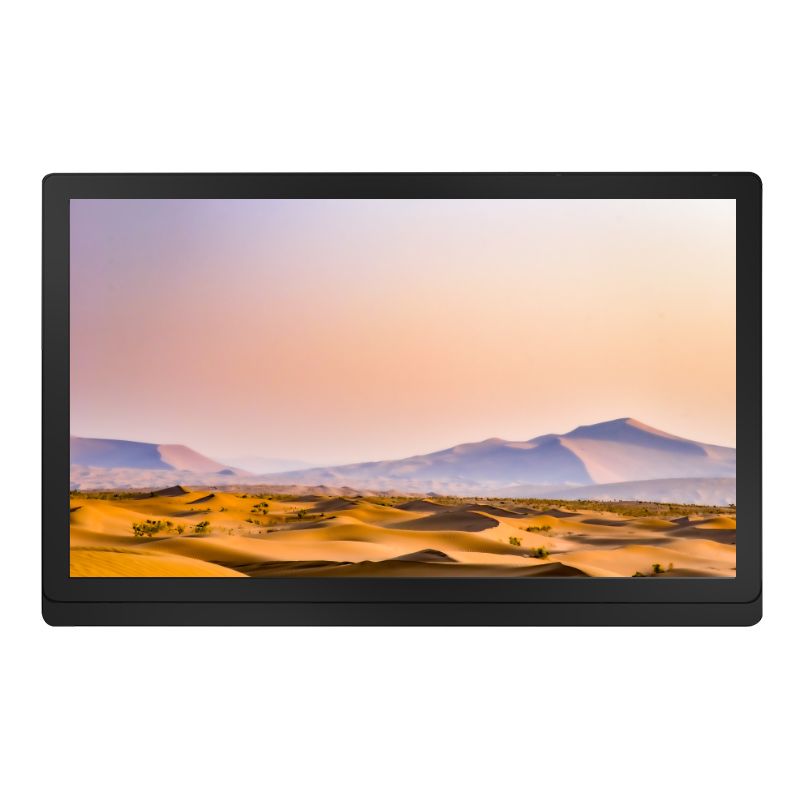

14 Inch Open Frame Touch Monitor PCAP 16:10 Ratio Anti-Vandal For Smart Lockers
This 14 inch PCAP touch monitor is industrial grade, durable and high-quality with dust-proof, vandal-proof and IP65 waterproof functions. VGA and DVI interfaces are provided for use, USB port for touch. With professional R&D department, OEM and ODM services are offered. And it support various mounting options including VESA mount, horizontal and vertical brackets mount.
Specification of PCAP Touch Monitor
Complete Machine | ||
Model No. | KOT-0140U-CA4P (P/N:KOT-140P-002) | |
Series | OT | |
Display Type | 16:9 Ratio 14" TFT-LCD | |
Active Area | 311*176(mm) | |
Monitor Dimensions (W*H*D) | 340*214.84*36.9(mm) | |
Suggested Resolution | 1920*1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 200cd/m² |
With Touch Monitor | 170cd/m² | |
Response Time (Typ.) | 8ms | |
Viewing Angle(Typ.at CR>10)) | 80°/80° | |
80°/80° | ||
Contrast Ratio (Typ.) | 800:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.8~68.4KHz / 50~76Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0~50°C |
Operating RH | 20%~80% | |
Storage Temp. | -20~60°C | |
Storage RH | 10%~90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W | |
Mount Interface | Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
Regular Warranty | 1 year |
Touch Screen | |
Touch Type | 14" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8 |
Active Area | 309.31*173.99(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications:
PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
Support and Services:
PCAP Touch Monitor provides technical support and services to ensure our customers have the best experience with our products.
We offer a wide range of support and services, including:
- Technical assistance and troubleshooting
- Software updates and upgrades
- Repair and replacement services
- Product customization and integration
- On-site installation and training
- Warranty support and extended service contracts
Our experienced and knowledgeable support staff are available to answer any questions and provide assistance with your PCAP Touch Monitor related products.
FAQ:
1. What package do you provide for the PCAP touch monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the PCAP touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
