23.8 Inch Vandal Proof PCAP Monitor With VGA/DVI/HDMI Video Input 1 Year Warranty

23.8 Inch Vandal Proof PCAP Monitor With VGA/DVI/HDMI Video Input 1 Year Warranty
23.8 Inch Vandal Proof PCAP Monitor With VGA/DVI/HDMI Video Input 1 Year Warranty 23.8 Inch Vandal Proof PCAP Monitor With VGA/DVI/HDMI Video Input 1 Year Warranty 23.8 Inch Vandal Proof PCAP Monitor With VGA/DVI/HDMI Video Input 1 Year Warranty 23.8 Inch Vandal Proof PCAP Monitor With VGA/DVI/HDMI Video Input 1 Year Warranty 23.8 Inch Vandal Proof PCAP Monitor With VGA/DVI/HDMI Video Input 1 Year Warranty
Place of OriginShenZhen, China
Brand NameKeeTouch
CertificationCCC, UL, FCC, CE, CB, RoHS
Model NumberKOT-238P-005

Minimum

Order Quantity

one piece
PriceNegotiable

Packaging

 Details

1pc in one package
Delivery Time7-15 work days
Payment TermsT/T, Western Union,L/C
Supply Ability10000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Ratio16:9Video InputVGA/DVI/HDMI
Resolution1920x1080Touch TechnologyProjected Capacitive Touch
Screen Size23.8 inchContrast Ratio3000:1
High Light

DVI PCAP touch monitor, vandal proof pcap monitor, VGA PCAP monitor

Leave a Message
Product Description


Product Description:

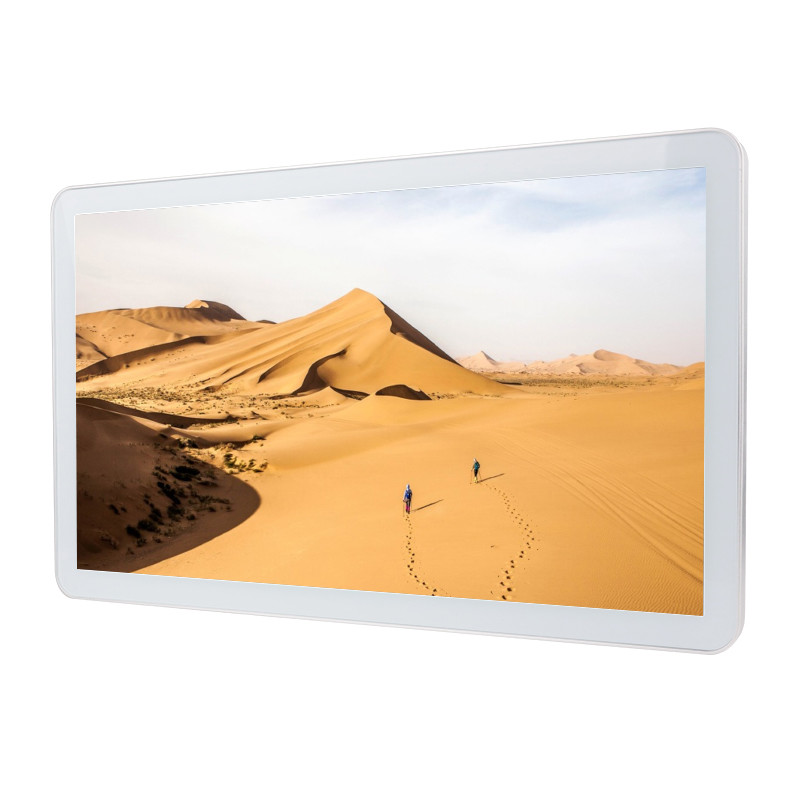

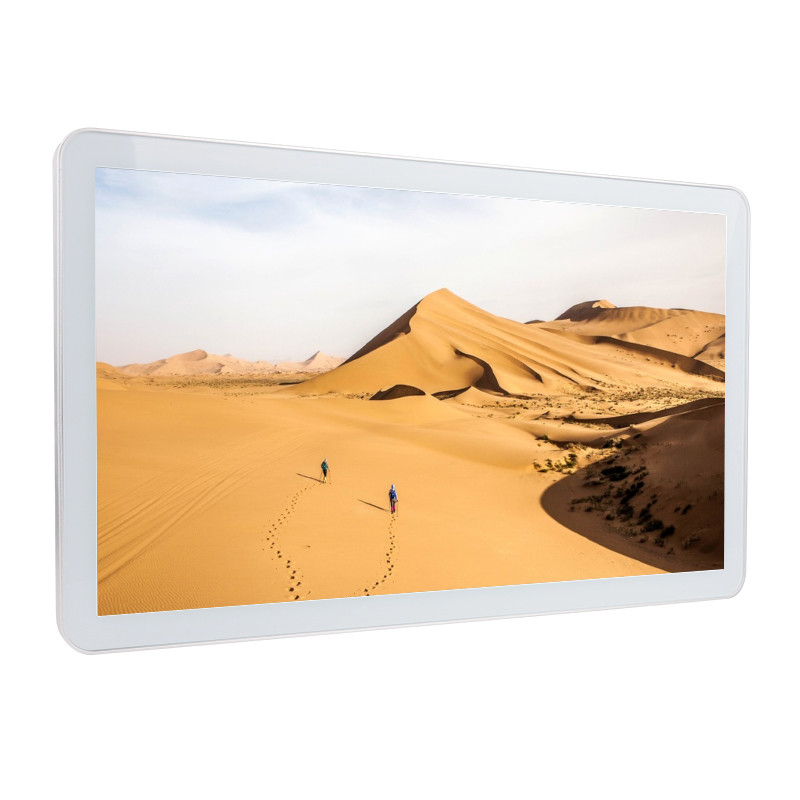

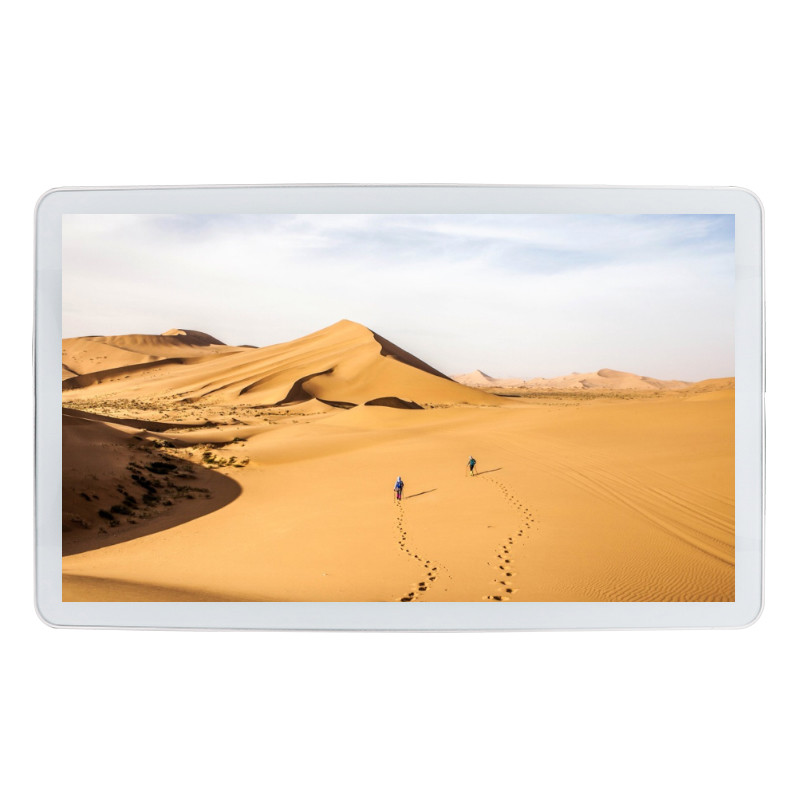

23.8 Inch Vandal Proof PCAP Monitor With VGA/DVI/HDMI Video Input 1 Year Warranty


This PCAP touch monitor offers a high-quality user experience with its main features of 1920*1080 high resolution, high 3000:1 contrast ratio, and wide viewing angle. Its vandal proof design ensures it can be used in more hostile environment without compromising its performance. What's more, specially tailored OEM and ODM services are available that offer customers the freedom to customize their device to meet their individual needs.





Features:

Product Name: PCAP Touch Monitor

Mount Interface: Vest Mount, Horizontal Or Vertical Bracket Mount

Resolution: 1920x1080

Operating System: XP, WIN7, WIN8, WIN10

Touch Interface: USB

Contrast Ratio: 3000:1

Capacitive Touch Screen Display

PCAP Touch Screen Panel

PCAP Touch Screen Monitor





Technical Parameters:


 Complete Machine

 Model No.

 KOT-0240U-CA2P (P/N:KOT-238P-005)

 Series

 OT

 Display Type

16:9 Ratio 23.8" TFT-LCD

 Active Area

527.04(H) x 296.46(V)(mm)

 Monitor Dimensions (W*H*D)

580.5*350*48.7(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m2

With Touch Monitor

212cd/m2

 Response Time (Typ.)

12ms

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 89°/89°(Typ)/ 75°/75°(Min.)

 Vertical(up/down)

 89°/89°(Typ)/ 75°/75°(Min.)

 Contrast Ratio (Typ.)

3000:1(Typ.)/1800:1(Min.)

 Video Input

VGA/DVI/HDMI

 Frequency (H/V)

37.9~80KHz / 60~75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight(N.W/G.W)

6.5Kg(1pcs)/14.5Kg(2 pcs in one package)

 Package dimensions

650*195*435(mm)(2 pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤30W

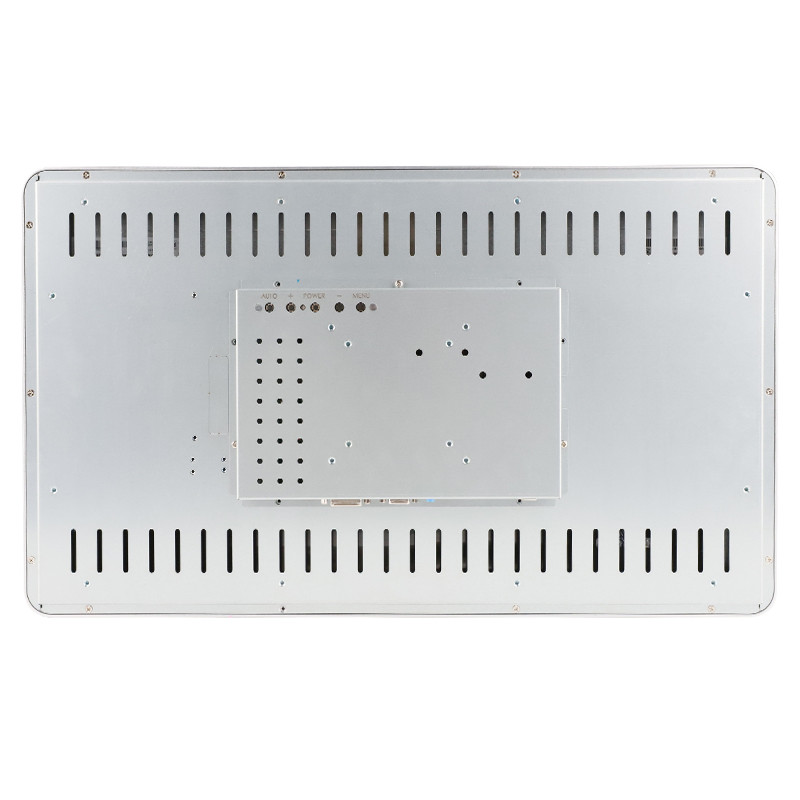

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

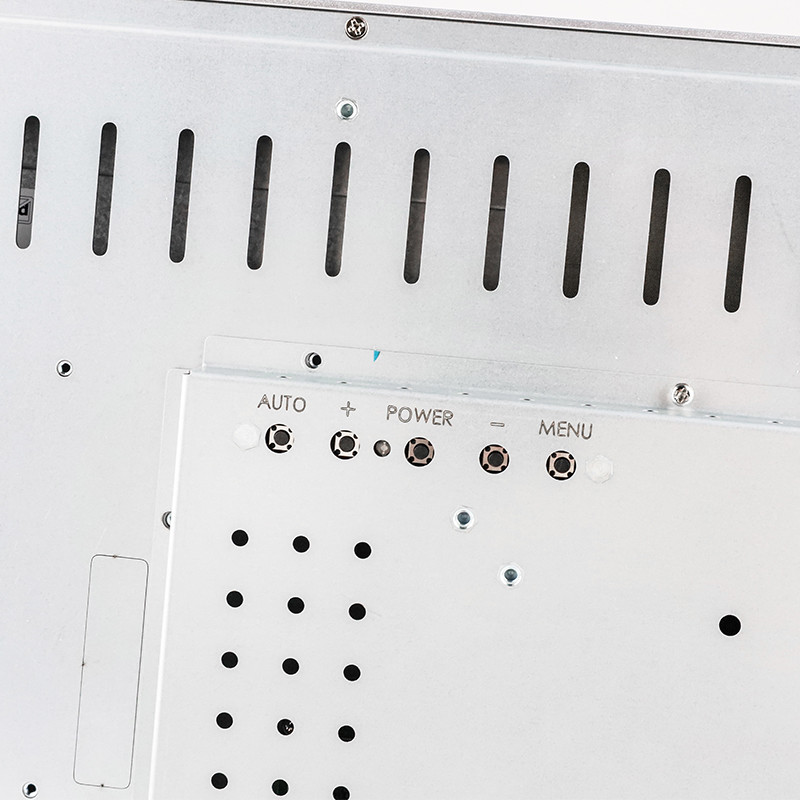

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Regular Warranty

1 year



Touch Screen

Touch Type

23.8" Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

528*297.5(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 次

Input Voltage

DC 5V±5%




Applications:

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.


140





Support and Services:

PCAP Touch Monitor Technical Support and Service

At PCAP Touch Monitor, we understand that having reliable and up-to-date technical support and service is essential for any technology product. We are committed to providing our customers with the best support and service available.

Technical Support

Our technical support team is available 24/7 to answer any questions you may have about our products. Our team is knowledgeable and experienced and can provide quick and accurate answers to all of your questions. We also offer a wide range of technical resources, including online manuals, tutorials, videos, and more.

Service and Repair

We offer a variety of services to keep your PCAP Touch Monitor in top condition. We can provide repairs, maintenance, and upgrades to ensure that your monitor is running at its best. Our trained technicians can diagnose any problems you may be having and provide fast and reliable service.

Warranty

PCAP Touch Monitor offers a limited warranty on all of our products. This warranty ensures that your product will be free from defects for the duration of the warranty period. In the event of a defect, we will provide you with a replacement or a refund, whichever is appropriate.





FAQ:

PCAP Touch Monitor Frequently Asked Questions

Q1: What is the brand of this PCAP touch monitor?

A1: The brand of this PCAP touch monitor is KeeTouch.


Q2: What is the model number of this PCAP touch monitor?

A2: The model number of this PCAP touch monitor is KOT-238P-005.


Q3: Where is this PCAP touch monitor made?

A3: This PCAP touch monitor is made in ShenZhen, China.


Q4: What certifications does this PCAP touch monitor have?

A4: This PCAP touch monitor has CCC, UL, FCC, CE, CB, and RoHS certifications.


Q5: What's the minimum order quantity for this PCAP touch monitor?

A5: The minimum order quantity for this PCAP touch monitor is 1 piece.
