Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks

Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL
Model NumberKOT-0101U-CA4P
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Suggested Resolution1280*800 WXGAContrast Ratio (Typ.)800:1
Touch InputUSBSupport Colors16.2M
Response Time16sStorage Temp.-20～60°C
Touch Test≥50,000,000 TimesProduct NamePCAP Touch Monitor
High Light

Open Frame Touch PCAP Monitor

,

PCAP Touch Display Monitor For Kiosks

,

16.2M PCAP Touch Display Monitor

Leave a Message
Product Description


10.1 Inch PCAP Touch Monitor Open frame Touch Display for Kiosks



Description of 10.1 capacitive touch screen



This 10.1 capacitive touch screen comes with main features as below: 1280*800 high resolution, 800:1 contrast ratio, vandal proof and dust-proof with wide viewing angle. The PCAP touch monitor provides VGA and HDMI interfaces for use, USB port for touch. It is industrial grade PCAP touch monitor, high-quality and durable, which can be normally used in harsh environment. Also, customized services can be offered.





Specification of PCAP Touch Monitor



Complete Machine

Model No.

KOT-0101U-CA4P（KOT-101P-002）

Type

OT

Display Type

16:10 Ratio 10.1＂TFT-LCD, LED backlight

Active Area

216.96*135.6(mm)

Monitor Dimensions (W*H*D)

259.5*182.5*50(mm)

Suggested Resolution

1280*800 WXGA

Support Colors

16.2M

Brightness (Typ.)

Pure LCD Panel

300cd/m²

With Touch Monitor

255cd/m²

Response Time (Typ.)

16ms

Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right)

85°/85°

Vertical(up/down)

85°/85°

Contrast Ratio (Typ.)

800:1

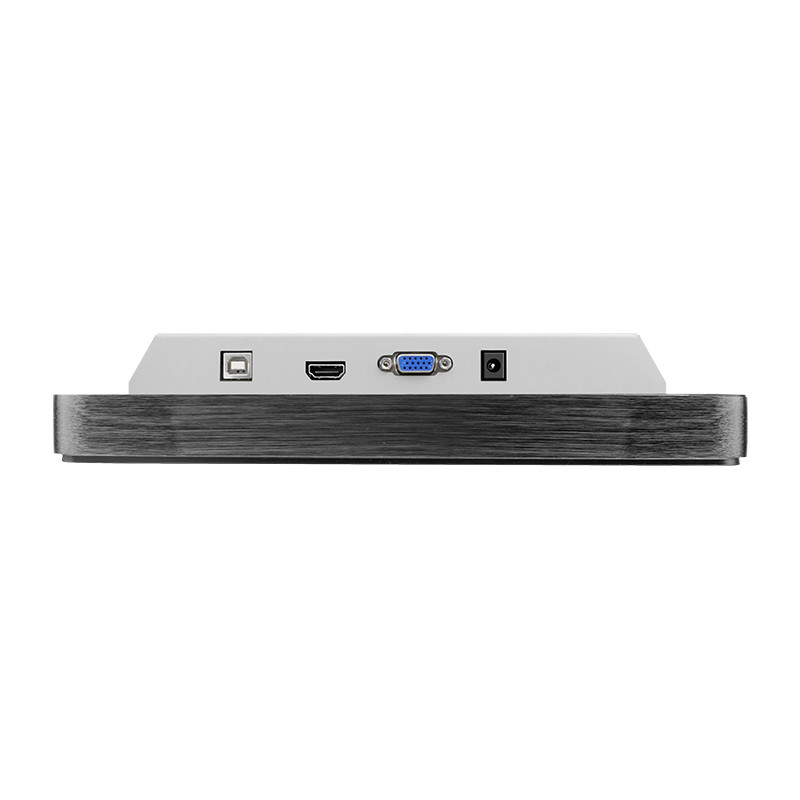

Video Input

VGA/HDMI

Frequency (H/V)

30～80KHz / 60～75Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

MTBF

≥ 50,000 hours

LED Back Light Life (Typ.)

≥ 50,000 hours

Weight（N.W/G.W）

1.85Kg(1 pcs)4.5Kg(2pcs in one package)

 Package dimensions

332*220*285mm(2pcs in one package)

Power Consumption

Standby Power: ≤1W Operating Power: ≤13W

Mount Interface

1. VESA 75mm

2. Mount bracket, horizontal or vertical mount


Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, UL, FCC, CE, CB, RoHS

Regular Warranty

1 year





Touch Screen

Touch Type

10.1" capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

>85%

Support System

WIN7、WIN8、WIN10support 10points, XP support single point

Active Area

216.96*135.6(mm)

Thickness

3.75±0.2(mm)

Touch Test

≥ 50,000,000 times

Input Voltage

DC 5V±5%







Applications

Retail

Gaming

Kiosk

Self-service

Finance

Transit

Conference

Education

Healthcare

Public service

E-commerce

Hotels

Restaurants







Advantages of PCAP Touch Monitor

1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.

2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.

3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.

4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.

5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.




FAQ:

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.



2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
