Multi Touch Digital Monitor 1920x1080 178° Viewing Angle
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contrast Ratio | 1000:1 | Viewing Angle | 178° |
|---|---|---|---|
| Screen Size | 15.6 | Weight（N.W/G.W） | 4.1Kg(1pcs)/9.85Kg(2pcs In One Package) |
| Operating System | Windows/Android/Linux | Product Name | PCAP Touch Monitor |
| Touch Points | 10 | Touch Resolution | 1280*1024 |
| High Light | 1920x1080 PCAP Digital Monitor,178deg Viewing Angle Digital Monitor,PCAP Multi Touch Digital Monitor | ||
Product Description
Multi Touch Digital Monitor 1920x1080 178° Viewing Angle
PCAP Touch Monitor: 10-Touch Capacitive Touch Screen Display with Multi-Touch Digital Monitor
The PCAP Touch Monitor is a powerful and modern capacitive touch screen display with multi-touch digital monitor. Boasting 10 touch points, a resolution of 1920x1080, power consumption of 20W, and a viewing angle of 178°, this monitor is perfect for any professional setting.
The PCAP Touch Monitor brings a new level of convenience and accuracy to the digital interface. With its capacitive touch screen display, users can easily and accurately interact with the monitor with a simple tap or gesture. The monitor’s multi-touch digital monitor allows for greater control and responsiveness when navigating menus or playing games.
Whether used for work or leisure, the PCAP Touch Monitor is a great choice for any user. It offers a powerful combination of features and convenience that makes it an ideal choice for any setting. With its 10-touch capacitive touch screen display and multi-touch digital monitor, the PCAP Touch Monitor is the perfect choice for any user.
Features:
- Product Name: PCAP Touch Monitor
- Contrast Ratio: 1000:1
- Viewing Angle: 178°
- Touch Technology: Projected Capacitive
- Brightness: 212cd/m2
- Weight: 4.1Kg(1pcs)/9.85Kg(2pcs in one package)
Technical Parameters:
Complete Machine | ||
Model No. | KOT-0170U-CA4P | |
Series | OT | |
Display Type | 5:4 Ratio 17" TFT-LCD | |
Active Area | 337.9*270.3(mm) | |
Monitor Dimensions (W*H*D) | 378.9*313.3*47.3(mm) | |
Suggested Resolution | 1280*1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 212cd/m² | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（ N.W/G.W ） | 4.1Kg(1pcs)/9.85Kg(2pcs in one package) | |
Package dimensions | 466*185*403(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO, +,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |

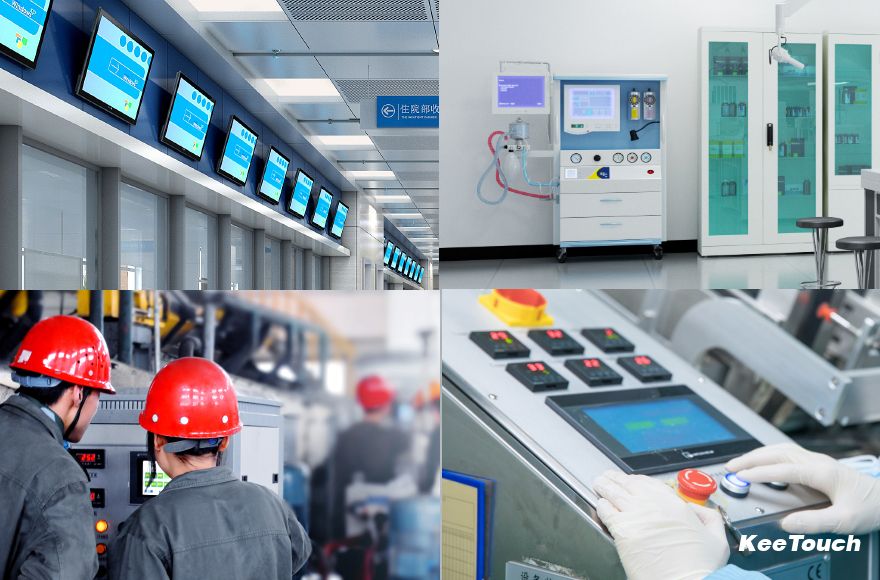

Applications:
KeeTouch PCAP Touch Monitor is a powerful and versatile capacitive touch screen display, designed and manufactured in Shenzhen, China. It features a 10-point touch screen, with high brightness of 300cd/m2 and low power consumption of 20W. The PCAP touch monitor is lightweight, weighing only 4.1Kg(1pcs)/9.85Kg(2pcs in one package) and supports Windows/Android/Linux operating system.
Support and Services:
PCAP Touch Monitor Technical Support and Service
We provide comprehensive technical support and services for PCAP Touch Monitors. Our experienced technical support team is available to help you with any questions or issues you may have. We offer a variety of services, including:
- Troubleshooting and diagnostics
- Installation and setup
- Software upgrades
- Hardware maintenance and repair
- Remote support
- Hardware replacement
We are committed to providing you with the best service experience possible. If you have any questions or concerns regarding your PCAP Touch Monitor, please do not hesitate to contact us.
FAQ:
Q1: What is KeeTouch PCAP Touch Monitor?
A1: KeeTouch PCAP Touch Monitor is a product developed by Shenzhen-based company, which is designed for interactive digital applications.
Q2: What are the advantages of KeeTouch PCAP Touch Monitor?
A2: KeeTouch PCAP Touch Monitor offers advanced multi-touch capability, high accuracy and fast response, as well as wide viewing angle and long life cycle.
Q3: What size is KeeTouch PCAP Touch Monitor?
A3: KeeTouch PCAP Touch Monitor is available in 17 inches.
Q4: What type of interface does KeeTouch PCAP Touch Monitor support?
A4: KeeTouch PCAP Touch Monitor supports USB and RS232 interfaces.
Q5: Does KeeTouch PCAP Touch Monitor support customization?
A5: Yes, KeeTouch PCAP Touch Monitor supports customization, including size, connectivity, and software.
