1024x768 Resolution PCAP Touch Monitor 10.1 Inch For Kiosks 1280*800 WXGA
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Suggested Resolution | 1280*800 WXGA | Contrast Ratio (Typ.) | 800:1 |
|---|---|---|---|
| Touch Input | USB | Support Colors | 16.2M |
| Response Time | 16s | Storage Temp. | -20～60°C |
| Touch Test | ≥50,000,000 Times | Product Name | PCAP Touch Monitor |
| High Light | 1024x768 Resolution PCAP Touch Monitor,PCAP 1280*800 WXGA Touch Monitor,USB Touch PCAP Monitor For Kiosks | ||
Product Description

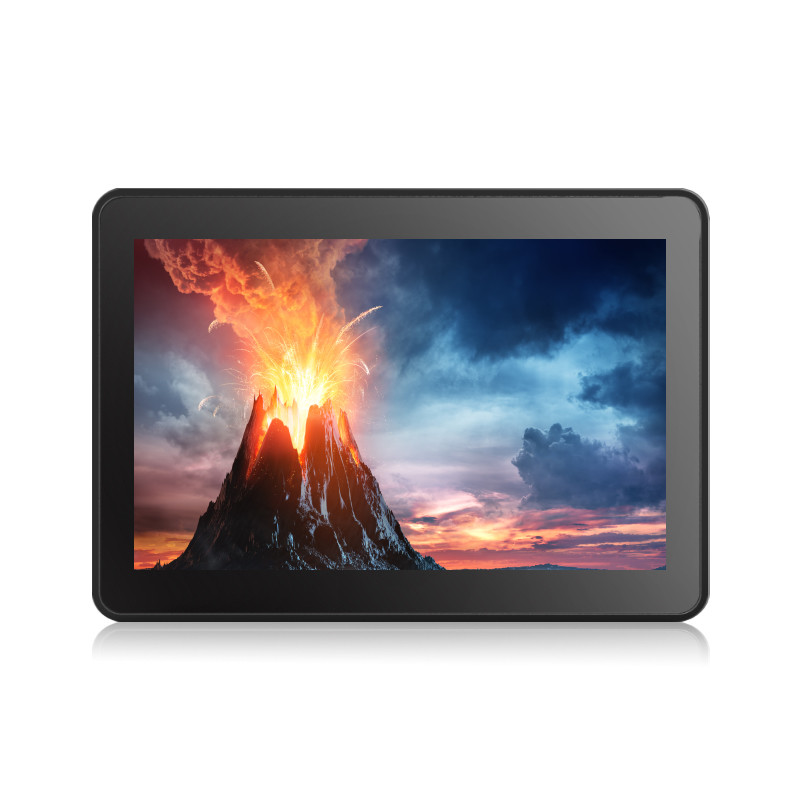

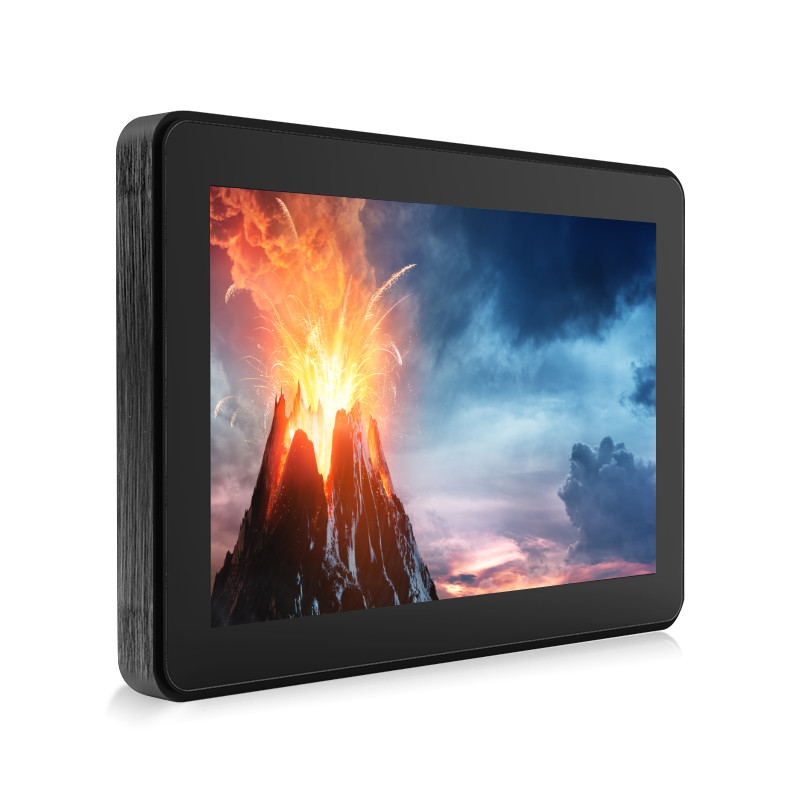

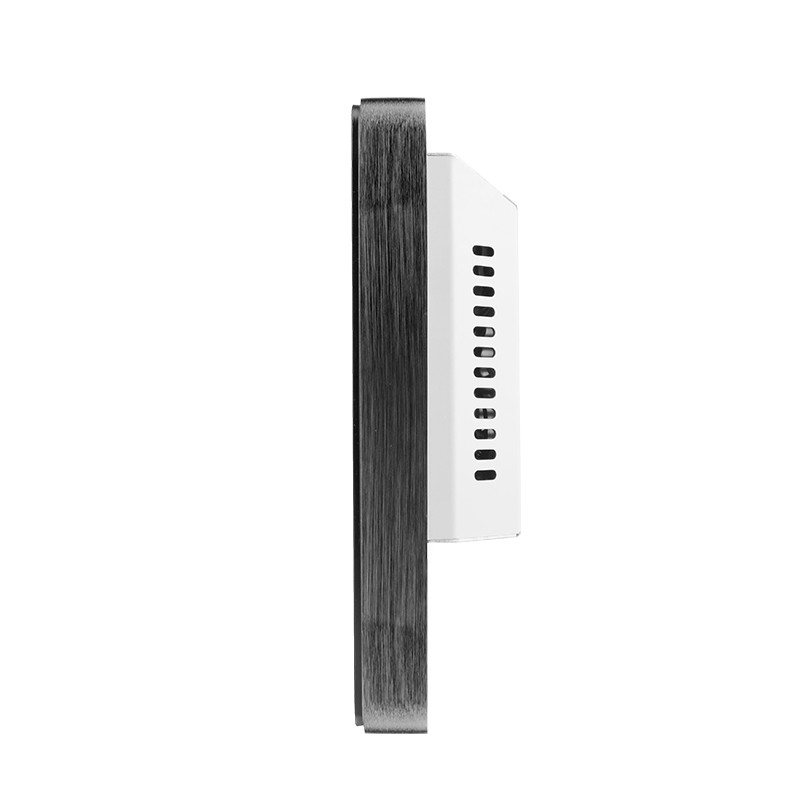

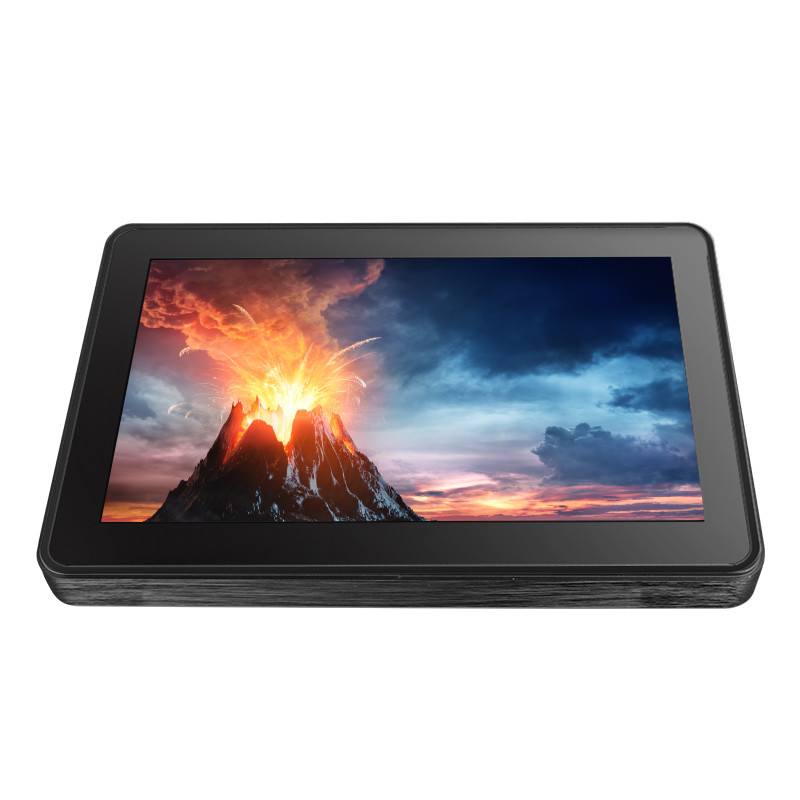

10.1 Inch PCAP Touch Monitor 1024x768 Resolution for Kiosks
Description of PCAP Touch Monitor
This 10.1 inch PCAP touch monitor comes with Projected Capacitive touch technology with high resolution and wide viewing angle. It supports 10 points multi-touch, great interactive experience., which is dust proof, vandal proof and scratch resistant PCAP touch monitor. The touch monitor supports multiple mounting options, including VESA mount, horizontal vertical brackets mount.In addition, other sizes (7''-43'') can be for your option.
Specification of PCAP Touch Monitor
Complete Machine | ||||
Model No. | KOT-0101U-CA4P（KOT-101P-002） | |||
Type | OT | |||
Display Type | 16:10 Ratio 10.1＂TFT-LCD, LED backlight | |||
Active Area | 216.96*135.6(mm) | |||
Monitor Dimensions (W*H*D) | 259.5*182.5*50(mm) | |||
Suggested Resolution | 1280*800 WXGA | |||
Support Colors | 16.2M | |||
Brightness (Typ.) | Pure LCD Panel | 300cd/m² | ||
With Touch Monitor | 255cd/m² | |||
Response Time (Typ.) | 16ms | |||
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° | ||
Vertical(up/down) | 85°/85° | |||
Contrast Ratio (Typ.) | 800:1 | |||
Video Input | VGA/HDMI | |||
Frequency (H/V) | 30～80KHz / 60～75Hz | |||
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |||
Environment | Operating Temp. | 0～50°C | ||
Operating RH | 20%～80% | |||
Storage Temp. | -20～60°C | |||
Storage RH | 10%～90% | |||
MTBF | ≥ 50,000 hours | |||
LED Back Light Life (Typ.) | ≥ 50,000 hours | |||
Weight（N.W/G.W） | 1.85Kg(1 pcs)4.5Kg(2pcs in one package) | |||
Package dimensions | 332*220*285mm(2pcs in one package) | |||
Power Consumption | Standby Power: ≤1W Operating Power: ≤13W | |||

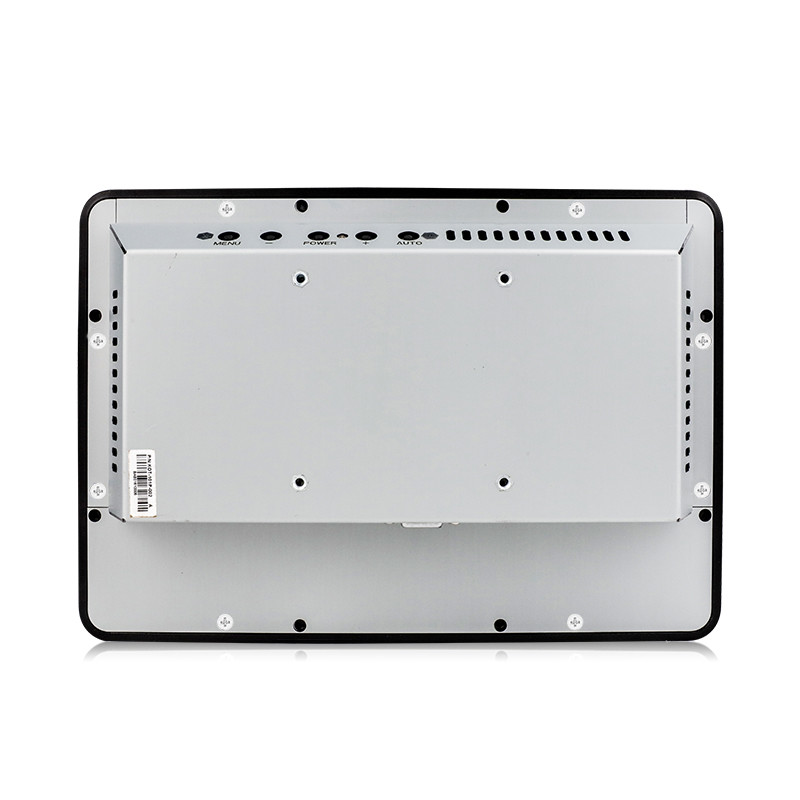

Mount Interface | 1. VESA 75mm 2. Mount bracket, horizontal or vertical mount | |||
OSD Control | Buttons | AUTO,+,POWER,-,MENU | ||
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
CCC, UL, FCC, CE, CB, RoHS | ||||
Regular Warranty | 1 year | |||
Touch Screen | |
Touch Type | 10.1" capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | >85% |
Support System | WIN7、WIN8、WIN10support 10points, XP support single point |
Active Area | 216.96*135.6(mm) |
Thickness | 3.75±0.2(mm) |
Touch Test | ≥ 50,000,000 times |
Input Voltage | DC 5V±5% |
Applications

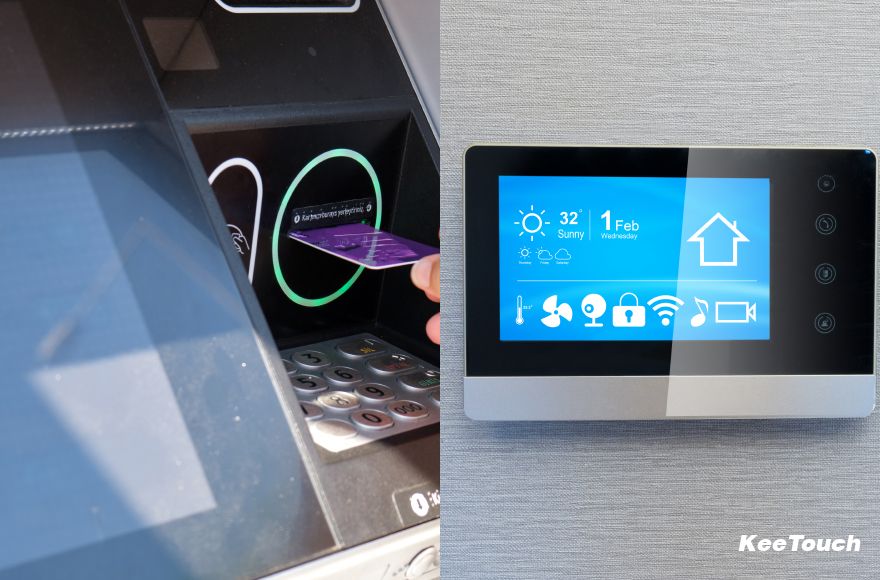

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and touch solutions for 18+ years.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
FAQ:
1. Can you produce the PCAP touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)
3. What is your delivery time for the PCAP touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
