10.1 Inch PCAP Touch Monitor 16:10 Ratio Anti Vandal For Smart Lockers

10.1 Inch PCAP Touch Monitor 16:10 Ratio Anti Vandal For Smart Lockers
10.1 Inch PCAP Touch Monitor 16:10 Ratio Anti Vandal For Smart Lockers 10.1 Inch PCAP Touch Monitor 16:10 Ratio Anti Vandal For Smart Lockers 10.1 Inch PCAP Touch Monitor 16:10 Ratio Anti Vandal For Smart Lockers 10.1 Inch PCAP Touch Monitor 16:10 Ratio Anti Vandal For Smart Lockers 10.1 Inch PCAP Touch Monitor 16:10 Ratio Anti Vandal For Smart Lockers 10.1 Inch PCAP Touch Monitor 16:10 Ratio Anti Vandal For Smart Lockers
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL
Model NumberKOT-0101U-CA4P
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Suggested Resolution1280*800 WXGAContrast Ratio (Typ.)800:1
Touch InputUSBVideo InputVGA/HDMI
Response Time16sOperating Temp0~50°C
Touch Test≥50,000,000 TimesProduct NamePCAP Touch Monitor
High Light

10.1 Inch PCAP Touch Monitor

,

PCAP Anti Vandal Touch Monitor

,

PCAP Touch Monitor For Smart Lockers

Leave a Message
Product Description


10.1 Inch PCAP Touch Monitor 16:10 Ratio Anti-vandal for Smart Lockers



Description of PCAP Touch Monitor



This 10.1 inch PCAP touch monitor is industrial grade, which can be used normally in harsh environments. It comes with dust-proof, vandal-proof and IP65 waterproof functions. VGA and HDMI interfaces are provided for use. Besides, other sizes (7’’-43’’) can be for your option. With professional R&D department, OEM and ODM services are available.





 Specification of PCAP Touch Monitor



Complete Machine

Model No.

KOT-0101U-CA4PKOT-101P-002

Type

OT

Display Type

16:10 Ratio 10.1"TFT-LCD, LED backlight

Active Area

216.96*135.6(mm)

Monitor Dimensions (W*H*D)

259.5*182.5*50(mm)

Suggested Resolution

1280*800 WXGA

Support Colors

16.2M

Brightness (Typ.)

Pure LCD Panel

300cd/m2

With Touch Monitor

255cd/m2

Response Time (Typ.)

16ms

Viewing Angle(Typ.at CR>10))

Horizontal(left/right)

85°/85°

Vertical(up/down)

85°/85°

Contrast Ratio (Typ.)

800:1

Video Input

VGA/HDMI

Frequency (H/V)

30~80KHz / 60~75Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.

0~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

MTBF

≥ 50,000 hours

LED Back Light Life (Typ.)

≥ 50,000 hours

Weight(N.W/G.W)

1.85Kg(1 pcs)4.5Kg(2pcs in one package)

 Package dimensions

332*220*285mm(2pcs in one package)

Power Consumption

Standby Power: ≤1W Operating Power: ≤13W

OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Regular Warranty

1 year



Touch Screen

Touch Type

10.1" capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

>85%

Support System

WIN7、WIN8、WIN10support 10points, XP support single point

Active Area

216.96*135.6(mm)

Thickness

3.75±0.2(mm)

Touch Test

≥ 50,000,000 times

Input Voltage

DC 5V±5%





Application:

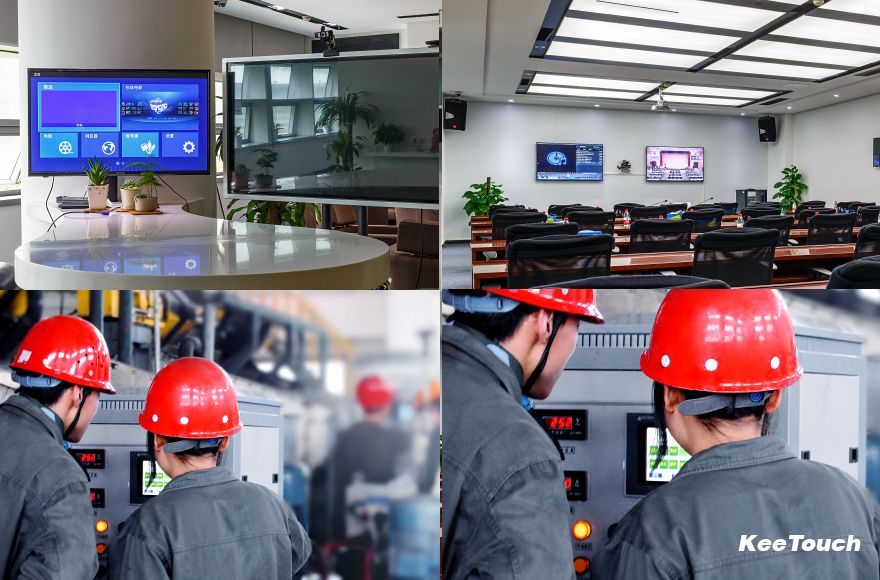

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.






Why choose us?

1.Quality products: All our products have passed strict quality inspection by the quality department before shipment.

2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.

3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.

4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.





FAQ:

1. What package do you provide for the PCAP touch monitor?

Our package usually is carton.



2. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.



3. What are the shipping ways?

We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.



4. Do you give any discount for the PCAP touch monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
