1920x1080 PCAP Touch Monitor 18.5 Inch High Resolution For Kiosks

1920x1080 PCAP Touch Monitor 18.5 Inch High Resolution For Kiosks
1920x1080 PCAP Touch Monitor 18.5 Inch High Resolution For Kiosks 1920x1080 PCAP Touch Monitor 18.5 Inch High Resolution For Kiosks 1920x1080 PCAP Touch Monitor 18.5 Inch High Resolution For Kiosks 1920x1080 PCAP Touch Monitor 18.5 Inch High Resolution For Kiosks 1920x1080 PCAP Touch Monitor 18.5 Inch High Resolution For Kiosks 1920x1080 PCAP Touch Monitor 18.5 Inch High Resolution For Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-185P-001(KOT-0185U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Active Area409.8*230.4(mm)Contrast Ratio (Typ.)1000:1
Video InputVGA\DVISupport Colors16.7M
Response Time8sPower ConsumptionStandby Power: ≤1.5W / Operating Power: ≤15W
Touch Type18.5" Riot Capacitive Touch ScreensProduct NamePCAP Touch Monitor
Warranty1 YearBrightness400cd/m2
High Light

PCAP High Resolution Touch Monitor

,

18.5Inch PCAP Touch Monitor 1920x1080

,

Touch PCAP Monitor 1920x1080

Leave a Message
Product Description

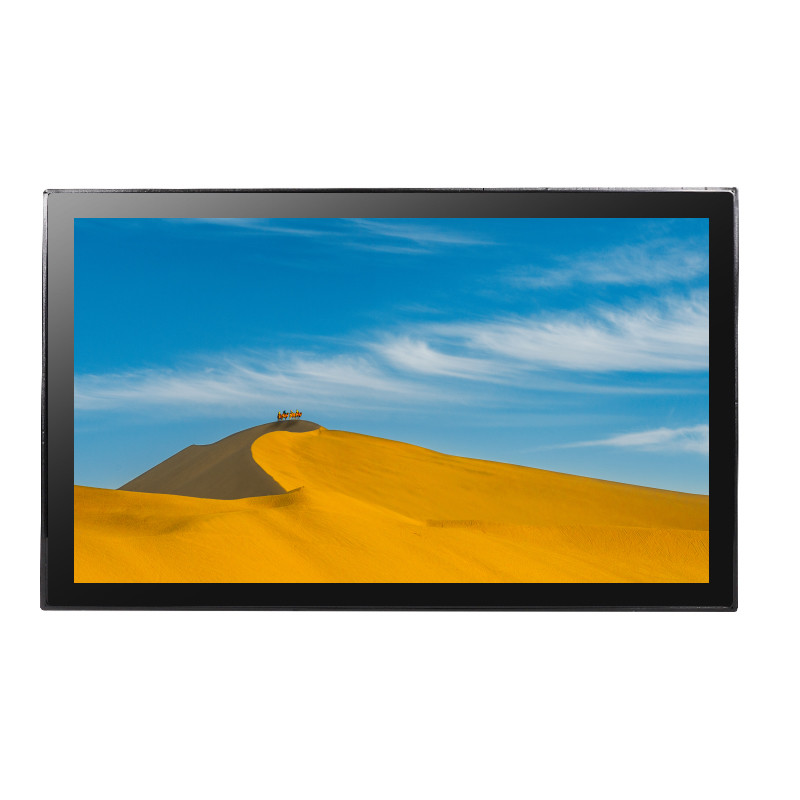

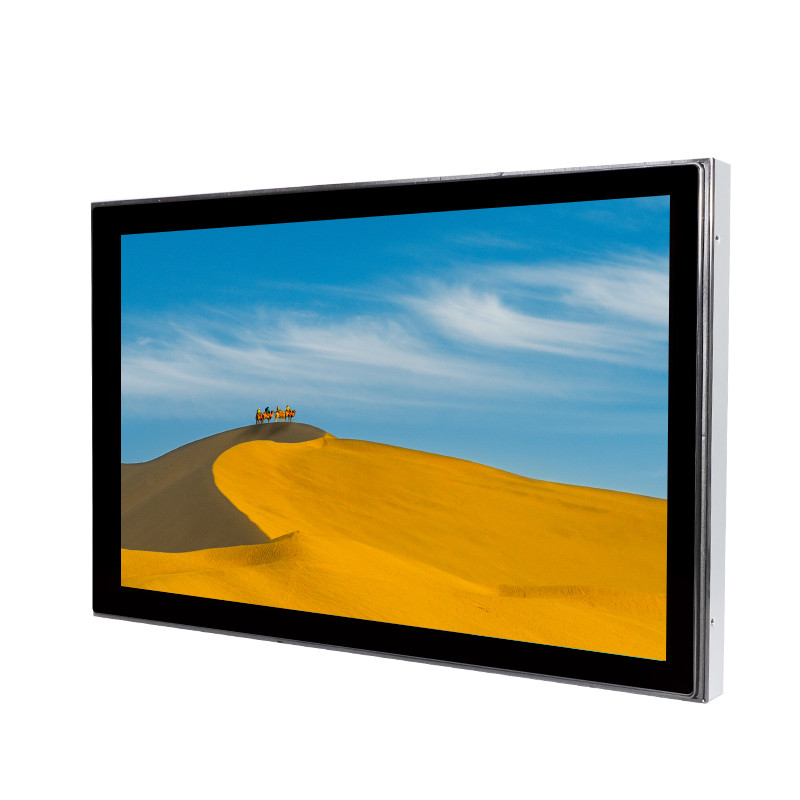

18.5 Inch PCAP Touch Monitor 1920x1080 High Resolution for Kiosks



Description of PCAP Touch Monitor

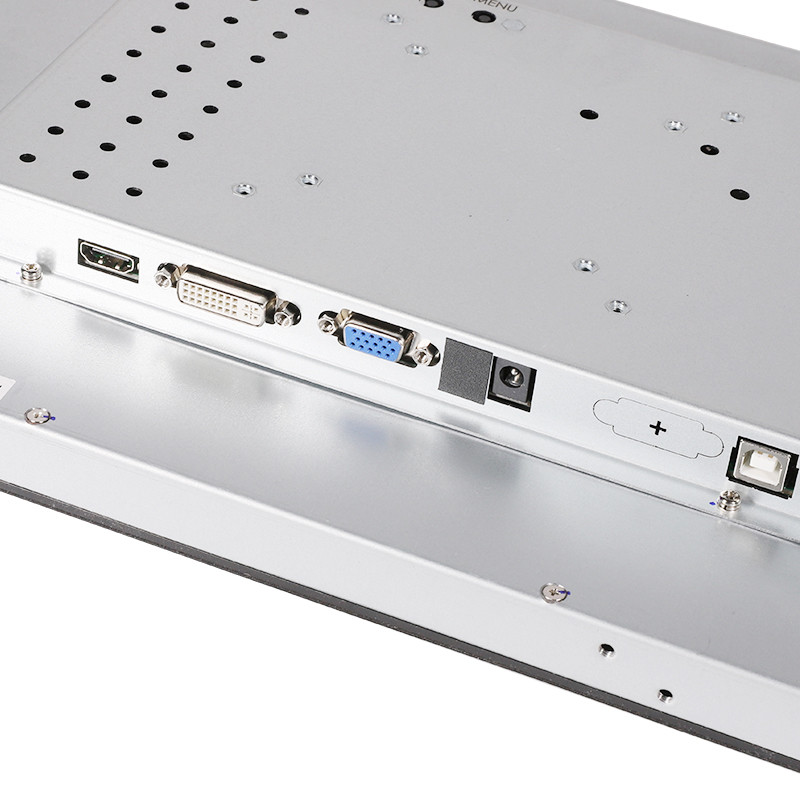

This PCAP touch monitor delivers main features as below: 1920*1080 high resolution, 1000:1 high contrast ratio, vandal-proof, IP65 front frame waterproof and dust-proof with wide viewing angle. Pure flat designed, sleek and fashionable. Also, VGA and DVI interfaces are provided for use, USB port for touch. In addition, OEM and ODM services can be offered to meet customers’ individual needs.





Specification of PCAP Touch Monitor


Complete Machine

Model No.

KOT-0185U-CA4P(P/N:KOT-185P-001)

Series

OT

Display Type

16:9 Ratio 18.5" TFT-LCD

Active Area

409.8*230.4(mm)

Monitor Dimensions (W*H*D)

449.4*270*46(mm)

Suggested Resolution

1920*1080@ 60Hz

Support Colors

16.7M



Brightness (Typ.)

Pure LCD Panel

250cd/m2

With Touch Monitor

212cd/m2

Response Time (Typ.)

5ms

Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

1000:1

Video Input

VGA/DVI

Frequency (H/V)

37.8～68.4KHz / 50～76Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

MTBF

≥30,000 Hours

LED Back Light Life (Typ.)

≥30,000 Hours

Weight（N.W/G.W）

3.64Kg(1pcs)/8.93Kg(2pcs in one package)

Package dimensions

525*190*385(mm)(2pcs in one package)

Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤25W



Mount Interface

1. VESA 75mm and 100mm

2. Mount bracket, horizontal or vertical mount



OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, UL, FCC, CE, CB, RoHS

Regular Warranty

1 year


Touch Screen

Touch Type

18.5" Riot capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

410.8*231.4(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%




Application:


  • Retail

  • Gaming

  • Kiosk

  • self-service

  • Finance

  • Transit

  • Conference

  • Education

  • Healthcare

  • public service

  • e-commerce

  • Hotels

  • restaurants


137





Advantages of PCAP Touch Monitor


1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.


2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.


3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.


4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.


5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.





FAQ:

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.


2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
