18.5 Inch PCAP Touch Display Monitor Pure Flat Open Frame 400cd/m²

18.5 Inch PCAP Touch Display Monitor Pure Flat Open Frame 400cd/m²
18.5 Inch PCAP Touch Display Monitor Pure Flat Open Frame 400cd/m² 18.5 Inch PCAP Touch Display Monitor Pure Flat Open Frame 400cd/m² 18.5 Inch PCAP Touch Display Monitor Pure Flat Open Frame 400cd/m² 18.5 Inch PCAP Touch Display Monitor Pure Flat Open Frame 400cd/m² 18.5 Inch PCAP Touch Display Monitor Pure Flat Open Frame 400cd/m² 18.5 Inch PCAP Touch Display Monitor Pure Flat Open Frame 400cd/m²
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-185P-001(KOT-0185U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Active Area409.8*230.4(mm)Contrast Ratio (Typ.)1000:1
Video InputVGA\DVISupport Colors16.7M
ButtonsAUTO,+,POWER,-,MENUPower ConsumptionStandby Power: ≤1.5W / Operating Power: ≤15W
Touch Type18.5" Riot Capacitive Touch ScreensProduct NamePCAP Touch Monitor
Warranty1 YearBrightness400cd/m²
High Light

PCAP Touch Display Monitor

,

400cd/m2 PCAP Touch Display Monitor

,

Pure Flat Open PCAP Display Monitor

Leave a Message
Product Description

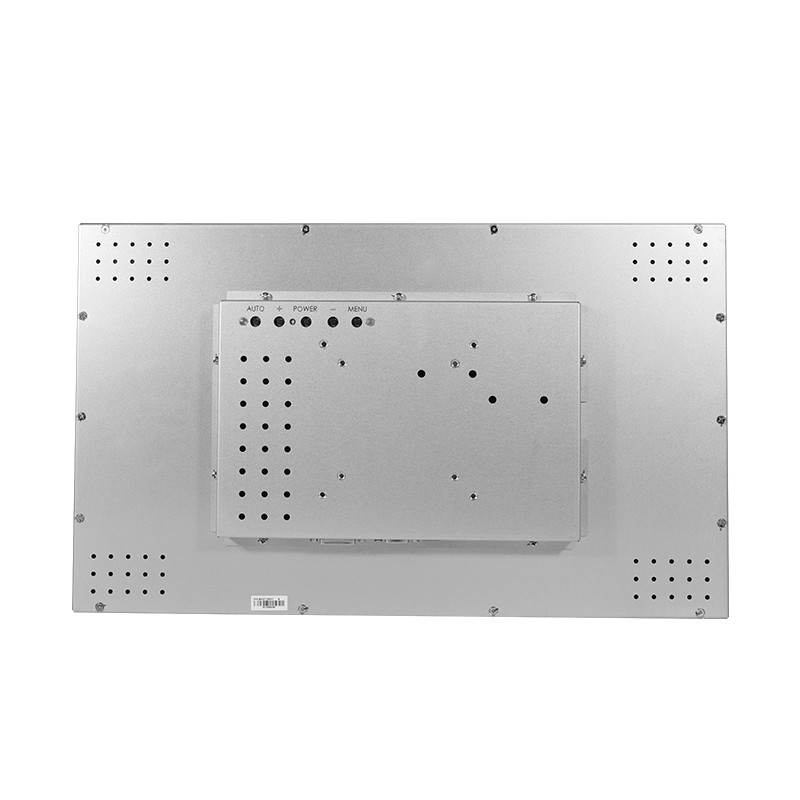

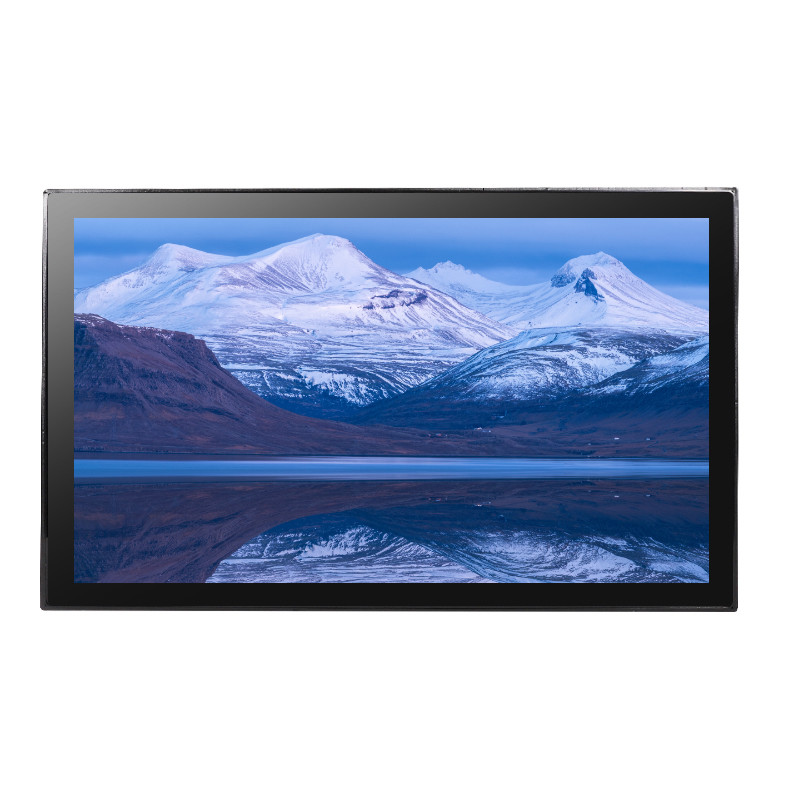

18.5 Inch PCAP Touch Monitor Pure Flat Open Frame Touch Display



Description of PCAP Touch Monitor



This 18.5 inch PCAP touch monitor adopts KeeTouch Projected Capacitive touch technology with super interactive experience. With 10 points touch, high sensitive and fast response. This PCAP touch monitor is industrial grade, high-quality, durable and fashionable with dust-proof, vandal-proof and IP65 waterproof functions. Besides, other sizes (7’’ - 43’’ ) can be for your option.







Specification of PCAP Touch Monitor




Complete Machine
Model No.KOT-185P-001(P/N:KOT-0185U-CA4P)
SeriesOT
Display Type16:9 Ratio 18.5" TFT-LCD
Active Area409.8*230.4(mm)
Monitor Dimensions (W*H*D)449.4*270*46(mm)
Suggested Resolution1920*1080@ 60Hz
Support Colors16.7M



Brightness (Typ.)

Pure LCD Panel250cd/m²
With Touch Monitor212cd/m²
Response Time (Typ.)5ms
Viewing Angle(Typ.at CR＞10))Horizontal(left/right)85°/85°
Vertical(up/down)80°/80°
Contrast Ratio (Typ.)1000:1
Video InputVGA/DVI
Frequency (H/V)37.8～68.4KHz / 50～76Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

Operating RH20%～80%
Storage Temp.-20～60°C
Storage RH10%～90%
MTBF≥30,000 Hours
LED Back Light Life (Typ.)≥30,000 Hours
Weight(N.W/G.W)3.64Kg(1pcs)/8.93Kg(2pcs in one package)
Package dimensions525*190*385(mm)(2pcs in one package)
Power ConsumptionStandby Power: ≤1.5W / Operating Power: ≤25W



Mount Interface

1. VESA 75mm and 100mm

2. Mount bracket, horizontal or vertical mount



OSD Control

ButtonsAUTO,+,POWER,-,MENU
Agency approvalsCCC, UL, FCC, CE, CB, RoHS
Regular Warranty1 year



Touch Screen
Touch Type18.5" Riot capacitive touch screens
Touch inputUSB
Response Time≤10ms
Hardness6H
Light Transmittance≥85%
Support SystemXP,WIN7,WIN8,WIN10,Linux,Android
Active Area410.8*231.4(mm)
Thickness4.3±0.2(mm)
Touch Test≥50,000,000 times
Input VoltageDC 5V±5%







Specification of PCAP Touch Monitor



18.5 Inch PCAP Touch Display Monitor Pure Flat Open Frame 400cd/M2 0

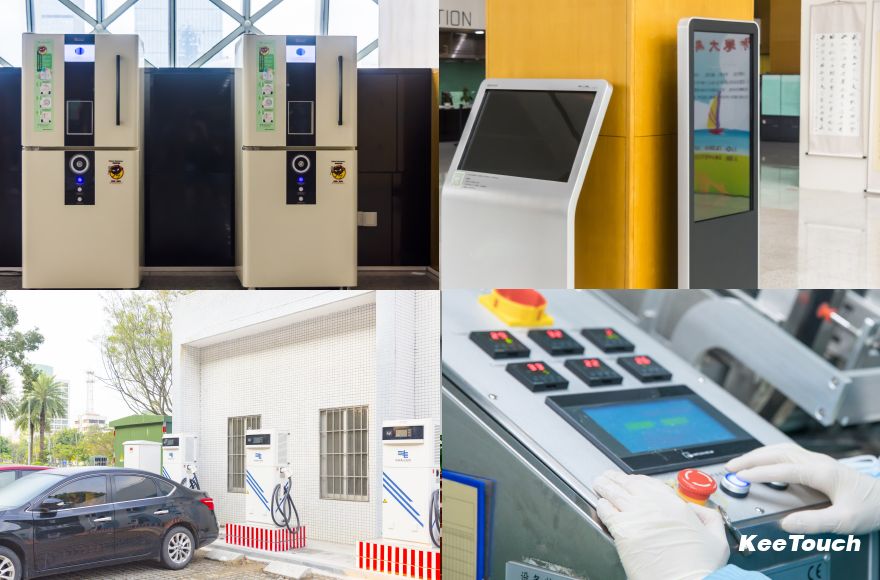

Application:

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.








Why choose us?

1. We are a leading provider of industrial grade touch products and touch solutions for 18+ years.

2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.

3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.

4. Professional after-sales team at any time to provide services to customers.





FAQ:

1. Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



2. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card, and Alipay.(L/C can be negotiable.)


3. What is your delivery time for the PCAP touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
