18.5 Inch PCAP Touch Monitor 400cd/㎡ 16:9 Ratio VGA/DVI Interfaces

18.5 Inch PCAP Touch Monitor 400cd/㎡ 16:9 Ratio VGA/DVI Interfaces
18.5 Inch PCAP Touch Monitor 400cd/㎡ 16:9 Ratio VGA/DVI Interfaces 18.5 Inch PCAP Touch Monitor 400cd/㎡ 16:9 Ratio VGA/DVI Interfaces 18.5 Inch PCAP Touch Monitor 400cd/㎡ 16:9 Ratio VGA/DVI Interfaces 18.5 Inch PCAP Touch Monitor 400cd/㎡ 16:9 Ratio VGA/DVI Interfaces 18.5 Inch PCAP Touch Monitor 400cd/㎡ 16:9 Ratio VGA/DVI Interfaces
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-185P-001(KOT-0185U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Active Area409.8*230.4(mm)Contrast Ratio (Typ.)1000:1
Video InputVGA\DVISupport Colors16.7M
ButtonsAUTO,+,POWER,-,MENUPower ConsumptionStandby Power: ≤1.5W / Operating Power: ≤15W
Touch Type18.5" Riot Capacitive Touch ScreensProduct NamePCAP Touch Monitor
Warranty1 YearBrightness400cd/㎡
High Light

PCAP Touch Monitor 18.5 Inch

,

PCAP VGA DVI Interfaces Touch Monitor

,

400cd/㎡ Touch PCAP Monitor

Leave a Message
Product Description



18.5 Inch PCAP Touch Monitor 16:9 Ratio VGA DVI Interfaces



Description of PCAP Touch Monitor



This 18.5 inch PCAP touch monitor comes with high durability, accuracy and multi-touch support, IP65 waterproof, dust-proof and anti-vandal functions, which can be used in harsh environments normally. This PCAP touch monitor delivers high resolution, high contrast with wide viewing angle. VGA, DVI and USB interfaces are provided for use. And it supports various operation systems: XP, WIN7, WIN8, WIN10, Linux and Android.





Specification of PCAP Touch Monitor



Complete Machine
Model No.KOT-185P-001(P/N:KOT-0185U-CA4P)
SeriesOT
Display Type16:9 Ratio 18.5" TFT-LCD
Active Area409.8*230.4(mm)
Monitor Dimensions (W*H*D)449.4*270*46(mm)
Suggested Resolution1920*1080@ 60Hz
Support Colors16.7M



Brightness (Typ.)

Pure LCD Panel250cd/m²
With Touch Monitor212cd/m²
Response Time (Typ.)5ms
Viewing Angle(Typ.at CR＞10))Horizontal(left/right)85°/85°
Vertical(up/down)80°/80°
Contrast Ratio (Typ.)1000:1
Frequency (H/V)37.8～68.4KHz / 50～76Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.0～50°C
Operating RH20%～80%
Storage Temp.-20～60°C
Storage RH10%～90%
MTBF≥30,000 Hours
LED Back Light Life (Typ.)≥30,000 Hours
Weight(N.W/G.W)3.64Kg(1pcs)/8.93Kg(2pcs in one package)
Package dimensions525*190*385(mm)(2pcs in one package)
Power ConsumptionStandby Power: ≤1.5W / Operating Power: ≤25W



Mount Interface

1. VESA 75mm and 100mm

2. Mount bracket, horizontal or vertical mount



OSD Control

ButtonsAUTO,+,POWER,-,MENU
FunctionBrightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvalsCCC, UL, FCC, CE, CB, RoHS
Regular Warranty1 year



Touch Screen
Touch Type18.5" Riot capacitive touch screens
Touch inputUSB
Response Time≤10ms
Hardness6H
Light Transmittance≥85%
Support SystemXP,WIN7,WIN8,WIN10,Linux,Android
Active Area410.8*231.4(mm)
Thickness4.3±0.2(mm)
Touch Test≥50,000,000 times
Input VoltageDC 5V±5%

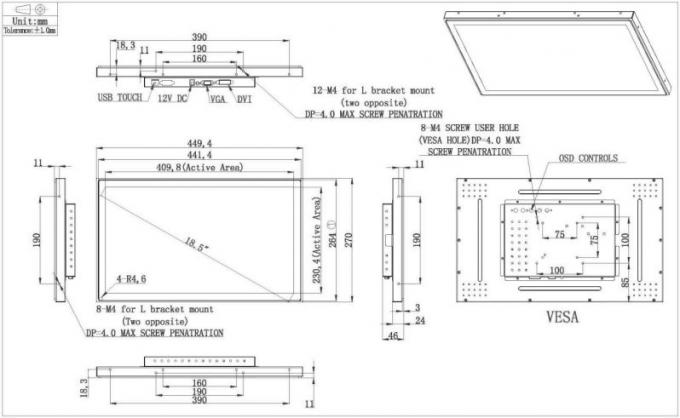

Specification of PCAP Touch Monitor



18.5 Inch PCAP Touch Monitor 400cd/M2 16:9 Ratio VGA DVI Interfaces 0







Application:

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.








Why choose us?

1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.

2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.

3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.

4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.





FAQ:

1. What package do you provide for the PCAP touch monitor?

Our package usually is carton.



2. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.



3. What are the shipping ways?

We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.



4. Do you give any discount for the PCAP touch monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
