43 Inch IP65 Waterproof Dust Proof PCAP Touch Monitor With HDMI/VGA/DVI

43 Inch IP65 Waterproof Dust Proof PCAP Touch Monitor With HDMI/VGA/DVI
43 Inch IP65 Waterproof Dust Proof PCAP Touch Monitor With HDMI/VGA/DVI 43 Inch IP65 Waterproof Dust Proof PCAP Touch Monitor With HDMI/VGA/DVI 43 Inch IP65 Waterproof Dust Proof PCAP Touch Monitor With HDMI/VGA/DVI 43 Inch IP65 Waterproof Dust Proof PCAP Touch Monitor With HDMI/VGA/DVI 43 Inch IP65 Waterproof Dust Proof PCAP Touch Monitor With HDMI/VGA/DVI
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-0430U-CA4P(P/N:KOT-430P-004)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Response Time (Typ.)6.5msDisplay Type16:9 Ratio 43" TFT-LCD
Support Colors16.7MVideo InputVGA\DVI\HDMI
Contrast Ratio (Typ.)3000:1Active Area942.9*531.25 (mm)
Storage Temp.-20～60°CFrequency (H/V)30～80KHz / 60～75Hz
Product NamePCAP Touch MonitorWarrantyOne Year
High Light

43Inch PCAP Touch Monitor

,

Waterproof PCAP Touch Screen Monitor

,

HDMI PCAP Touch Screen Monitor

Leave a Message
Product Description

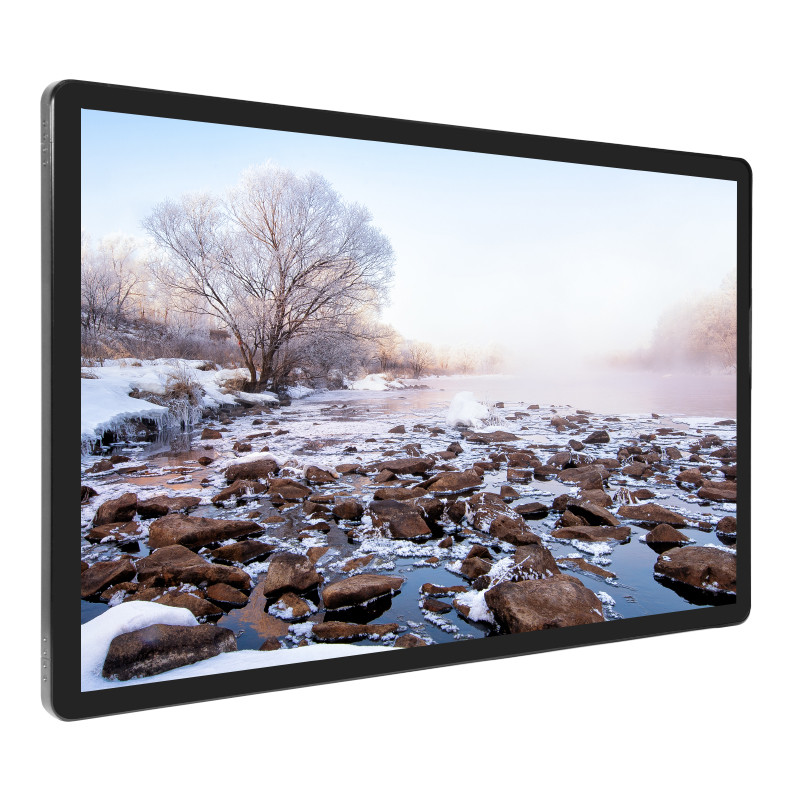

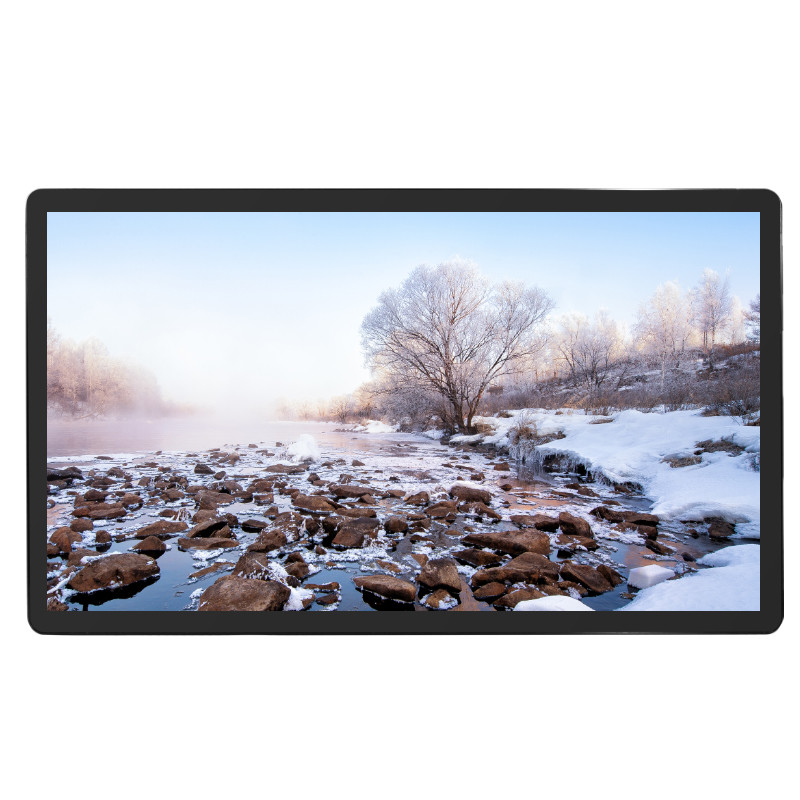

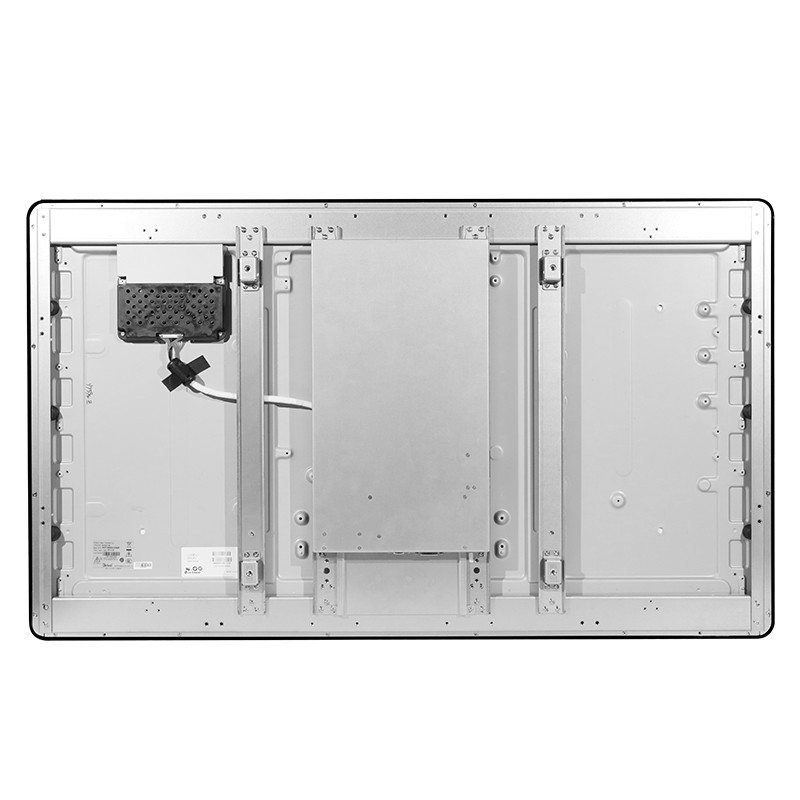

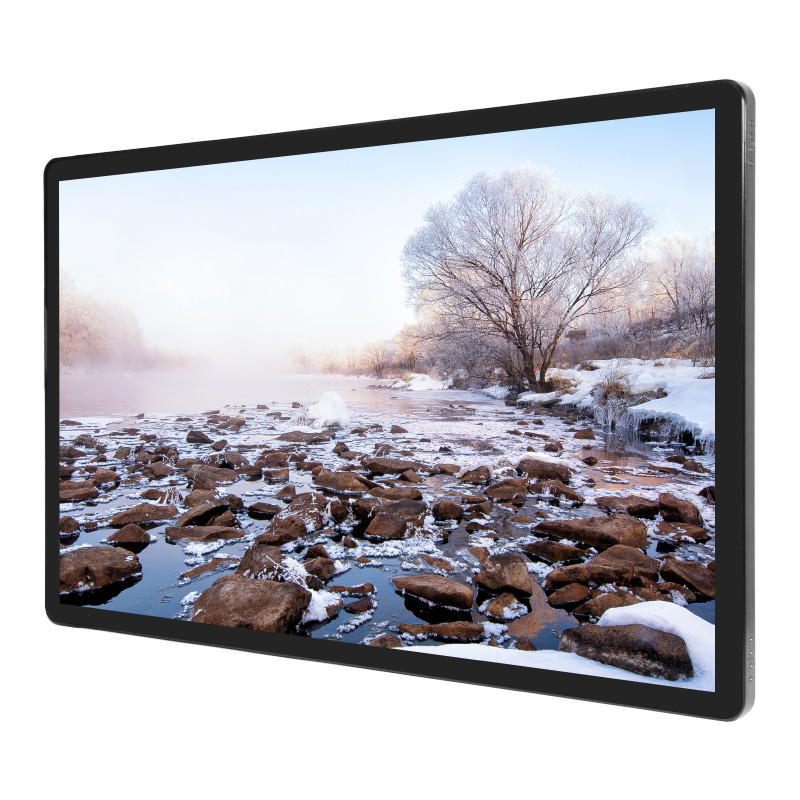

43 Inch IP65 Waterproof & Dust-proof PCAP Touch Monitor with HDMI/VGA/DVI



Description of PCAP Touch Monitor



This PCAP 1080p hd touch monitor comes with below main features: 1920*1080 resolution, 3000:1 contrast ratio, vandal-proof, IP65 waterproof and dust-proof with full viewing angle. The PCAP touch monitor is industrial grade, which is with high quality. Also, VGA, DVI and HDMI interfaces are provided for use, USB port for touch. In addition, with our professional R&D engineers, customized services can be offered to meet your individual needs.





Specification of PCAP Touch Monitor



 Complete Machine

 Model No.

 KOT-0430U-CA4P(P/N:KOT-430P-004)

 Series

 OT

 Display Type

16:9 Ratio 43" TFT-LCD

 Active Area

942.9*531.25 (mm)

 Monitor Dimensions (W*H*D)

1004*592*64.6 (mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

  Brightness (Typ.)

Pure LCD Panel

380cd/m²

With Touch Monitor

320cd/m²

 Response Time (Typ.)

6.5 ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

3000:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 24V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

-10～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

50,000 Hours

 LED Back Light Life (Typ.)

50,000 Hours

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Touch Type

 43" Capacitive touch screens, antiglare and tempered type

 Touch input

 USB

Support System

 XP,WIN7,WIN8,WIN10,Linux,Android

 Regular Warranty

1 year

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.






Advantages of PCAP 1080p HD Touch Monitor

1. High sensitivity and accuracy: 1080p hd touch monitor offer excellent touch sensitivity, allowing for precise touch input even with a light touch.

2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.

3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.

4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.

5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.







Applications

Retail

Gaming

Kiosk

Self-service

Finance

Transit

Conference

Education

Healthcare

Public service

E-commerce

Hotels

Restaurants


143





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.



2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.



3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
