43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display

43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display
43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display 43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display 43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display 43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display 43 Inch PCAP Touch Monitor IP65 Waterproof Open Frame Touch Display
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-0430U-CA4P(P/N:KOT-430P-004)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Response Time (Typ.)6.5msDisplay Type16:9 Ratio 43" TFT-LCD
Support Colors16.7MVideo InputVGA DVI HDMI
Contrast Ratio (Typ.)3000:1Active Area942.9*531.25 (mm)
Pure LCD Panel380cd/m²Frequency (H/V)30～80KHz / 60～75Hz
Product NamePCAP Touch Monitor

High Light

IP65 Open Frame Touch Display

,

PCAP Open Frame Touch Display

,

Open Frame PCAP Touch Display

Leave a Message
Product Description

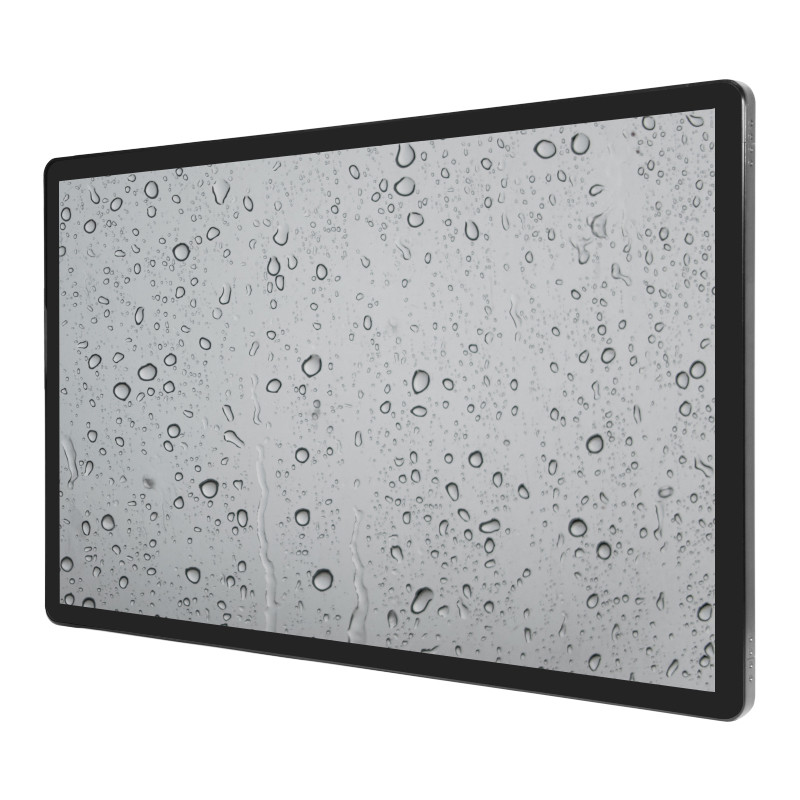

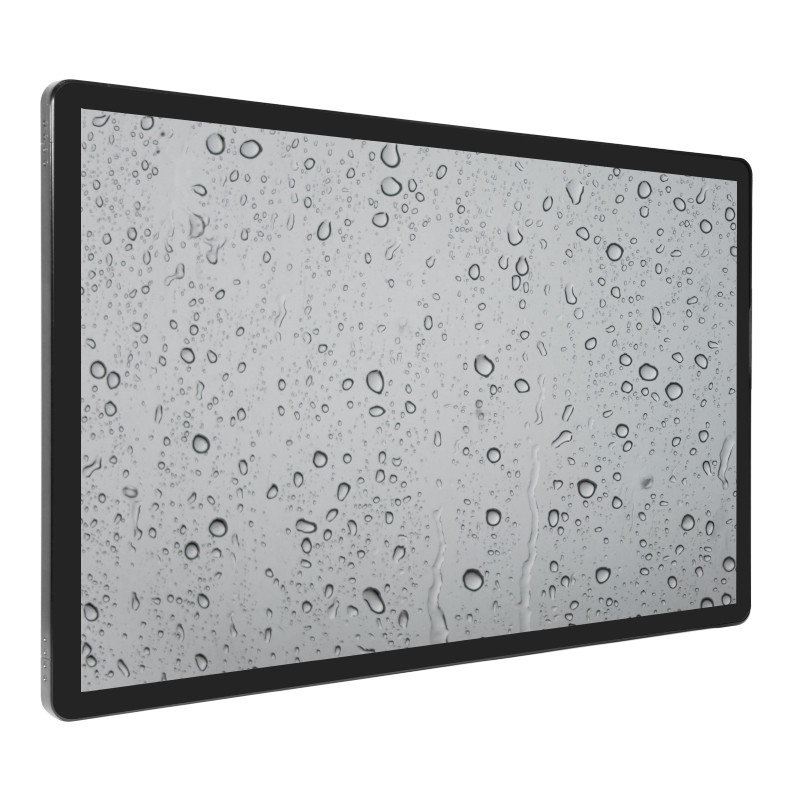

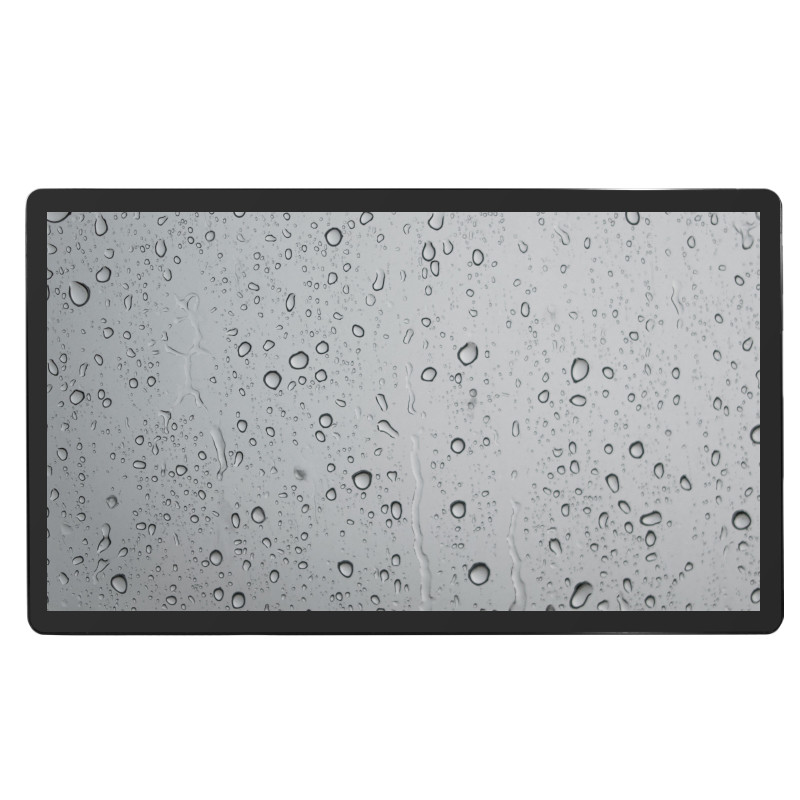

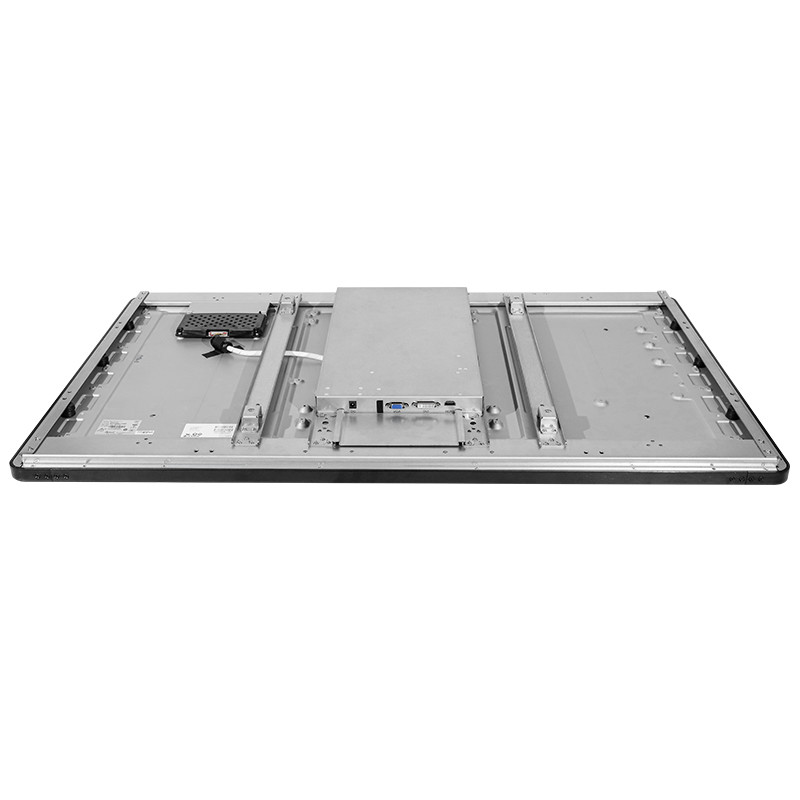

43 Inch multi touch capacitive screen IP65 Waterproof Open Frame Touch Display


Description of multi touch capacitive screen


This 43 inch PCAP touch monitor adopts KeeTouch Projected Capacitive touch technology with high resolution and ideal touch experience. With PCAP multi touch, high sensitive and fast response. This PCAP touch monitor is industrial grade, with high quality image, durable and fashionable with dust-proof, vandal-proof and IP65 waterproof functions. Moreover, other sizes (7''- 43'' ) can be offered for your option.





Specification of multi touch capacitive screen monitor


 Complete Machine

 Model No.

 KOT-0430U-CA4P(P/N:KOT-430P-004)

 Series

 OT

 Display Type

16:9 Ratio 43" TFT-LCD

 Active Area

942.9*531.25 (mm)

 Monitor Dimensions (W*H*D)

1004*592*64.6 (mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

  Brightness (Typ.)

Pure LCD Panel

380cd/m²

With Touch Monitor

320cd/m²

 Response Time (Typ.)

6.5 ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

3000:1

 Video Input

VGADVIHDMI

 Frequency (H/V)

30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 24V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

-10～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

50,000 Hours

 LED Back Light Life (Typ.)

50,000 Hours

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Touch Type

 43" Capacitive touch screens, antiglare and tempered type

 Touch input

 USB

Support System

 XP,WIN7,WIN8,WIN10,Linux,Android

 Regular Warranty

1 year



NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Why choose us?

1. We are a leading provider of industrial grade touch products and touch solutions for 18+ years.


2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.


3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.


4. Professional after-sales team at any time to provide services to customers.





Applications

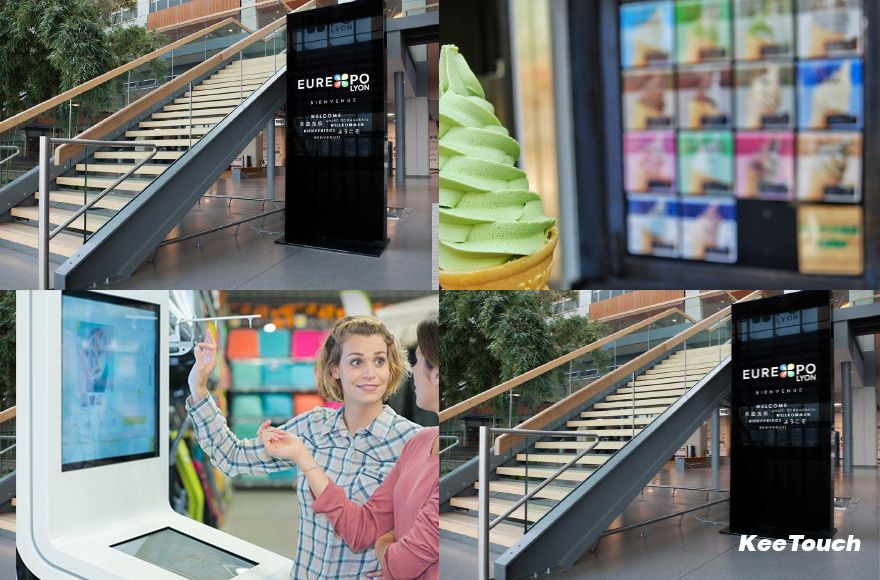

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.






FAQ

1.Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


2. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )


3. What is your delivery time for the PCAP touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
