32 Inch PCAP Touch Monitor Open Frame Curved Design For Gaming

32 Inch PCAP Touch Monitor Open Frame Curved Design For Gaming
32 Inch PCAP Touch Monitor Open Frame Curved Design For Gaming 32 Inch PCAP Touch Monitor Open Frame Curved Design For Gaming 32 Inch PCAP Touch Monitor Open Frame Curved Design For Gaming 32 Inch PCAP Touch Monitor Open Frame Curved Design For Gaming 32 Inch PCAP Touch Monitor Open Frame Curved Design For Gaming 32 Inch PCAP Touch Monitor Open Frame Curved Design For Gaming
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL
Model NumberKOT-320P-026
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Suggested Resolution1920x1080 @ 60HzPure LCD Panel250cd/m²
Video InputVGA\DVISupport Colors16.7M
Response Time21sThickness3.8±0.2(mm)
Storage RH10%~90%Operating Temp.0~50°C
High Light

Gaming 32Inch Touch Monitor

,

Curved Design PCAP Touch Monitor

,

Gaming PCAP Touch Screen Monitor

Leave a Message
Product Description

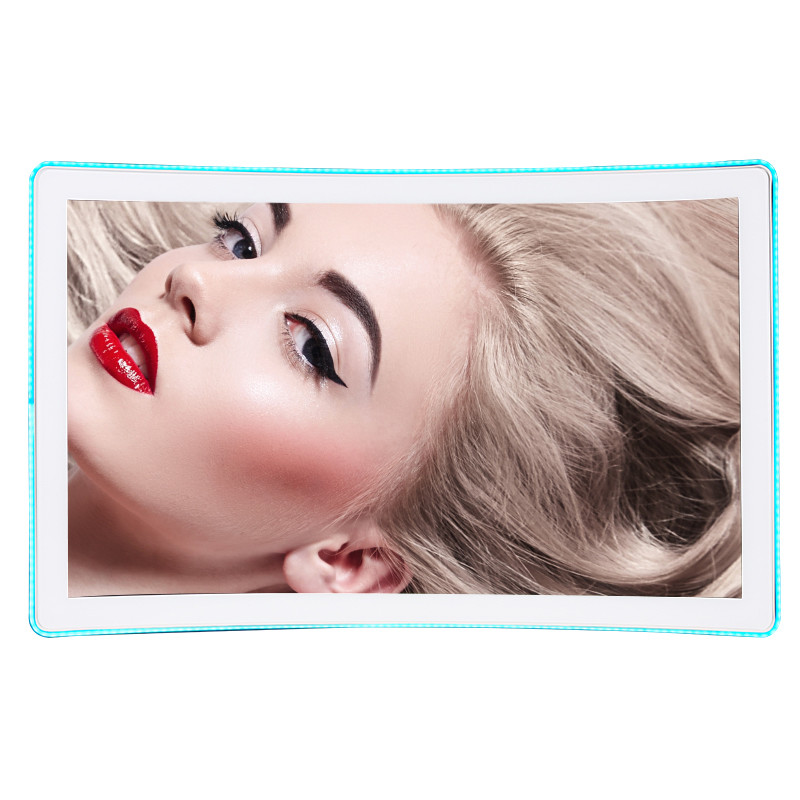

32 Inch PCAP Touch Monitor Open Frame Curved Design for Gaming


Description of PCAP Touch Monitor


This industrial-grade PCAP touch monitor boasts impressive features, including a 1920x1080 resolution, a high 3000:1 contrast ratio, anti-vandal protection, and an IP65-rated front frame for waterproof and dust-proof functionality. With a wide viewing angle, it ensures clear visibility in various environments. Backed by a professional R&D department, we offer customizable OEM and ODM services to meet specific needs.






Specification of PCAP Touch Monitor


 Complete Machine

 Model No.

KOT-320P-026

 Series

 OT

 Display Type

16:9 Ratio 32" TFT-LCD

 Active Area

698.4 x 392.85(mm)

 Monitor Dimensions (W*H*D)

768.4*456*109.6(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

213cd/m²

 Response Time (Typ.)

21ms

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 89°/89°(Typ.)/80°/80°(Min.)

 Vertical(up/down)

 89°/89°(Typ.)/80°/80°(Min.)

 Contrast Ratio (Typ.)

2100:1 (Min.) /3000:1(Typ.)

 Video Input

VGADVI

 Frequency (H/V)

54.15~84.38KHz / 49~72Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤40W

 Mount Interface

 VESA 200mm

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Regular Warranty

1 year

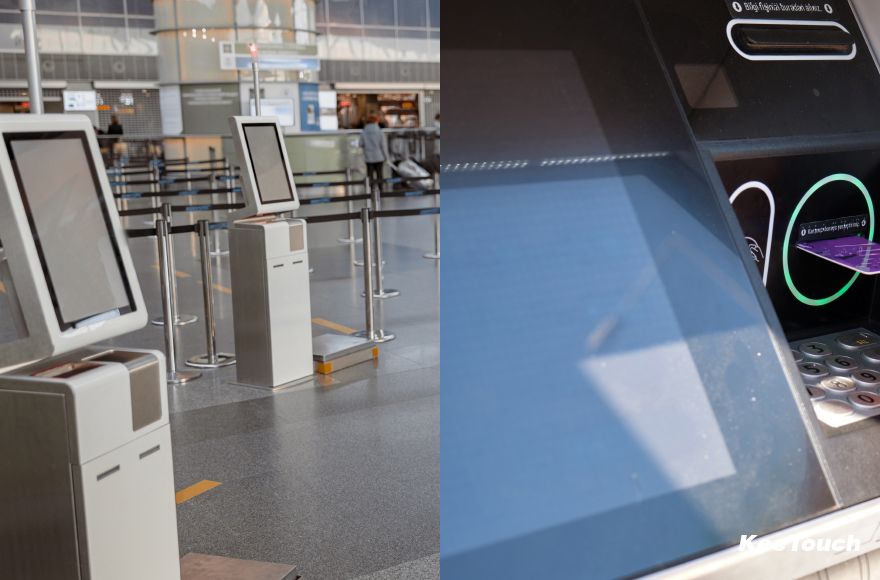

Applications


  • Retail

  • Gaming

  • Kiosk

  • Self-service

  • Finance

  • Transit

  • Conference

  • Education

  • Healthcare

  • Public service

  • E-commerce

  • Hotels

  • Restaurants






Advantages of PCAP Touch Monitor

1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.

2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.

3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.

4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.

5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
