32 Inch PCAP Touch Monitor Anti Vandal Curved For Casino Gaming
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Suggested Resolution | 1920x1080 @ 60Hz | Pure LCD Panel | 250cd/m² |
|---|---|---|---|
| Video Input | VGA\DVI | Support Colors | 16.7M |
| Response Time | 21s | Thickness | 3.8±0.2(mm) |
| Storage RH | 10%～90% | Operating Temp. | 0～50°C |
| High Light | Casino Gaming PCAP Touch Monitor,Curved PCAP Touch Monitor,Anti Vandal Curved Touch Monitor | ||
Product Description

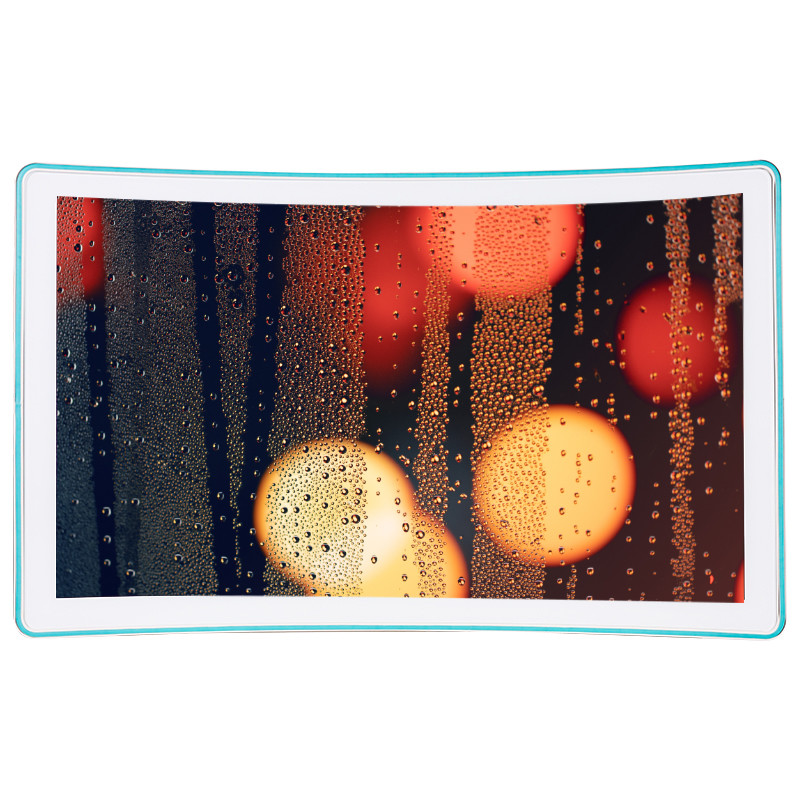

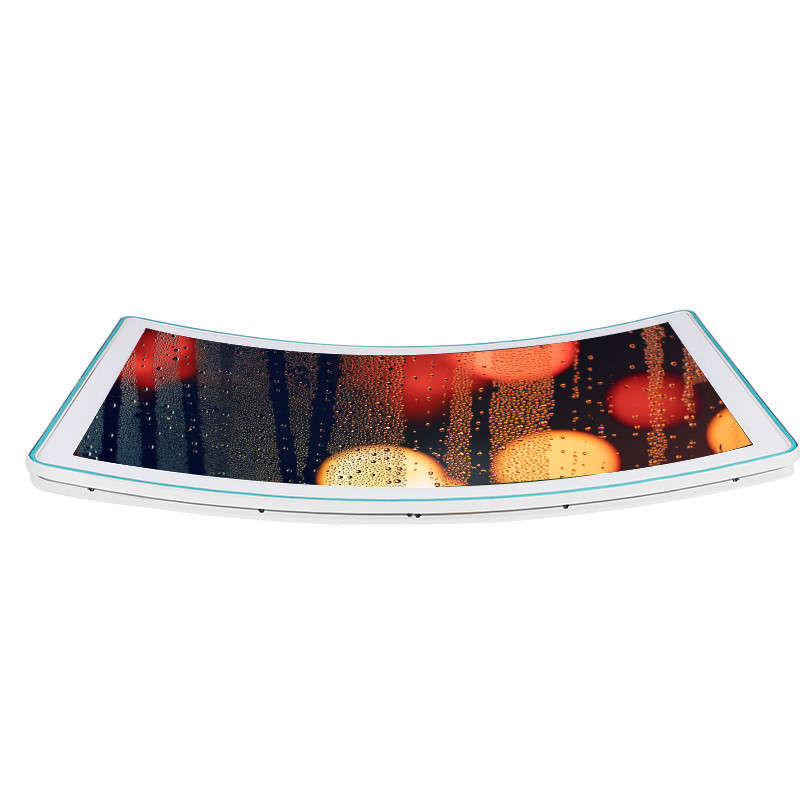

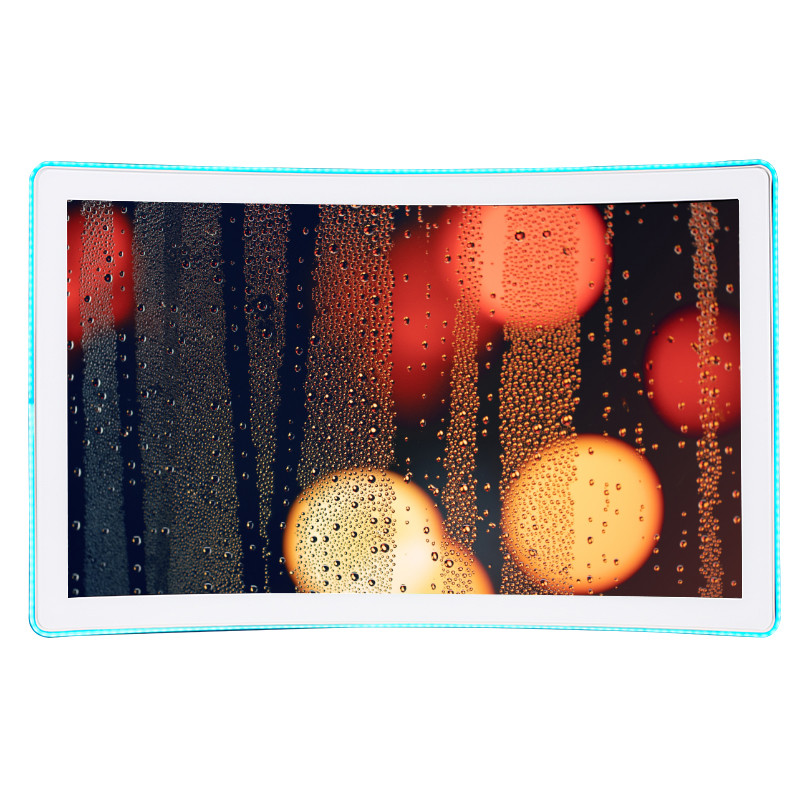

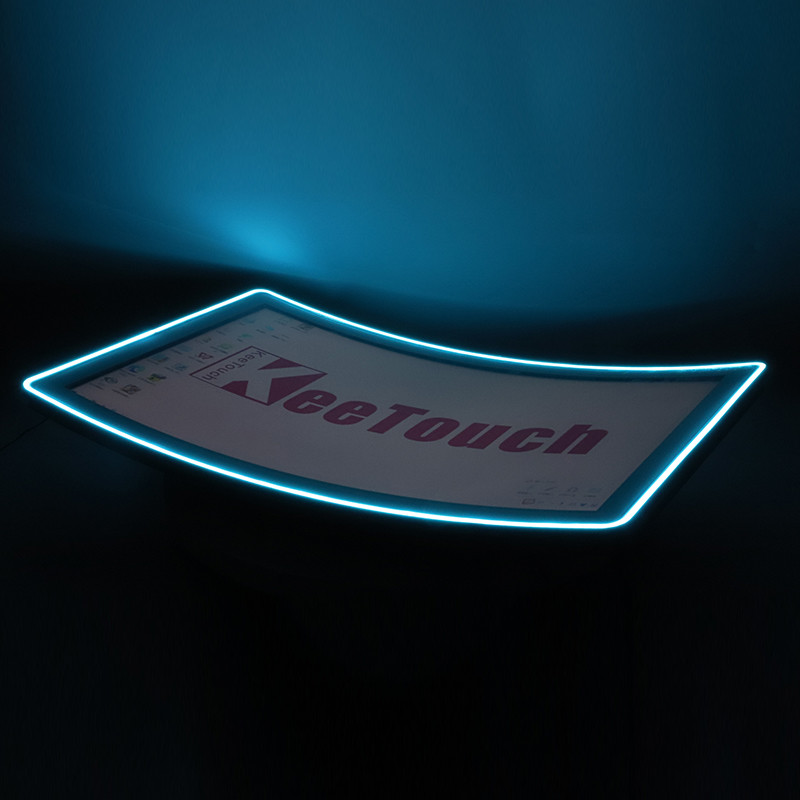

32 Inch PCAP Touch Monitor Anti-Vandal Curved For Casino Gaming
Description of PCAP Touch Monitor
This 32 inch PCAP touch monitor comes with KeeTouch Projected Capacitive touch technology with ideal touch experience. This PCAP touch monitor is industrial grade with dust-proof, anti-vandal and IP65 waterproof functions. With curved design, durable and fashionable, great choice for gaming. In addition, multiple mounting options are available, including VESA mount, horizontal vertical brackets mount.
Specification of PCAP Touch Monitor
Complete Machine | ||
Model No. | KOT-320P-026 | |
Series | OT | |
Display Type | 16:9 Ratio 32" TFT-LCD | |
Active Area | 698.4 x 392.85(mm) | |
Monitor Dimensions (W*H*D) | 768.4*456*109.6(mm) | |
Suggested Resolution | 1920x1080 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m² |
With Touch Monitor | 213cd/m² | |
Response Time (Typ.) | 21ms | |
Viewing Angle(Typ.at CR＞10)） | 89°/89°(Typ.)/80°/80°(Min.) | |
89°/89°(Typ.)/80°/80°(Min.) | ||
Contrast Ratio (Typ.) | 2100:1 （Min.） /3000:1(Typ.) | |
Video Input | VGADVI | |
Frequency (H/V) | 54.15～84.38KHz / 49～72Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Power Consumption | Standby Power: ≤2W / Operating Power: ≤40W | |
Mount Interface | VESA 200mm | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 32" Capacitive touch screens |
Touch input | USB |
Response Time | ≤14ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 692.7*392(mm) |
Thickness | 3.8±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
Applications
PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. We are a leading provider of industrial grade touch products and touch solutions for 18+ years.
2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.
4. Professional after-sales team at any time to provide services to customers.
FAQ
1.Can you produce the PCAP touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
3. What is your delivery time for the PCAP touch monitor?
3-5 work days for inventory orders, 7-15 business days for bulk production.
