32 Inch PCAP Touch Monitor IP65 Waterproof Anti-Vandal For Kiosks

32 Inch PCAP Touch Monitor IP65 Waterproof Anti-Vandal For Kiosks
32 Inch PCAP Touch Monitor IP65 Waterproof Anti-Vandal For Kiosks 32 Inch PCAP Touch Monitor IP65 Waterproof Anti-Vandal For Kiosks 32 Inch PCAP Touch Monitor IP65 Waterproof Anti-Vandal For Kiosks 32 Inch PCAP Touch Monitor IP65 Waterproof Anti-Vandal For Kiosks 32 Inch PCAP Touch Monitor IP65 Waterproof Anti-Vandal For Kiosks 32 Inch PCAP Touch Monitor IP65 Waterproof Anti-Vandal For Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL
Model NumberKOT-320P-026
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Suggested Resolution1920x1080 @ 60HzPure LCD Panel250cd/m²
Video InputVGA\DVISupport Colors16.7M
Response Time21sThickness3.8±0.2(mm)
Storage RH10%～90%Operating Temp.0～50°C
High Light

32 Inch PCAP Touch Monitor

,

Kiosks Anti Vandal Touch Monitor

,

Waterproof Curved Touch Monitor

Leave a Message
Product Description

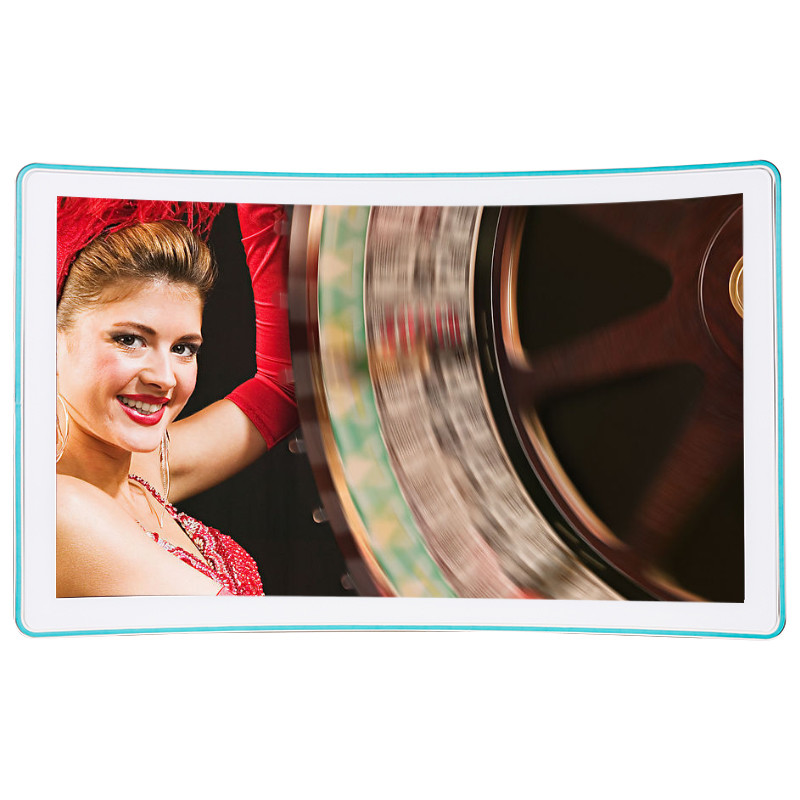

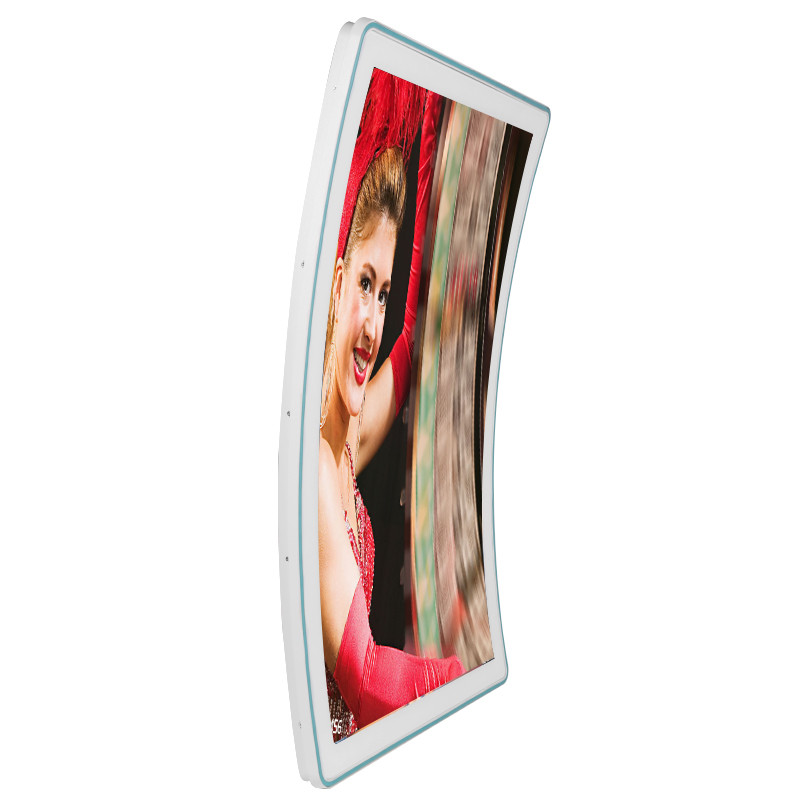

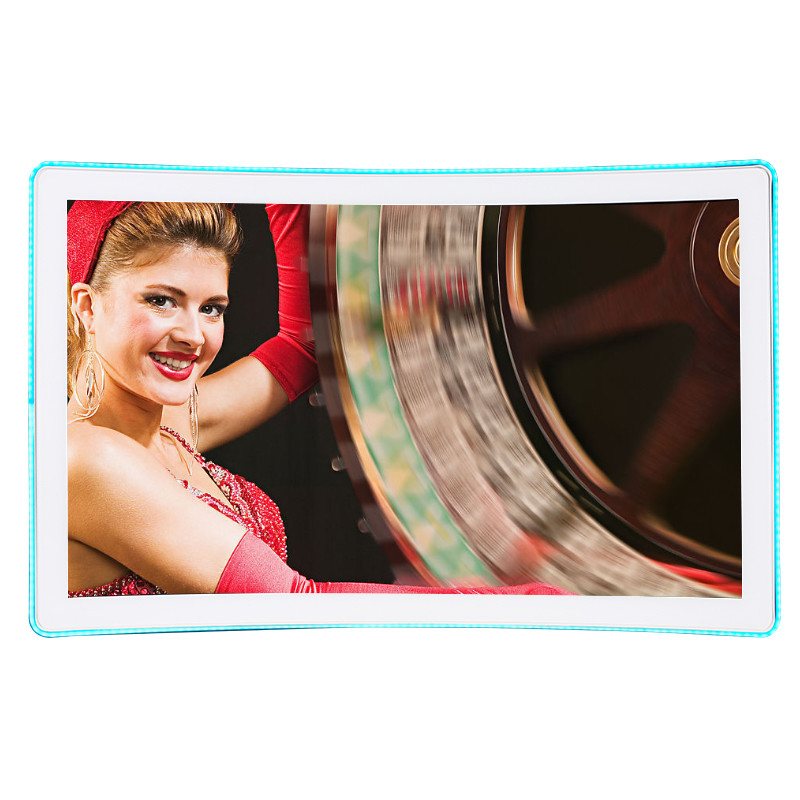

32 Inch PCAP Touch Monitor IP65 Waterproof Anti-vandal for Kiosks


Description of PCAP Touch Monitor


This 32 inch PCAP touch monitor delivers curved design, high durability, accuracy and great touch experience, IP65 front frame waterproof, dust-proof and anti-vandal, which can be used in harsh environment normally. VGA and DVI interfaces are provided for use. In addition, other sizes (7''-43'') can be for your option. And with professional R&D department, customized services can be offered to meet customer's individual needs.





Specification of PCAP Touch Monitor


 Complete Machine

 Model No.

KOT-320P-026

 Series

 OT

 Display Type

16:9 Ratio 32" TFT-LCD

 Active Area

698.4 x 392.85(mm)

 Monitor Dimensions (W*H*D)

768.4*456*109.6(mm)

 Suggested Resolution

1920x1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

213cd/m²

 Response Time (Typ.)

21ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°(Typ.)/80°/80°(Min.)

 Vertical(up/down)

 89°/89°(Typ.)/80°/80°(Min.)

 Contrast Ratio (Typ.)

2100:1 （Min.） /3000:1(Typ.)

 Video Input

VGADVI

 Frequency (H/V)

54.15～84.38KHz / 49～72Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤40W

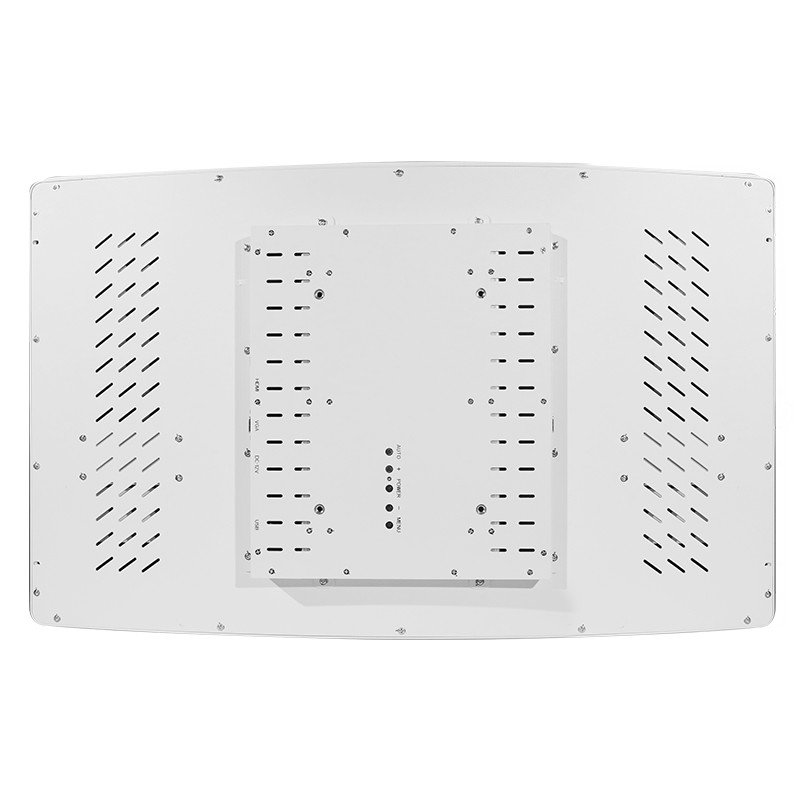

 Mount Interface

 VESA 200mm

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Regular Warranty

1 year



Touch Screen

Touch Type

32" Capacitive touch screens

Touch input

USB

Response Time

≤14ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

692.7*392(mm)

Thickness

3.8±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%





Applications

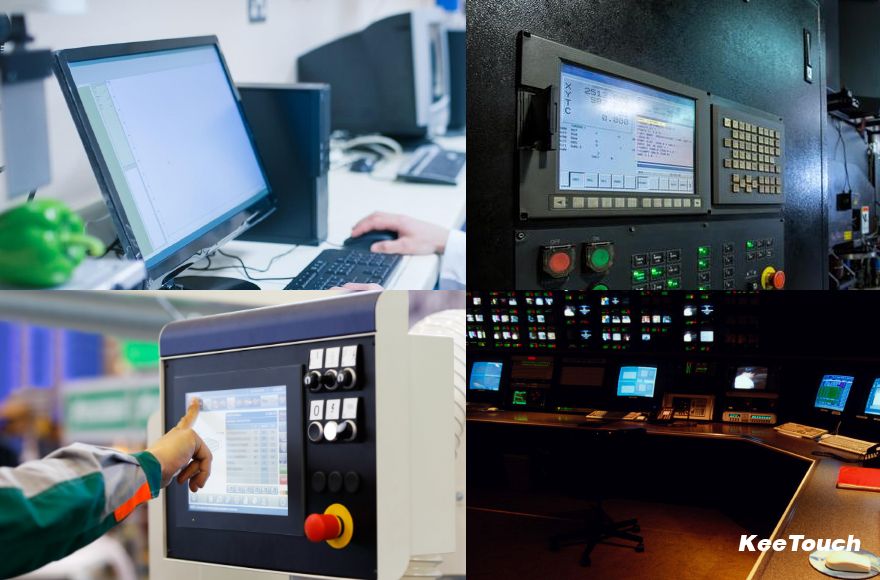

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.






Why choose us?

1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.

2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.

3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.

4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.





FAQ

1. What package do you provide for the PCAP touch monitor?

Our package usually is carton.


2. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.


3. What are the shipping ways?

We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.


4. Do you give any discount for the PCAP touch monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
