15.6 Inch PCAP Touch Display IP65 Waterproof Anti Vandal For Kiosks

15.6 Inch PCAP Touch Display IP65 Waterproof Anti Vandal For Kiosks
15.6 Inch PCAP Touch Display IP65 Waterproof Anti Vandal For Kiosks 15.6 Inch PCAP Touch Display IP65 Waterproof Anti Vandal For Kiosks 15.6 Inch PCAP Touch Display IP65 Waterproof Anti Vandal For Kiosks 15.6 Inch PCAP Touch Display IP65 Waterproof Anti Vandal For Kiosks 15.6 Inch PCAP Touch Display IP65 Waterproof Anti Vandal For Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, BIS
Model NumberKOT-156P-006
Minimum Order Quantity1 piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Active Area344.16*193.59(mm)Contrast Ratio (Typ.)500:1
Video InputVGA\DVISupport Colors16.2M
Response Time8sPower ConsumptionStandby Power: ≤1.5W / Operating Power: ≤15W
Regular Warranty1 YearProduct NamePCAP Touch Monitor
Brightness400cd/㎡

High Light

PCAP Touch Display For Kiosks

,

vandal proof PCAP Touch Monitor

,

Anti Vandal PCAP Touch Display

Leave a Message
Product Description

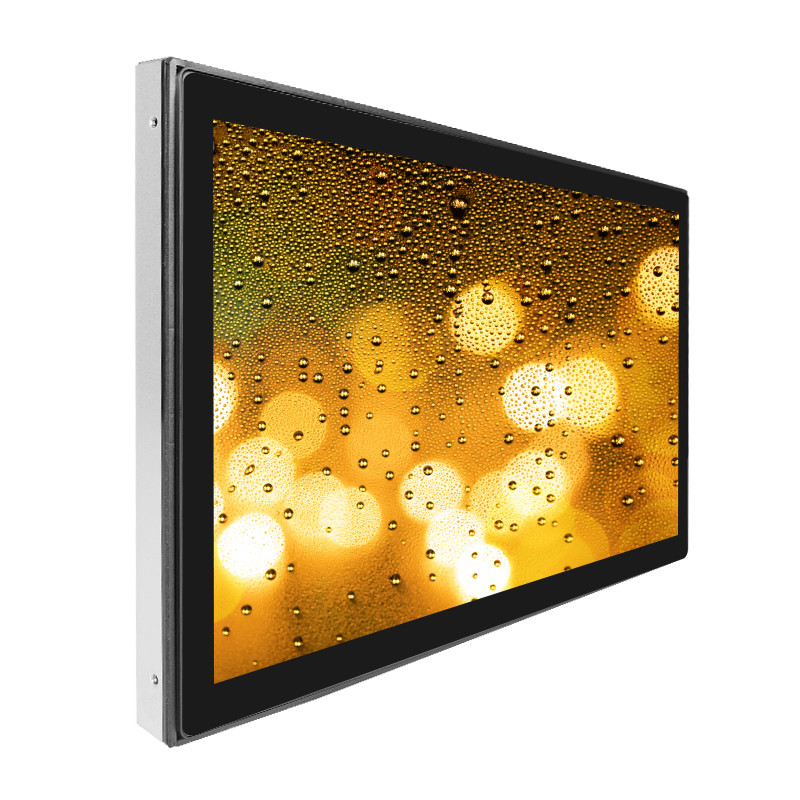

15.6 Inch PCAP Touch Monitor IP65 Waterproof Anti-vandal for Kiosks



Description of PCAP Touch Monitor


This 15.6 inch PCAP touch monitor are industrial grade touch displays, so they can be normally used in harsh environments. This PCAP touch monitor has vandal-proof, dust-proof and IP65 waterproof functions. VGA and DVI interfaces are provided for use. And it supports multiple mounting options, including VESA mount, horizontal and vertical brackets mount. Also, other sizes (7"-43") are available.





Specification of PCAP Touch Monitor

 Complete Machine

 Model No.

 KOT-0156U-CA4P (P/N:KOT-156P-006)

 Series

 OT

 Display Type

16:9 Ratio 15.6" TFT-LCD

 Active Area

344.16*193.59(mm)

 Monitor Dimensions (W*H*D)

382*234*46.1(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD Panel

400cd/㎡

With Touch Monitor

340cd/㎡

 Response Time (Typ.)

8ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 70°/70°

 Vertical(up/down)

 60°/60°

 Contrast Ratio (Typ.)

500:1

 Video Input

VGA/DVI

 Frequency (H/V)

37.9～80KHz / 60～76Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

-10～70°C

Operating RH

8%～95%

Storage Temp.

-20～70°C

Storage RH

5%～95%

 MTBF

≥50,000 Hours

 LED Back Light Life (Typ.)

≥50,000 Hours

 Weight（N.W/G.W）

2.7Kg(1pcs)/6.5Kg(2pcs in one   package)

 Package dimensions

468*150*323(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power:   ≤15W

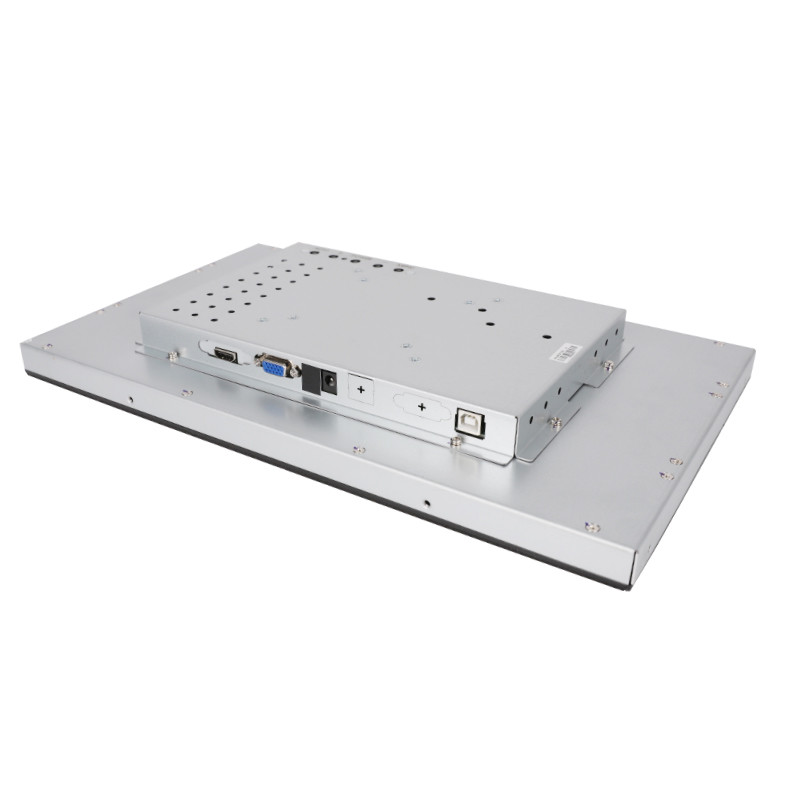

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

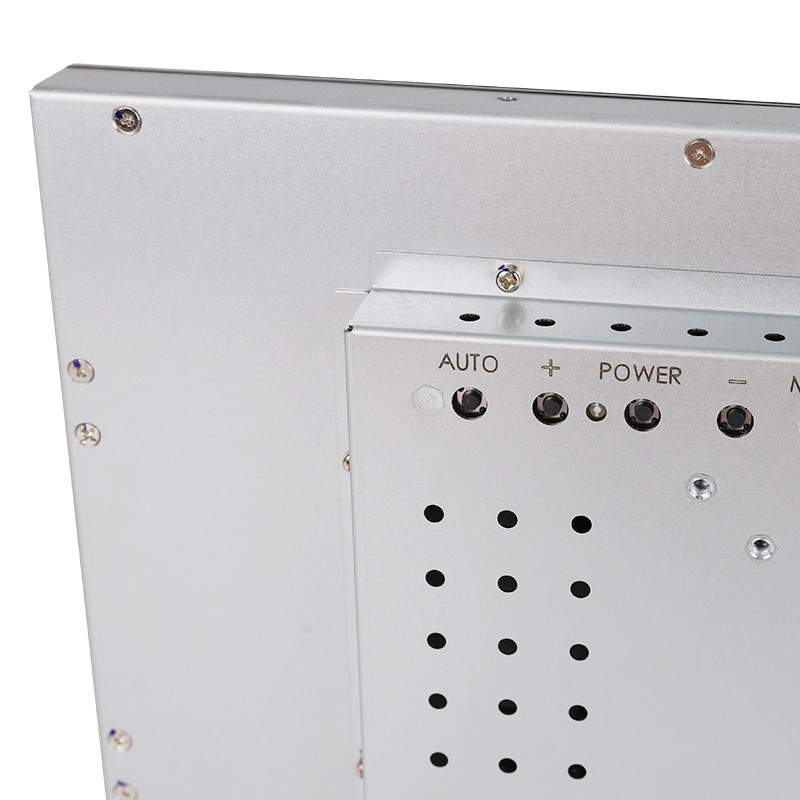

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,   Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC,   CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

15.6" Riot Capacitive touch   screens

Touch   input

USB

Response Time

≤10ms

Hardness

7H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

345.2*194.5(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%





Why choose us?

1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.

2. Competitive pricing: With a strong supply chain, our products’prices are very competitive.

3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.

4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.




Applications

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
