15.6 Inch PCAP Touch Monitor 400cd/M2 VGA DVI Input For Smart Locker

15.6 Inch PCAP Touch Monitor 400cd/M2 VGA DVI Input For Smart Locker
15.6 Inch PCAP Touch Monitor 400cd/M2 VGA DVI Input For Smart Locker 15.6 Inch PCAP Touch Monitor 400cd/M2 VGA DVI Input For Smart Locker 15.6 Inch PCAP Touch Monitor 400cd/M2 VGA DVI Input For Smart Locker 15.6 Inch PCAP Touch Monitor 400cd/M2 VGA DVI Input For Smart Locker 15.6 Inch PCAP Touch Monitor 400cd/M2 VGA DVI Input For Smart Locker
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-156P-006
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Active Area344.16*193.59(mm)Contrast Ratio (Typ.)500:1
Video InputVGA\DVISupport Colors16.2M
Response Time8sPower ConsumptionStandby Power: ≤1.5W / Operating Power: ≤15W
Regular Warranty1 YearProduct NamePCAP Touch Monitor
Brightness400cd/m²

High Light

PCAP Touch Monitor for Smart Locker

,

400cd/m2 PCAP Touch Monitor

,

Smart Locker PCAP Touch Display

Leave a Message
Product Description

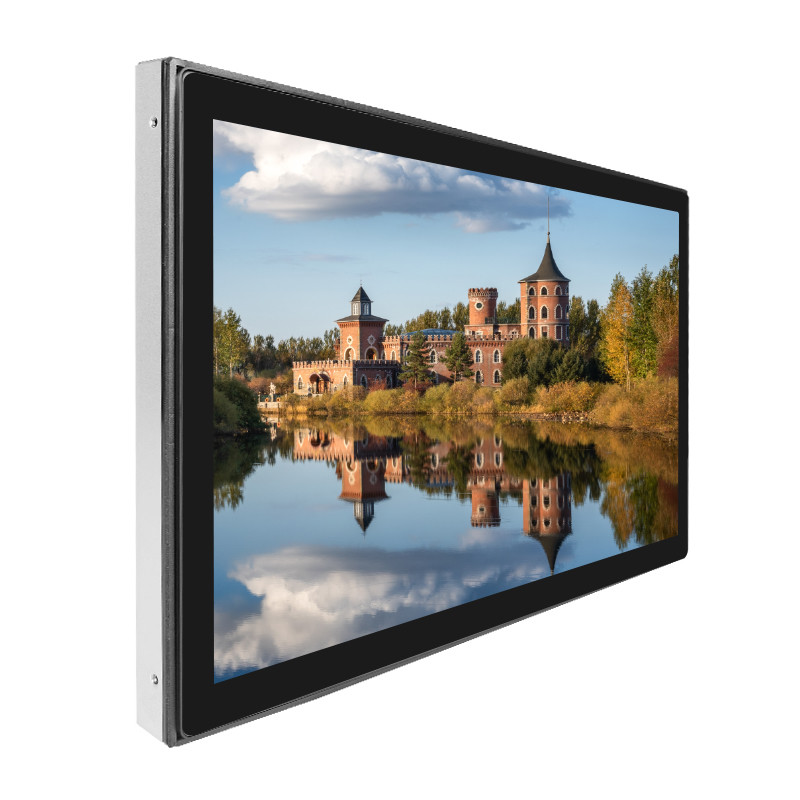

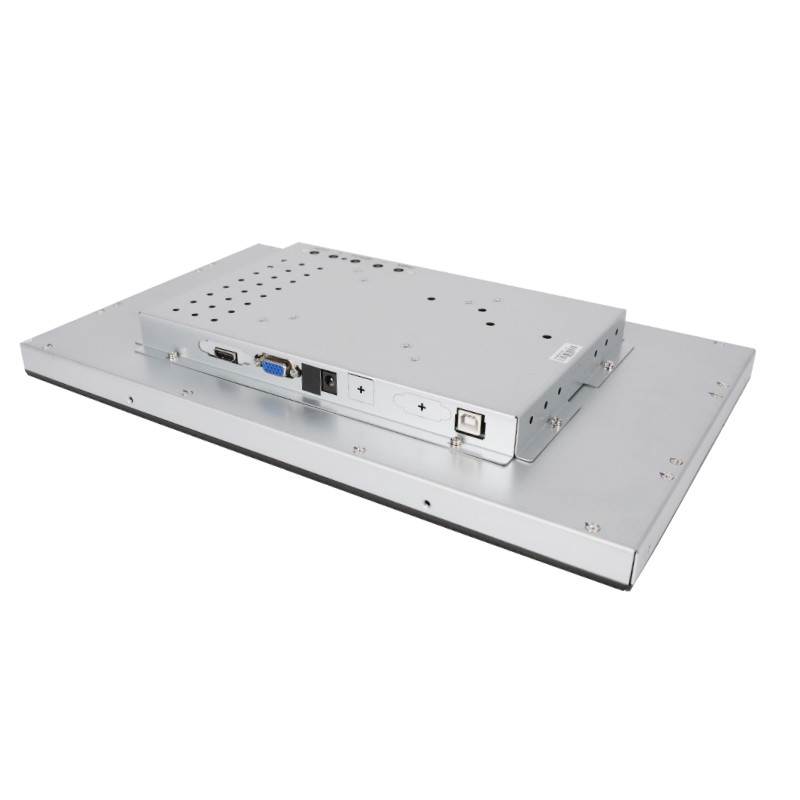

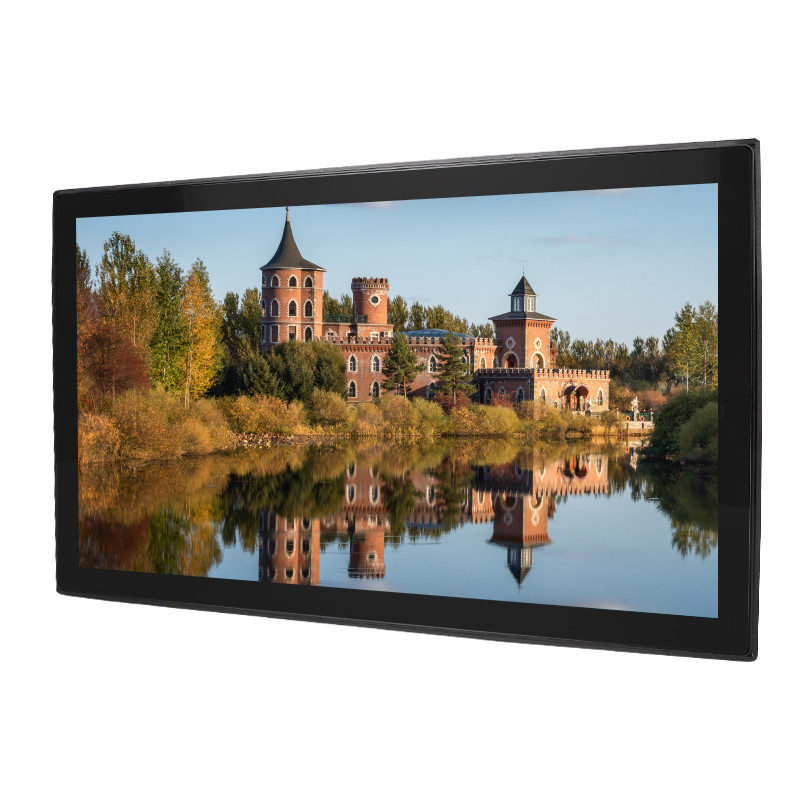

15.6 Inch PCAP Touch Monitor 16:9 Ratio for Smart Locker


Description of PCAP Touch Monitor


This 15.6 inch PCAP touch monitor comes with PCAP touch technology, high sensitive and fast response, also with high resolution and super interactive experience. And this PCAP touch monitor is industrial grade, it is durable and fashionable with vandal-proof and IP65 waterproof functions. In addition, it supports a variety of operation systems: XP, WIN7, WIN8, WIN10, Linux, Android.


Specification of PCAP Touch Monitor


 Complete Machine

 Model No.

 KOT-0156U-CA4P (P/N:KOT-156P-006)

 Series

 OT

 Display Type

16:9 Ratio 15.6" TFT-LCD

 Active Area

344.16*193.59(mm)

 Monitor Dimensions (W*H*D)

382*234*46.1(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD Panel

400cd/m²

With Touch Monitor

340cd/m²

 Response Time (Typ.)

8ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 70°/70°

 Vertical(up/down)

 60°/60°

 Contrast Ratio (Typ.)

500:1

 Video Input

VGA/DVI

 Frequency (H/V)

37.9～80KHz / 60～76Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

-10～70°C

Operating RH

8%～95%

Storage Temp.

-20～70°C

Storage RH

5%～95%

 MTBF

≥50,000 Hours

 LED Back Light Life (Typ.)

≥50,000 Hours

 Weight（N.W/G.W）

2.7Kg(1pcs)/6.5Kg(2pcs in one package)

 Package dimensions

468*150*323(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤15W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

15.6" Riot Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

7H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

345.2*194.5(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%





Why choose us?

1. We are a leading provider of industrial grade touch products and touch solutions for 18+ years.


2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.


3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.


4. Professional after-sales team at any time to provide services to customers.





Applications

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.






FAQ

1.Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


2. What is your payment method?

We can accept T/T, Western Union, Paypal Credit card and Alipay. ( L/C can be negotiable. )


3. What is your delivery time for the PCAP touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
