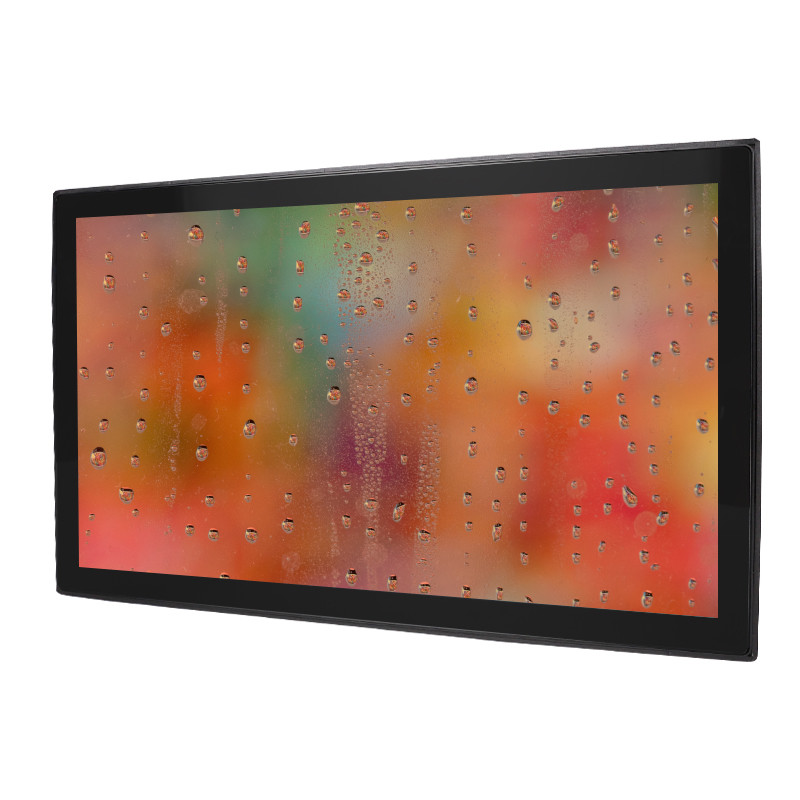

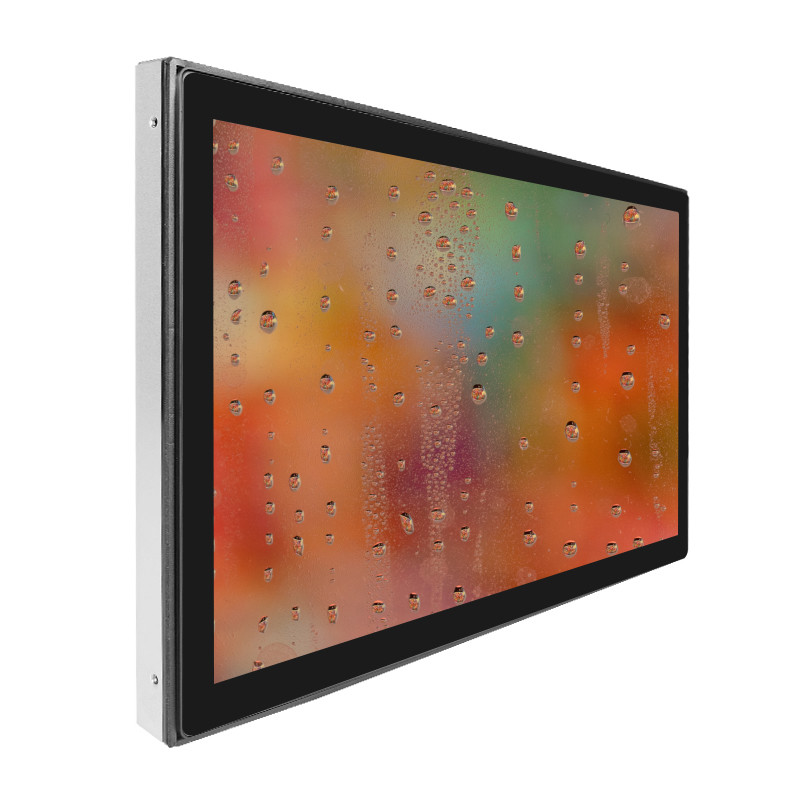

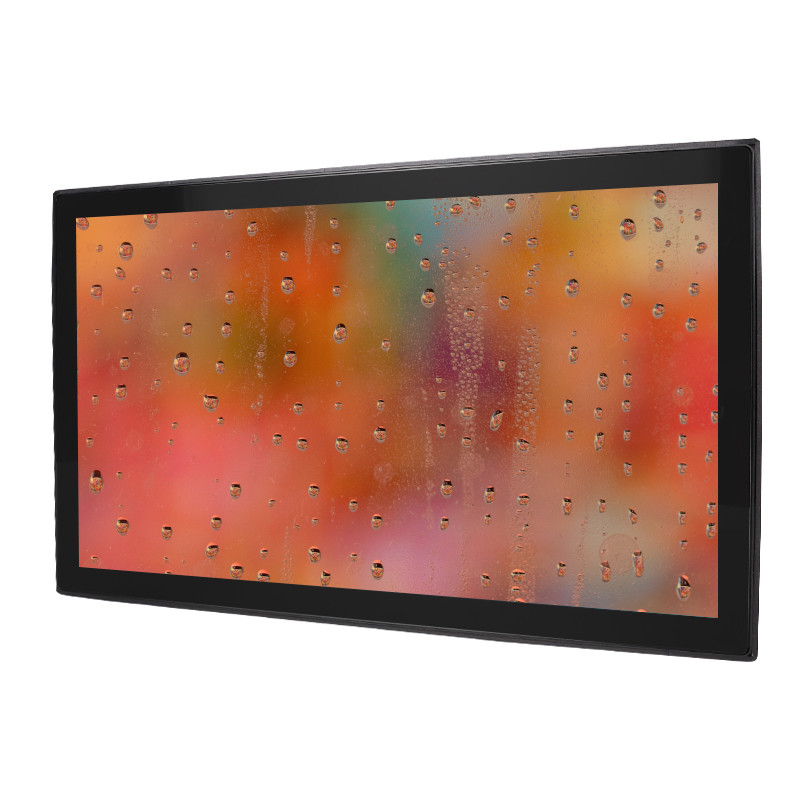

15.6 Inch PCAP Touch Monitor 1920x1080 Resolution PCAP Touch Display

15.6 Inch PCAP Touch Monitor 1920x1080 Resolution PCAP Touch Display
15.6 Inch PCAP Touch Monitor 1920x1080 Resolution PCAP Touch Display 15.6 Inch PCAP Touch Monitor 1920x1080 Resolution PCAP Touch Display 15.6 Inch PCAP Touch Monitor 1920x1080 Resolution PCAP Touch Display 15.6 Inch PCAP Touch Monitor 1920x1080 Resolution PCAP Touch Display 15.6 Inch PCAP Touch Monitor 1920x1080 Resolution PCAP Touch Display 15.6 Inch PCAP Touch Monitor 1920x1080 Resolution PCAP Touch Display
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-156P-006
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Active Area344.16*193.59(mm)Contrast Ratio (Typ.)500:1
Video InputVGA\DVISupport Colors16.2M
Response Time8sPower ConsumptionStandby Power: ≤1.5W / Operating Power: ≤15W
Regular Warranty1 YearProduct NamePCAP Touch Monitor
Brightness400cd/m²

High Light

15.6 Inch PCAP Touch Monitor

,

1920x1080 PCAP Touch Display

,

ATMs PCAP Touch Display

Leave a Message
Product Description


15.6 Inch portable monitor touchscreen 1920x1080 Resolution Touch Display



Description of PCAP Touch Monitor


This portable monitor touchscreen comes with the main features in the following: 1920*1080 resolution, 500:1 contrast ratio, IP65 waterproof, vandal-proof and dust-proof with high quality image. The PCAP touch monitor are matched with VGA and DVI interfaces for use, USB port for touch. In addition, with our professional R&D department, Customized services can be offered. And other sizes can be for your option (7''- 43'').





Specification of PCAP Touch Monitor


 Complete Machine

 Model No.

 KOT-0156U-CA4P (P/N:KOT-156P-006)

 Series

 OT

 Display Type

16:9 Ratio 15.6" TFT-LCD

 Active Area

344.16*193.59(mm)

 Monitor Dimensions (W*H*D)

382*234*46.1(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.2M

 Brightness (Typ.)

Pure LCD Panel

400cd/m²

With Touch Monitor

340cd/m²

 Response Time (Typ.)

8ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 70°/70°

 Vertical(up/down)

 60°/60°

 Contrast Ratio (Typ.)

500:1

 Video Input

VGA/DVI

 Frequency (H/V)

37.9～80KHz / 60～76Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

-10～70°C

Operating RH

8%～95%

Storage Temp.

-20～70°C

Storage RH

5%～95%

 MTBF

≥50,000 Hours

 LED Back Light Life (Typ.)

≥50,000 Hours

 Weight（N.W/G.W）

2.7Kg(1pcs)/6.5Kg(2pcs in one package)

 Package dimensions

468*150*323(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤15W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

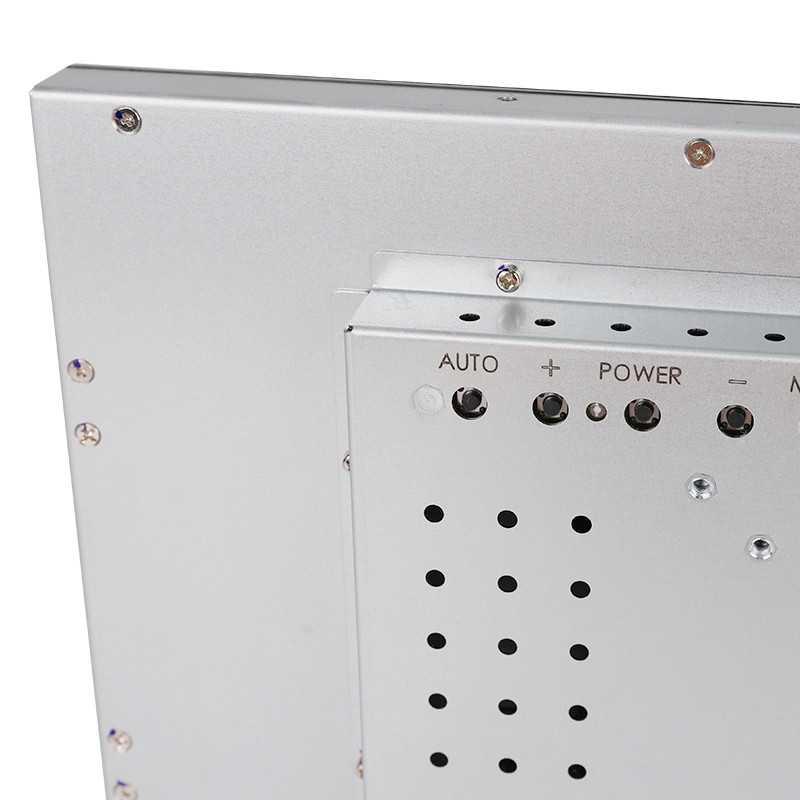

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

15.6" Riot Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

7H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

345.2*194.5(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%





Advantages of portable monitor touchscreen

1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.


2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.


3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.


4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.


5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.




Applications


  • Retail

  • Gaming

  • Kiosk

  • Self-service

  • Finance

  • Transit

  • Conference

  • Education

  • Healthcare

  • Public service

  • E-commerce

  • Hotels

  • Restaurants







FAQ

Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


5. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable.
