17 Inch PCAP Touch Monitor Open Frame For Self Service Kiosks

17 Inch PCAP Touch Monitor Open Frame For Self Service Kiosks
17 Inch PCAP Touch Monitor Open Frame For Self Service Kiosks 17 Inch PCAP Touch Monitor Open Frame For Self Service Kiosks 17 Inch PCAP Touch Monitor Open Frame For Self Service Kiosks 17 Inch PCAP Touch Monitor Open Frame For Self Service Kiosks 17 Inch PCAP Touch Monitor Open Frame For Self Service Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-170P-010
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type5:4 Ratio 17" TFT-LCDActive Area337.9*270.3(mm)
Resolution1280×1024 @ 60HzLight Transmittance≥83%
Support SystemXP,WIN7,WIN8,WIN10,Linux,AndroidPure LCD Panel250cd/m²
Touch Test≥50,000,000Package Dimensions466*185*403(mm)(2 Pcs In One Package)
Storage Temp.-20～60°CMount Interface1.VESA 75mm  2.Mount Bracket, Horizontal Or Vertical Mount
High Light

high accuracy PCAP Touch Monitor

,

Open Frame PCAP Touch Monitor

,

Self service Kiosks PCAP Monitor

Leave a Message
Product Description

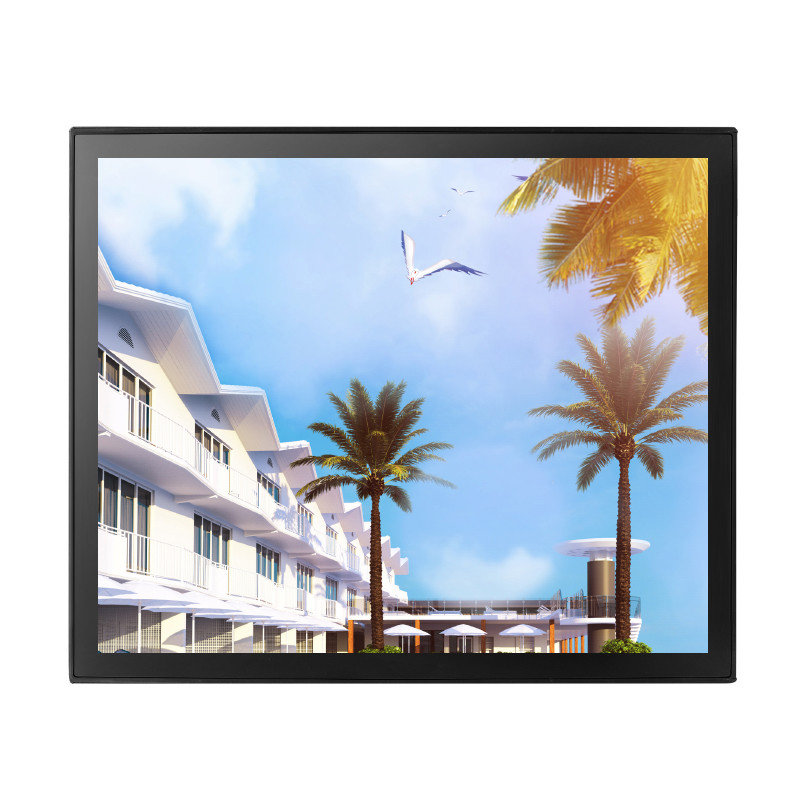

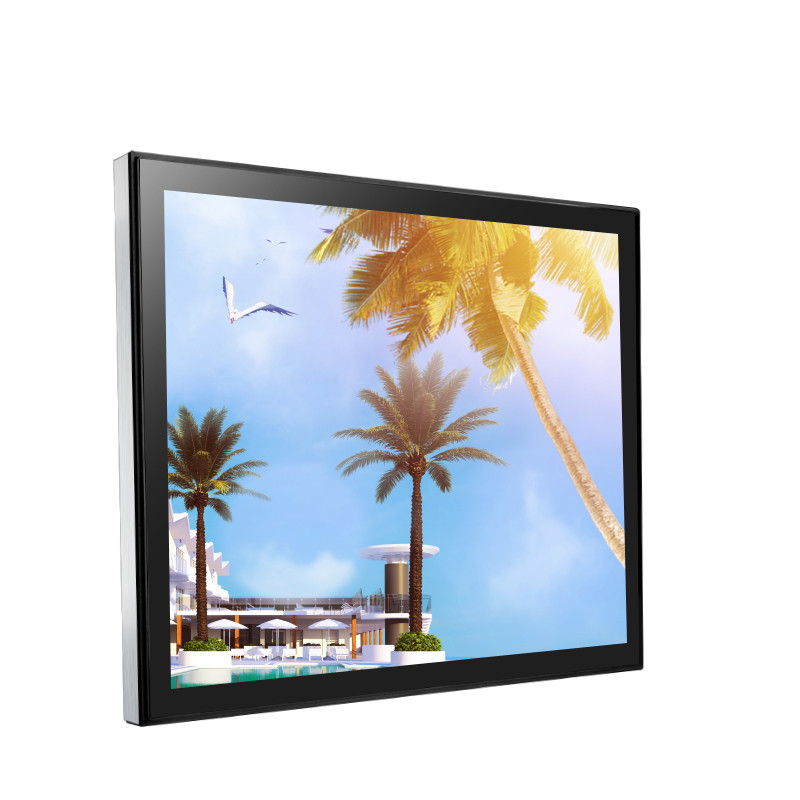

17 Inch PCAP Touch Monitor Open Frame for Self-service Kiosks


Description of PCAP Touch Monitor

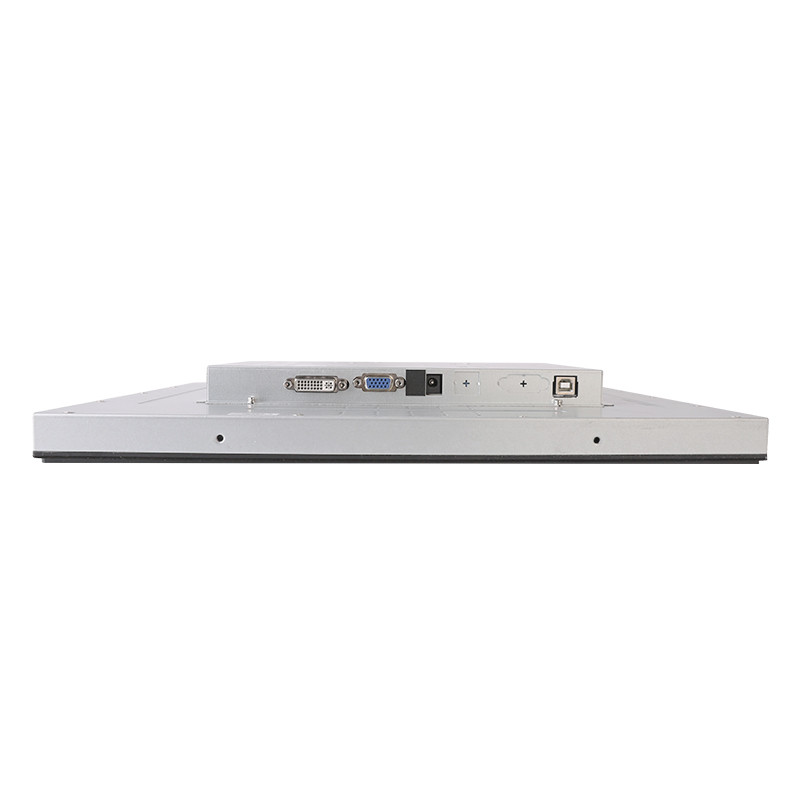

This 17 inch PCAP touch monitor comes with high durability, accuracy and multi-touch support, so they can be used in harsh environments normally. This PCAP touch monitor is vandal-proof , dust-proof and IP65 waterproof. VGA and DVI interfaces are provided for use. Also, other sizes (7’’-43’’) can be optional. And it supports a variety of operation systems: XP, WIN7, WIN8, WIN10, Linux, Android.





Specification of PCAP Touch Monitor


Complete Machine

Model No.

KOT-0170U-CA4P

Series

OT

Display Type

5:4 Ratio 17" TFT-LCD

Active Area

337.9*270.3(mm)

Monitor Dimensions (W*H*D)

378.9*313.3*47.3(mm)

Suggested Resolution

1280*1024 @ 60Hz

Support Colors

16.7M

Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

212cd/m²

Response Time (Typ.)

5ms

Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

1000:1

Video Input

VGA/DVI

Frequency (H/V)

37.9～80KHz / 60～75Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

MTBF

≥30,000 Hours

LED Back Light Life (Typ.)

≥30,000 Hours

Weight（ N.W/G.W ）

4.1Kg(1pcs)/9.85Kg(2pcs in one package)

Package dimensions

466*185*403(mm)(2pcs in one package)

Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤20W

Mount Interface

1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount

OSD Control

Buttons

AUTO, +,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, UL, FCC, CE, CB, RoHS

Regular Warranty

1 year



Touch Screen

Touch Type

17" Riot capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

340.92*273.34(mm)

Thickness

3.9±0.3(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%




NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.






Why choose us?

1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.


2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.


3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.


4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.





FAQ:

1. What package do you provide for the PCAP touch monitor?

Our package usually is carton.


2. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.


3. What are the shipping ways?

We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.


4. Do you give any discount for the PCAP touch monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
