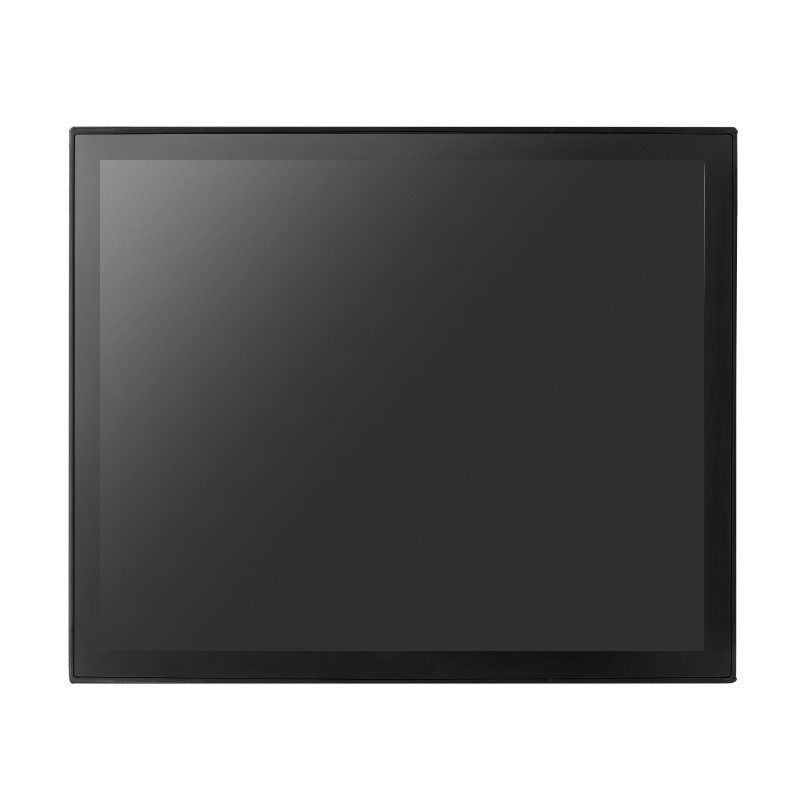

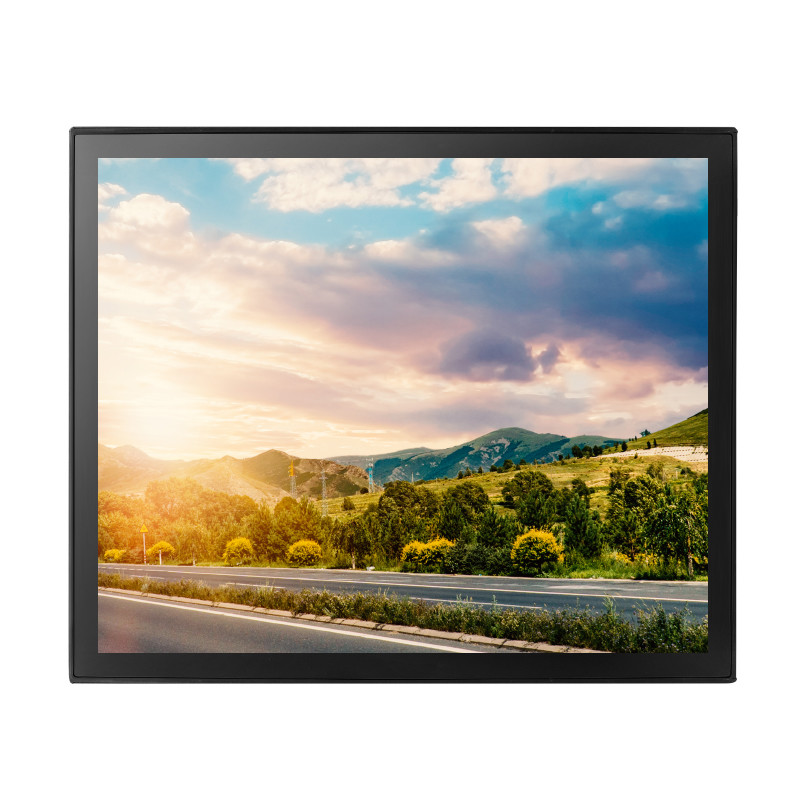

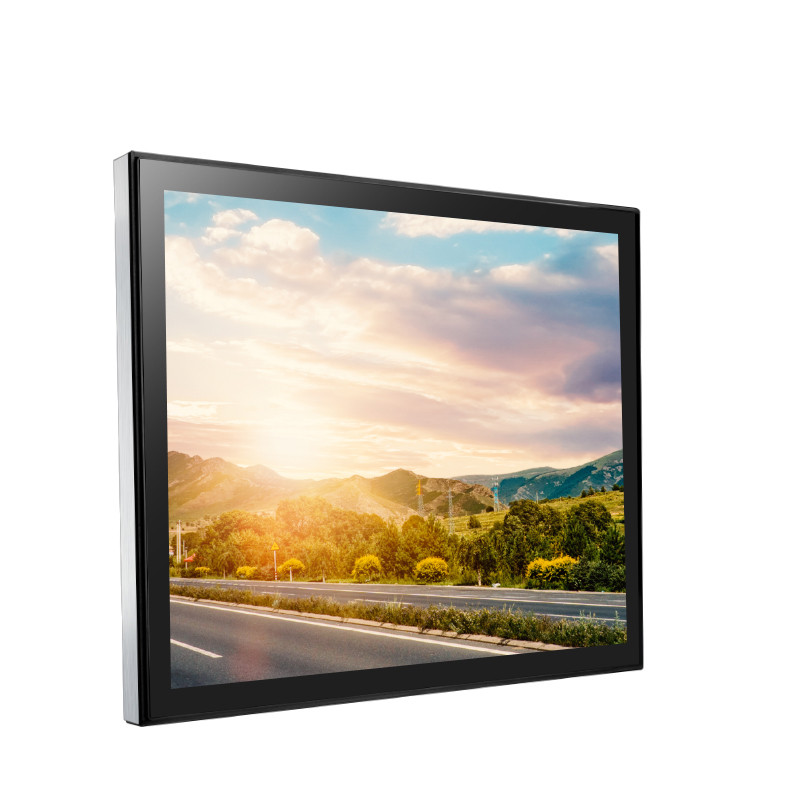

17 Inch PCAP Touch Monitor IP65 Waterproof Anti Vandal For ATMs

17 Inch PCAP Touch Monitor IP65 Waterproof Anti Vandal For ATMs
17 Inch PCAP Touch Monitor IP65 Waterproof Anti Vandal For ATMs 17 Inch PCAP Touch Monitor IP65 Waterproof Anti Vandal For ATMs 17 Inch PCAP Touch Monitor IP65 Waterproof Anti Vandal For ATMs 17 Inch PCAP Touch Monitor IP65 Waterproof Anti Vandal For ATMs 17 Inch PCAP Touch Monitor IP65 Waterproof Anti Vandal For ATMs
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-170P-010
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type5:4 Ratio 17" TFT-LCDActive Area337.9*270.3(mm)
Resolution1280×1024 @ 60HzLight Transmittance≥83%
Support SystemXP,WIN7,WIN8,WIN10,Linux,AndroidPure LCD Panel250cd/m²
Operating Temp.0～50°CPackage Dimensions466*185*403(mm)(2 Pcs In One Package)
Storage Temp.-20～60°CStorage RH10%～90%
High Light

IP65 Waterproof PCAP Touch Monitor

,

ATMs PCAP Monitor

,

PCAP Monitor for ATMs

Leave a Message
Product Description


17 Inch PCAP Touch Monitor 1280x1024 Resolution for Kiosks


Description of PCAP Touch Monitor


This PCAP touch monitor delivers below main features: 1280*1024 resolution, 1000:1 contrast ratio, IP65 front frame waterproof, anti-vandal and dust-proof with wide viewing angle. The PCAP touch monitor comes with VGA and DVI interfaces for your use, USB for touch. Also, with professional R&D department, OEM and ODM services are available. And other sizes can be offered (7''- 43'').





Specification of PCAP Touch Monitor


Complete Machine

Model No.

KOT-0170U-CA4P

Series

OT

Display Type

5:4 Ratio 17" TFT-LCD

Active Area

337.9*270.3(mm)

Monitor Dimensions (W*H*D)

378.9*313.3*47.3(mm)

Suggested Resolution

1280*1024 @ 60Hz

Support Colors

16.7M

Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

212cd/m²

Response Time (Typ.)

5ms

Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

1000:1

Video Input

VGA/DVI

Frequency (H/V)

37.9～80KHz / 60～75Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

MTBF

≥30,000 Hours

LED Back Light Life (Typ.)

≥30,000 Hours

Weight（ N.W/G.W ）

4.1Kg(1pcs)/9.85Kg(2pcs in one package)

Package dimensions

466*185*403(mm)(2pcs in one package)

Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤20W

Mount Interface

1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount

OSD Control

Buttons

AUTO, +,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, UL, FCC, CE, CB, RoHS

Regular Warranty

1 year



Touch Screen

Touch Type

17" Riot capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

340.92*273.34(mm)

Thickness

3.9±0.3(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications

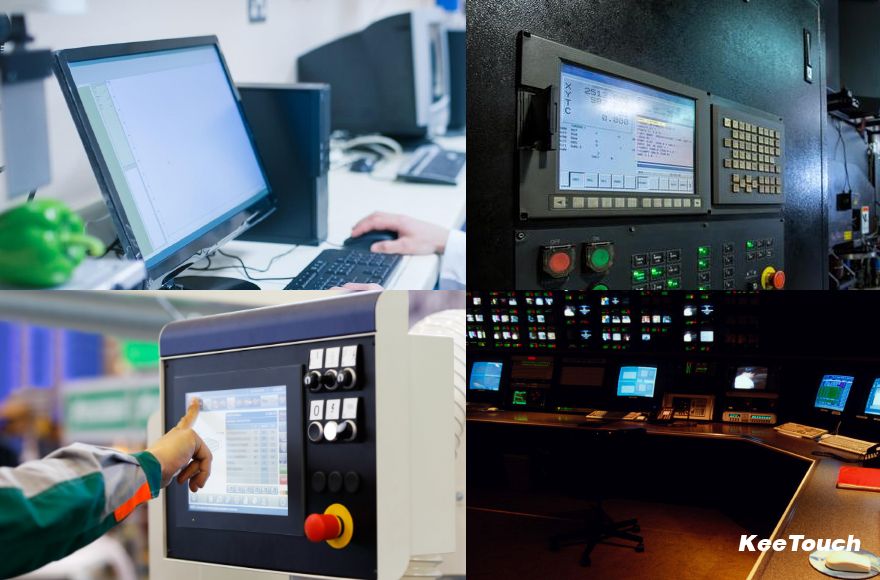

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.






Why choose us?

1. We are a leading provider of industrial grade touch products and touch solutions for 18+ years.


2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.


3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.


4. Professional after-sales team at any time to provide services to customers.





FAQ:

1. Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



2. What is your payment method?

We can accept T/T, Western Union, Paypal Credit card and Alipay. ( L/C can be negotiable. )


3. What is your delivery time for the PCAP touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
