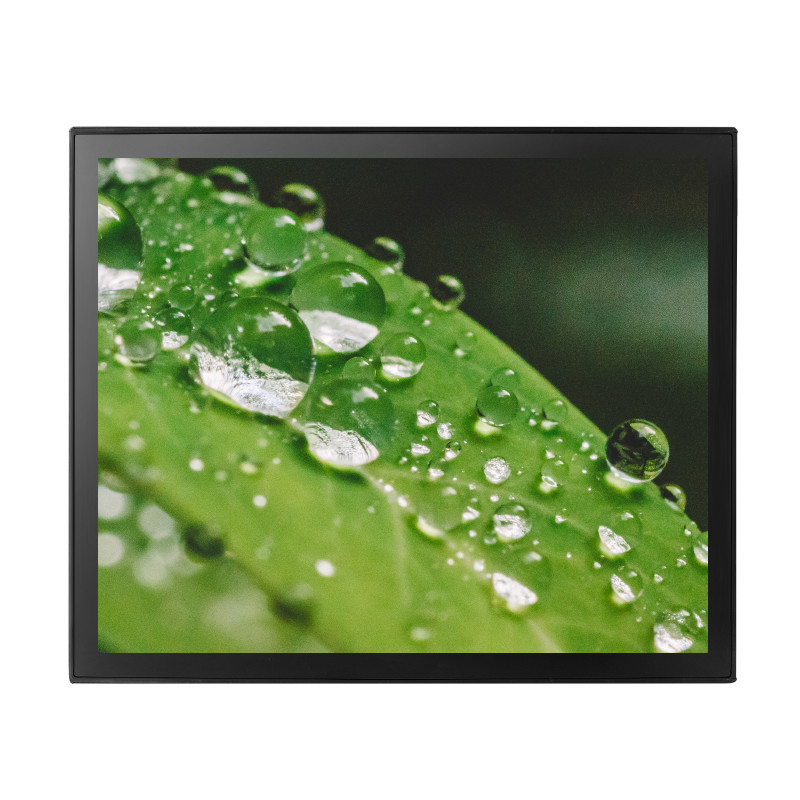

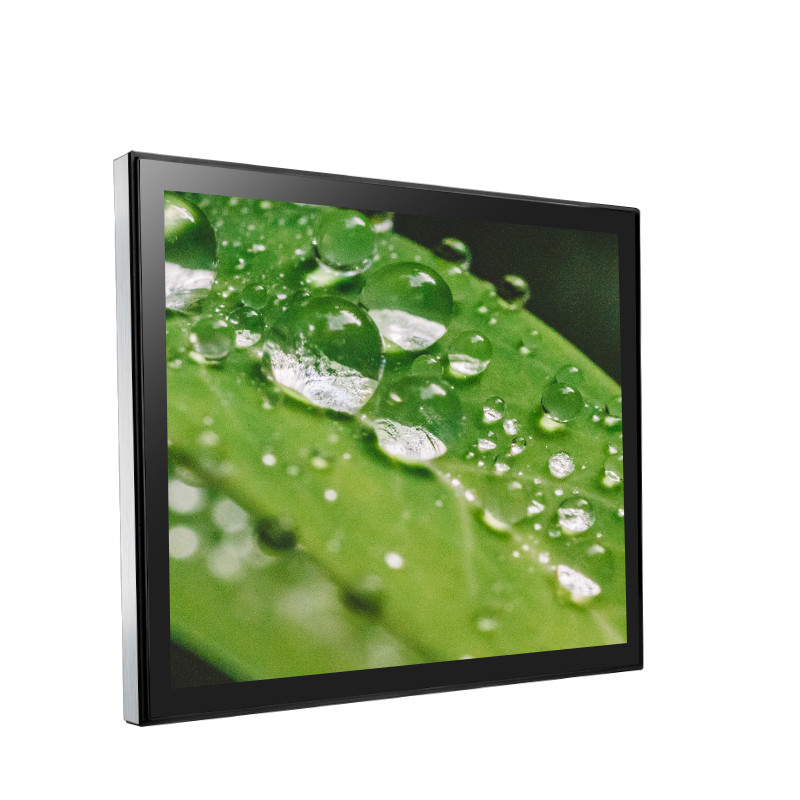

17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks

17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks
17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks 17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks 17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks 17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks 17 Inch PCAP Touch Monitor 1280x1024 Resolution 6H Hardness For Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Type5:4 Ratio 17" TFT-LCDHardness6H
Resolution1280×1024 @ 60HzLight Transmittance≥83%
Support SystemXP,WIN7,WIN8,WIN10,Linux,AndroidContrast Ratio (Typ.)1000:1
Operating Temp.0～50°COperating RH20%～80%
Storage Temp.-20～60°CStorage RH10%～90%
High Light

PCAP Touch Monitor 1280x1024

,

6H Hardness PCAP Monitor

,

PCAP Monitor for Kiosks

Leave a Message
Product Description


17 Inch PCAP Touch Monitor 1280x1024 Resolution for Kiosks


Description of PCAP Touch Monitor


This PCAP touch monitor delivers below main features: 1280*1024 resolution, 1000:1 contrast ratio, IP65 front frame waterproof, anti-vandal and dust-proof with wide viewing angle. The PCAP touch monitor comes with VGA and DVI interfaces for your use, USB for touch. Also, with professional R&D department, OEM and ODM services are available. And other sizes can be offered (7''- 43'').





Specification of PCAP Touch Monitor


Complete Machine

Model No.

KOT-0170U-CA4P

Series

OT

Display Type

5:4 Ratio 17" TFT-LCD

Active Area

337.9*270.3(mm)

Monitor Dimensions (W*H*D)

378.9*313.3*47.3(mm)

Suggested Resolution

1280*1024 @ 60Hz

Support Colors

16.7M

Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

212cd/m²

Response Time (Typ.)

5ms

Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

1000:1

Video Input

VGA/DVI

Frequency (H/V)

37.9～80KHz / 60～75Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

MTBF

≥30,000 Hours

LED Back Light Life (Typ.)

≥30,000 Hours

Weight（ N.W/G.W ）

4.1Kg(1pcs)/9.85Kg(2pcs in one package)

Package dimensions

466*185*403(mm)(2pcs in one package)

Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤20W

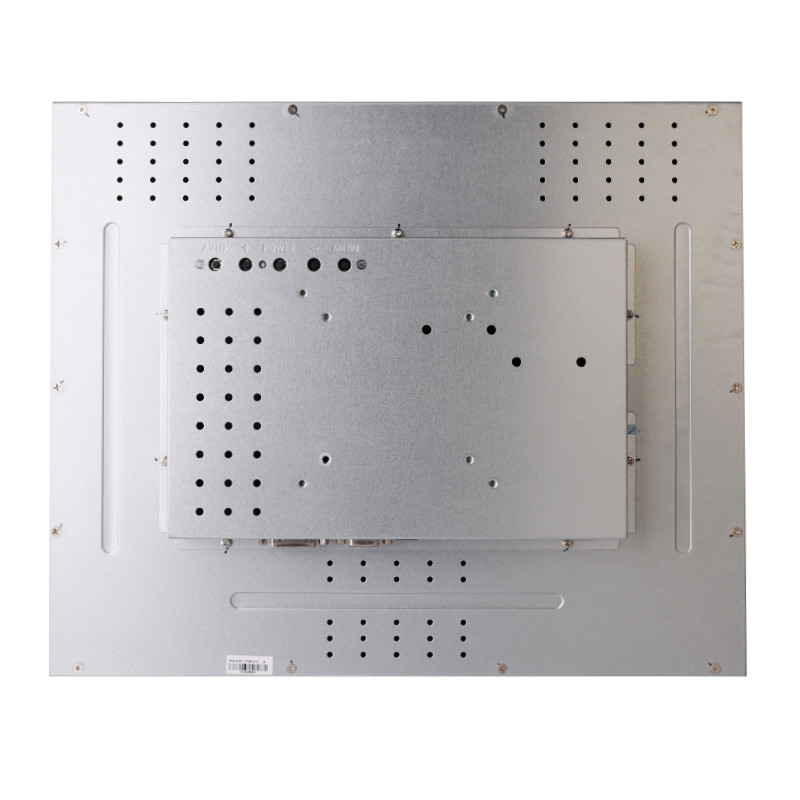

Mount Interface

1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount

OSD Control

Buttons

AUTO, +,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, UL, FCC, CE, CB, RoHS

Regular Warranty

1 year



Touch Screen

Touch Type

17" Riot capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

340.92*273.34(mm)

Thickness

3.9±0.3(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%


NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications


  • Retail

  • Gaming

  • Kiosk

  • Self-service

  • Finance

  • Transit

  • Conference

  • Education

  • Healthcare

  • Public service

  • E-commerce

  • Hotels

  • Restaurants






Advantages of PCAP Touch Monitor

1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.


2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.


3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.


4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.


5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.





FAQ:

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
