250cd/㎡ PCAP Touch Monitor 23 Inch High Resolution With Full Viewing Angle

250cd/㎡ PCAP Touch Monitor 23 Inch High Resolution With Full Viewing Angle
250cd/㎡ PCAP Touch Monitor 23 Inch High Resolution With Full Viewing Angle 250cd/㎡ PCAP Touch Monitor 23 Inch High Resolution With Full Viewing Angle 250cd/㎡ PCAP Touch Monitor 23 Inch High Resolution With Full Viewing Angle 250cd/㎡ PCAP Touch Monitor 23 Inch High Resolution With Full Viewing Angle 250cd/㎡ PCAP Touch Monitor 23 Inch High Resolution With Full Viewing Angle
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-230P-006(KOT-0230U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pure LCD Panel Brightness (Typ.)250cd/㎡SeriesOT
Viewing Angle(Typ.at CR＞10)）89°/89°/89°/89°Video InputVGA/DVI
Contrast Ratio (Typ.)1000:1LED Display Mode45 Kinds
LED Display Speed10 LevelLED Back Light Life (Typ.)≥30,000 Hours
High Light

250cd/㎡ PCAP Touch Monitor

,

High Resolution PCAP Touch Monitor

,

Full Viewing Angle PCAP Monitor

Leave a Message
Product Description

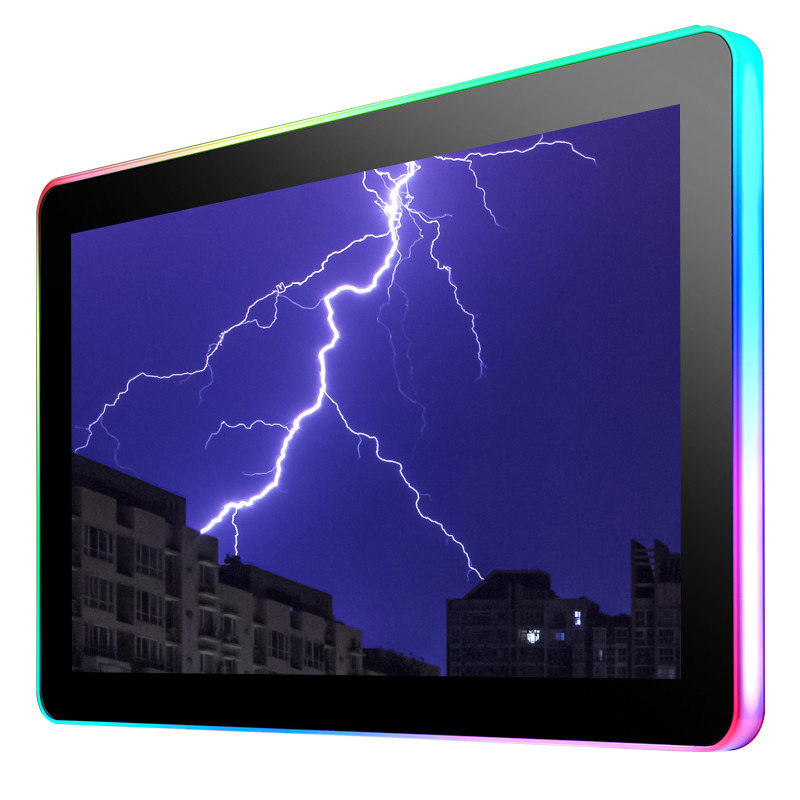

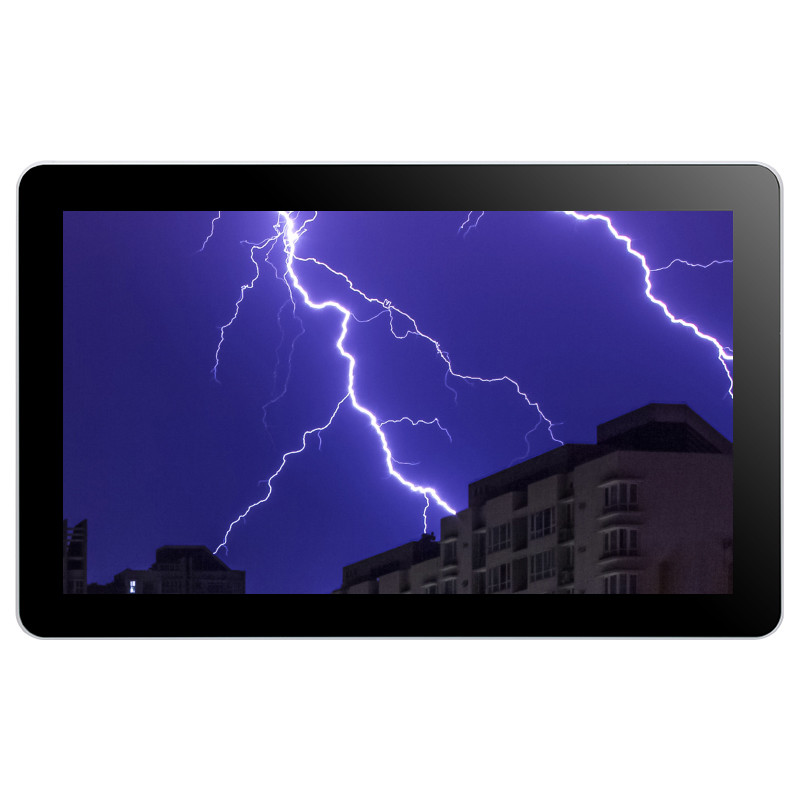

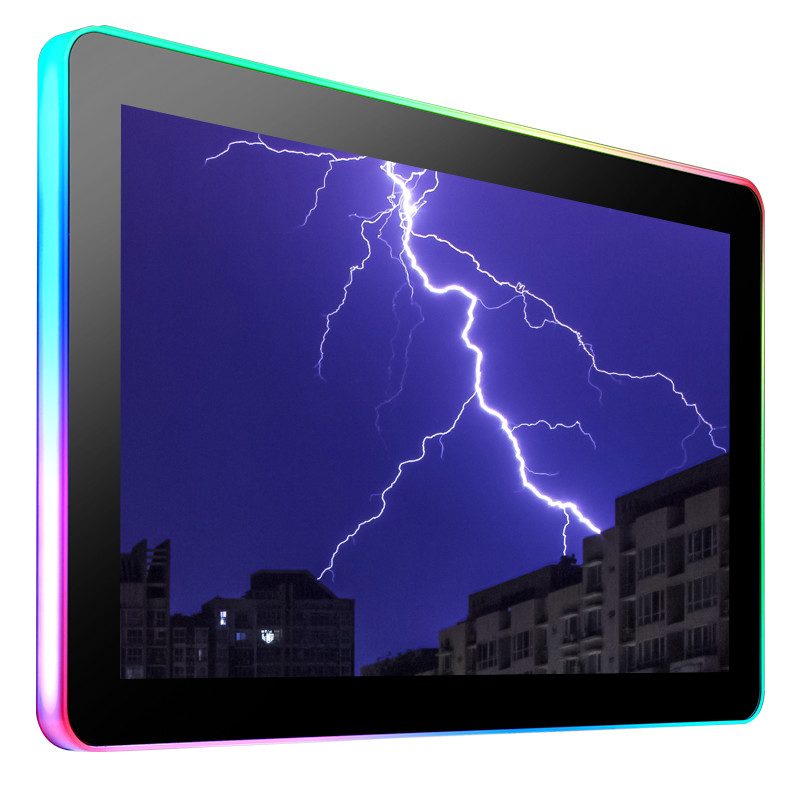

23 Inch PCAP Touch Monitor 1920x1080 Resolution Anti-Vandal



Description of PCAP Touch Monitor


This 23 inch PCAP touch monitor comes with Projected Capacitive touch technology with high resolution and full viewing angle. With PCAP multi touch, high sensitive and fast response. It is industrial grade PCAP touch monitor with LED Flexible Strip, durable and fashionable with anti-vandal and IP65 front side waterproof functions. In addition, it supports multiple mounting options, including VESA mount, horizontal and vertical brackets mount.





PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0230U-CA4P (P/N:KOT-230P-006)

 Series

 OT

 Display Type

16:9 Ratio 23" TFT-LCD

 Active Area

511.8*289(mm)

 Monitor Dimensions (W*H*D)

569*348.2*45(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

212cd/m²

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI

 Frequency (H/V)

37.9～80KHz / 60～75Hz

 LED display mode

45 kinds

 LED display speed

10 level

 LED brightness control

10 level

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

7.1 Kg (1pcs) / 18.35 Kg (2pcs in one package)

 Package dimensions

650*435*195 (mm) (2pcs in one package)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤30W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year



NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





Why choose us?

1. We are a leading provider of industrial grade touch products and touch solutions for 18+ years.


2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.


3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.


4. Professional after-sales team at any time to provide services to customers.





FAQ:

1. Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


2. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )


3. What is your delivery time for the PCAP touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
