23 Inch PCAP Touch Monitor With LED Flexible Strip For Gaming Machine

23 Inch PCAP Touch Monitor With LED Flexible Strip For Gaming Machine
23 Inch PCAP Touch Monitor With LED Flexible Strip For Gaming Machine 23 Inch PCAP Touch Monitor With LED Flexible Strip For Gaming Machine 23 Inch PCAP Touch Monitor With LED Flexible Strip For Gaming Machine 23 Inch PCAP Touch Monitor With LED Flexible Strip For Gaming Machine 23 Inch PCAP Touch Monitor With LED Flexible Strip For Gaming Machine
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-230P-006(KOT-0230U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type16:9 Ratio 23" TFT-LCD
Active Area511.8*289(mm)Support Colors16.7
Operating Temp.0～50°COperating RH20%～80%
Storage Temp.-20～60°CStorage RH10%～90%
High Light

23 Inch PCAP Touch Monitor

,

Gaming Machine PCAP Touch Monitor

,

PCAP Touch Monitor For Gaming Machine

Leave a Message
Product Description

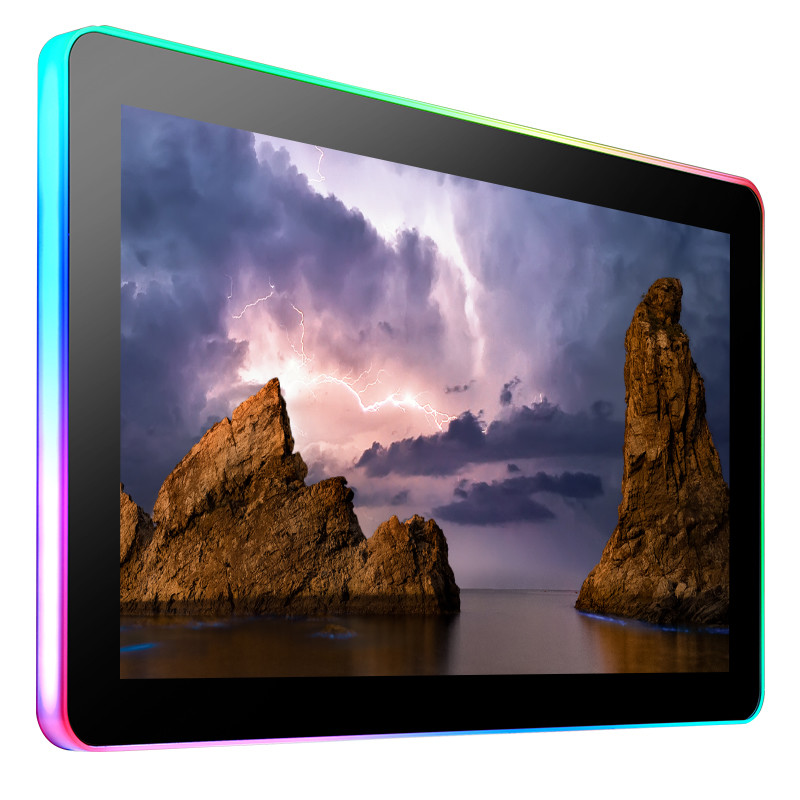

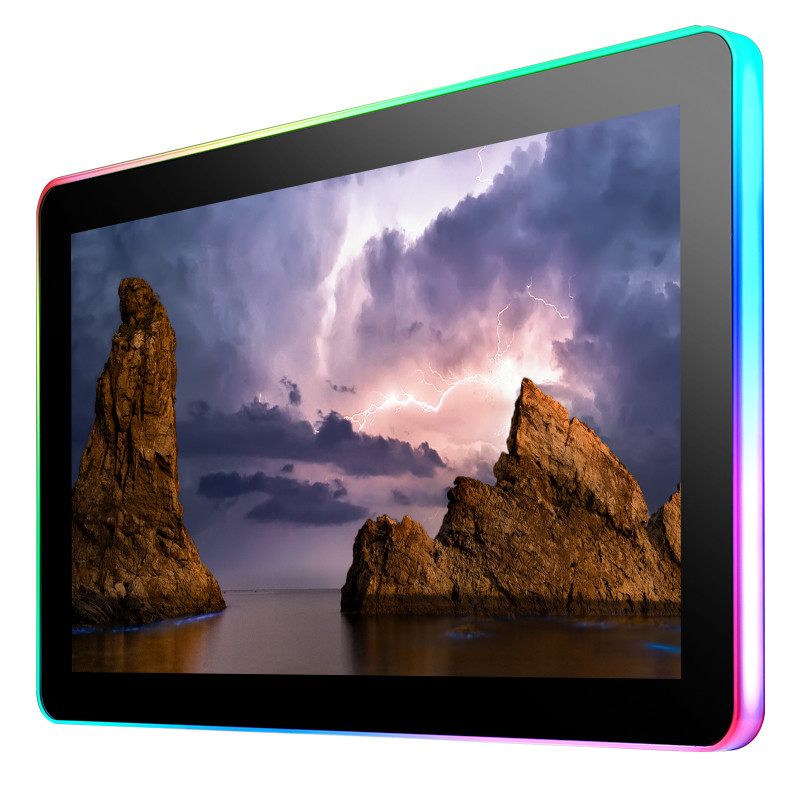

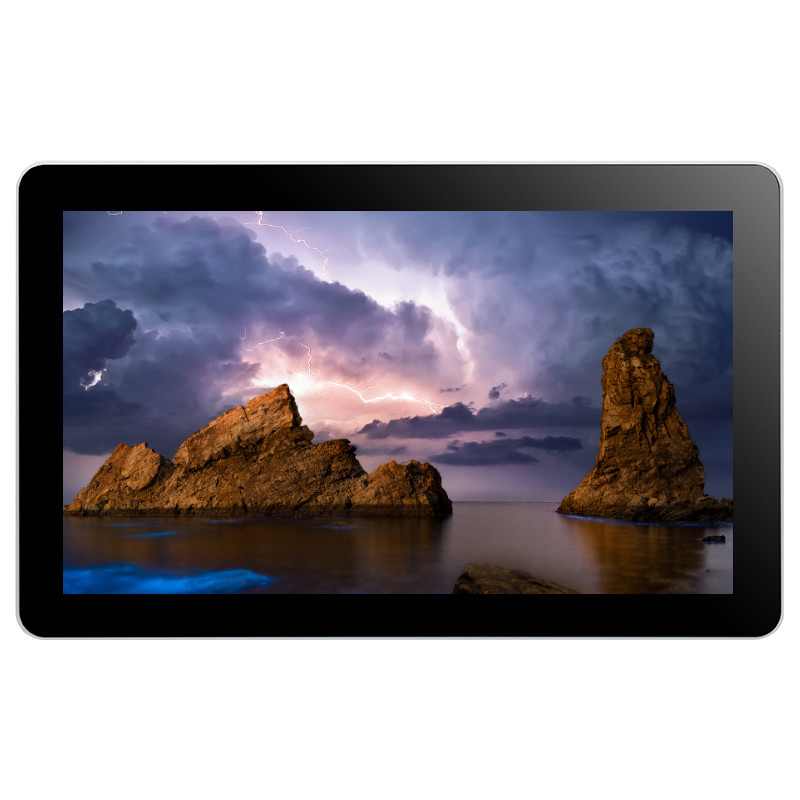

23 Inch PCAP Touch Monitor With LED Flexible Strip For Gaming



Description of PCAP Touch Monitor


This PCAP touch monitor comes with main features as below: 1920*1080 high resolution, 1000:1 contrast ratio, IP65 front waterproof, anti-vandal and dust-proof with full viewing angle. The PCAP touch monitor provides VGA and DVI interfaces for use, USB for touch. With LED flexible strip, fashionable and attractive. It is ideal choice for gaming industry. Also, other sizes can be for your option (7''- 43'').





PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0230U-CA4P (P/N:KOT-230P-006)

 Series

 OT

 Display Type

16:9 Ratio 23" TFT-LCD

 Active Area

511.8*289(mm)

 Monitor Dimensions (W*H*D)

569*348.2*45(mm)

 Suggested Resolution

1920*1080 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

250cd/m²

With Touch Monitor

212cd/m²

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°

 Vertical(up/down)

 89°/89°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI

 Frequency (H/V)

37.9～80KHz / 60～75Hz

 LED display mode

45 kinds

 LED display speed

10 level

 LED brightness control

10 level

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

7.1 Kg (1pcs) / 18.35 Kg (2pcs in one package)

 Package dimensions

650*435*195 (mm) (2pcs in one package)

 Power Consumption

Standby Power: ≤2W / Operating Power: ≤30W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC, CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

23" Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

513.80*291.00(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%



NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications


  • Retail

  • Gaming

  • Kiosk

  • Self-service

  • Finance

  • Transit

  • Conference

  • Education

  • Healthcare

  • Public service

  • E-commerce

  • Hotels

  • Restaurants







Advantages of PCAP Touch Monitor

1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.


2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.


3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.


4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.


5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.





FAQ:

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
