VGA DVI Input PCAP Touch Monitor 16/9 Ratio Anti Vandal For ATMs

VGA DVI Input PCAP Touch Monitor 16/9 Ratio Anti Vandal For ATMs
VGA DVI Input PCAP Touch Monitor 16/9 Ratio Anti Vandal For ATMs VGA DVI Input PCAP Touch Monitor 16/9 Ratio Anti Vandal For ATMs VGA DVI Input PCAP Touch Monitor 16/9 Ratio Anti Vandal For ATMs VGA DVI Input PCAP Touch Monitor 16/9 Ratio Anti Vandal For ATMs VGA DVI Input PCAP Touch Monitor 16/9 Ratio Anti Vandal For ATMs VGA DVI Input PCAP Touch Monitor 16/9 Ratio Anti Vandal For ATMs
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-150P-015-01
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temp-10～50°COperating RH10%～90%
Storage Temp.-20～70°CStorage RH10%～90%
Video InputVGA/DVIContrast Ratio (Typ.)1000:1(Typ.)/700:1(Min.)
Suggested Resolution1024*768 @ 60HzRegular Warranty1 Year
High Light

VGA DVI PCAP Touch Monitor

,

PCAP Touch Monitor For ATMs

,

ATMs PCAP Touch Monitor

Leave a Message
Product Description

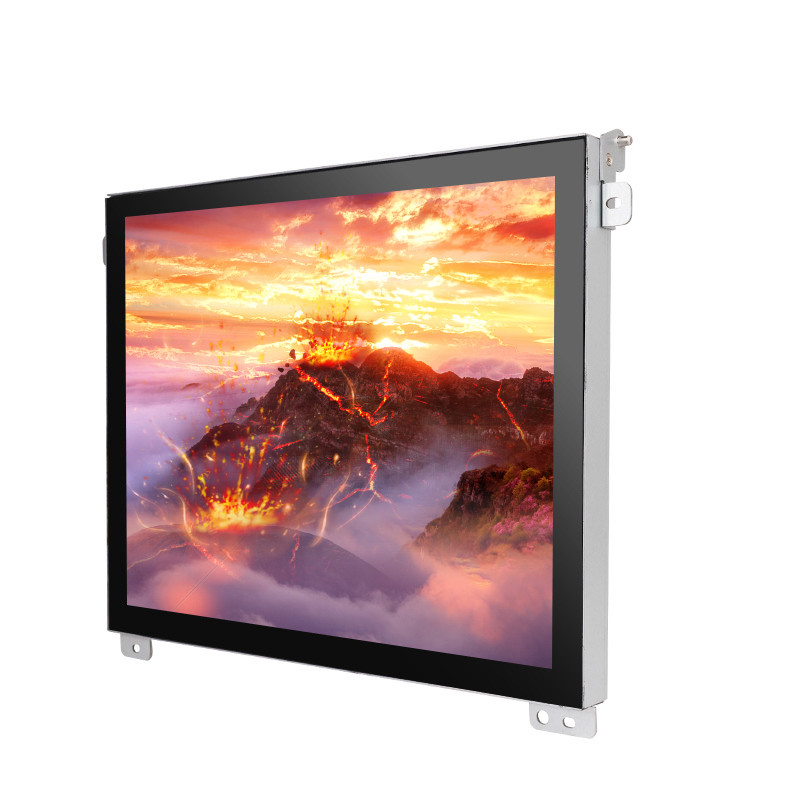

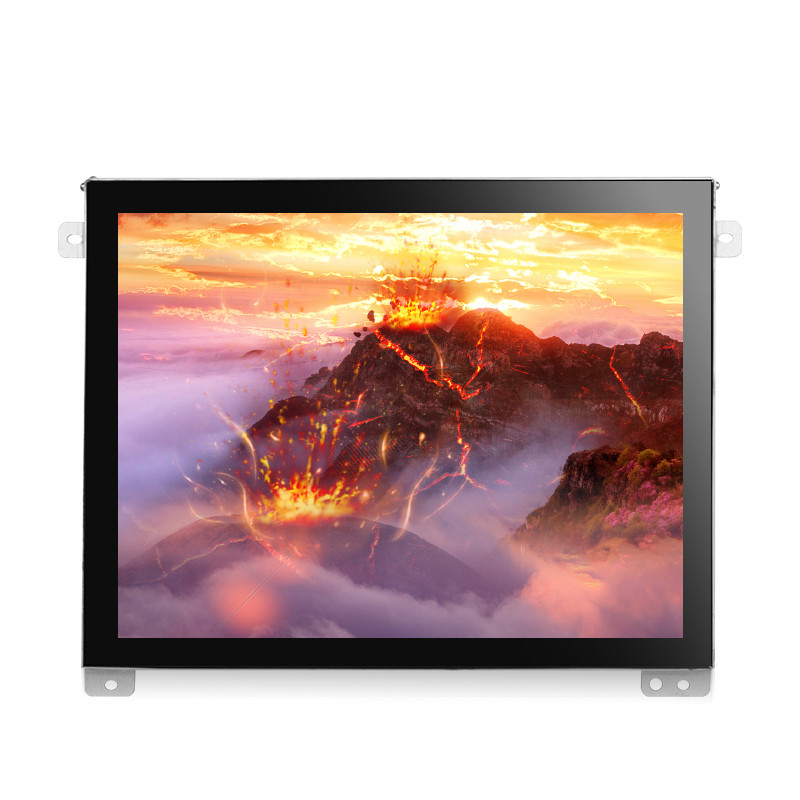

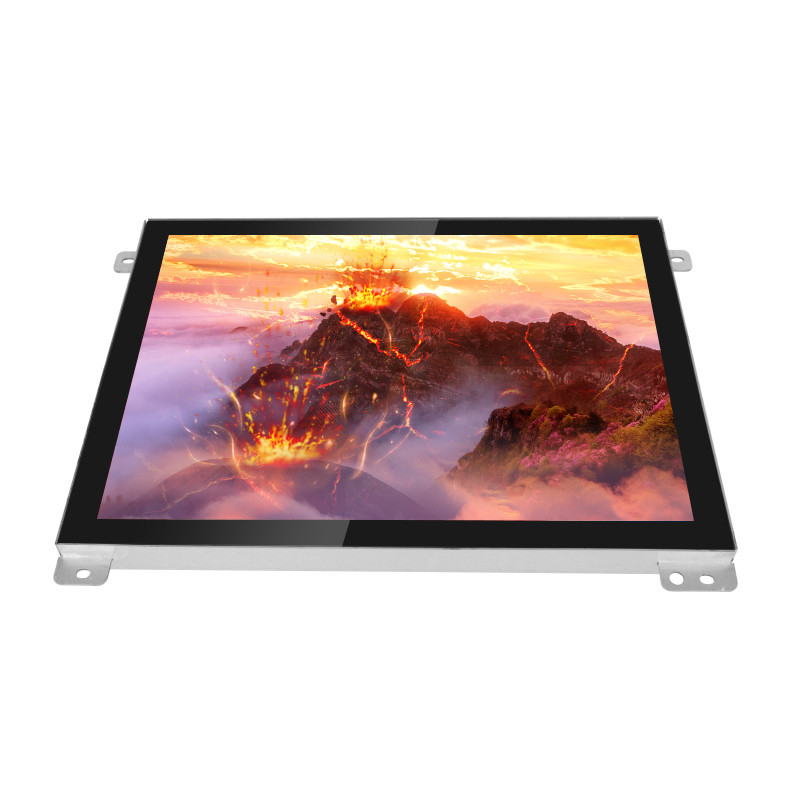

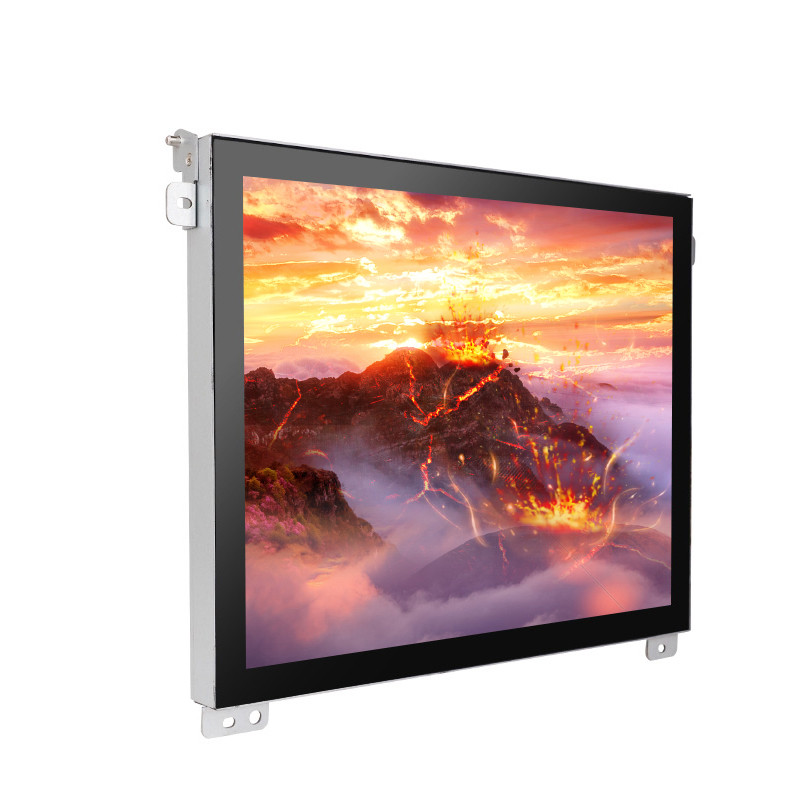

15 Inch PCAP Touch Monitor 16:9 Ratio Anti-Vandal VGA DVI For ATMs


Description of PCAP Touch Monitor


This 15 inch PCAP touch monitor comes with high durability, accuracy and multi-touch support, which can be used normally in harsh environments. It is dust-proof, vandal-proof and anti-glare PCAP touch monitor. VGA and DVI interfaces are provided for use. In addition, other sizes (7''-43'') can be offered. Various mount method can be optional, VESA mount, horizontal or vertical mount.




PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0150UA-CA6PHA（P/N：KOT-150P-015-01）

 Series

 OT

 Display Type

4:3 Ratio 15" TFT-LCD

 Active Area

 304.128×228.096(mm)

 Monitor Dimensions (W*H*D)

 369.7*292.5*48.1(mm)

 Suggested Resolution

 1024*768 @ 60Hz

 Support Colors

 16.7M

 Brightness (Typ.)

Pure LCD Panel

 350cd/m2(Typ.)/315cd/m2(Min.)

With Touch Monitor and peep-proof protection film

 178.5cd/m2(Typ.)/161cd/m2(Min.)

 Response Time (Typ.)

30ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°(Typ.)/85°/85°(Min.)

 Vertical(up/down)

 89°/89°(Typ.)/85°/85°(Min.)

 Contrast Ratio (Typ.)

 1000:1(Typ.)/700:1(Min.)

 Video Input

 VGA/DVI

 Frequency (H/V)

 37.9～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240V AC, 50-60 Hz

The DC inner diameter of power adapter:2.1mm

 Environment

Operating Temp.

-10～50°C

Operating RH

10%～90%

Storage Temp.

-20～70°C

Storage RH

10%～90%

 MTBF

≥50,000 Hours

 LED Back Light Life (Typ.)

≥50,000 Hours

 Weight（N.W/G.W）

3.0Kg(1pcs)/7.2Kg(2pcs in one package)

 Package dimensions

445*200*395(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤15W

 Mount Interface

 Mount bracket, horizontal or vertical mount

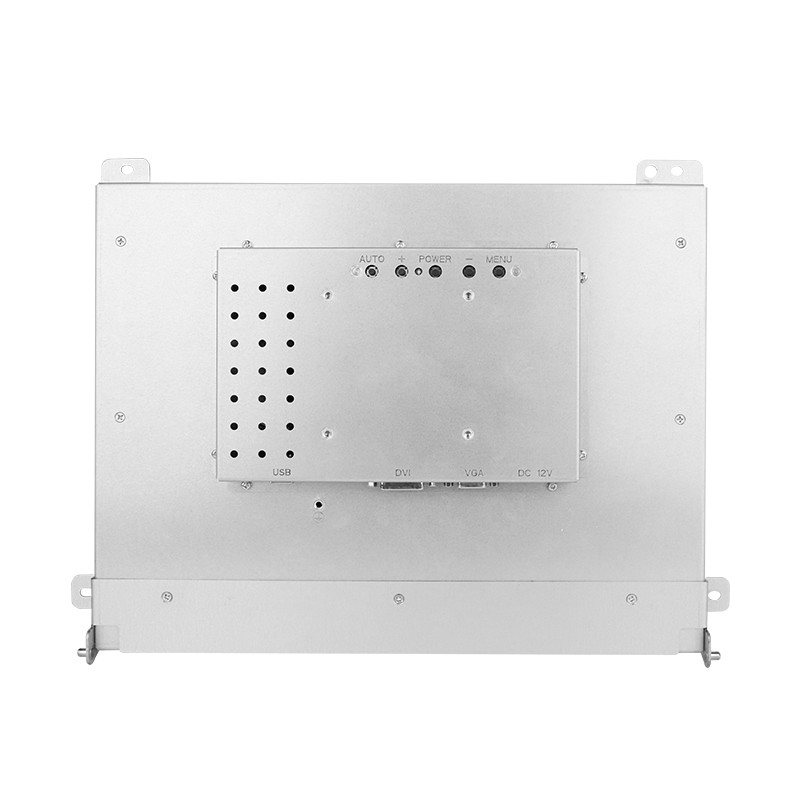

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, CE, CB, RoHS







 Regular Warranty

1 year




Touch Screen

Touch Type

15" Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Resolution ratio

16384*9600

Hardness

7H

Light Transmittance

≥85%

Anti-vandal test

500g steel ball drop from 1.3m high test

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

304*228(mm)

Thickness

3.9±0.2(mm)

Touch Test

50,000,000 times

Input Voltage

5V
