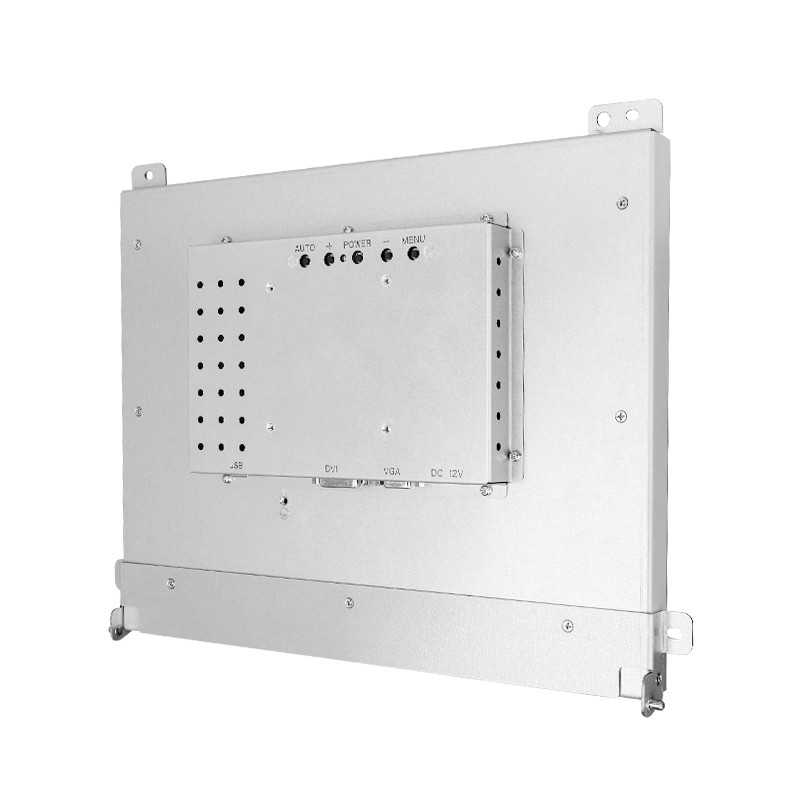

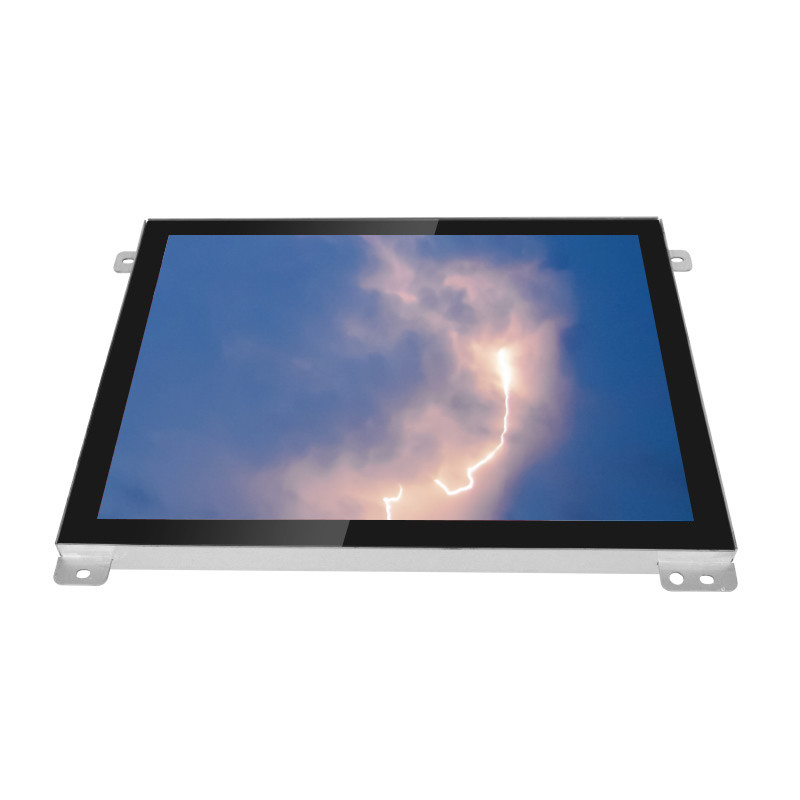

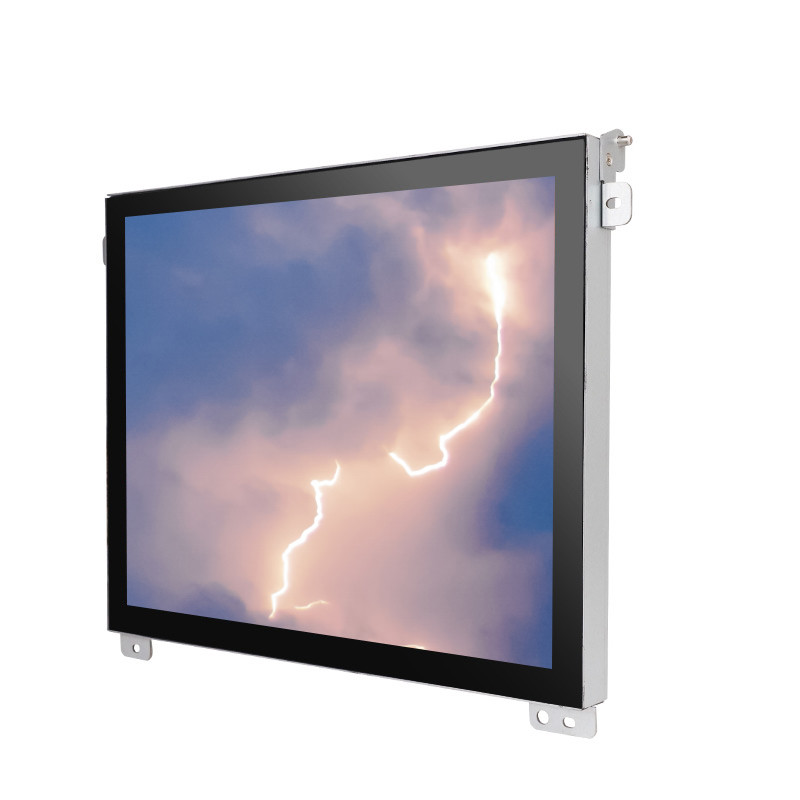

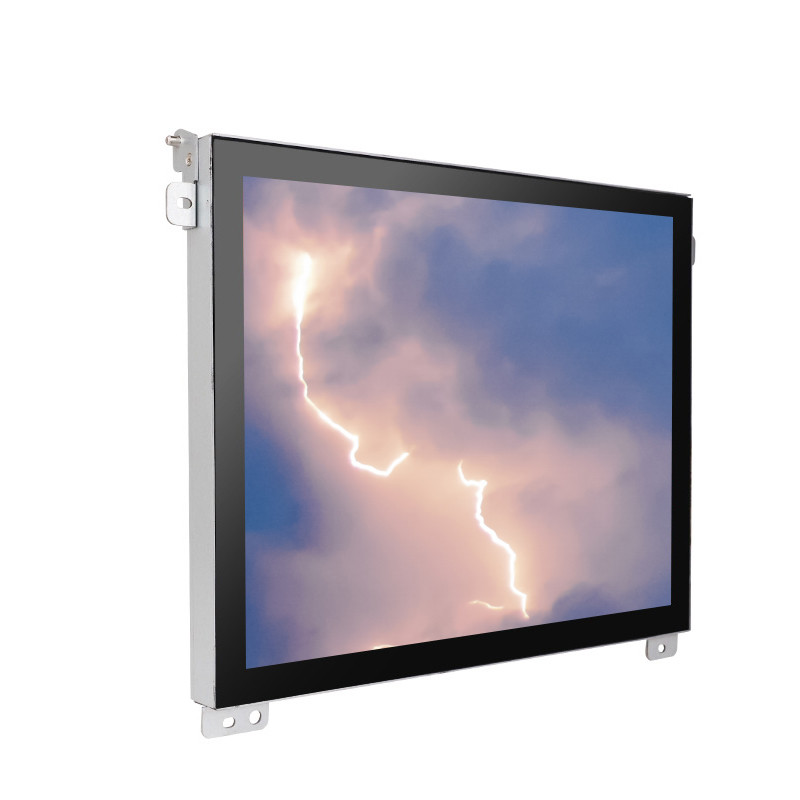

15 Inch PCAP Touch Monitor 350cd/m² 1024x768 Resolution For Kiosks

15 Inch PCAP Touch Monitor 350cd/m² 1024x768 Resolution For Kiosks
15 Inch PCAP Touch Monitor 350cd/m² 1024x768 Resolution For Kiosks 15 Inch PCAP Touch Monitor 350cd/m² 1024x768 Resolution For Kiosks 15 Inch PCAP Touch Monitor 350cd/m² 1024x768 Resolution For Kiosks 15 Inch PCAP Touch Monitor 350cd/m² 1024x768 Resolution For Kiosks 15 Inch PCAP Touch Monitor 350cd/m² 1024x768 Resolution For Kiosks 15 Inch PCAP Touch Monitor 350cd/m² 1024x768 Resolution For Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-150P-015-01
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pure LCD Panel Brightness (Typ.)350cd/m² (Typ.)/315cd/m² (Min.)Touch Monitor Brightness (Typ.)178.5cd/m² (Typ.)/161cd/m² (Min.)
Viewing Angle(Typ.at CR＞10)）89°/89°/89°/89°Contrast Ratio (Typ.)1000:1(Typ.)/700:1(Min.)
Response Time30sPower ConsumptionStandby Power: ≤1.5W / Operating Power: ≤15W
Regular Warranty1 YearProduct NamePCAP Touch Monitor
High Light

1024x768 PCAP Touch Monitor

,

PCAP Touch Monitor For Kiosks

,

350cd/m2 PCAP Touch Monitor

Leave a Message
Product Description


15 Inch PCAP Touch Monitor 1024x768 Resolution For Kiosks



Description of PCAP Touch Monitor

This 15 inch PCAP touch monitor comes with Projected Capacitive touch technology with high resolution and full viewing angle. It is industrial grade PCAP touch monitor, durable and fashionable. According to customer’s individual requirements, with our professional R&D engineers, customized services are available. In addition, other sizes (7''-43'') can be for your option.




PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0150UA-CA6PHA（P/N：KOT-150P-015-01）

 Series

 OT

 Display Type

4:3 Ratio 15" TFT-LCD

 Active Area

 304.128×228.096(mm)

 Monitor Dimensions (W*H*D)

 369.7*292.5*48.1(mm)

 Suggested Resolution

 1024*768 @ 60Hz

 Support Colors

 16.7M

 Brightness (Typ.)

Pure LCD Panel

 350cd/m²(Typ.)/315cd/m²(Min.)

With Touch Monitor and peep-proof protection film

 178.5cd/m²(Typ.)/161cd/m²(Min.)

 Response Time (Typ.)

30ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 89°/89°(Typ.)/85°/85°(Min.)

 Vertical(up/down)

 89°/89°(Typ.)/85°/85°(Min.)

 Contrast Ratio (Typ.)

 1000:1(Typ.)/700:1(Min.)

 Video Input

 VGA/DVI

 Frequency (H/V)

 37.9～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240V AC, 50-60 Hz

The DC inner diameter of power adapter:2.1mm

 Environment

Operating Temp.

-10～50°C

Operating RH

10%～90%

Storage Temp.

-20～70°C

Storage RH

10%～90%

 MTBF

≥50,000 Hours

 LED Back Light Life (Typ.)

≥50,000 Hours

 Weight（N.W/G.W）

3.0Kg(1pcs)/7.2Kg(2pcs in one package)

 Package dimensions

445*200*395(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤15W

 Mount Interface

 Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, CE, CB, RoHS


 Regular Warranty

1 year



Touch Screen

Touch Type

15" Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Resolution ratio

16384*9600

Hardness

7H

Light Transmittance

≥85%

Anti-vandal test

500g steel ball drop from 1.3m high test

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

304*228(mm)

Thickness

3.9±0.2(mm)

Touch Test

50,000,000 times

Input Voltage

5V





Applications

PCAP Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.






Why choose us?

1. We are a leading provider of industrial grade touch products and touch solutions founded in 2006 years.


2. Our core competence is differentiated product customization. With over 40 professional R&D engineers, we can offer OEM and ODM services to meet customer’s individual requirements.


3. Our company has been approved by ISO9001 and ISO14001, and with the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the products.


4. Professional after-sales team at any time to provide services to customers.





FAQ:

1. Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


2. What is your payment method?

We can accept T/T, Western Union, Paypal Credit card and Alipay. ( L/C can be negotiable. )


3. What is your delivery time for the PCAP touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
