15 Inch PCAP Touch Monitor Open Frame Anti Glare Anti Vandal

15 Inch PCAP Touch Monitor Open Frame Anti Glare Anti Vandal
15 Inch PCAP Touch Monitor Open Frame Anti Glare Anti Vandal 15 Inch PCAP Touch Monitor Open Frame Anti Glare Anti Vandal 15 Inch PCAP Touch Monitor Open Frame Anti Glare Anti Vandal 15 Inch PCAP Touch Monitor Open Frame Anti Glare Anti Vandal 15 Inch PCAP Touch Monitor Open Frame Anti Glare Anti Vandal 15 Inch PCAP Touch Monitor Open Frame Anti Glare Anti Vandal
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS,UL,BIS
Model NumberKOT-150P-015-01
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contrast Ratio (Typ.)1000:1(Typ.)/700:1(Min.)Suggested Resolution1024*768 @ 60Hz
Video InputVGA/DVISupport Colors16.7M
Operating Temp.-10~50°COperating RH10%~90%
Storage Temp-20~70°CStorage RH10%~90%
High Light

15 Inch PCAP Touch Monitor

,

Anti Glare PCAP Touch Monitor

,

Anti Vandal PCAP Touch Monitor

Leave a Message
Product Description

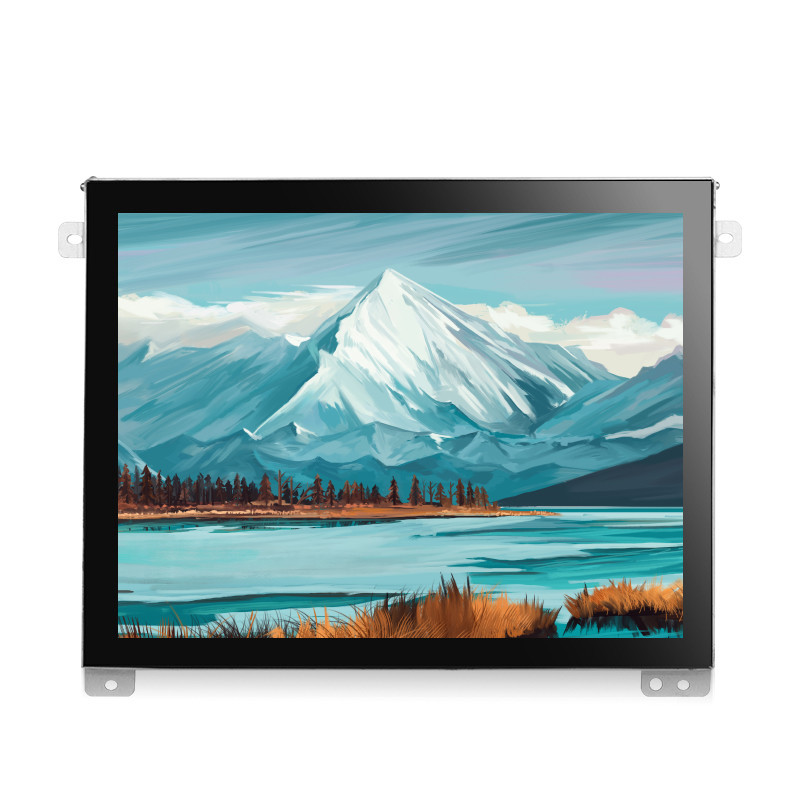

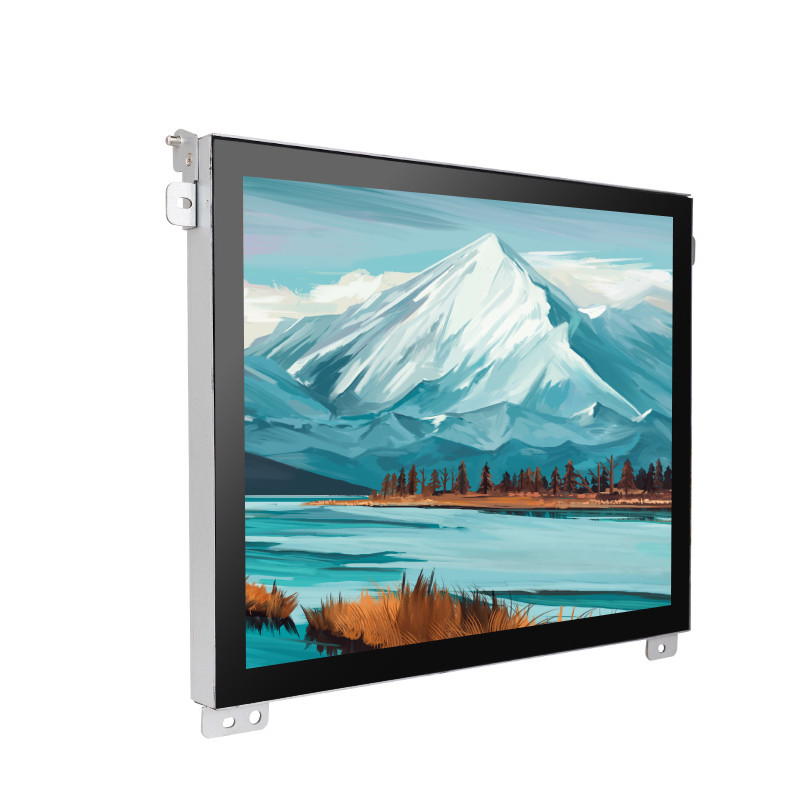

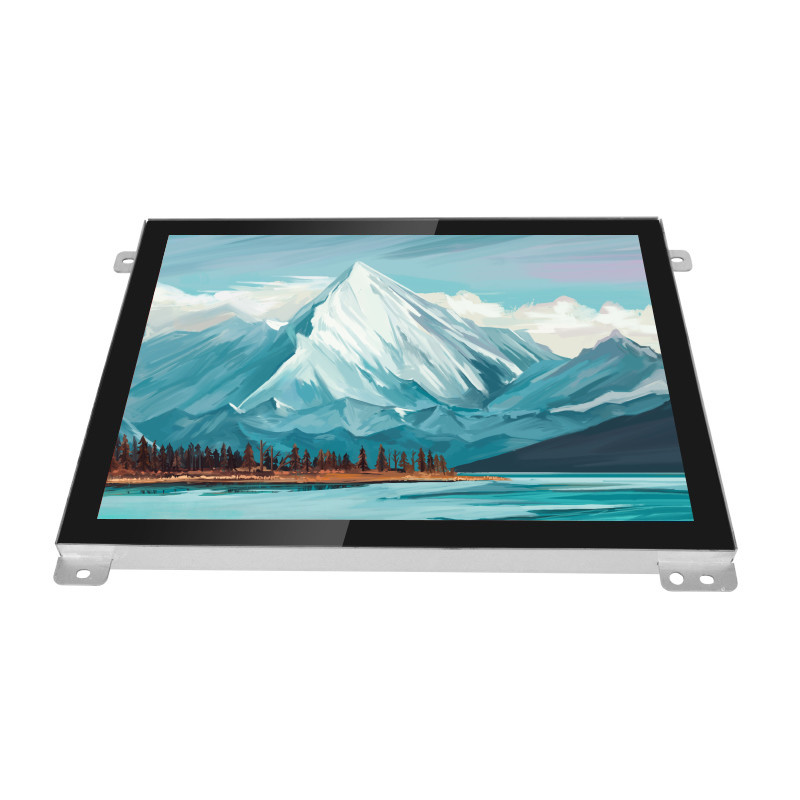

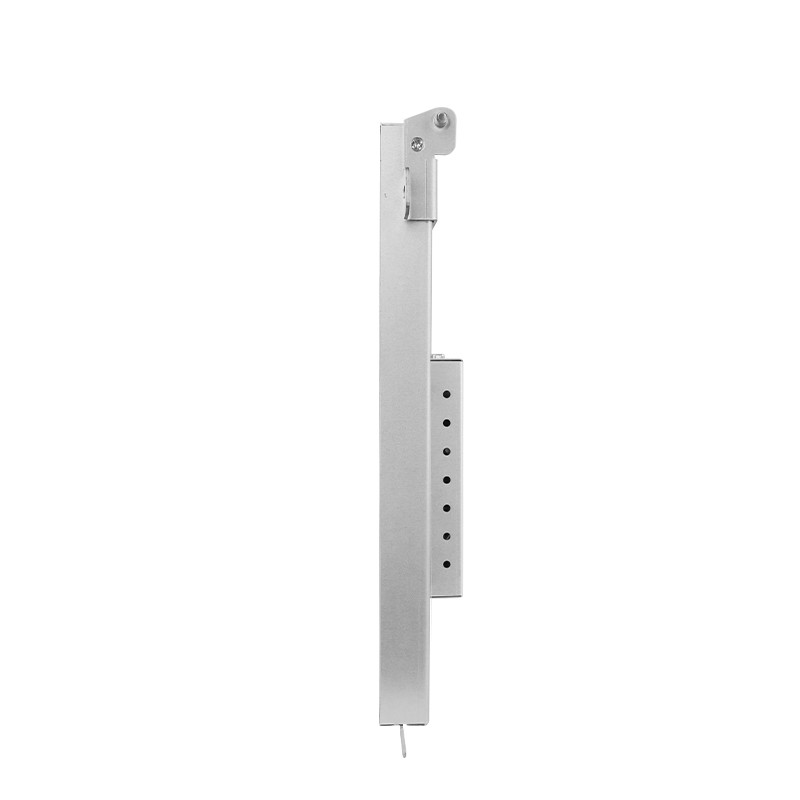

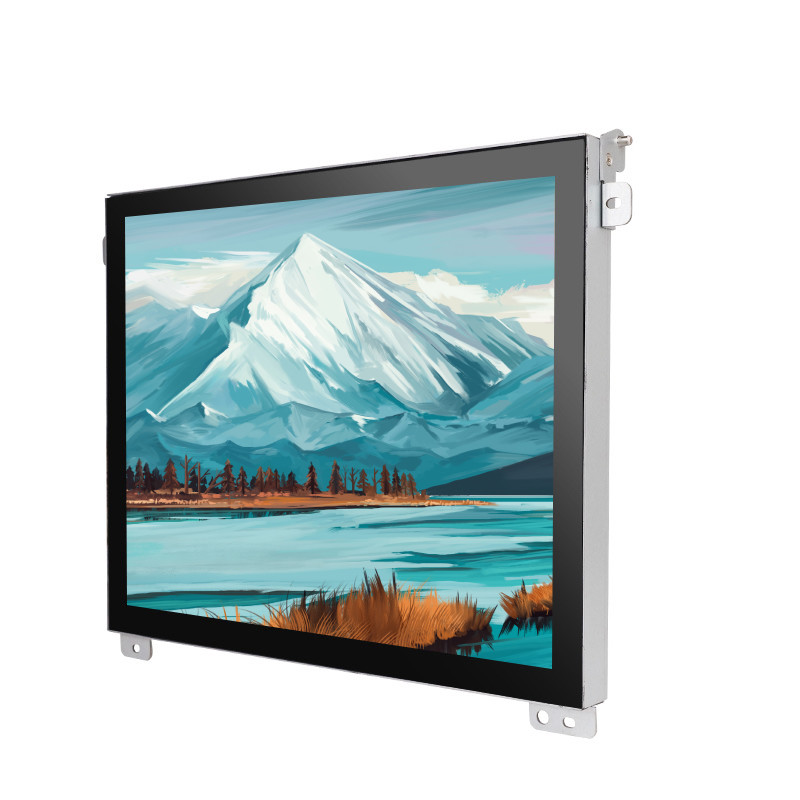

15 Inch PCAP Touch Monitor Open Frame Anti-Glare Anti-Vandal


Description of PCAP Touch Monitor


This PCAP touch monitor has main features as below: 1024*768 high resolution, 1000:1 contrast ratio, anti-glare, anti-vandal and dust-proof with full viewing angle. The PCAP touch monitor provides VGA and DVI interfaces for use, USB port for touch. It is industrial grade PCAP touch monitor with high quality, which can be normally used in harsh environment. Also, per customers’ requirements, OEM and ODM services can be offered.





PCAP Touch Monitor Specifications


 Complete Machine

 Model No.

 KOT-0150UA-CA6PHAP/N:KOT-150P-015-01

 Series

 OT

 Display Type

4:3 Ratio 15" TFT-LCD

 Active Area

 304.128×228.096(mm)

 Monitor Dimensions (W*H*D)

 369.7*292.5*48.1(mm)

 Suggested Resolution

 1024*768 @ 60Hz

 Support Colors

 16.7M

 Brightness (Typ.)

Pure LCD Panel

 350cd/m²(Typ.)/315cd/m²(Min.)

With Touch Monitor and peep-proof protection film

 178.5cd/m²(Typ.)/161cd/m²(Min.)

 Response Time (Typ.)

30ms

 Viewing Angle(Typ.at CR>10))

 Horizontal(left/right)

 89°/89°(Typ.)/85°/85°(Min.)

 Vertical(up/down)

 89°/89°(Typ.)/85°/85°(Min.)

 Contrast Ratio (Typ.)

 1000:1(Typ.)/700:1(Min.)

 Video Input

 VGA/DVI

 Frequency (H/V)

 37.9~80KHz / 60~75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240V AC, 50-60 Hz

The DC inner diameter of power adapter:2.1mm

 Environment

Operating Temp.

-10~50°C

Operating RH

10%~90%

Storage Temp.

-20~70°C

Storage RH

10%~90%

 MTBF

≥50,000 Hours

 LED Back Light Life (Typ.)

≥50,000 Hours

 Weight(N.W/G.W)

3.0Kg(1pcs)/7.2Kg(2pcs in one package)

 Package dimensions

445*200*395(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤15W

 Mount Interface

 Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

 Agency approvals

 CCC, CE, CB, RoHS

 Regular Warranty

1 year






Touch Screen

Touch Type

15" Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Resolution ratio

16384*9600

Hardness

7H

Light Transmittance

≥85%

Anti-vandal test

500g steel ball drop from 1.3m high test

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

304*228(mm)

Thickness

3.9±0.2(mm)

Touch Test

50,000,000 times

Input Voltage

5V





Our Advantages

  • With the experience of 18 years in the display industry, we already accumulate many leading suppliers for raw materials, which help us save the cost effectively and support our clients with a very competitive price.

  • Monthly capacity is more than 30,000 pcs

  • Based your needs, product design, logo and function including anti-glare, privacy film, brightness, hardware and software can be customized.

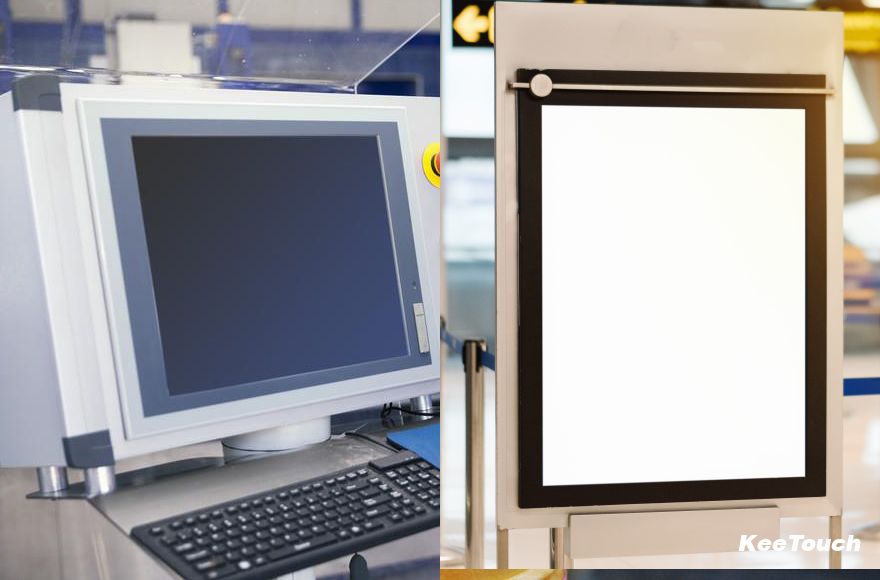

Applications


  • Retail

  • Gaming

  • Kiosk

  • Self-service

  • Finance

  • Transit

  • Conference

  • Education

  • Healthcare

  • Public service

  • E-commerce

  • Hotels

  • Restaurants






Advantages of PCAP Touch Monitor

1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.


2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.


3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.


4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.


5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.





FAQ:

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
