Wall Mounted 18.5 Inch PCAP Touch Screen Monitors Vandal Proof Touch Screen
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Active Area | 409.8*230.4(mm) | Contrast Ratio (Typ.) | 1000:1 |
|---|---|---|---|
| Video Input | VGA/DVI | Support Colors | 16.7M |
| Response Time | 8s | Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W |
| Touch Type | 18.5" Riot Capacitive Touch Screens | Product Name | PCAP Touch Monitor |
| Warranty | 1 Year | Brightness | 400cd/㎡ |
Product Description

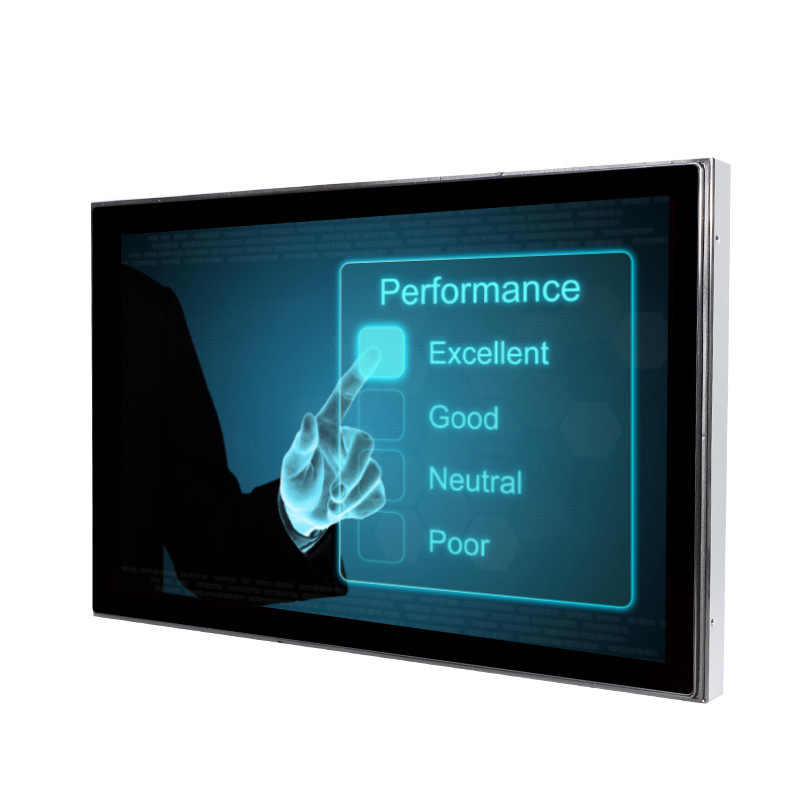

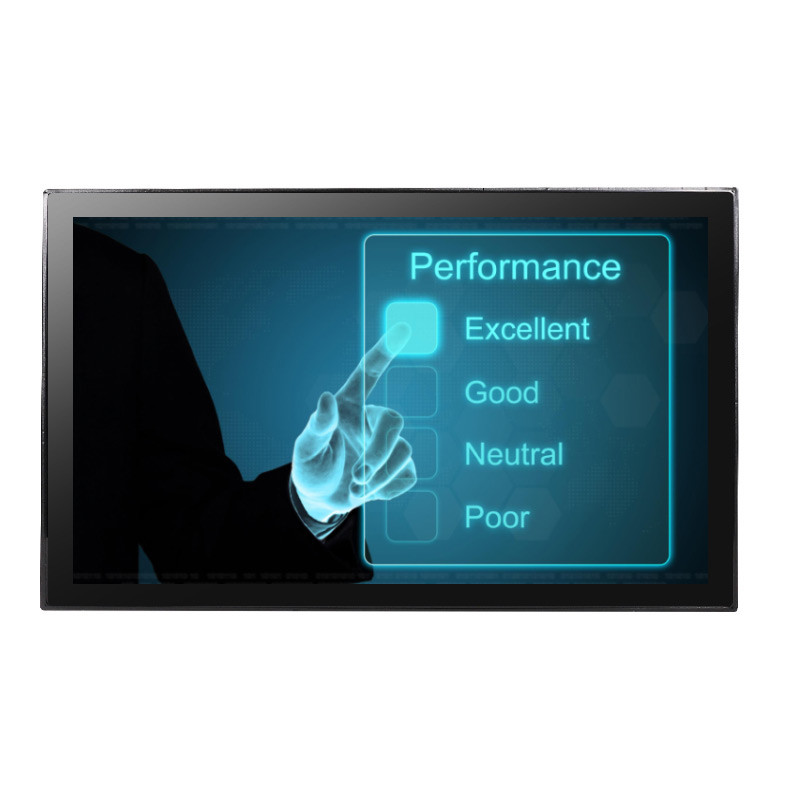

Wall Mounted 18.5 Inch PCAP Touch Screen Monitors Vandal Proof Touch Screen
PCAP Touch Monitor Description:
This PCAP touch monitor is vandal proof and waterproof, using PCAP technology to deliver high sensitive, fast response and accurate touch. With pure flat design and sleek look, it offers the versatility mounting optional including VESA mount75*75mm, 100*100mm, and brackets mount.
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0185U-CA4P(P/N:KOT-185P-001) | |
Series | OT | |
Display Type | 16:9 Ratio 18.5" TFT-LCD | |
Active Area | 409.8*230.4(mm) | |
Monitor Dimensions (W*H*D) | 449.4*270*46(mm) | |
Suggested Resolution | 1920*1080@ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 250cd/m2 |
With Touch Monitor | 212cd/m2 | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.8～68.4KHz / 50～76Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 3.64Kg(1pcs)/8.93Kg(2pcs in one package) | |
Package dimensions | 525*190*385(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤25W | |
Mount Interface | 1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Our Advantages
With over 16 years' experience, Keetouch is a leading manufacturer of touch products and supplier of touch solution.
Comprehensive product lines including PCAP/SAW/IR touch screen, Open frame touch monitors, all-in-one touch panel PCs, sheet metal cases.
Monthly capacity is more than 30,000 pcs
Based your needs, product design, logo and function including anti-glare, privacy film, brightness, hardware and software can be customized.
Applications
KeeTouch PCAP touch monitors are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. What’s your MOQ for the PCAP touch monitor?
Our minimum order quantity is 1pc only.
2. What is your warranty period for the PCAP touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
4. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
5. Do you give any discount?
We will do utmost to support you with the competitive price, also good service will be offered.
