Embeded installation 18.5 Inch PCAP Touch Screen Monitors FHD LCD monitors

Embeded installation 18.5 Inch PCAP Touch Screen Monitors FHD LCD monitors
Embeded installation 18.5 Inch PCAP Touch Screen Monitors FHD LCD monitors Embeded installation 18.5 Inch PCAP Touch Screen Monitors FHD LCD monitors Embeded installation 18.5 Inch PCAP Touch Screen Monitors FHD LCD monitors Embeded installation 18.5 Inch PCAP Touch Screen Monitors FHD LCD monitors Embeded installation 18.5 Inch PCAP Touch Screen Monitors FHD LCD monitors
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, BIS
Model NumberKOT-185P-001(KOT-0185U-CA4P)
Minimum Order Quantity1piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Active Area409.8*230.4(mm)Contrast Ratio (Typ.)1000:1
Video InputVGA/DVISupport Colors16.7M
Response Time8sPower ConsumptionStandby Power: ≤1.5W / Operating Power: ≤15W
Touch Type18.5" Riot Capacitive Touch ScreensProduct NamePCAP Touch Monitor
Warranty1 YearBrightness400cd/㎡
Leave a Message
Product Description

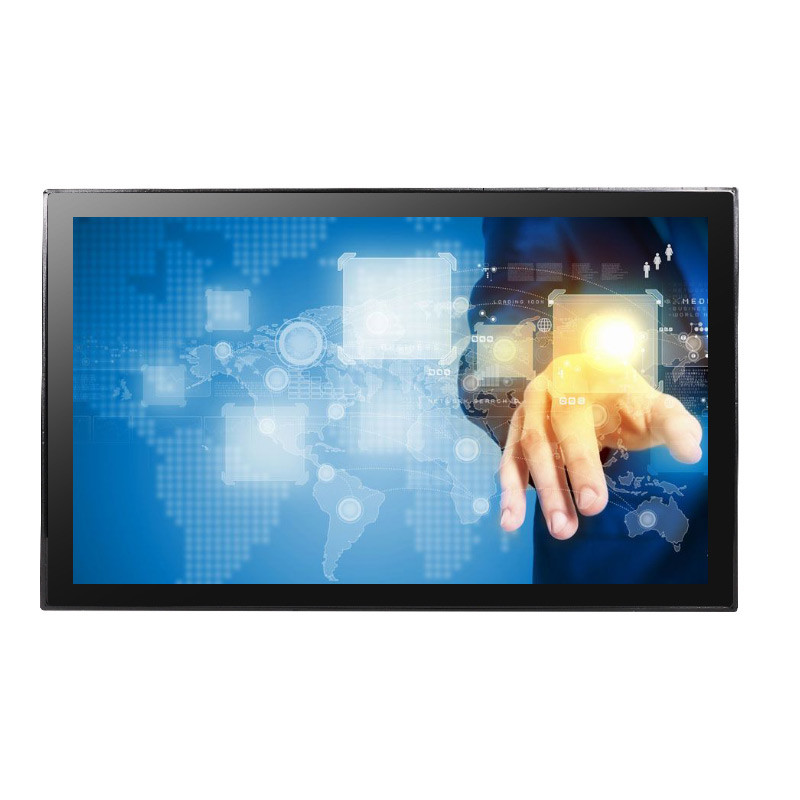

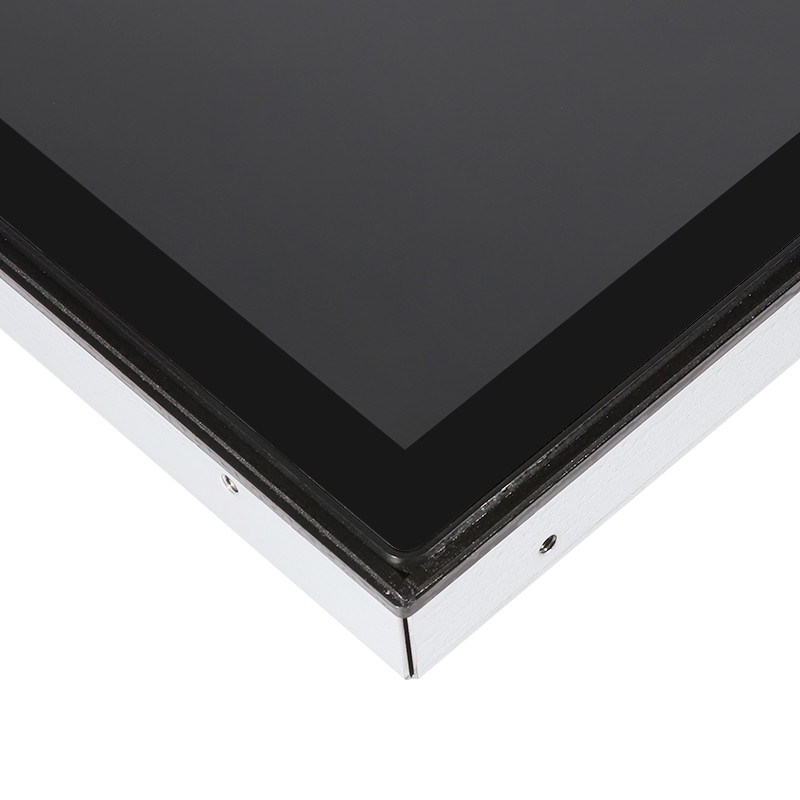

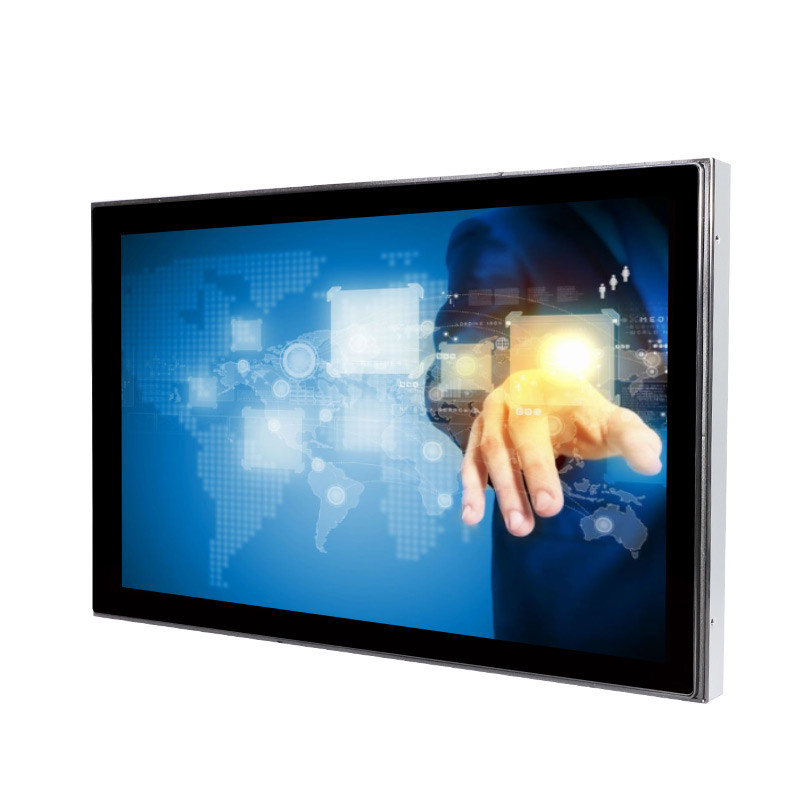

Embeded installation 18.5 Inch PCAP Touch Screen Monitors FHD LCD monitors



PCAP Touch Monitor Description:



KeeTouch PCAP touch monitor uses industrial grade LCD panel with Full HD 1920x1080, high contrast, full viewing angle, low power consumption, providing high clarity image, accurate, sensitive and smooth touch experience. Interfaces VGA, DVI, HDMI and USB for touch all are available and operating systems XP, WIN7, WIN8, WIN10, Linux, Android all are optional.





PCAP Touch Monitor Specifications

Complete Machine

Model No.

KOT-0185U-CA4P(P/N:KOT-185P-001)

Series

OT

Display Type

16:9 Ratio 18.5" TFT-LCD

Active Area

409.8*230.4(mm)

Monitor Dimensions (W*H*D)

449.4*270*46(mm)

Suggested Resolution

1920*1080@ 60Hz

Support Colors

16.7M



Brightness (Typ.)

Pure LCD Panel

250cd/m2

With Touch Monitor

212cd/m2

Response Time (Typ.)

5ms

Viewing Angle(Typ.at CR10)

Horizontal(left/right)

85°/85°

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

1000:1

Frequency (H/V)

37.868.4KHz / 5076Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz





Environment

Operating Temp.

050°C

Operating RH

20%80%

Storage Temp.

-2060°C

Storage RH

10%90%

MTBF

≥30,000 Hours

LED Back Light Life (Typ.)

≥30,000 Hours

WeightN.W/G.W

3.64Kg(1pcs)/8.93Kg(2pcs in one package)

Package dimensions

525*190*385(mm)(2pcs in one package)

Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤25W

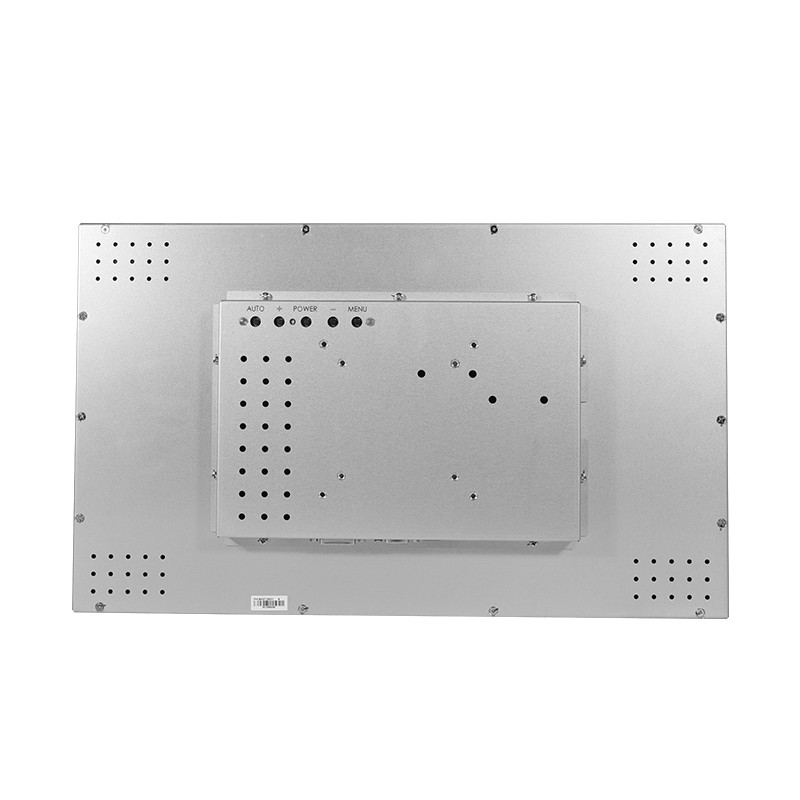

Mount Interface

1. VESA 75mm and 100mm

2. Mount bracket, horizontal or vertical mount



OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, UL, FCC, CE, CB, RoHS

Regular Warranty

1 year


Touch Screen

Touch Type

18.5" Riot capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support   System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

410.8*231.4(mm)

Thickness

4.3±0.2(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

 PCAP Touch Monitor Mechanical Dimensions





Our Advantages

With over 16 years' experience, Keetouch is a leading manufacturer of touch products and supplier of touch solutionMonthly capacity is more than 30,000 pcsEstablished branches office all over the world, such as Germany, Russia, Brazil, india, etc, to provide local serviceWarehouse with an area of 3,600 square meters ensures enough product stocks to catch your delivery time for urgent orders





Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.



2. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).



3. Can you produce the PCAP touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.



4. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )



5. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
