30-80KHz 12.1 Inch PCAP Touch Monitor 1400x1050 Resolution Touch Display

30-80KHz 12.1 Inch PCAP Touch Monitor 1400x1050 Resolution Touch Display
30-80KHz 12.1 Inch PCAP Touch Monitor 1400x1050 Resolution Touch Display 30-80KHz 12.1 Inch PCAP Touch Monitor 1400x1050 Resolution Touch Display 30-80KHz 12.1 Inch PCAP Touch Monitor 1400x1050 Resolution Touch Display 30-80KHz 12.1 Inch PCAP Touch Monitor 1400x1050 Resolution Touch Display 30-80KHz 12.1 Inch PCAP Touch Monitor 1400x1050 Resolution Touch Display
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, BIS
Model NumberKOT-121P-010
Minimum Order Quantity1 piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency (H/V)30～80KHz / 60～75HzSeriesOT
Active Area245.8*184.3(mm)Monitor Dimensions (W*H*D)281*219.5*44.5(mm)
Suggested Resolution1400*1050 @ 60HzOperating Temp.0～50°C
Operating RH20%～80%Storage Temp.-20～60°C
Storage RH10%～90%Video InputVGA/DVI/HDMI
High Light

PCAP Touch Monitor 80KHz

,

1400x1050 PCAP Touch Monitor

,

RoHS TFT LCD Touch Monitor

Leave a Message
Product Description

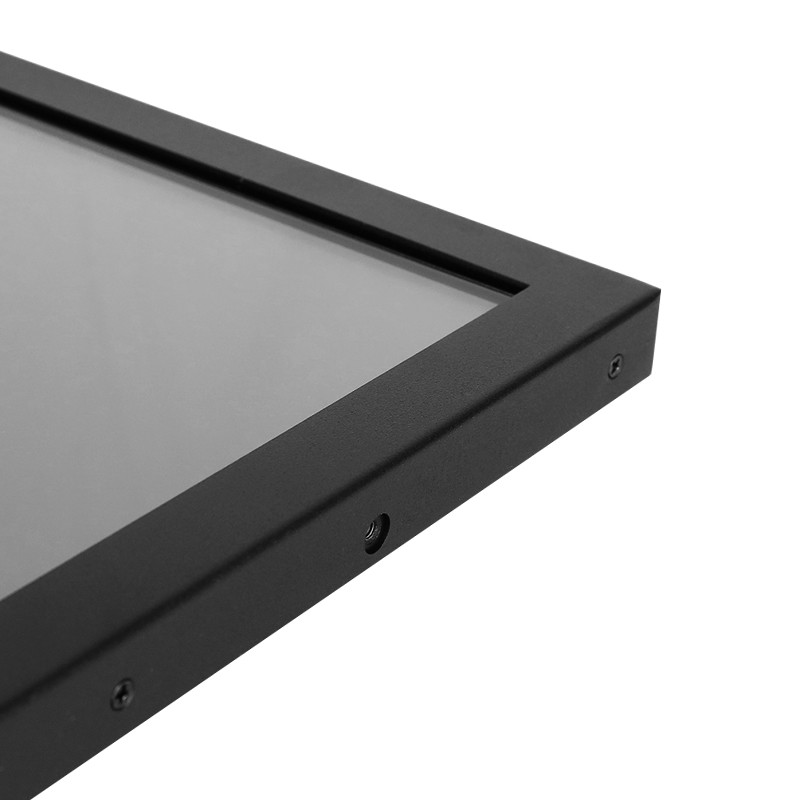

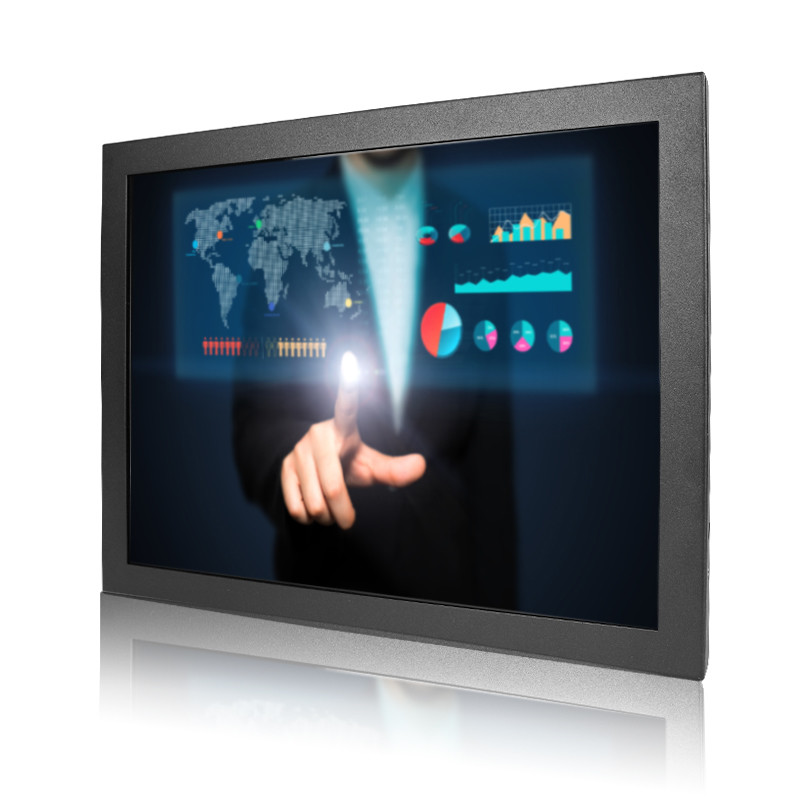

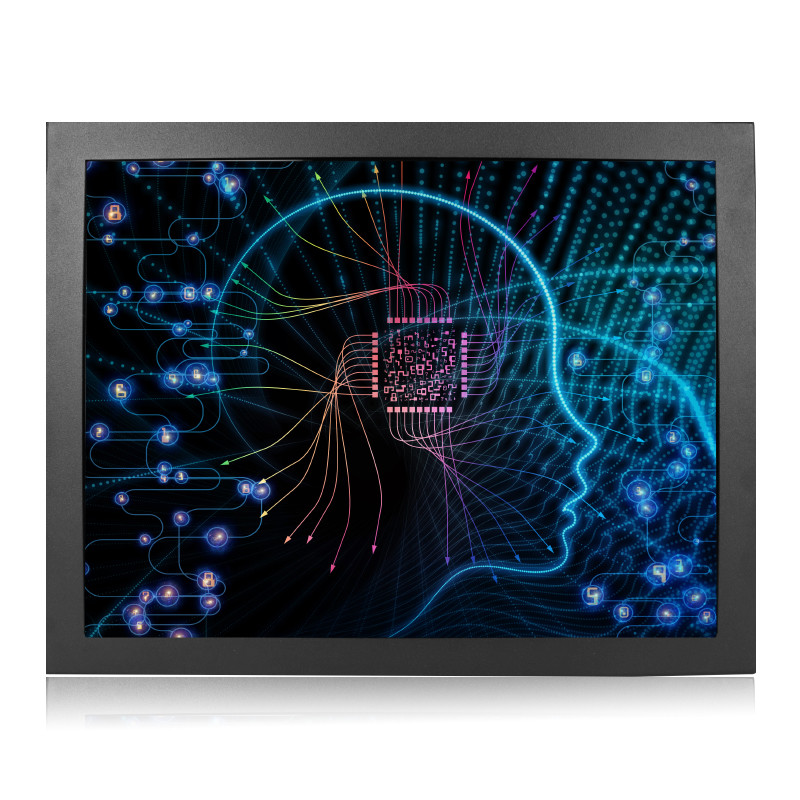

12.1 Inch PCAP Touch Monitor 1400x1050 Resolution Touch Display


PCAP Touch Screen Product Description


Introducing our advanced industrial touch display, a cutting-edge interactive display solution designed to offer a highly responsive and intuitive user experience. Ideal for a wide array of applications, such as kiosks, POS systems, digital signage, and industrial control systems, this touchscreen display will elevate your project to new levels of interactivity and user satisfaction.





PCAP Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0121U-CA4P   (P/N:KOT-121P-010)

 Series

 OT

 Display Type

4:3 Ratio   12.1" TFT-LCD

 Active Area

 245.8*184.3(mm)

 Monitor Dimensions (W*H*D)

 281*219.5*44.5(mm)

 Suggested Resolution

1400*1050 @   60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD   Panel

350cd/m2

With Touch Monitor

297cd/m2

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 50°/50°

 Vertical(up/down)

 45°/50°

 Contrast Ratio (Typ.)

 800:1

 Video Input

 VGA/DVI/HDMI

 Frequency (H/V)

 30～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%
  Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

 ≥ 50,000 Hours

 LED Back Light Life (Typ.)

 ≥ 50,000 Hours

 Weight（N.W/G.W）

 2.3Kg(1pcs)   / 5.25Kg(2pcs in one package)

 Package dimensions

 373*170*317(mm)(2pcs   in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power:   ≤12W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount   bracket, horizontal or vertical mount



 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,   Languages, Function, Reset

 Agency approvals

 CCC, ETL, FCC,   CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

12.1"   Riot capacitive touch screens

Touch   input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support System

Multi-Touch   : WIN7、WIN8、WIN10

Single Touch   : XP

Active Area

247.5*186.5(mm)

Thickness

3.3±0.2(mm)

Touch Test

≥ 50,000,000   次

Input Voltage

DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.




 PCAP Touch Monitor Main Features


1. Excellent Optical Clarity: Due to their glass surface and thin layer of electrodes, multi touch lcd screen offer excellent optical clarity, providing sharp images and vibrant colors without distortion or degradation.

2. Support for Various Input Methods: multitouch screen monitor can be used with a finger, gloved hand, or stylus, making them versatile for various applications and environments.

3. Water and Dust Resistance: PCAP monitor can be designed to resist water and dust, making them suitable for use in harsh conditions or industrial settings.





Applications

waterproof touchscreen monitor are widely used in industries such as follows:

 Kiosks and self-service terminals

 Point of Sale (POS) systems

 Digital signage and interactive displays

 Industrial control and automation systems

 Gaming and entertainment

 Medical and healthcare

 Education and e-learning







 FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.


2. What’s your MOQ for the pos touch screen monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the touch screen pc?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )


5. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
