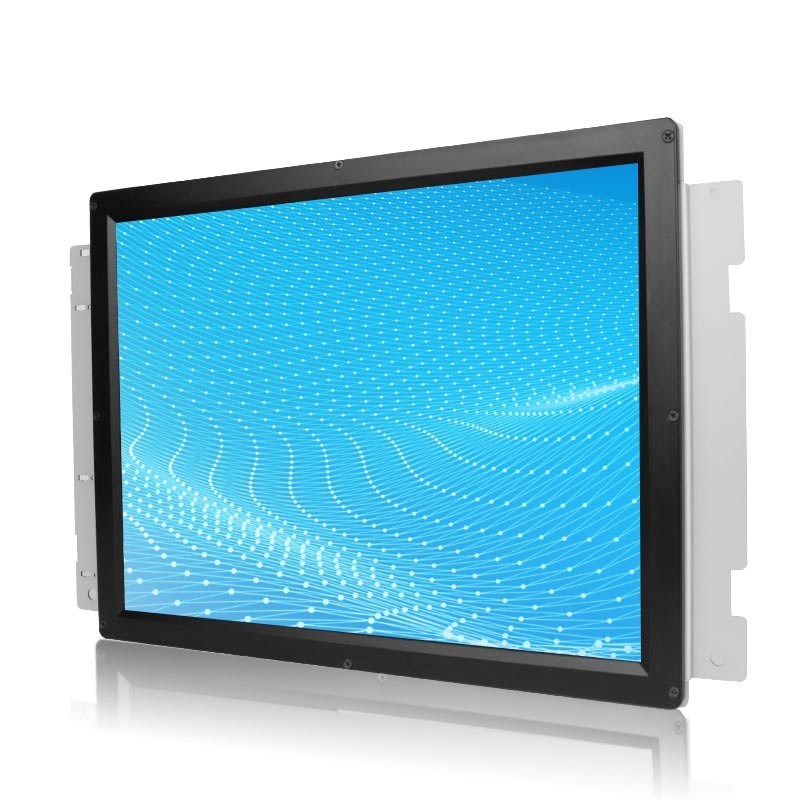

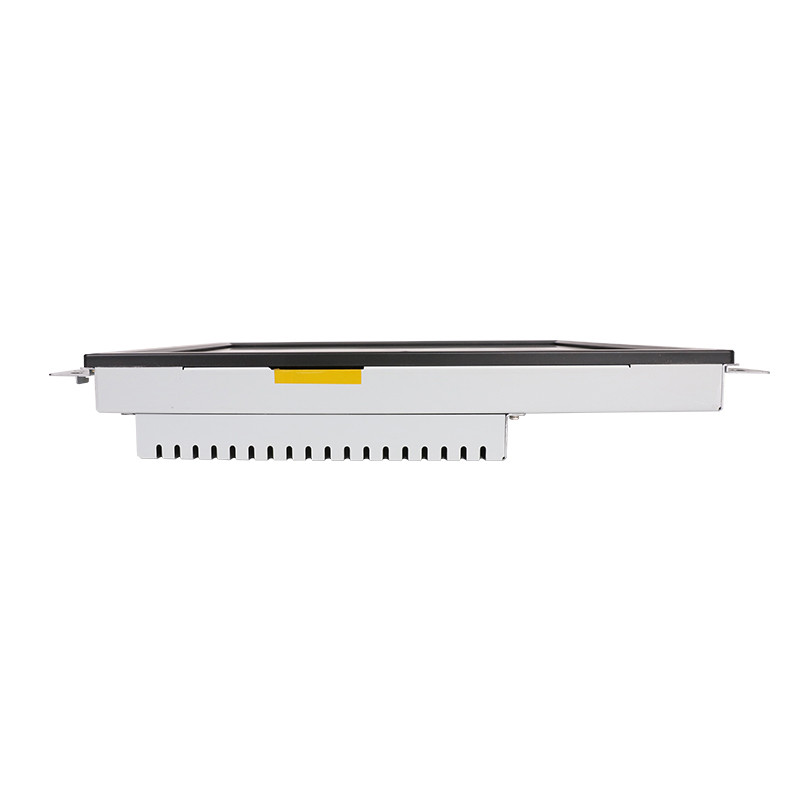

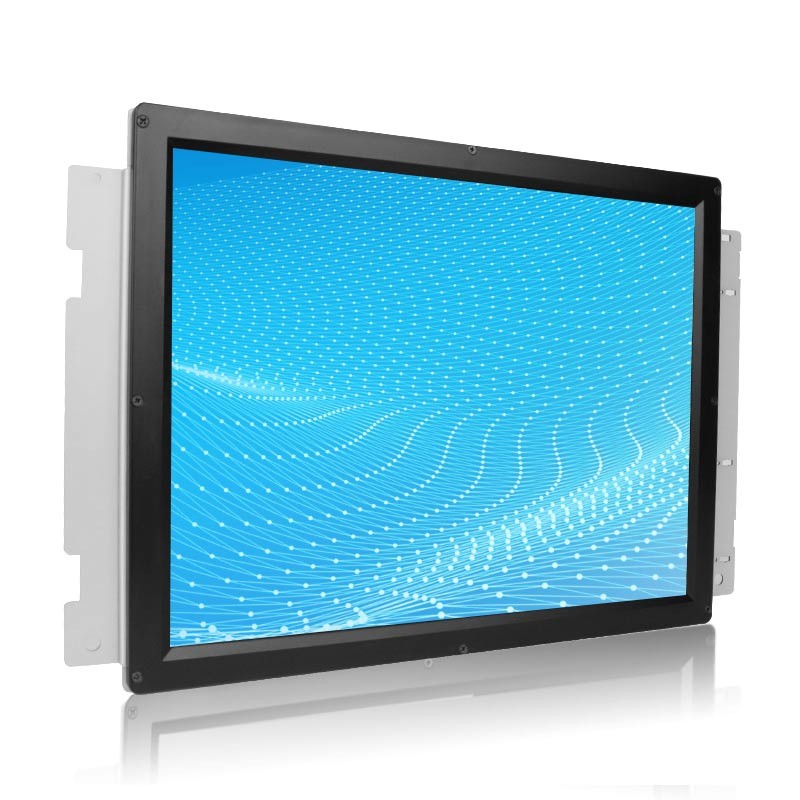

PCAP 15 Inch Touch Monitor 1024x768 Resolution For Kiosks

PCAP 15 Inch Touch Monitor 1024x768 Resolution For Kiosks
PCAP 15 Inch Touch Monitor 1024x768 Resolution For Kiosks PCAP 15 Inch Touch Monitor 1024x768 Resolution For Kiosks PCAP 15 Inch Touch Monitor 1024x768 Resolution For Kiosks PCAP 15 Inch Touch Monitor 1024x768 Resolution For Kiosks PCAP 15 Inch Touch Monitor 1024x768 Resolution For Kiosks
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, BIS
Model NumberKOT-150P-017-03
Minimum Order Quantity1 piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Monitor Dimensions (W*H*D)398*268*56.3(mm)Display Type4:3 Ratio15"TFT-LCD, LEDbacklight
Active Area304.1x 228.1(mm)Anti-peeping AngleHorizontal(left/right) 40°±5°
Contrast Ratio (Typ.)450(Min.), 800(Typ.)Viewing AngleHorizontal(left/right):  80°/80°
Operating Temp.0～50°COperating RH20%～80%
Storage Temp.-20～60°CStorage RH10%～90%
High Light

15 Inch Touch Monitor For Kiosks

,

15 Inch Touch Monitor

,

Scratch Resistant PCAP Touch Monitor

Leave a Message
Product Description


15 Inch PCAP Touch Monitor 1024*768 Resolution For Kiosks


PCAP Touch Monitor Main Features


PCAP touch screen, fast response and high sensitivity

High resolution and high contrast support high quality image

Anti-vandal, anti-peeping, scratch-resistant, and dust-proof PCAP touch monitor

VGA&DVI interfaces, USB port for touch

Multiple mounting options include VESA mount, horizontal and vertical brackets mount

Operation system: XP, WIN7, WIN8, WIN10, Linux, Android

Other sizes (7"- 43") are available





PCAP Touch Monitor Specifications

 Complete Machine

Model No.

KOT-0150U-SA6BW(P/N:KOT-150P-017-03)

Series

OT

Display Type

4:3 Ratio15"TFT-LCD, LEDbacklight

Active Area

304.1x 228.1(mm)

Monitor Dimensions (W*H*D)

398*268*56.3(mm)

Suggested   Resolution

1024*768 @   60Hz

Support   Colors

16.2M

Brightness (Typ.)

Pure   LCD Panel

400cd/㎡

With   Touch Monitor

190cd/㎡

Response Time (Typ.)

6ms

Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right):    80°/80°

Vertical(up/down):  65°/80°

 Anti-peeping angle

Horizontal(left/right) 40°±5°

Contrast   Ratio (Typ.)

450(Min.), 800(Typ.)

Video   Input

VGA/DVI

Frequency (H/V)

30～80KHz / 60～75Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 V/AC, 50-60 Hz



Environment

Operating   Temp.

0～50°C

Operating   RH

20%～80%

Storage   Temp.

-20～60°C

Storage RH

10%～90%

MTBF

≥30,000 Hours

LED   Back Light Life (Typ.)

≥30,000 Hours

Weight（N.W/G.W）

3.3Kg(1pcs) / 7.75Kg(2pcs in one package)

Package   dimensions

445*200*390(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W Operating   Power: ≤10.3W

OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness,   Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function,   Reset

Agency approvals

UL, FCC, CE, CB, RoHS

Regular Warranty

1 year


Touch   Screen

Touch Type

15" Capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥85%

Support   System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

(305±0.3)x (229±0.3)(mm)

Thickness

4±0.25(mm)

Touch Test

≥50,000,000 次

Input   Voltage

DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

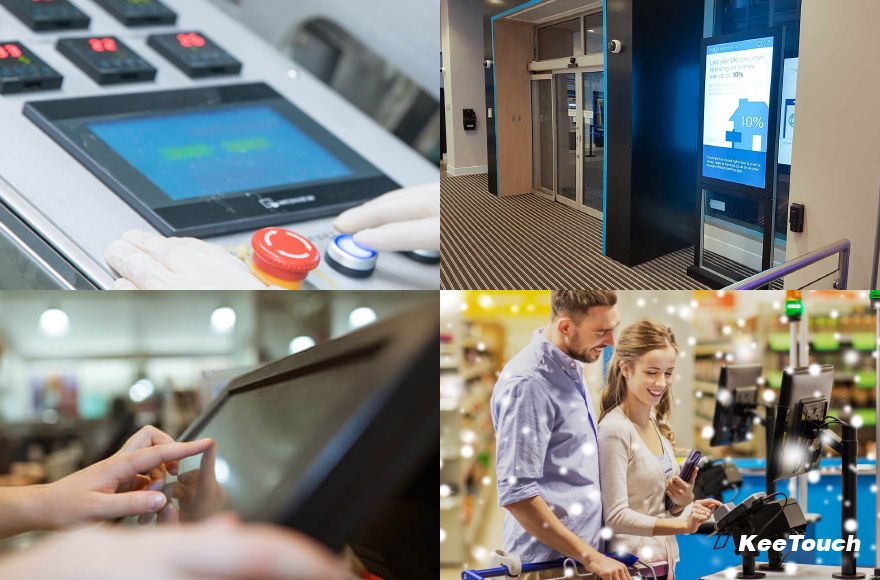

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.


28




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.


2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
