6H Hardness PCAP 15 Inch Touch Monitor 4:3 Display Ratio Open Frame

6H Hardness PCAP 15 Inch Touch Monitor 4:3 Display Ratio Open Frame
6H Hardness PCAP 15 Inch Touch Monitor 4:3 Display Ratio Open Frame 6H Hardness PCAP 15 Inch Touch Monitor 4:3 Display Ratio Open Frame 6H Hardness PCAP 15 Inch Touch Monitor 4:3 Display Ratio Open Frame 6H Hardness PCAP 15 Inch Touch Monitor 4:3 Display Ratio Open Frame 6H Hardness PCAP 15 Inch Touch Monitor 4:3 Display Ratio Open Frame
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, BIS
Model NumberKOT-150P-017-02
Minimum Order Quantity1 piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SeriesOTDisplay Type4:3 Ratio15"TFT-LCD, LEDbacklight
Active Area304.1x 228.1(mm)Support SystemXP,WIN7,WIN8,WIN10,Linux,Android
Light Transmittance≥85%Hardness6H
Operating Temp.0～50°COperating RH20%～80%
Storage Temp.-20～60°CStorage RH10%～90%
High Light

15 Inch Touch Monitor FCC

,

6H Hardness PCAP Touch Monitor

,

Open Frame PCAP Touch Monitor

Leave a Message
Product Description

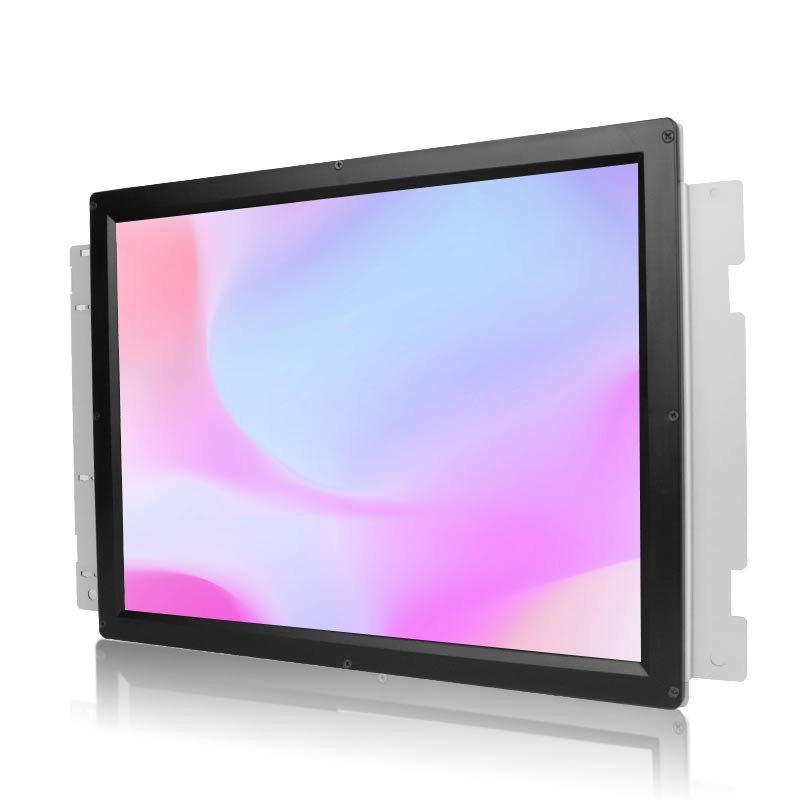

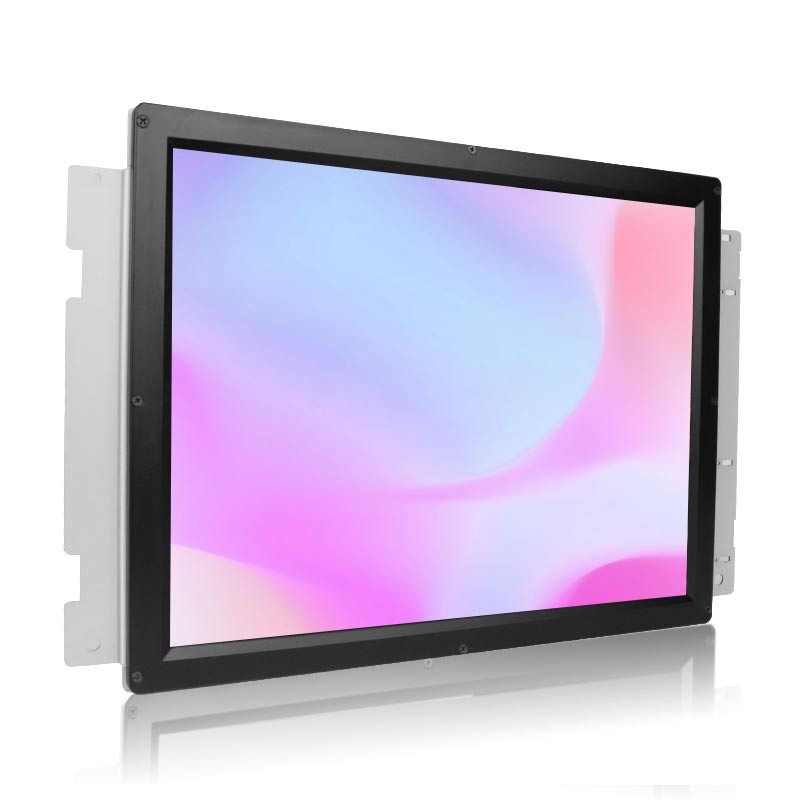

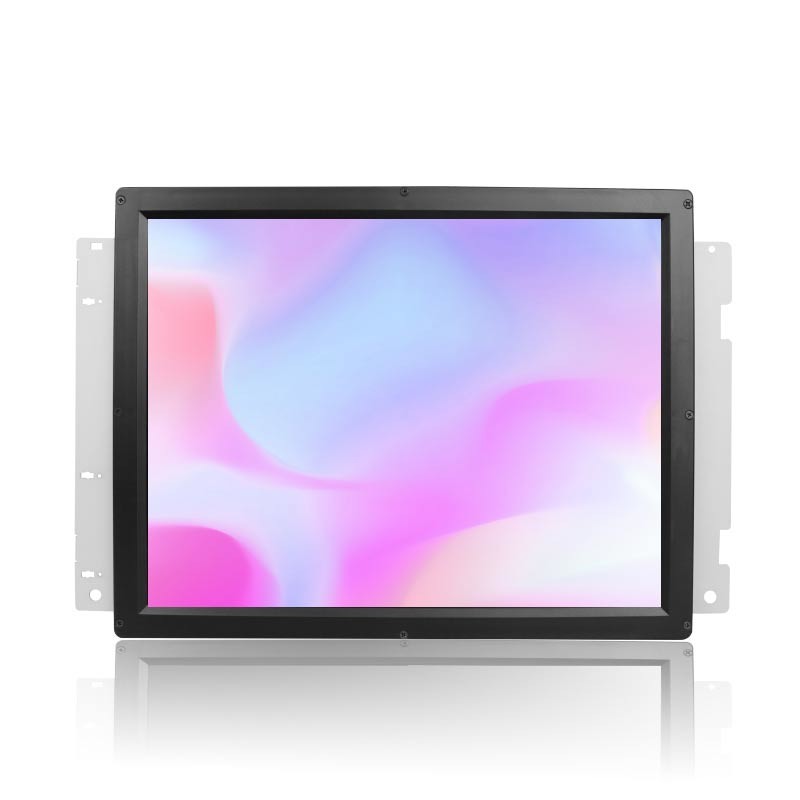

15 Inch PCAP Touch Monitor 4:3 Display Ratio Open Frame


PCAP Touch Monitor Main Features

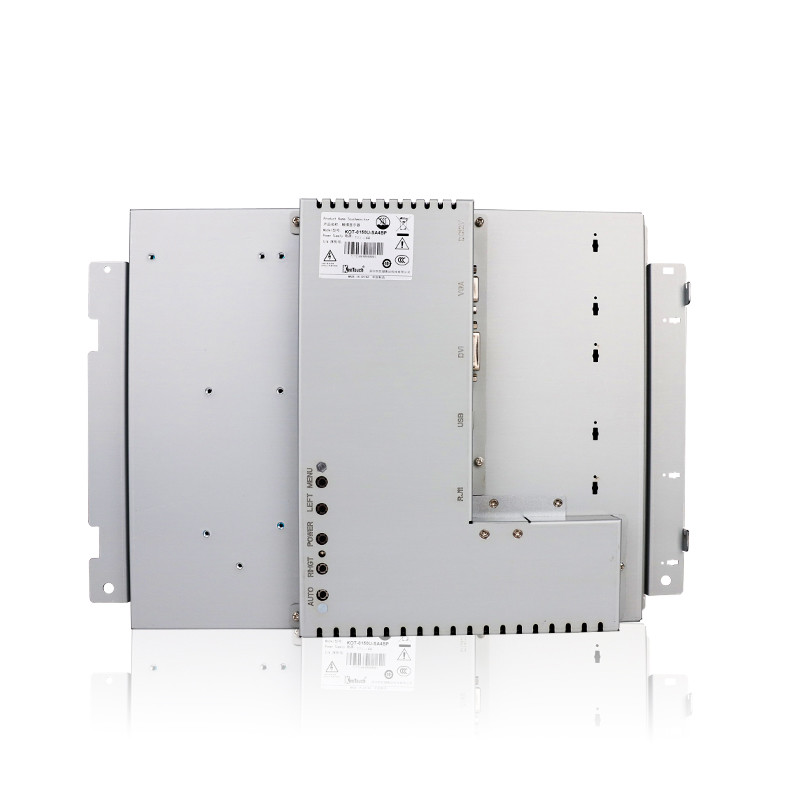

This PCAP touch monitor has features as below: 1024x768 high resolution, wide viewing angle and 4:3 ratio display. It also comes with anti-vandal and dust-proof functions. VGA and DVI interfaces are provided for use, USB port for touch. It supports multiple mounting options include VESA mount, horizontal and vertical brackets mount. Moreover, other sizes (7"-43") are for your option.





PCAP Touch Monitor Specifications

 Complete Machine

Model No.

KOT-0150U-SA4BW(P/N:KOT-150P-017-02)

Series

OT

Display   Type

4:3 Ratio15"TFT-LCD, LEDbacklight

Active   Area

304.1x 228.1(mm)

Monitor Dimensions (W*H*D)

398*268*56.3(mm)

Suggested Resolution

1024*768 @ 60Hz

Support Colors

16.2M

Brightness (Typ.)

Pure   LCD Panel

400cd/㎡

With   Touch Monitor

190cd/㎡

Response   Time (Typ.)

6ms

Viewing Angle(Typ.at CR＞10)）

Horizontal(left/right):    80°/80°

Vertical(up/down):  65°/80°

Contrast   Ratio (Typ.)

450(Min.), 800(Typ.)

Video   Input

VGA/DVI

Frequency (H/V)

30～80KHz / 60～75Hz



Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 V/AC, 50-60 Hz



Environment

Operating   Temp.

0～50°C

Operating   RH

20%～80%

Storage   Temp.

-20～60°C

Storage RH

10%～90%

MTBF

≥30,000 hours

LED   Back Light Life (Typ.)

≥30,000 hours

Weight（N.W/G.W）

3.3Kg(1 pcs) / 7.75Kg(2pcs in one package)

Package   dimensions

445*200*390(mm)(2pcs in one package)

 Power Consumption

Standby Power: ≤1.5W Operating   Power: ≤10.3W

OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness,   Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function,   Reset

Agency approvals

UL, FCC, CE, CB, RoHS

Regular Warranty

1 year


Touch   Screen

Touch   Type

15" Capacitive touch screens

Touch input

USB

Response Time

≤8ms

Hardness

6H

Light Transmittance

≥85%

Support   System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

(305±0.3)x (229±0.3)(mm)

Thickness

4±0.25(mm)

Touch Test

≥50,000,000 times

Input   Voltage

DC 5V±5%

 NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.





Applications

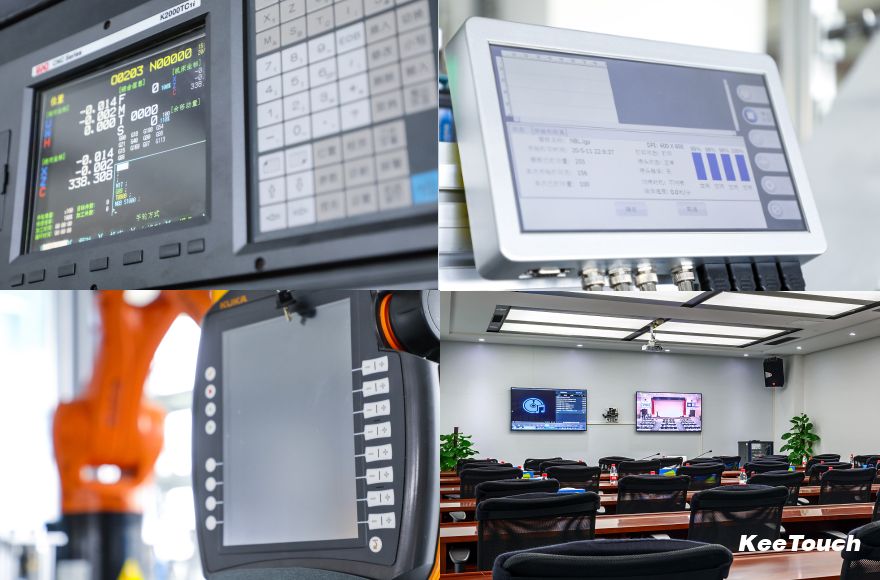

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


3. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


4. What package do you provide?

Our package usually is carton.


5. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.


6. What are the shipping ways?

We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.


7. Do you give any discount for the PCAP Touch Monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
