PCAP 17 Inch Touch Monitor 1280x1024 High Resolution For Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 5:4 Ratio 17" TFT-LCD | Hardness | 6H |
|---|---|---|---|
| Resolution | 1280×1024 @ 60Hz | Light Transmittance | ≥83% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android | Contrast Ratio (Typ.) | 1000:1 |
| Operating Temp. | 0～50°C | Operating RH | 20%～80% |
| Storage Temp. | -20～60°C | Storage RH | 10%～90% |
| High Light | PCAP 17 Inch Touch Monitor,1280x1024 17 Inch Touch Monitor,PCAP Touch Monitor 6H Hardness | ||
Product Description

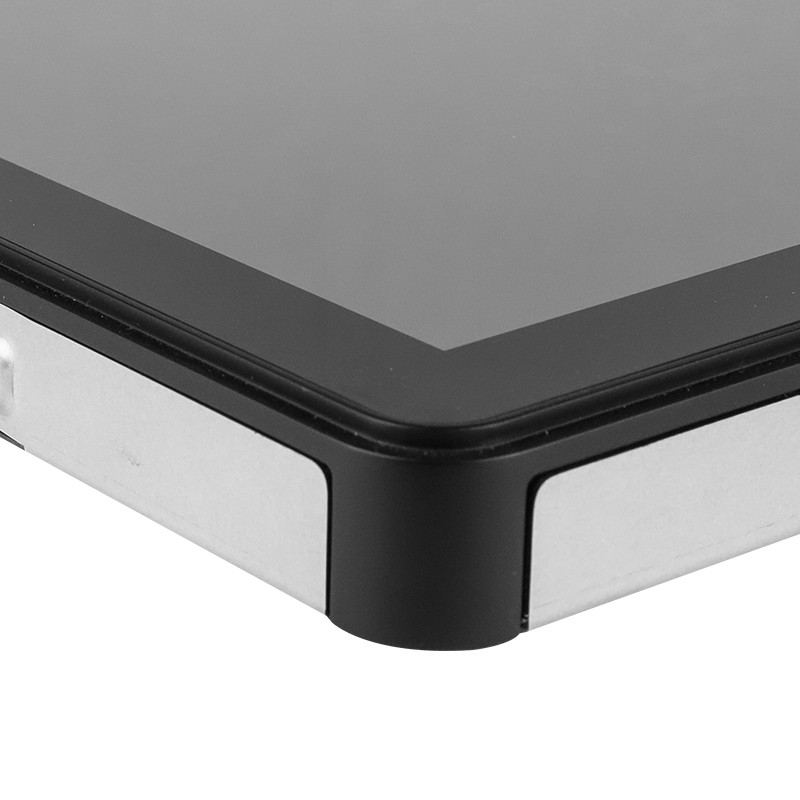

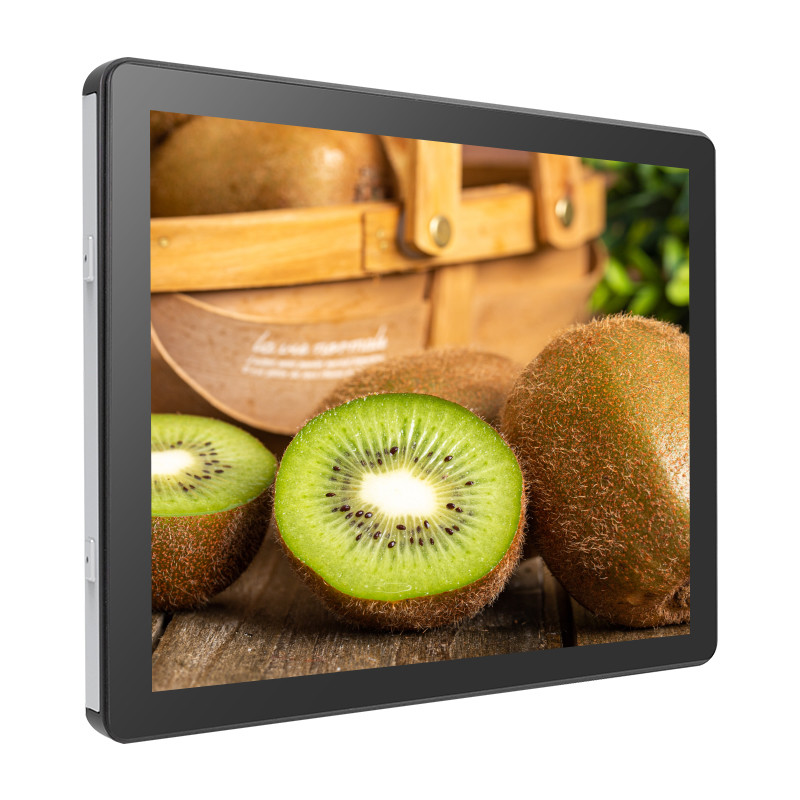

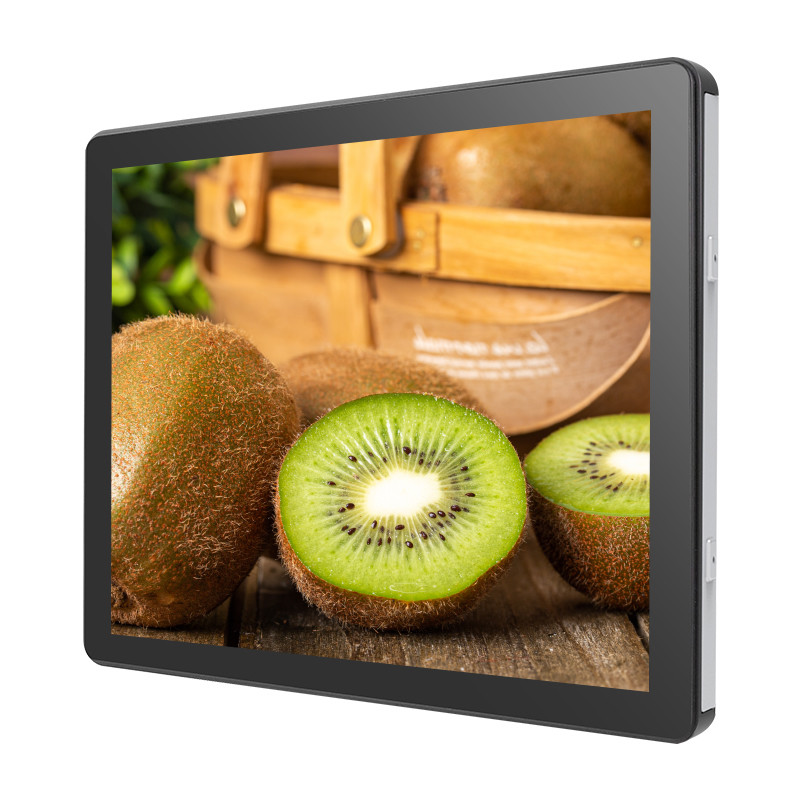

17 Inch PCAP Touch Monitor 1280x1024 High Resolution For Kiosks
PCAP Touch Monitor Main Features
This PCAP touch monitor comes with features as following: 1280x1024 high resolution, 1000:1 contrast ratio, wide viewing angle and 5:4 ratio with sun-protection and peep-proof functions. Also, It has vandal-proof, anti-glare and IP65 front side water-proof function. VGA and DVI interfaces are provided for use, and the USB port for touch. Multiple mounting methods are for your option, including VESA mount, horizontal and vertical brackets mount. Per your request, other sizes (7"- 43") are available.
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0170U-CA4P (P/N:KOT-170P-023) | |
Series | OT | |
Display Type | 5:4 Ratio 17" TFT-LCD | |
Active Area | 337.9*270.3(mm) | |
Monitor Dimensions (W*H*D) | 395.3*327.7*59.2(mm) | |
Suggested Resolution | 1280*1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 400cd/㎡ |
With Touch Monitor | 145cd/㎡ | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V 3A±5% Input (line) voltage: 100-240 V/AC, 50-60 Hz Power Adapter DC Head Inner Diameter:2.1mm | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 4.65Kg(1pcs)/10.25Kg(2 pcs in one package) | |
Package dimensions | 466*185*403(mm)(2 pcs in one package) | |
Power Consumption | Standby Power: ≤0.82W / Operating Power: ≤7.3W | |

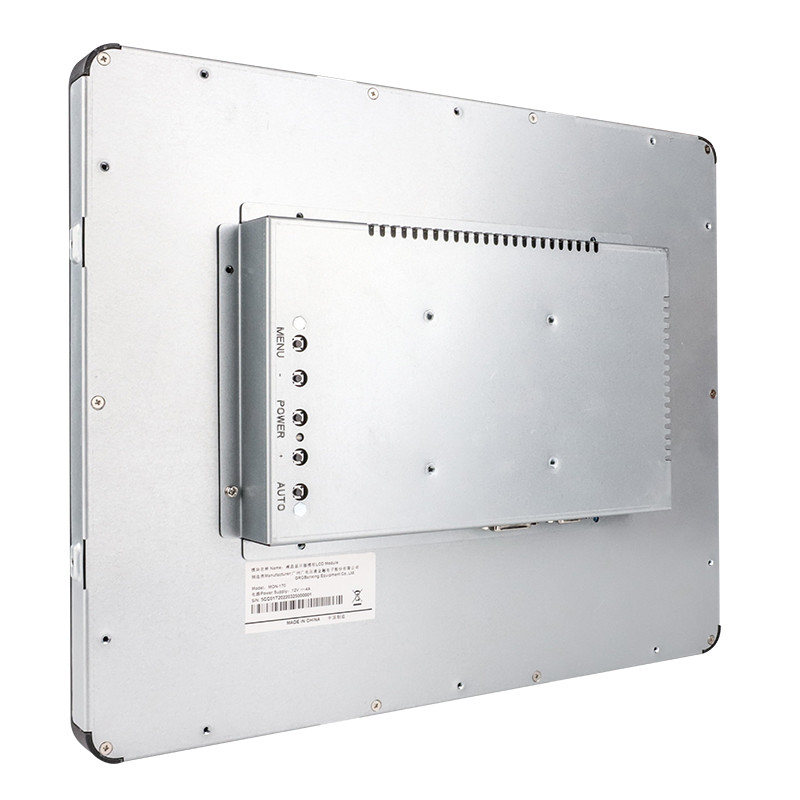

Mount Interface | 1. VESA 75mm 2. Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 17" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥83% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 340.92*273.34(mm) |
Thickness | 3.9±0.3(mm) |
Touch Test | ≥50,000,000 次 |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Peep-proof protection film | |
Type | Peep-proof protection film |
Guard against peep angle | Horizontal(left/right) 40°±5° |
Thickness | 570±50(um) |
Light Transmittance | ≥60%±5% |
Sun protection film | |
Type | sun protection film |
Ultraviolet blocking rate | 100% |
infrared blocking rate | 96.9% |
Thickness | 0.1mm |
Light Transmittance | 67.3% |
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
3. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
4. What package do you provide?
Our package usually is carton.
5. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
6. What are the shipping ways?
We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
7. Do you give any discount for the PCAP Touch Monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
