Outdoors 17 Inch PCAP Touch Monitor With Sun Protection Film
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Type | 5:4 Ratio 17" TFT-LCD | Active Area | 337.9*270.3(mm) |
|---|---|---|---|
| Resolution | 1280×1024 @ 60Hz | Support Colors | 16.7M |
| Response Time (Typ.) | 5ms | Contrast Ratio (Typ.) | 1000:1 |
| Operating Temp. | 0～50°C | Operating RH | 20%～80% |
| Storage Temp. | -20～60°C | Storage RH | 10%～90% |
| High Light | Outdoors PCAP Touch Monitor,Sun Protection Film PCAP Touch Monitor,Vandal Proof 17 Inch Touch Monitor | ||
Product Description

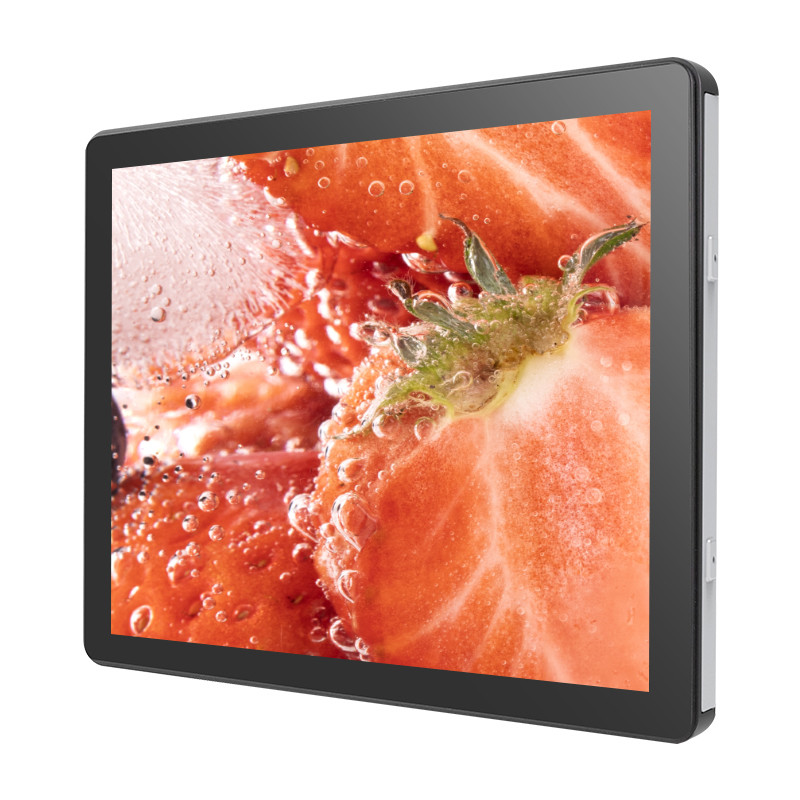

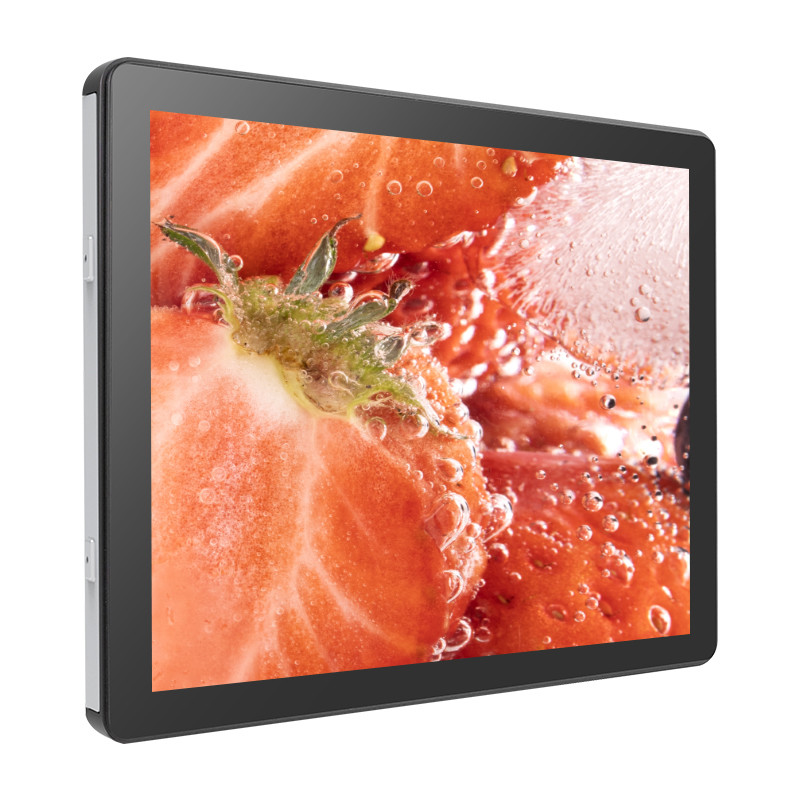

17 Inch PCAP Touch Monitor With Sun Protection Film For Outdoors
PCAP Touch Monitor Main Features

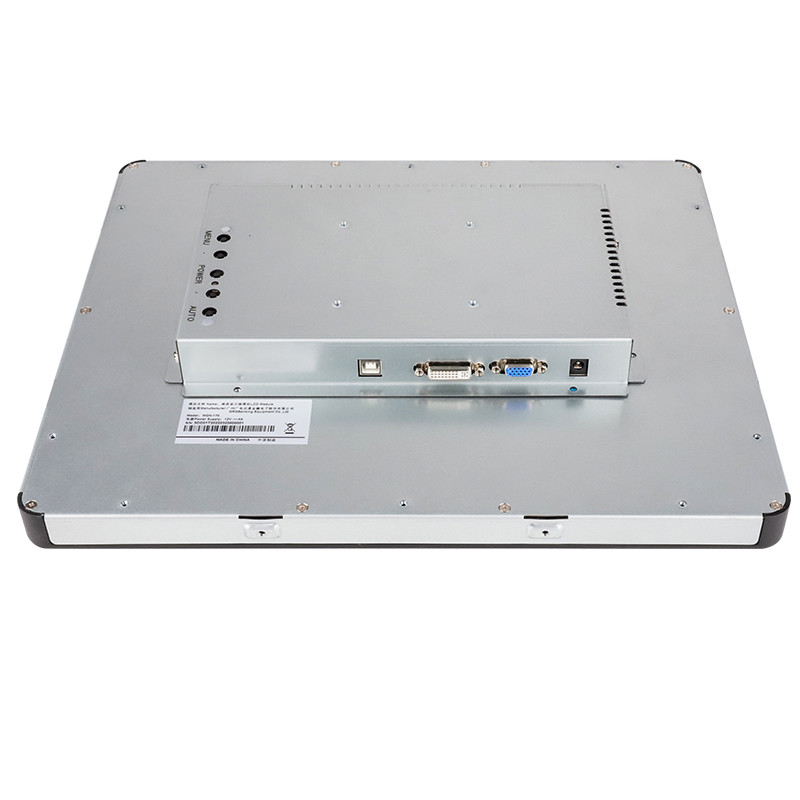

This PCAP touch monitor comes with peep-proof, sun-protection, IP65 waterproof and vandal-proof functions, delivering excellent quality image with multi-touch points, great interactive experience. The USB port, VGA and DVI interfaces are provided for use and it supports various operating systems: XP, WIN7, WIN8, WIN10, Linux, Android. And other sizes(7"-43") can be offered or Customized according to your individual requirements.
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0170U-CA4P (P/N:KOT-170P-023) | |
Series | OT | |
Display Type | 5:4 Ratio 17" TFT-LCD | |
Active Area | 337.9*270.3(mm) | |
Monitor Dimensions (W*H*D) | 395.3*327.7*59.2(mm) | |
Suggested Resolution | 1280*1024 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 400cd/㎡ |
With Touch Monitor | 145cd/㎡ | |
Response Time (Typ.) | 5ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 85°/85° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/DVI | |
Frequency (H/V) | 37.9～80KHz / 60～75Hz | |
Power Supply | Type: External brick Display voltage: DC 12V 3A±5% Input (line) voltage: 100-240 V/AC, 50-60 Hz Power Adapter DC Head Inner Diameter:2.1mm | |
Environment | Operating Temp. | 0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -20～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 4.65Kg(1pcs)/10.25Kg(2 pcs in one package) | |
Package dimensions | 466*185*403(mm)(2 pcs in one package) | |
Power Consumption | Standby Power: ≤0.82W / Operating Power: ≤7.3W | |
Mount Interface | 1. VESA 75mm 2. Mount bracket, horizontal or vertical mount | |

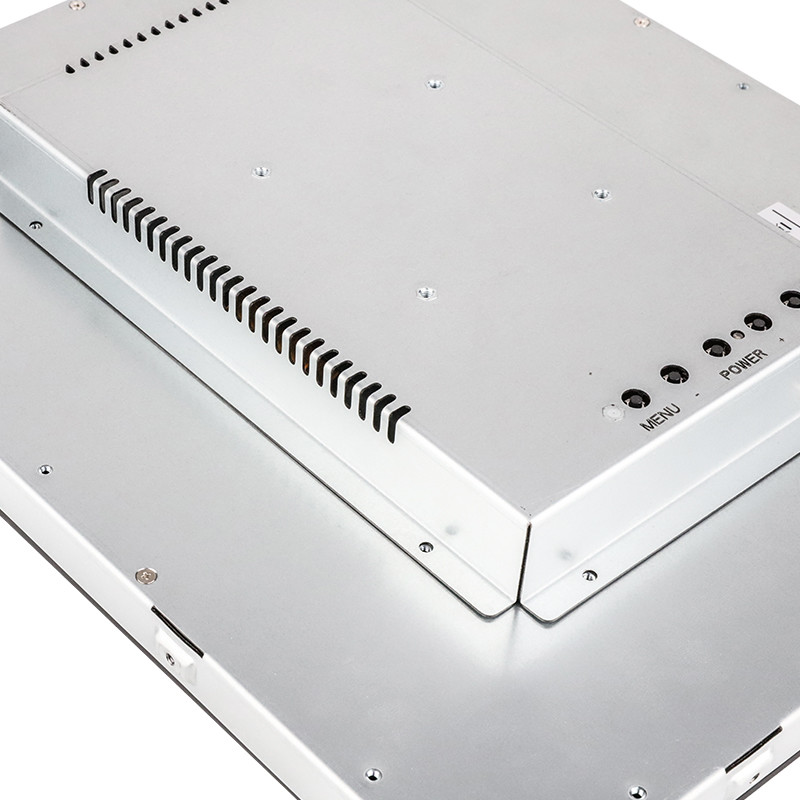

OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, UL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 17" Capacitive touch screens |
Touch input | USB |
Response Time | ≤10ms |
Hardness | 6H |
Light Transmittance | ≥83% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 340.92*273.34(mm) |
Thickness | 3.9±0.3(mm) |
Touch Test | ≥50,000,000 次 |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Peep-proof protection film | |
Type | Peep-proof protection film |
Guard against peep angle | Horizontal(left/right) 40°±5° |
Thickness | 570±50(um) |
Light Transmittance | ≥60%±5% |
Sun protection film | |
Type | sun protection film |
Ultraviolet blocking rate | 100% |
infrared blocking rate | 96.9% |
Thickness | 0.1mm |
Light Transmittance | 67.3% |
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )
5. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
