TFT LCD PCAP 15 Inch Touch Monitor Anti Vandal And Dust Proof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Series | OT | Display Type | 4:3 Ratio 15" TFT-LCD |
|---|---|---|---|
| Suggested Resolution | 1024*768 @ 60Hz | Support Colors | 16.7M |
| Operating Temp. | -0～50°C | Operating RH | 20%～80% |
| 20%～80% | -10～60°C | Storage RH | 10%～90% |
| Product Name | PCAP Touch Monitor | LED Back Light Life (Typ.) | ≥30,000 Hours |
| High Light | CCC 15 Inch Touch Monitor,PCAP 15 Inch Touch Monitor,Dust Proof PCAP Touch Monitor | ||
Product Description

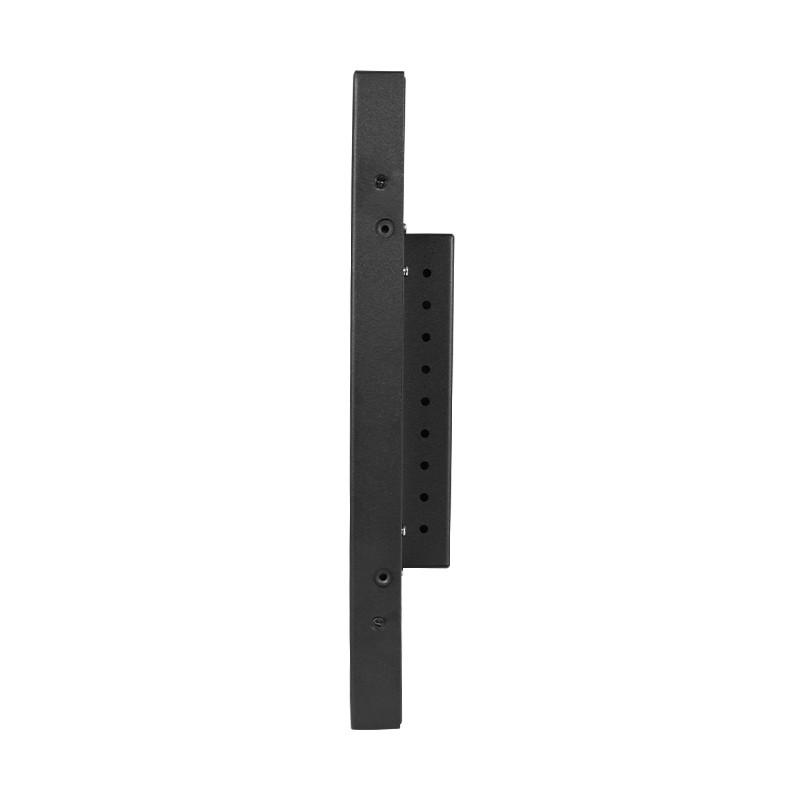

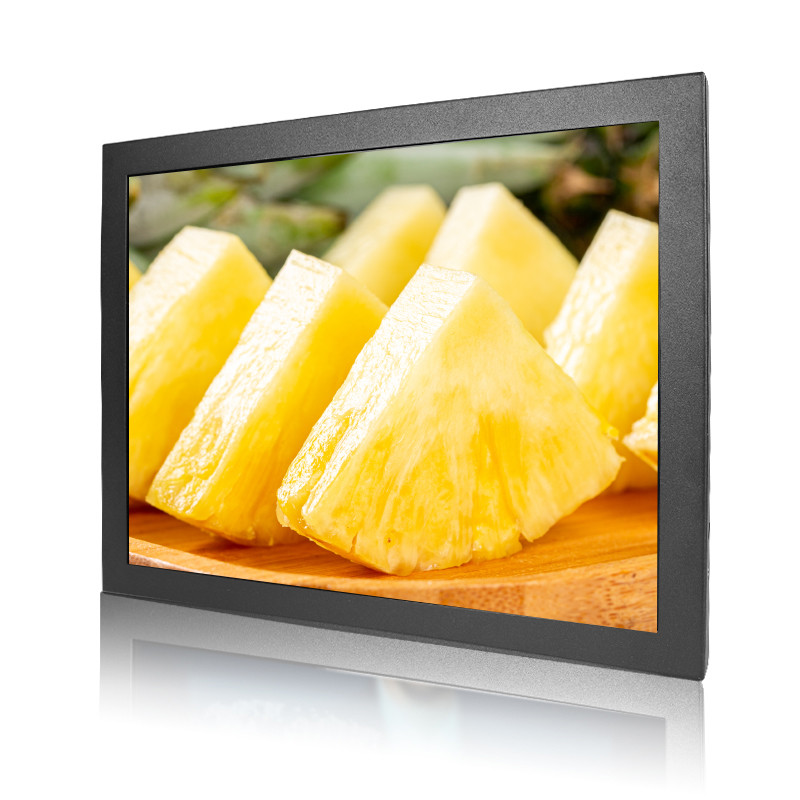

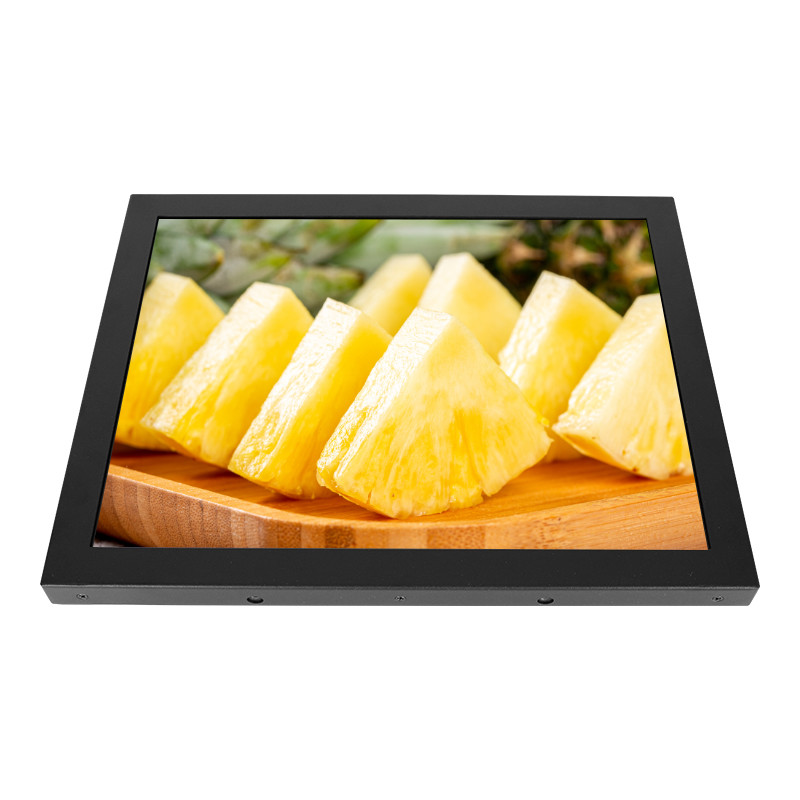

15 Inch PCAP Touch Monitor Anti-Vandal And Dust-Proof
PCAP Touch Monitor Description
This PCAP touch monitor comes with anti-vandal, anti-glare and dust-proof functions, delivering excellent quality image with 10 points super touch experience. The VGA, HDMI and USB interfaces for use and it supports various operating systems: XP, WIN7, WIN8,WIN10, Linux, Android. Also, other sizes (7"-43") are available.
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0150U-CA4P (P/N:KOT-150P-008) | |
Series | OT | |
Display Type | 4:3 Ratio 15" TFT-LCD | |
Active Area | 304.1*228.1(mm) | |
Monitor Dimensions (W*H*D) | 348*272*47.5(mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 350cd/㎡（Customizable 1000-1500 cd/㎡） |
With Touch Monitor | 297cd/㎡ | |
Response Time (Typ.) | 16ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 80°/80° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/HDMI | |
Frequency (H/V) | 50～80KHz / 55～70Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -10～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 3.5Kg(1pcs)/8Kg(2pcs in one package) | |
Package dimensions | 429*183*356(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 15" Capacitive touch screens |
Touch input | USB |
Response Time | ≤8ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 305.1*229.1(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
5. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
