FCC Certified 15 Inch PCAP Touch Monitor Anti Glare For Kiosks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Series | OT | Display Type | 4:3 Ratio 15" TFT-LCD |
|---|---|---|---|
| Suggested Resolution | 1024*768 @ 60Hz | Support Colors | 16.7M |
| Response Time (Typ.) | 16ms | Contrast Ratio (Typ.) | 1000:1 |
| Video Input | VGA/HDMI | Frequency (H/V) | 37.9～80KHz / 60～75Hz |
| Product Name | PCAP Touch Monitor | LED Back Light Life (Typ.) | ≥30,000 Hours |
| High Light | FCC 15 Inch Touch Monitor,Anti Glare PCAP Touch Monitor,60Hz PCAP Touch Monitor | ||
Product Description

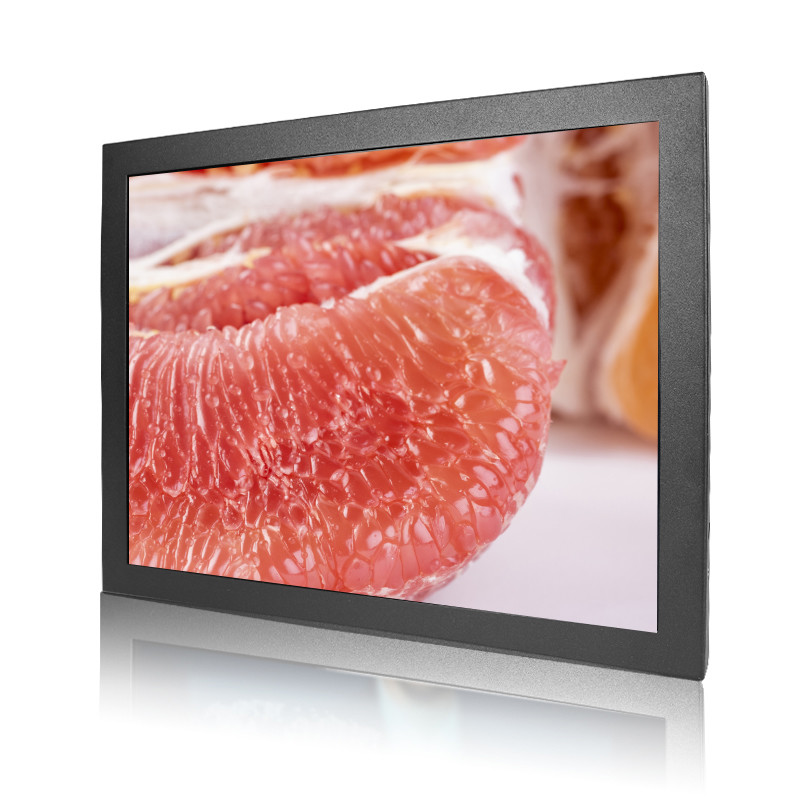

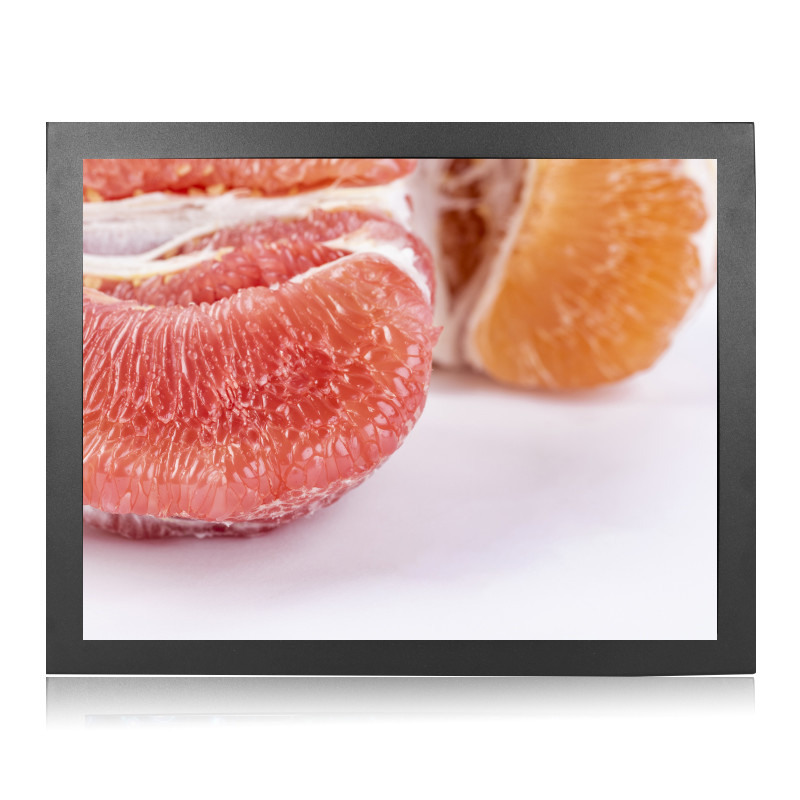

15 Inch PCAP Touch Monitor Anti-Glare For Kiosks
PCAP Touch Monitor Description
KeeTouch PCAP touch screen, excellent interactive experience
High resolution, high contrast, wide viewing angle with super image quality
Anti-vandal, anti-glare and dust-proof PCAP touch monitor

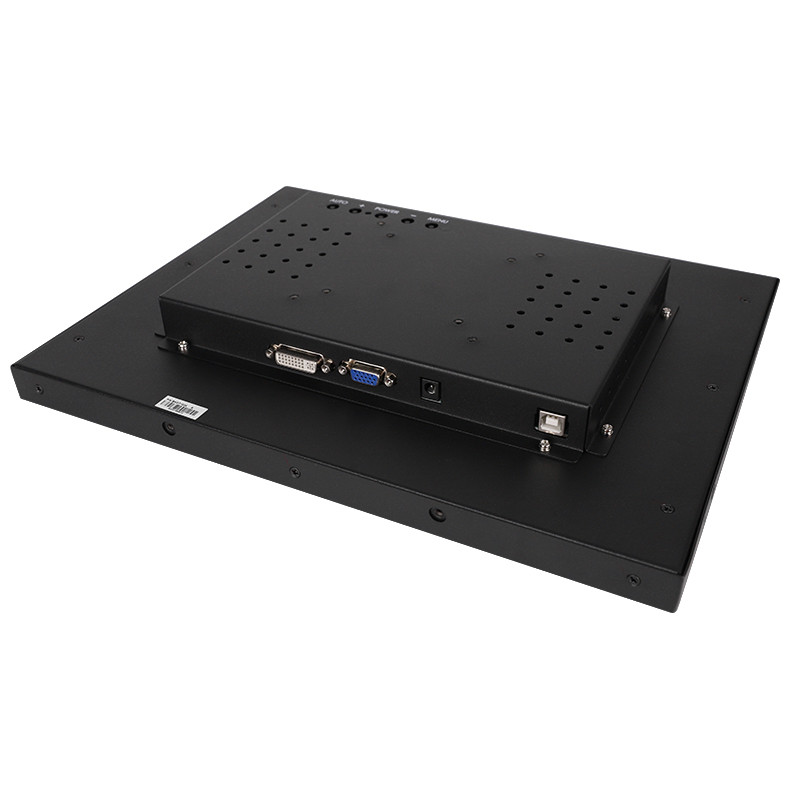

VGA&HDMI interfaces, USB for touch
Multiple mounting options include VESA mount, horizontal and vertical brackets mount
Operation system: XP, WIN7, WIN8, WIN10, Linux, Android
Other sizes can be offered (7"- 43")
PCAP Touch Monitor Specifications
Complete Machine | ||
Model No. | KOT-0150U-CA4P (P/N:KOT-150P-008) | |
Series | OT | |
Display Type | 4:3 Ratio 15" TFT-LCD | |
Active Area | 304.1*228.1(mm) | |
Monitor Dimensions (W*H*D) | 348*272*47.5(mm) | |
Suggested Resolution | 1024*768 @ 60Hz | |
Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 350cd/㎡ （Customizable 1000-1500 cd/㎡） |
With Touch Monitor | 297cd/㎡ | |
Response Time (Typ.) | 16ms | |
Viewing Angle(Typ.at CR＞10)） | Horizontal(left/right) | 80°/80° |
Vertical(up/down) | 80°/80° | |
Contrast Ratio (Typ.) | 1000:1 | |
Video Input | VGA/HDMI | |
Frequency (H/V) | 50～80KHz / 55～70Hz | |
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |
Environment | Operating Temp. | -0～50°C |
Operating RH | 20%～80% | |
Storage Temp. | -10～60°C | |
Storage RH | 10%～90% | |
MTBF | ≥30,000 Hours | |
LED Back Light Life (Typ.) | ≥30,000 Hours | |
Weight（N.W/G.W） | 3.5Kg(1pcs)/8Kg(2pcs in one package) | |
Package dimensions | 429*183*356(mm)(2pcs in one package) | |
Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W | |
Mount Interface | 1. VESA 75mm and 100mm 2. Mount bracket, horizontal or vertical mount | |
OSD Control | Buttons | AUTO,+,POWER,-,MENU |
Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
CCC, ETL, FCC, CE, CB, RoHS | ||
Regular Warranty | 1 year | |
Touch Screen | |
Touch Type | 15" Capacitive touch screens |
Touch input | USB |
Response Time | ≤8ms |
Hardness | 6H |
Light Transmittance | ≥85% |
Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
Active Area | 305.1*229.1(mm) |
Thickness | 4.3±0.2(mm) |
Touch Test | ≥50,000,000 times |
Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.
Applications
KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.
2. What’s your MOQ for the PCAP Touch Monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the PCAP Touch Monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the PCAP Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
