17 Inch PCAP IP65 Front Side Waterproof Touch Monitor Anti Vandal

17 Inch PCAP IP65 Front Side Waterproof Touch Monitor Anti Vandal
17 Inch PCAP IP65 Front Side Waterproof Touch Monitor Anti Vandal 17 Inch PCAP IP65 Front Side Waterproof Touch Monitor Anti Vandal 17 Inch PCAP IP65 Front Side Waterproof Touch Monitor Anti Vandal 17 Inch PCAP IP65 Front Side Waterproof Touch Monitor Anti Vandal 17 Inch PCAP IP65 Front Side Waterproof Touch Monitor Anti Vandal
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, BIS
Model NumberKOT-0170U-CA4P (KOT-170P-016)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display VoltageDC 12V±5%Operating RH20%～80%
Storage RH10%～90%MTBF≥30,000 Hours
Light Transmittance≥83%Power ConsumptionStandby Power: ≤1.5W / Operating Power: ≤20W
Mount InterfaceVESA 75mm And 100mmVideo InputVGA/DVI
Frequency (H/V)37.9～80KHz / 60～75HzProduct NamePCAP Touch Monitor
High Light

PCAP Waterproof Touch Monitor

,

Anti Vandal Waterproof Touch Monitor

,

IP65 Waterproof PCAP Touch Monitor

Leave a Message
Product Description

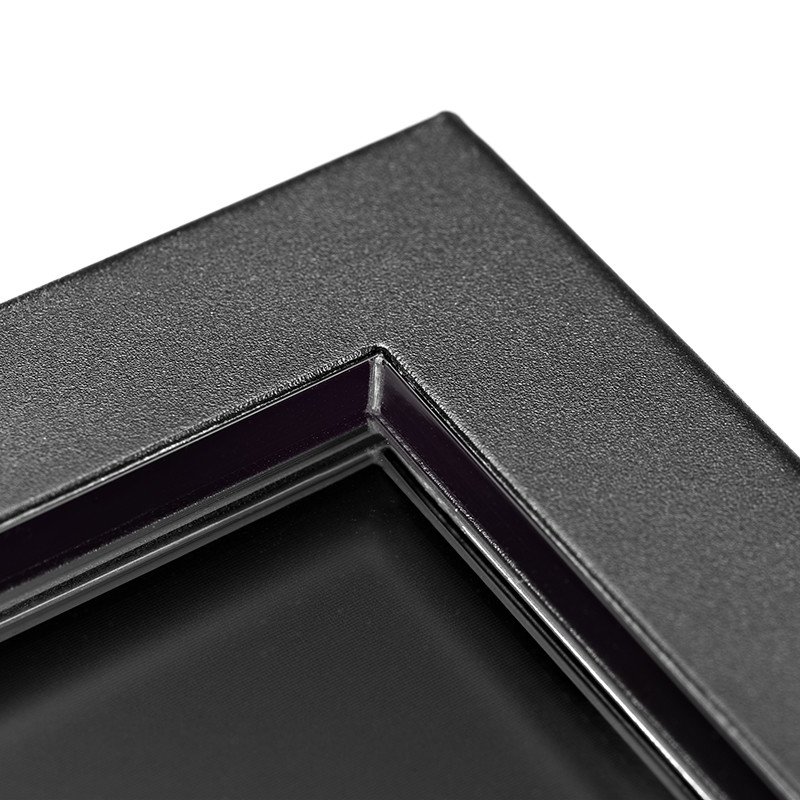

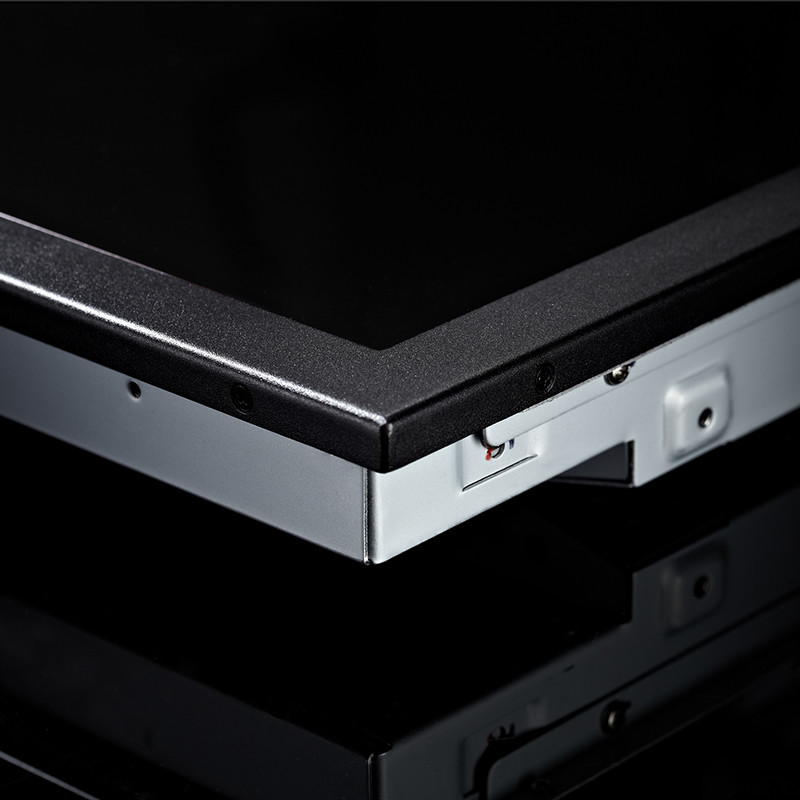

17 Inch PCAP Touch Monitor Anti-Vandal IP65 Front Side Waterproof



PCAP Touch Monitor Description


This PCAP touch monitor comes with features as below: resolution 1280x1024, contrast ratio 1000:1 and broad viewing angle. Pure flat designed PCAP touch monitor is IP65 surface waterproof. Also, the PCAP touch monitor has anti-vandal and anti-glare functions. Both VGA and DVI interfaces are provided for use, also the USB for touch. And multiple mounting options are available, including VESA mount, horizontal and vertical brackets mount. Support operating system: XP, WIN7, WIN8, WIN10, Linux, Android.





PCAP Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0170U-CA4P (P/N:KOT-170P-016)

 Series

 OT

 Display Type

5:4 Ratio 17" TFT-LCD

 Active Area

337.9*270.3(mm)

 Monitor Dimensions (W*H*D)

378.9*313.3*47.3(mm)

 Suggested Resolution

1280*1024 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

500cd/㎡

With Touch Monitor

410cd/㎡

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI

 Frequency (H/V)

37.9～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

4.1Kg(1pcs)/9.85Kg(2 pcs in one   package)

 Package dimensions

466*185*403(mm)(2 pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power:   ≤20W

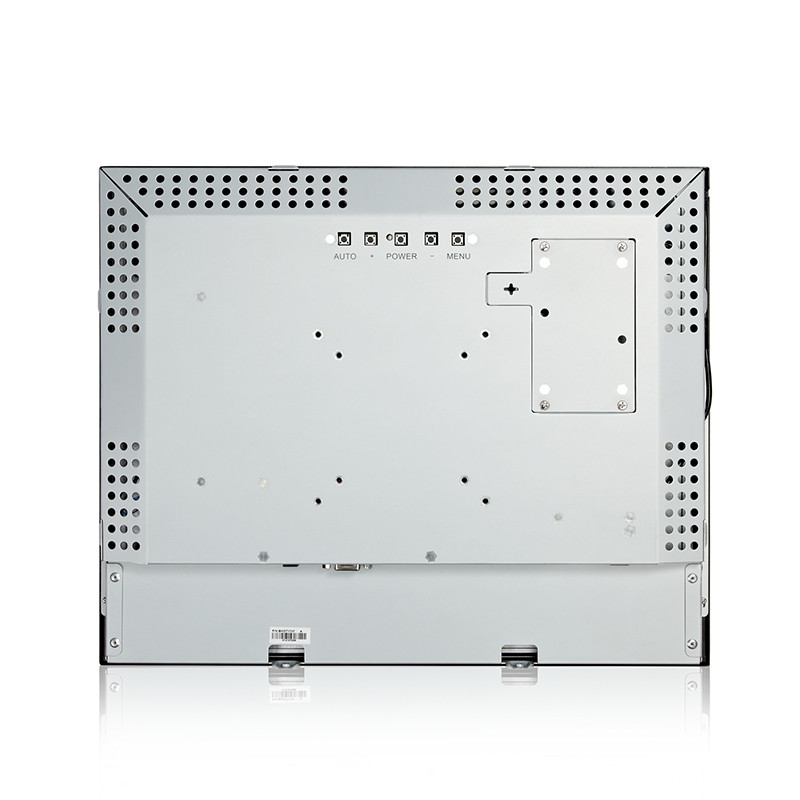

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,   Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC,   CE, CB, RoHS

 Regular Warranty

1 year



Touch Screen

Touch Type

17" Capacitive   touch screens

Touch   input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥83%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

340.92*273.34(mm)

Thickness

3.9±0.3(mm)

Touch Test

≥50,000,000 times

Input Voltage

DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.




Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.




FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


3. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.


4. What package do you provide?

Our package usually is carton.


5. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.


6. What are the shipping ways?

We will ship the goods according to customer's requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.


7. Do you give any discount for the PCAP Touch Monitor?

We will do utmost to support you with the competitive price, also good service will be offered.
