Resolution 1280x1024 17 Inch PCAP Touch Monitor Open Frame

Resolution 1280x1024 17 Inch PCAP Touch Monitor Open Frame
Resolution 1280x1024 17 Inch PCAP Touch Monitor Open Frame Resolution 1280x1024 17 Inch PCAP Touch Monitor Open Frame Resolution 1280x1024 17 Inch PCAP Touch Monitor Open Frame Resolution 1280x1024 17 Inch PCAP Touch Monitor Open Frame Resolution 1280x1024 17 Inch PCAP Touch Monitor Open Frame
Place of OriginShenzhen, China
Brand NameKeeTouch
CertificationFCC, CE, CB, RoHS, UL, BIS
Model NumberKOT-0170U-CA4P (KOT-170P-016)
Minimum Order Quantity1 piece
PriceNegotiable
Packaging DetailsCarton
Delivery Time7-15 work days
Payment TermsT/T, L/C, Western Union
Supply Ability10000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display VoltageDC 12V±5%Operating Temp.0～50°C
Storage Temp.-20～60°CLED Back Light Life (Typ.)≥30,000 Hours
Light Transmittance≥83%Support SystemXP,WIN7,WIN8,WIN10,Linux,Android
Touch Test≥50,000,000Video InputVGA/DVI
Frequency (H/V)37.9～80KHz / 60～75HzProduct NamePCAP Touch Monitor
WarrantyOne Year
High Light

FCC PCAP Touch Monitor

,

1280x1024 PCAP Touch Monitor

,

PCAP Open Frame Touch Monitor

Leave a Message
Product Description

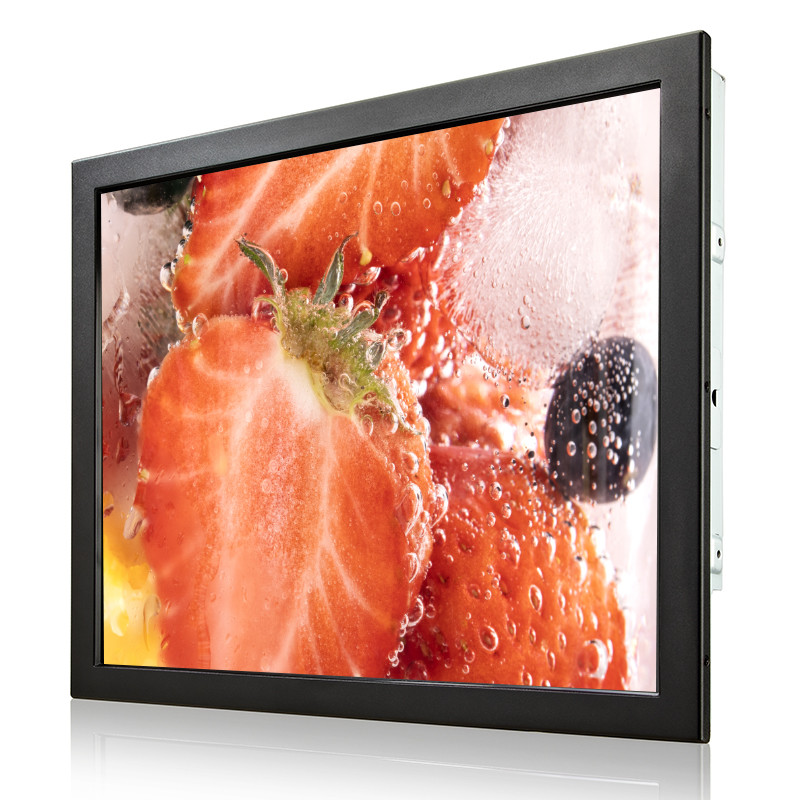

17 Inch PCAP Touch Monitor Open Frame Resolution 1280x1024


PCAP Touch Monitor Description


This PCAP touch monitor has anti-glare, anti-vandal and IP65 surface waterproof functions,with stable and sensitive touch experience and high-definition visual enjoyment. With pure flat and narrow edge design, the PCAP touch monitor is very sleek and fashionable. The VGA, DVI and USB cables for use and it supports operating systems: XP, WIN7, WIN8, WIN10, Linux, Android. According to your requirements, other sizes (7"-43") can be offered and customized.




PCAP Touch Monitor Specifications

 Complete Machine

 Model No.

 KOT-0170U-CA4P (P/N:KOT-170P-016)

 Series

 OT

 Display Type

5:4 Ratio 17" TFT-LCD

 Active Area

337.9*270.3(mm)

 Monitor Dimensions (W*H*D)

378.9*313.3*47.3(mm)

 Suggested Resolution

1280*1024 @ 60Hz

 Support Colors

16.7M

 Brightness (Typ.)

Pure LCD Panel

500cd/㎡

With Touch Monitor

410cd/㎡

 Response Time (Typ.)

5ms

 Viewing Angle(Typ.at CR＞10)）

 Horizontal(left/right)

 85°/85°

 Vertical(up/down)

 80°/80°

 Contrast Ratio (Typ.)

1000:1

 Video Input

VGA/DVI

 Frequency (H/V)

37.9～80KHz / 60～75Hz

 Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

 Environment

Operating Temp.

0～50°C

Operating RH

20%～80%

Storage Temp.

-20～60°C

Storage RH

10%～90%

 MTBF

≥30,000 Hours

 LED Back Light Life (Typ.)

≥30,000 Hours

 Weight（N.W/G.W）

4.1Kg(1pcs)/9.85Kg(2 pcs in one   package)

 Package dimensions

466*185*403(mm)(2 pcs in one package)

 Power Consumption

Standby Power: ≤1.5W / Operating Power:   ≤20W

 Mount Interface

 1.VESA 75mm and 100mm

 2.Mount bracket, horizontal or vertical mount

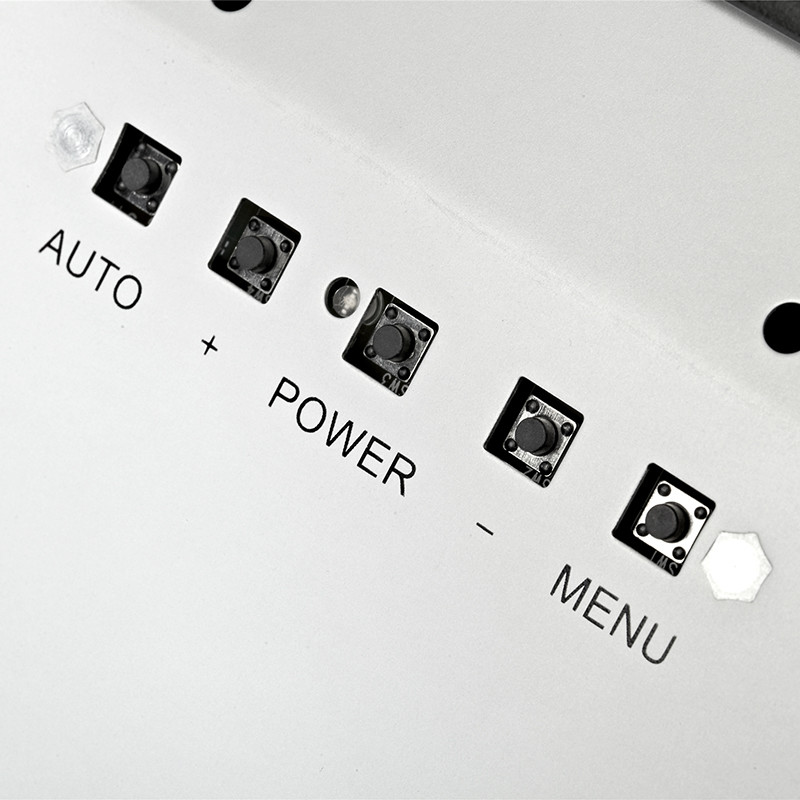

 OSD Control

Buttons

 AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location,   Languages, Function, Reset

 Agency approvals

 CCC, UL, FCC,   CE, CB, RoHS

 Regular Warranty

1 year


Touch Screen

Touch Type

17" Capacitive   touch screens

Touch   input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

≥83%

Support System

XP,WIN7,WIN8,WIN10,Linux,Android

Active Area

340.92*273.34(mm)

Thickness

3.9±0.3(mm)

Touch Test

≥50,000,000 次

Input Voltage

DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.




Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.





FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer founded in 2006, located in Shenzhen, China.


2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.


3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).


4. What is your payment method?

We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )


5. What is your delivery time?

 3-5 work days for inventory orders, 7-15 business days for bulk production.
